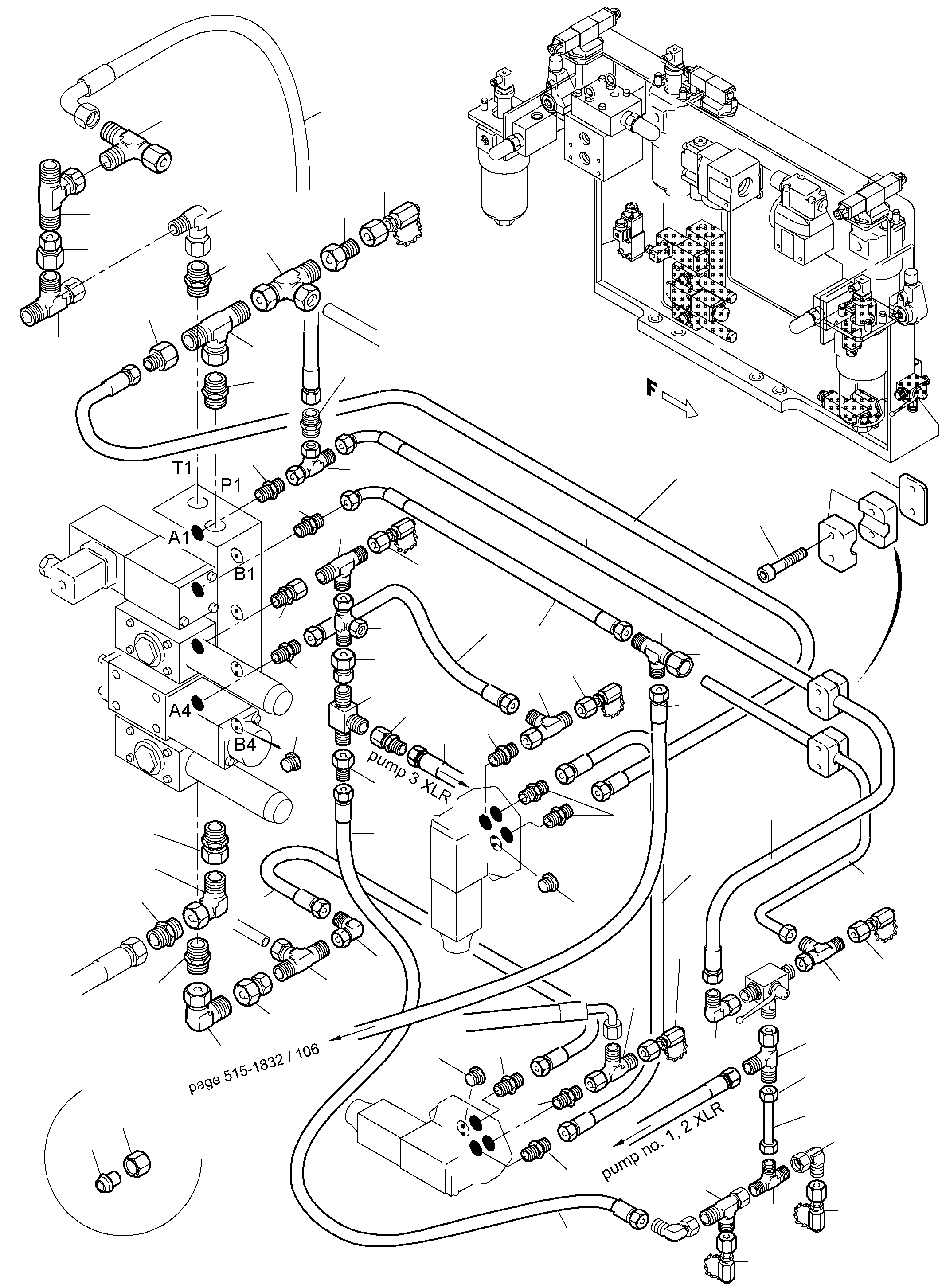

Diagram image 1 of 5

PC5500-6 S/N 15086

04 05 05 05 06 06 06 120 121 122 14 14 14 14 14 14 14 14 14 26 26 28 28 28 28 28 28 28 28 28 29 29 29 29 31 31 31 39 40 40 44 44 44 44 44 48 48 49 49 50 50 51 51 52 53 54 55 56 56 57 58 59 60 62 64 69 69 70 70 73 75 76 77 80 80 80 81 82 83 83 85

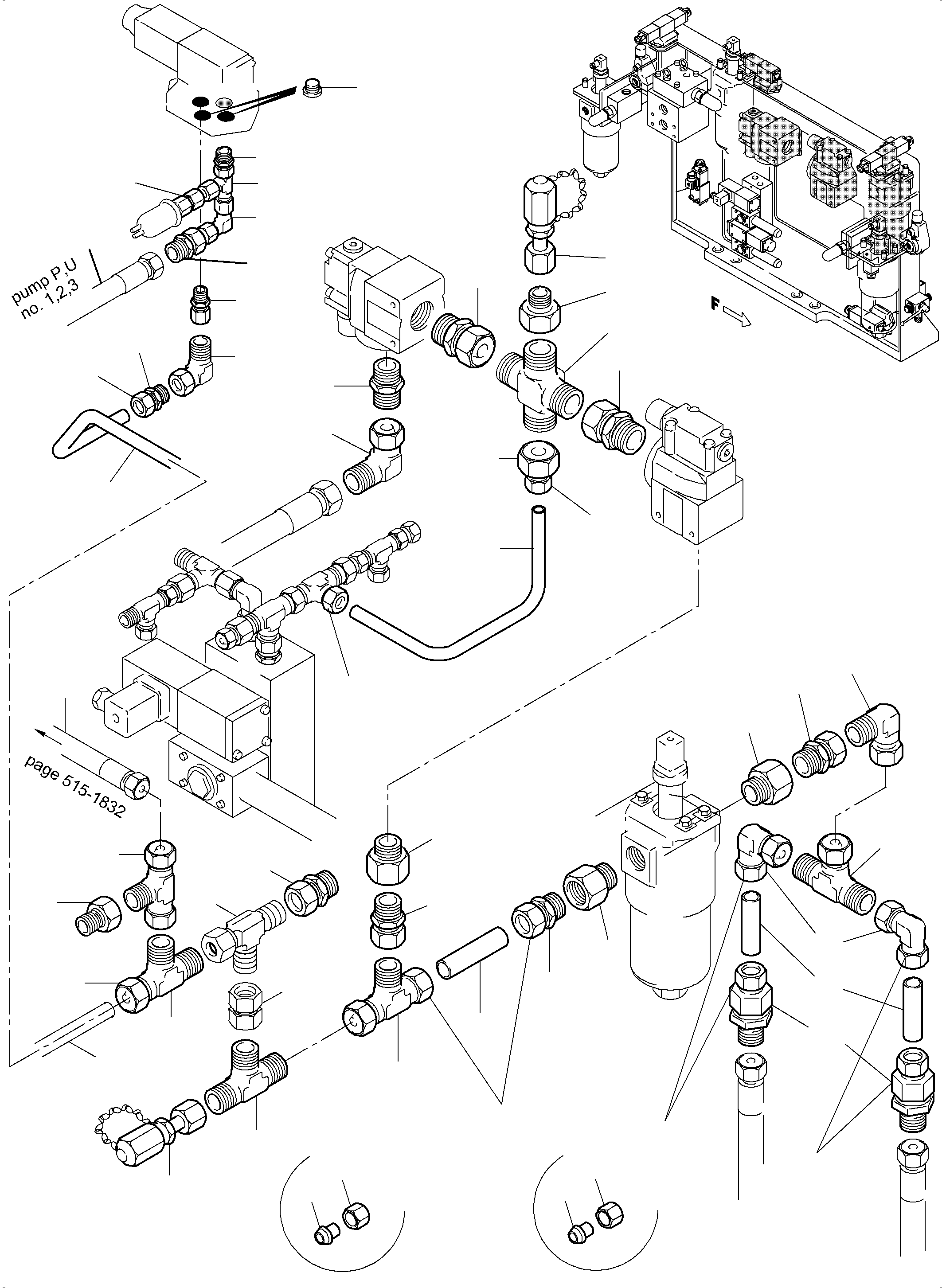

PC5500-6 S/N 15086

15 15 16 17 18 19 20 21 22 23 23 23 23 23 23 23 24 24 24 25 25 26 26 26 61 64 64 68 71 78 78 79 79 84

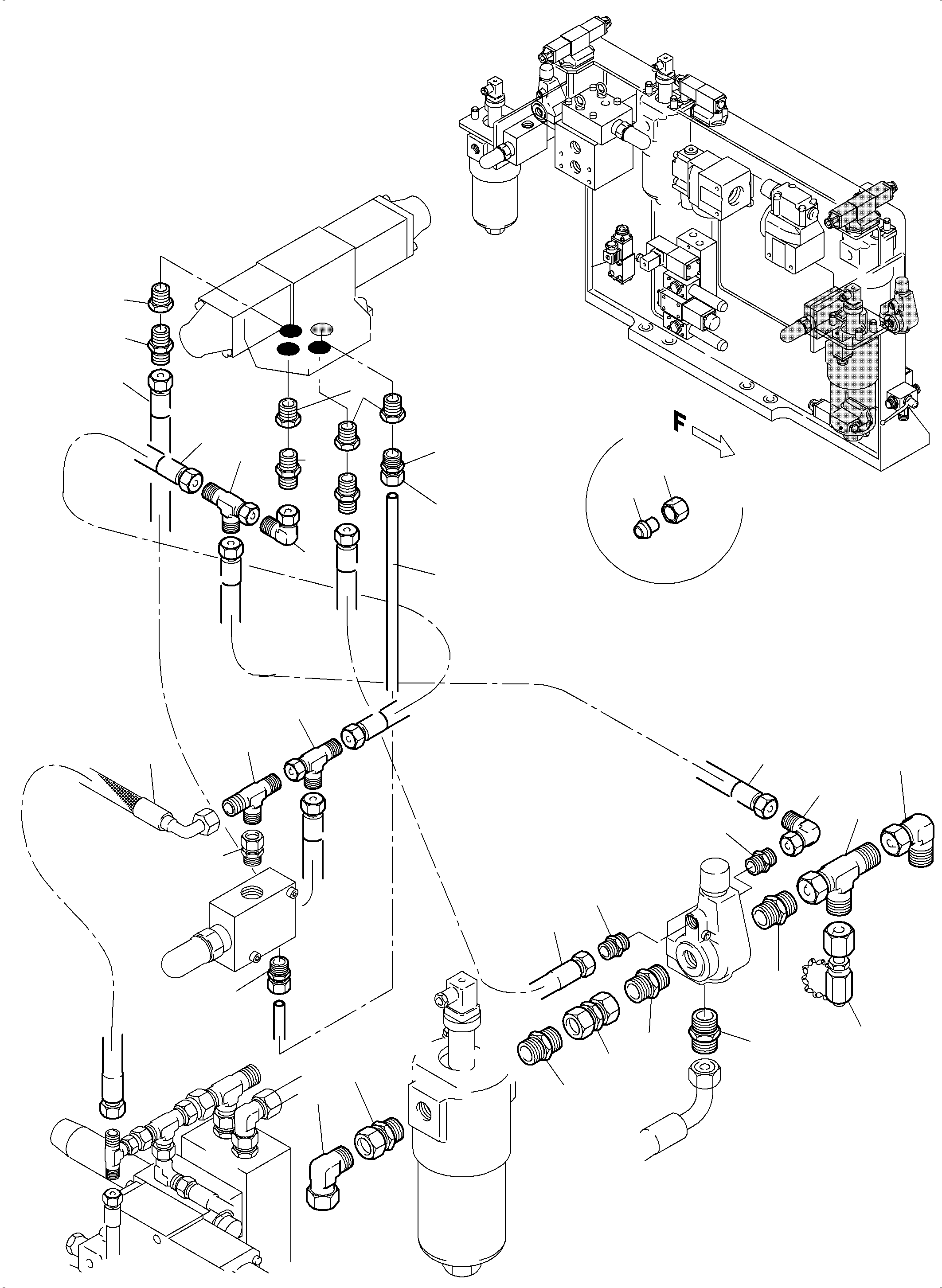

PC5500-6 S/N 15086

15 15 16 16 17 18 19 20 21 22 23 23 23 23 23 23 24 24 25 25 25 26 26 26 63 64 65 68 72 74 78 78 79 79

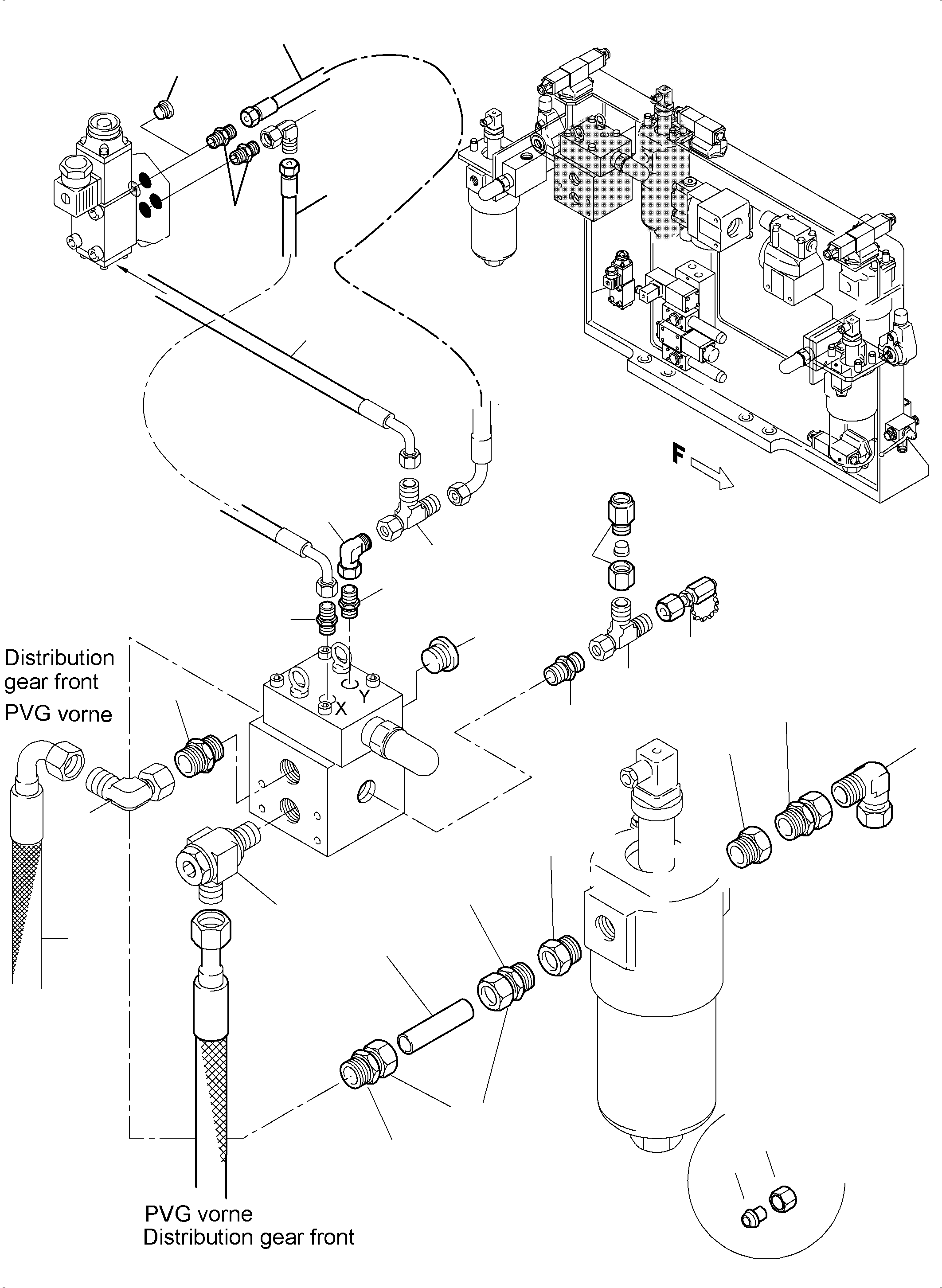

PC5500-6 S/N 15086

01 01 01 02 02 02 02 02 03 03 03 03 03 07 07 07 08 08 09 09 11 11 11 11 12 12 12 12 124 125 27 27 28 29 29 30 30 31 32 33 33 34 35 36 37 38 39 41 41 42 43 44 45 46 47 48 48 50 50 51 67

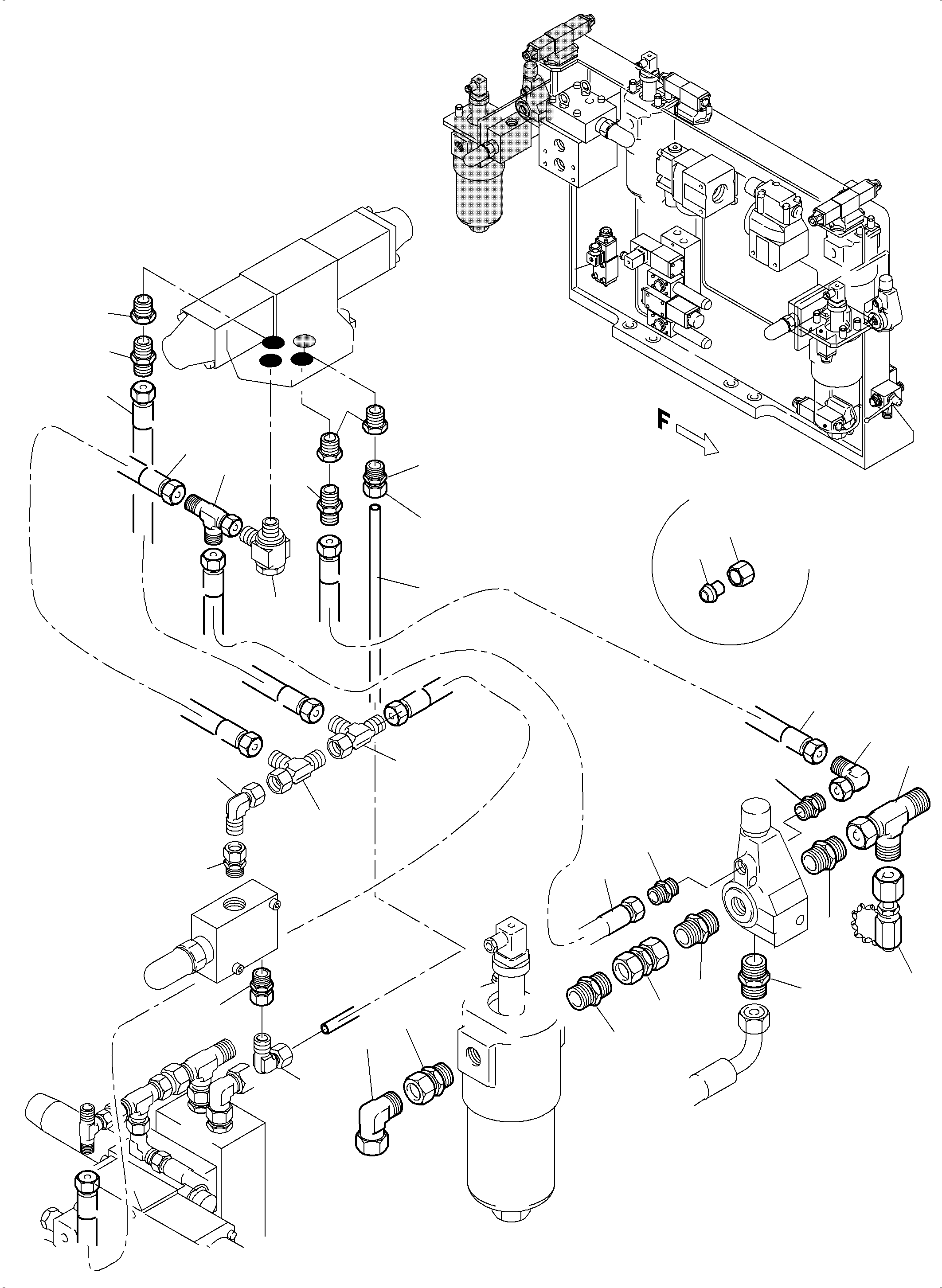

PC5500-6 S/N 15086

07 07 08 08 09 09 10 11 11 12 12 126 127 13 13 14 14 14 23 26 28 29 29 31 66 69 69 74 91 92

#	Part Number	Partname	Quantity
01	215 812 99	Pipe Ш 18	-2
02	906 349 40	Olive	2
03	371 276 99	Union nut	2
04	215 424 99	Pipe Ш 12	-2
05	906 347 40	Olive	4
06	371 274 99	Union nut	4
07	516 192 98	Socket	5
08	374 439 99	Socket	4
09	516 161 98	Socket	5
10	215 816 99	Pipe Ш 28	-2
11	906 350 40	Olive	8
12	371 278 99	Union nut	8
13	374 431 99	Socket	2
14	371 459 99	Socket	14
15	374 412 99	Socket	2
16	516 166 98	Socket	2
17	516 100 98	Socket	2
18	374 419 99	Socket	2
19	516 623 98	Socket	2
20	906 763 40	Union	2
21	374 439 99	Socket	2
22	004 684 98	Coupling	2
23	374 416 99	Socket	16
24	516 156 98	Socket	4
25	516 624 98	Socket	8
26	516 173 98	Socket	9
27	516 184 98	Socket	2
28	516 174 98	Socket	11
29	516 157 98	Socket	8
30	635 997 40	Socket	2
31	255 694 40	Plug	10
32	516 170 98	Socket	1
33	215 816 99	Pipe Ш 28	-2
34	906 741 40	Valve	2
35	516 187 98	Socket	1
36	516 177 98	Socket	1
37	634 310 40	Union	1
38	621 127 40	Union	1
39	516 169 98	Socket	2
40	516 159 98	Socket	2
41	516 188 98	Socket	2
42	516 622 98	Union	1
43	576 409 40	Union	1
44	502 752 98	Coupling	6
45	576 408 40	Union	1
46	374 460 99	Socket	1
47	516 162 98	Socket	1
48	516 176 98	Socket	4
49	374 437 99	Socket	2
50	634 303 40	Union	4
51	371 949 99	Test socket	3
52	516 185 98	Socket	1
53	634 298 40	Socket	1
54	374 436 99	Socket	1
55	551 987 40	Union	1
56	511 015 98	Socket	1
57	634 396 40	Union	1
58	516 158 98	Socket	1
59	515 752 98	Hose assy. DN 10x700	1
60	515 554 98	Hose assy. DN 10x550	1
61	643 993 40	Hose assy. DN 08x400	1
62	516 044 98	Hose assy. DN 10x650	1
63	516 308 98	Hose assy. DN 08x400	1
64	516 307 98	Hose assy. DN 08x300	5
65	516 312 98	Hose assy. DN 08x850	1
66	906 930 40	Union	1
67	504 670 98	Coupling	1
68	215 635 99	Pipe Ш 10	-2
69	515 750 98	Hose assy. DN 10x850	4
70	516 049 98	Hose assy. DN 10x1020	1
71	516 317 98	Hose assy. DN 08x500	2
72	510 924 98	Hose assy. DN 08x590	1
73	215 424 99	Pipe Ш 12	1
74	255 171 40	Plug	1
75	533 986 99	Weld-on plate	2
76	533 985 99	Half clamp	2
77	320 214 99	Screw	4
78	371 273 99	Union nut	5
79	906 346 40	Olive	5
80	551 379 40	Union	2
81	655 426 40	Union	2
82	343 873 40	Valve	1
83	515 746 98	Hose assy. DN10 x 1100	1
84	517 073 98	Union	1
85	911 433 40	Orifice D=1,00 mm	1
91	004 398 98	Test socket	1
92	371 498 99	Coupling	1
120	512 671 98	Hose assy. DN 10 x 5900	1
121	510 923 98	Hose assy. DN 08 x 1670	1
122	643 833 40	Hose assy. DN10 x 1050	1
124	513 837 98	Hose assy. DN16 x 5300	1
125	517 100 98	Hose assy. DN10 x 1950	1
126	647 878 40	Hose assy. DN10 x 990	2
127	515 857 40	Hose assy. DN25 x 1100	2

Komatsu PC5500-6 S/N 15086 parts catalog PDF

PIPES - CONTROL- AND FILTER PLATE, REAR (515-1834g) in PC5500-6 S/N 15086. Diagram image and parts list.
