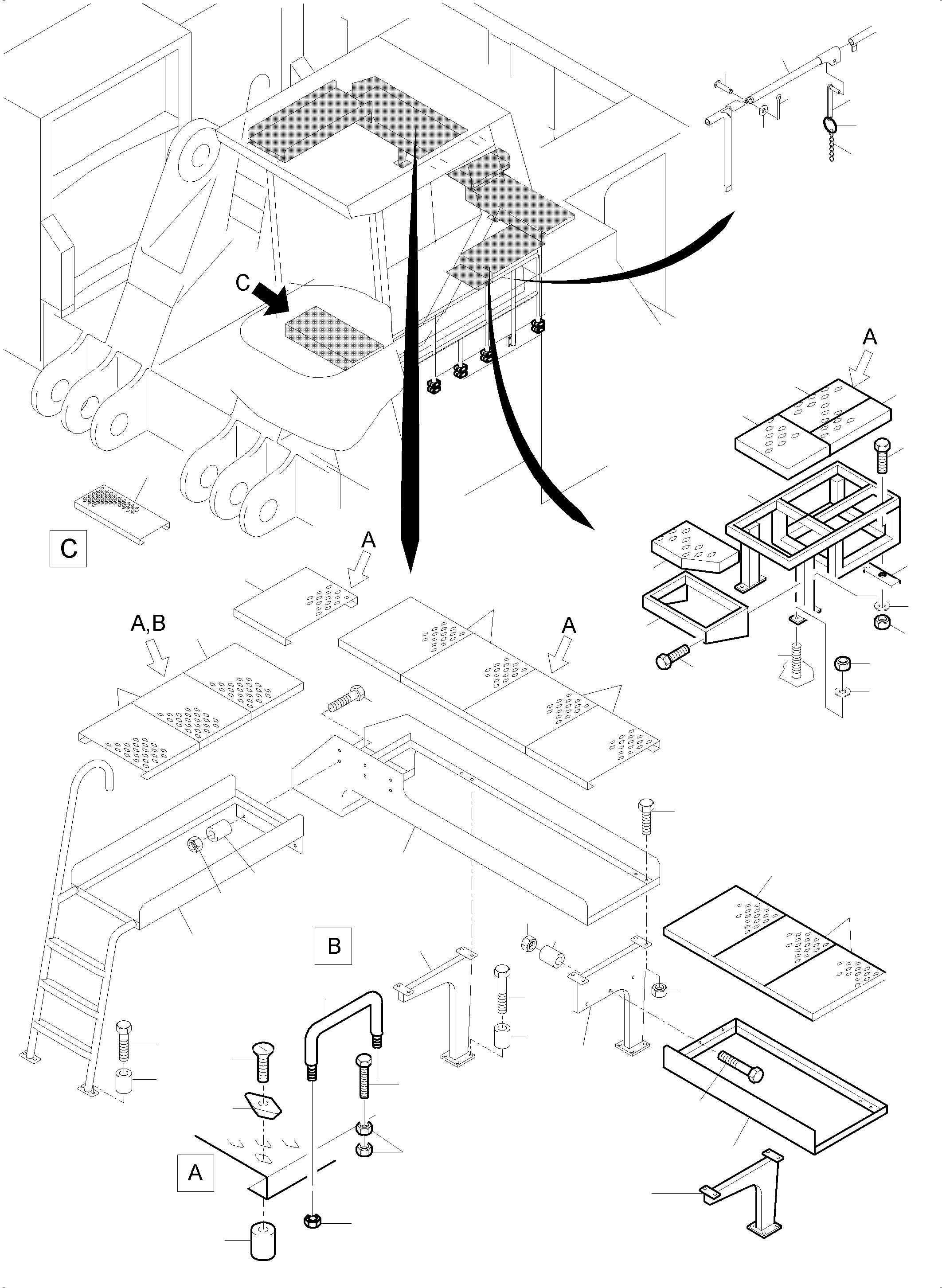

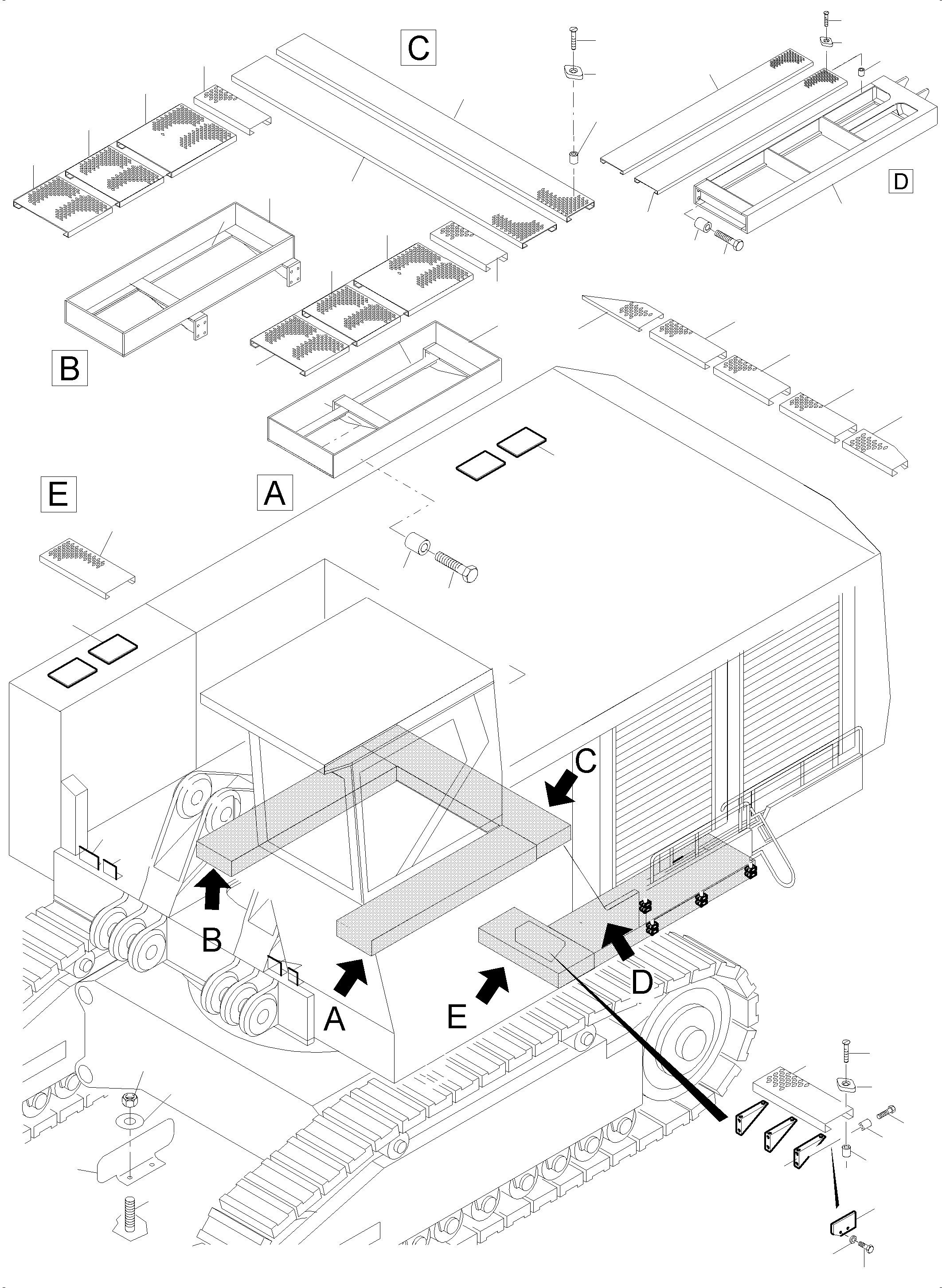

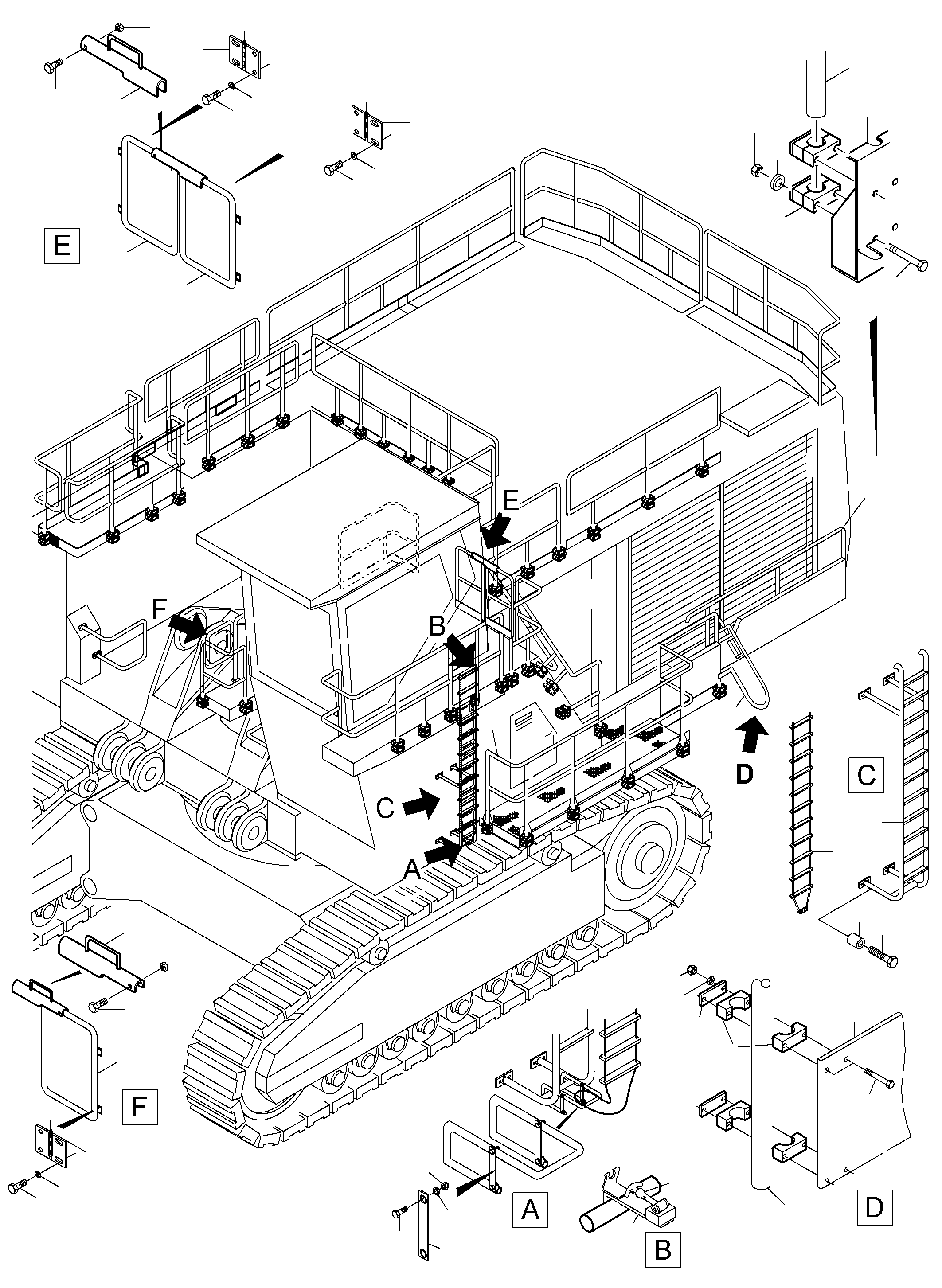

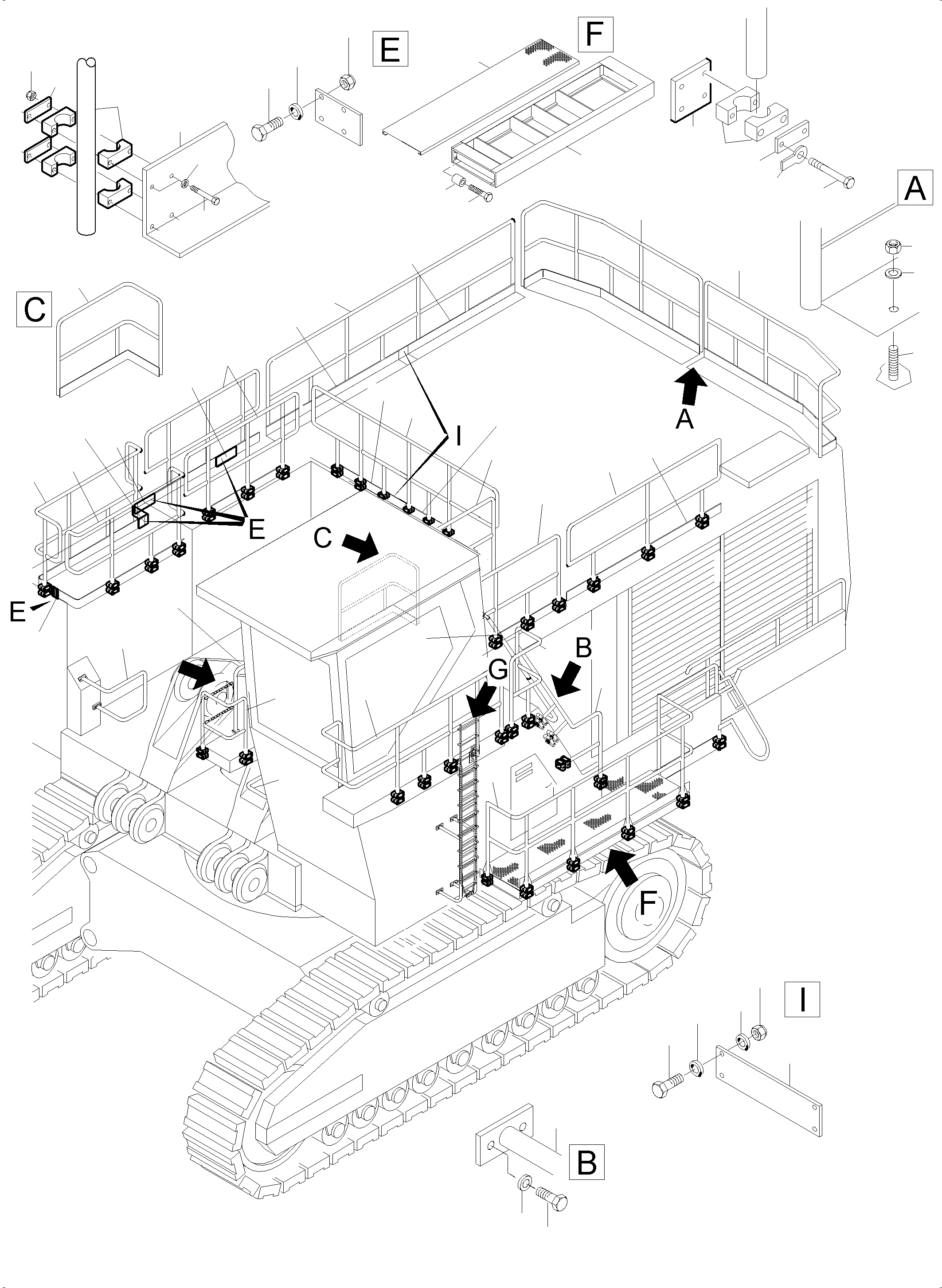

Diagram image 1 of 4

PC5500-6E S/N 15089

01 02 03 04 05 06 07 07 08 100 101 105 11 115 116 117 118 12 136 137 138 139 141 141 142 142 143 143 144 145 145 145 146 146 146 147 148 149 149 15 150 151 151 152 153 153 16 161 162 163 165 167 168 169 171 22 23 24 80 81 82 96

PC5500-6E S/N 15089

172 173 190 190 192 192 192 193 194 195 221 222 223 30 31 32 33 34 35 36 37 37 38 39 40 41 42 43 43 47 48 49 61 61 61 62 62 62 63 63 63 67 85 86 90 91 92 93 95 97 98

PC5500-6E S/N 15089

108 109 110 111 112 113 114 194 195 196 196 197 198 199 200 201 50 51 52 53 54 55 56 57 59 59 60 60 61 62 63 64 65 66 67 67 67 68 69 69 70 71 72 72 72 72 73 74 75 76 77 78 78 94

PC5500-6E S/N 15089

09 09 10 10 120 121 122 124 125 126 127 135 160 162 162 163 163 164 164 170 170 181 211 212 212 213 214 214 215 215 216 216 217 218 218 218 219 219 219 220 66 67 72 72

#	Part Number	Partname	Quantity
01	933 233 40	Rail	1
02	933 234 40	Rail	1
03	945 626 40	Rail	1
04	945 675 40	Rail	1
05	945 679 40	Rail	1
06	945 648 40	Rail	1
07	915 199 40	Rail	1
08	945 672 40	Rail	1
09	945 361 40	Rail	1
10	945 691 40	Rail	1
11	674 996 40	Rail	1
12	915 184 40	Rail	1
15	307 802 99	Bolt	2
16	343 054 99	Disc	2
22	945 627 40	Rail	1
23	945 628 40	Rail	1
24	921 020 40	Rail	1
30	945 698 40	Console	1
31	906 503 40	Grating 2x40x300x1710	1
32	906 502 40	Grating 2x40x240x1710	1
33	323 454 40	Grating 2x40x180x390	1
34	945 300 40	Console l.h.	1
35	901 913 40	Grating	1
36	901 914 40	Grating	1
37	906 021 40	Grating	2
38	901 926 40	Grating	1
39	901 927 40	Gitterrost	1
40	945 314 40	Console r.h.	1
41	461 755 40	Grating 2x40x300x2790	1
42	906 866 40	Grating 2x40x240x2790	1
43	324 519 40	Grating 2x40x480x480	2
47	915 188 40	Grating	1
48	915 187 40	Grating	1
49	933 236 40	Grating	1
50	934 260 40	Frame	1
51	958 000 40	Frame	1
52	936 818 40	Frame with ladder	1
53	934 259 40	Console	1
54	626 646 40	Console	1
55	934 258 40	Console	1
56	604 275 40	Grid	1
57	414 172 40	Grid 40x360x540	1
59	317 301 40	Grid 40x480x540	4
60	936 815 40	Grid 40x415x485	3
61	317 319 40	Threaded block	34
62	317 318 40	Wing nut, plastic	34
63	502 354 98	Bolt	34
64	308 639 99	Bolt	12
65	510 733 98	Resilient sleeve	12
66	308 605 99	Bolt	4
67	510 744 98	Resilient sleeve	13
68	308 612 99	Bolt	3
69	332 334 99	Nut	9
70	307 810 99	Bolt	6
71	307 805 99	Bolt	12
72	334 600 99	Nut	42
73	934 255 40	Grid	1
74	945 381 40	Grid	1
75	940 870 40	Grid	1
76	324 517 40	Grid	1
77	604 132 40	Grid	1
78	340 467 99	Washer	27
80	511 321 98	Thread Pin	20
81	340 469 99	Washer	20
82	334 601 99	Nut	20
85	515 013 98	Resilent Sleeve	4
86	304 369 99	Bolt	4
90	954 261 40	Retainer	3
91	308 637 99	Bolt	16
92	510 733 98	Resilent Sleeve	16
93	307 808 99	Bolt	6
94	950 342 40	Grid 240x990	1
95	954 264 40	Grid 180x1320	1
96	921 688 40	Thread plate	-2
97	116 402 40	Step pad 200x300	58
98	539 862 40	Step pad 305x450	2
100	922 847 40	Rail, falls away by cabin front platform	1
101	922 812 40	Rail	1
105	931 464 40	Rail, falls away by cabin front platform	1
108	930 037 40	Rail pipe	1
109	930 031 40	Catch	1
110	517 697 98	Pin	1
111	342 045 99	Cotter pin	1
112	340 605 99	Washer	1
113	098 955 40	Ring	2
114	472 688 99	Chain	-2
115	510 730 98	Resilient sleeve	16
116	308 426 99	Bolt	16
117	945 353 40	Console	1
118	907 322 40	Grid	1
120	946 181 40	Emergency jack	1
121	946 177 40	Retainer cpl.	1
122	081 474 40	Rubber hood retainer	2
124	946 189 40	Retainer	2
125	308 284 99	Bolt	4
126	507 036 98	Nut	4
127	340 461 99	Disc	4
135	952 228 40	Emergency Ladder	1
136	945 652 40	Rail	2
137	945 656 40	Rail	1
138	945 664 40	Rail	1
139	945 357 40	Rail	1
141	945 629 40	Angle	1
142	945 633 40	Angle	1
143	945 635 40	Angle	1
144	308 615 99	Bolt	64
145	340 467 99	Washer	72
146	334 600 99	Nut	72
147	518 266 98	Clamp set	36
148	534 008 99	Cover plate	36
149	921 026 40	Angle	1
150	921 030 40	Plate	2
151	307 805 99	Bolt	8
152	517 118 98	Elastic washer	9
153	958 012 40	Angle	1
160	945 692 40	Plate	1
161	308 434 99	Bolt	48
162	518 266 98	Clamp set	62
163	534 008 99	Cover plate	62
164	340 467 99	Washer	90
165	945 667 40	Plate	2
167	945 339 40	Plate	1
168	945 659 40	Plate	2
169	945 343 40	Plate	1
170	308 614 99	Bolt	20
171	509 310 98	Locking plate	24
172	915 189 40	Grating	1
173	933 237 40	Grating	1
181	952 873 40	Plate	1
190	936 881 40	Protective plate	1
192	934 249 40	Protective plate	3
193	507 121 98	Bolt	8
194	510 213 98	Bolt	4
195	933 244 40	Plate	1
196	307 804 99	Bolt	7
197	504 011 98	Bolt	3
198	882 769 40	Handle	3
199	334 599 99	Nut	6
200	945 378 40	Frame	1
201	945 368 40	Frame	1
211	957 242 40	Door, left	1
212	956 950 40	Catch	1
213	957 243 40	Door right	1
214	308 608 99	Bolt	1
215	334 600 99	Nut	1
216	956 953 40	Hinge, kpl. left	2
217	956 952 40	Hinge, kpl. right	2
218	517 122 98	Washer	16
219	307 775 99	Bolt	16
220	954 671 40	Door	1
221	959 656 40	Plate	1
222	340 465 99	Washer	2
223	507 037 98	Nut	2
