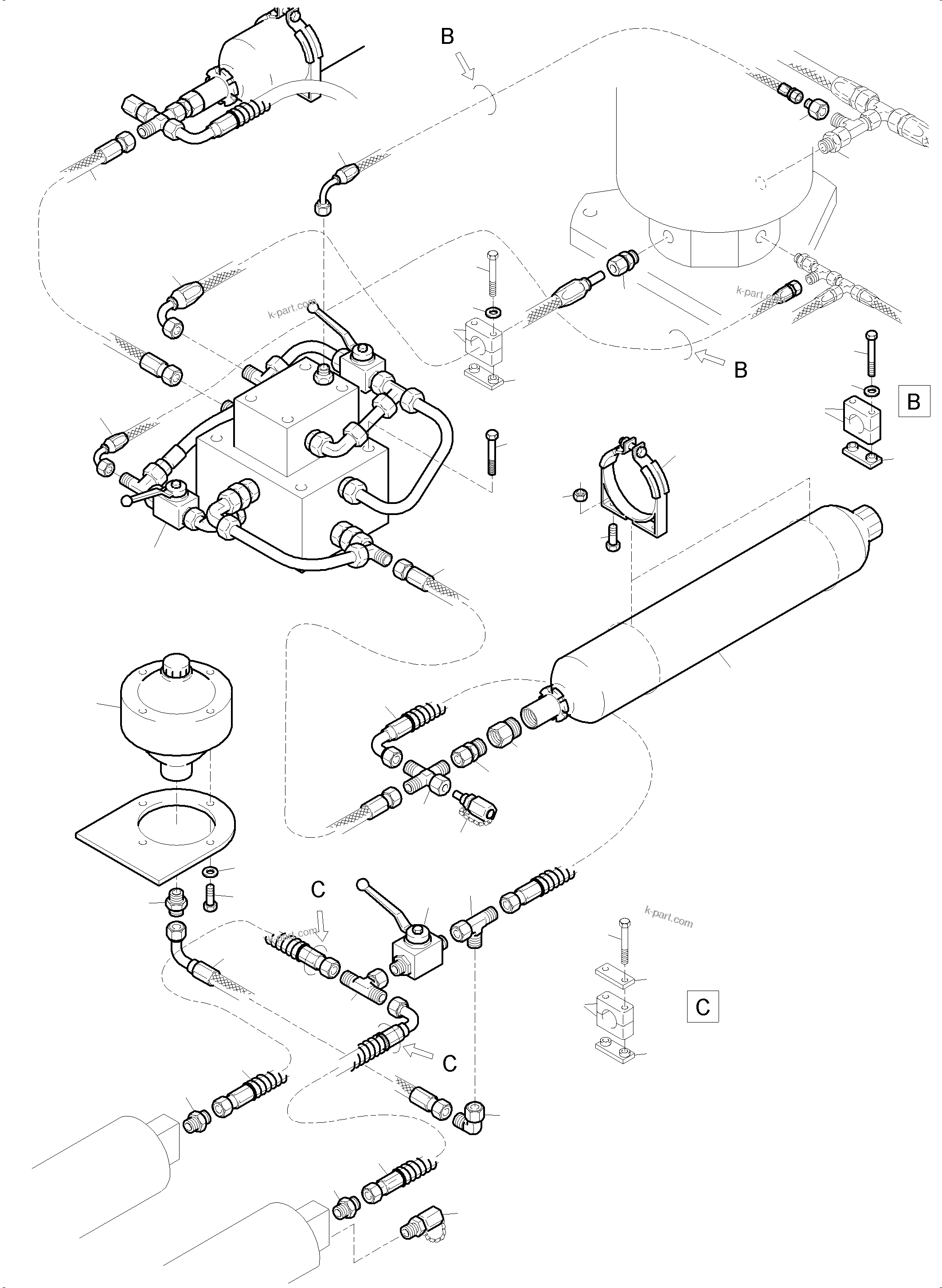

HYDRAULIC TRACK TENSIONING STANDARD | PC5500-6E S/N 15089

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC5500-6E S/N 15089

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		Valve block	1	114-3190d
?	517 715 98	Hose assy. DN 16x1300	1
?	374 413 99	Union	3
?	513 208 98	Hose assy. DN 12x1900	1
?	516 189 98	Socket	1
?	514 585 98	Hose assy. DN 12x1650	1
?	462 808 40	Hose assy. DN 16x610	2
?	516 617 98	Socket	2
?	561 191 98	Socket	2
?	516 718 98	Union	2
?	004 132 98	Test coupling	2
?	512 619 98	Hose assy. DN 16x4250	2
?	635 991 40	Clamp	4
?	334 599 99	Nut	8
?	308 559 99	Bolt	8
?	506 728 98	Bolt	4
?	509 057 98	Clamp set	4
?	319 133 99	Bolt	8
?	533 992 99	Weld on Plate	4
?	551 459 40	Union	1
?	504 900 98	Clamp set	2
?	501 584 98	Weld on Plate	2
?	319 417 99	Bolt	4
?	340 405 99	Washer	10
?	307 752 99	Bolt	8
?	517 121 98	Lock washer	8
?	461 133 40	Ball cock	2
?	515 812 98	Test coupling	4
?	374 413 99	Union	4
?	516 172 98	Socket	2
?	516 180 98	Socket	2
?	374 418 99	Union	2
?	516 165 98	Socket	2
?	180 584 40	Hose assy. DN 16x1400	2
?	517 864 98	Hose assy. DN 16x1000	2
?	551 715 40	Hose assy. DN 16x390	2
?	504 923 98	Clamp set	3
?	534 005 99	Weld-on plate	3
?	534 004 99	Cover plate	3
?	308 579 99	Bolt	6
?		Accumulator Standard	2
?		Diaphragm-type accumulator Standard	2
