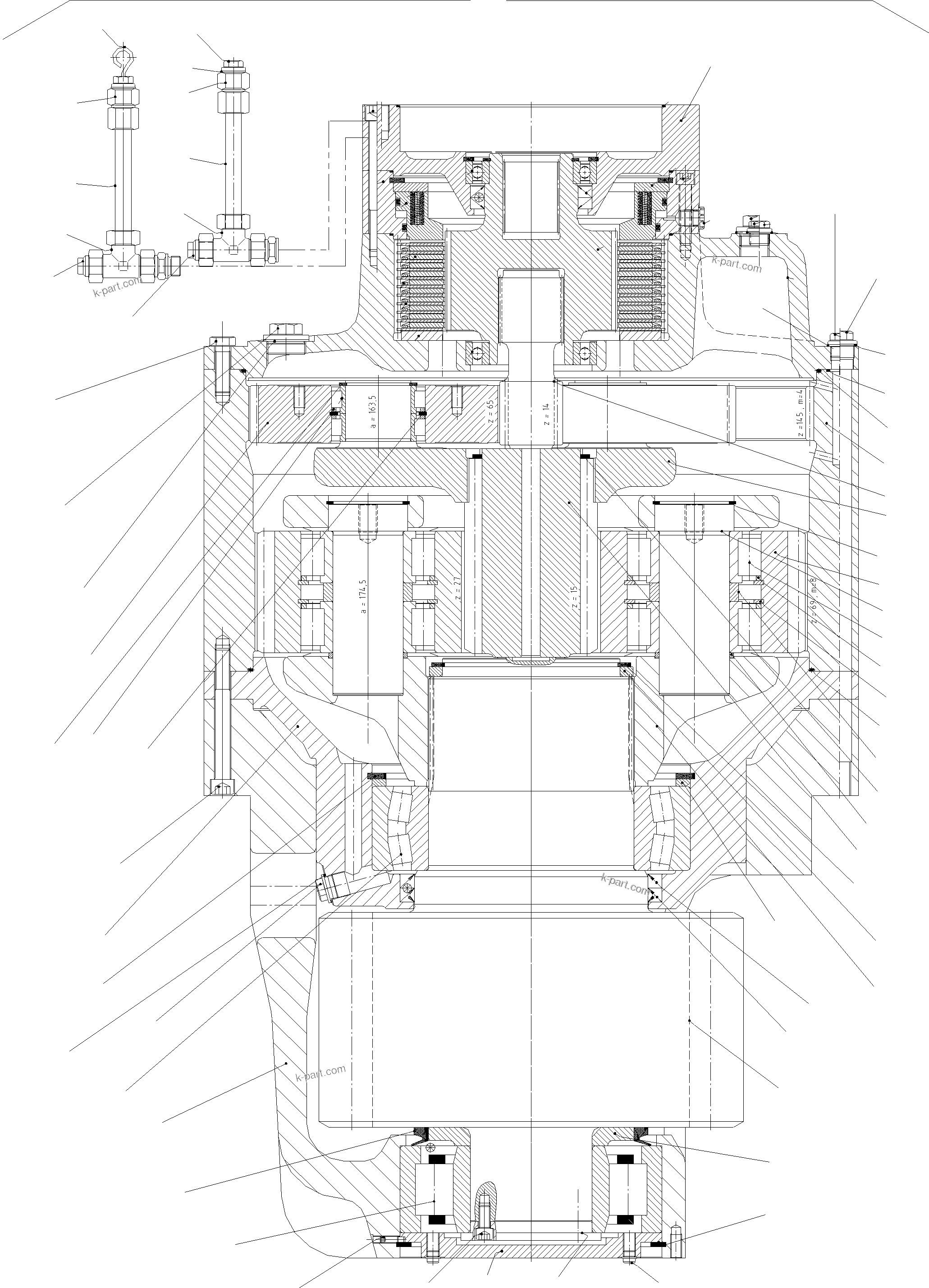

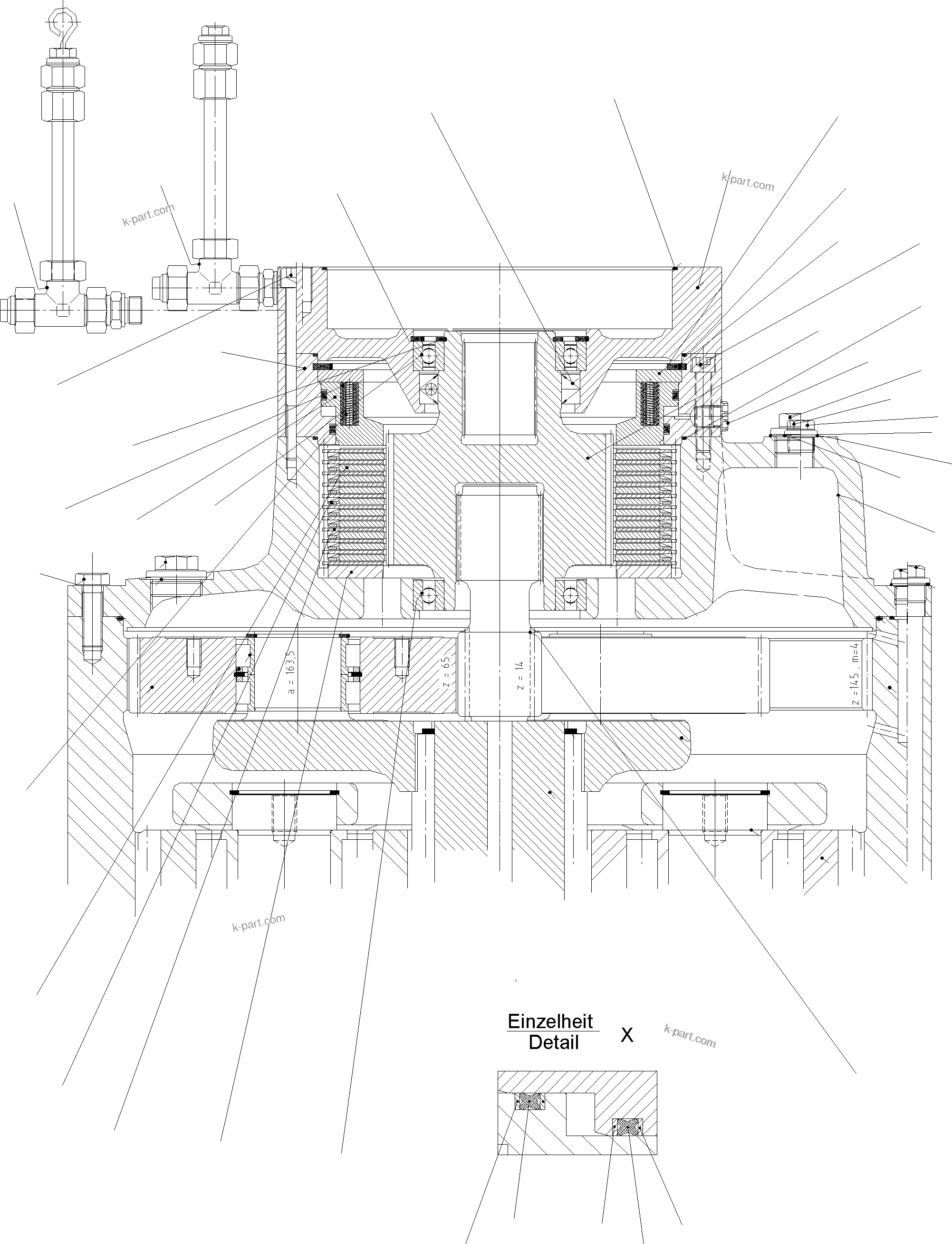

Diagram image 1 of 2

PC3000-6 S/N 46151

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 46151

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	926 795 40	Slew gearbox assy.	1
?	792 234 73	Ring gear	1
?	792 235 73	Cartridge	1
?	792 236 73	Sunn gear z=15	1
?	792 237 73	Output shaft GFB 174	1
?	792 238 73	Planet carrier GFB 174	1
?	757 238 73	Planet bolt GFA 174	4
?	792 270 73	Brake assy	1	991-0457a
?	792 239 73	Planet gear z=27	4
?	792 269 73	Planetary Carrier assy consists of fig. no. 08,09,11, 19,30,32,37,52,53	1
?	763 730 73	Disk	1
?	757 360 73	Sun gear shaft	1
?	768 454 73	Disk	1
?	507 751 98	Cylindrical roller bearing	8
?	792 260 73	Cylindrical roller bearing	1
?	513 531 98	Spherical roller bearing	1
?	501 933 98	Circlip	1
?	757 252 73	Clamp collar	1
?	504 544 98	Radial shaft seal ring	1
?	507 748 98	O-ring	1
?	517 015 98	Radial shaft seal ring	1
?	342 572 99	Circlip	1
?	342 666 99	Circlip	4
?	342 679 99	Circlip	8
?	342 497 99	Circlip	1
?	592 242 40	Locating ring	6
?	349 989 99	Screw plug	1
?	340 084 99	Seal ring	1
?	513 136 98	Socket head cap screw	4
?	757 240 73	Spacer ring	3
?	763 731 73	Spacer ring	3
?	513 532 98	Ball bearing	1
?	517 016 98	Ball bearing	1
?	792 233 73	Cover	1
?	792 240 73	Planet carrier GFB 174	1
?	767 764 73	Planet gear GFB 174	3
?	506 448 98	Cylindrical roller bearing	6
?	806 076 73	Locating ring	6
?	342 560 99	Circlip	3
?	342 670 99	Circlip	3
?	792 268 73	Planetary carrier assy consists of fig. no.04,89,90,91 94,95,96	1
?	792 241 73	Disk	1
?	509 834 98	Socket head cap screw	8
?	342 707 99	Circlip	1
?	507 748 98	O-ring	1
?	313 178 99	Screw plug	6
?	339 950 99	Seal ring	6
?	792 242 73	Drive Shaft	1
?	768 464 73	Plug	2
?	912 094	O-ring	2
?	319 155 99	Socket head cap srew	6
?	792 243 73	Cover	1
?	763 736 73	Bearing ring	1
?	517 514 98	Thread pin	1
?	371 856 99	Union	2
?	763 841 73	Union	2
?	215 812 99	Precision tubing 18x1,5, lg 0,1 m	-2
?	372 824 99	Union	1
?	372 834 99	Union	1
?	792 244 73	Dipstick G1/2" x156	1
?	215 812 99	Precision tubing 18x1,5, lg 0,1 m Bulk ware, state length required	-2
?	319 349 99	Socket head cap srew	2
?	313 314 99	Plug	1
?	331 322 99	Plug	3
?	340 294 99	Seal ring	1
?	339 998 99	Seal ring	2
?	313 367 99	Plug	4
?	339 932 99	Seal ring	4
?	376 666 99	Radial shaft seal ring	2
?	792 246 73	Disk housing	1
?	792 247 73	Piston	1
?	792 248 73	Bearing ring	1
?	792 249 73	Disk	1
?	792 250 73	Inner disk	10
?	792 251 73	Outer disk	11
?	963 624	Pressure spring	16
?	342 678 99	Snap ring	1
?	806 036 73	Pressure spring	14
?	972 122	O-ring	1
?	972 122	O-ring	1
?	792 252 73	Piston seal	1
?	792 253 73	Support ring	2
?	792 254 73	Piston seal	1
?	792 256 73	Support ring	2
?	792 255 73	Plug	1
?	513 135 98	Socket head cap srew	8
?	342 708 99	Snap ring	1
?	792 257 73	Locating ring	1
?	340 236 99	Seal ring	1
?	972 122	O-ring	1
?	313 314 99	Plug	1
?	342 568 99	Snap ring	1
?	792 258 73	Seal ring	1
?	792 259 73	Seal ring	10
?	792 273 73	Seal Kit Slew Gearbox consists of fig. no. 25, 26, 27,125, 348, 510	1
?	792 271 73	Repair Kit Brake consists of fig. nos. 505, 506, 507, 509, 512, 513, 514, 515	1

Komatsu PC3000-6 S/N 46151 parts catalog PDF

SLEW GEARBOX WITH BRAKE (991-0467) in PC3000-6 S/N 46151. Diagram image and parts list.
