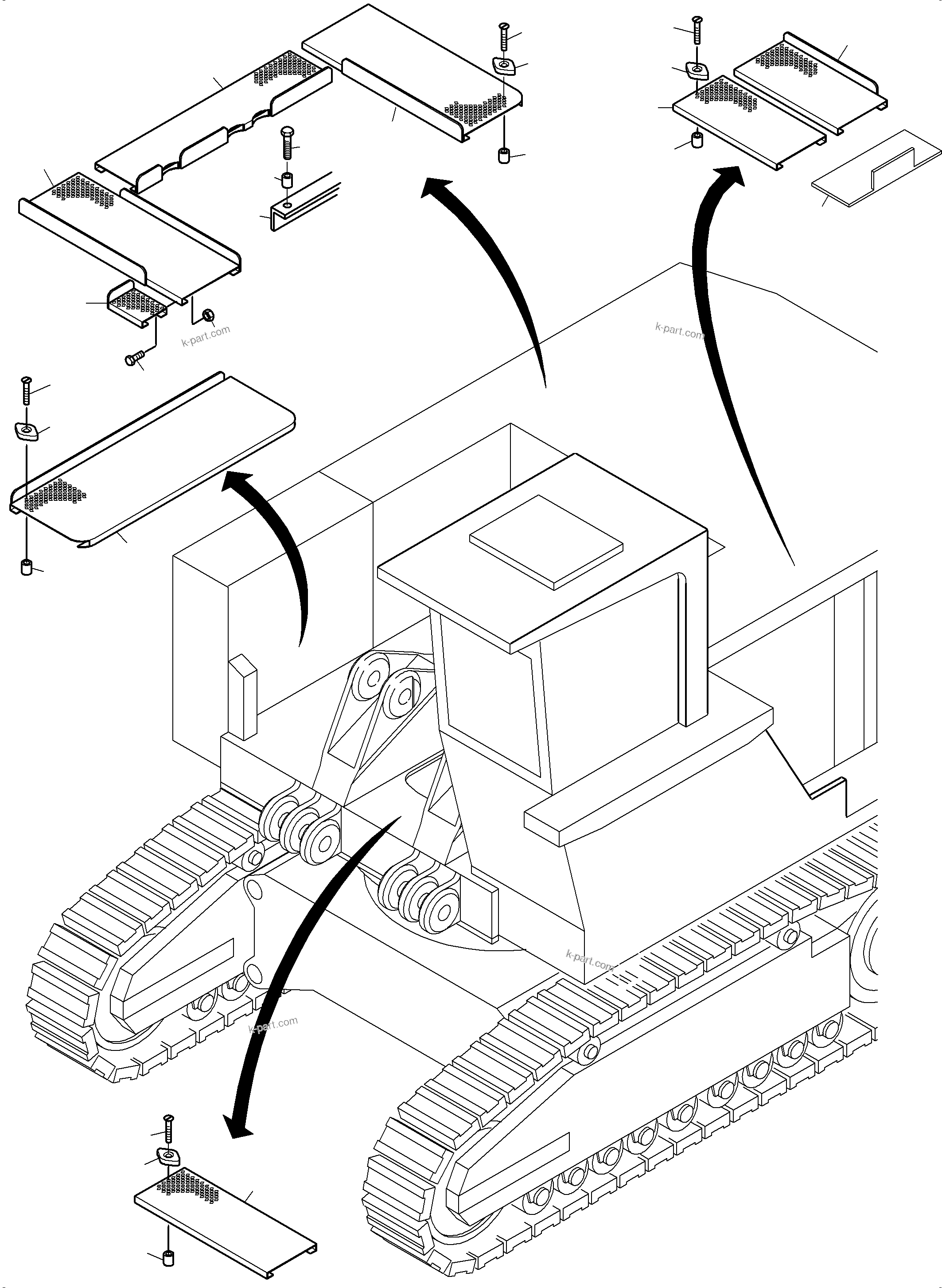

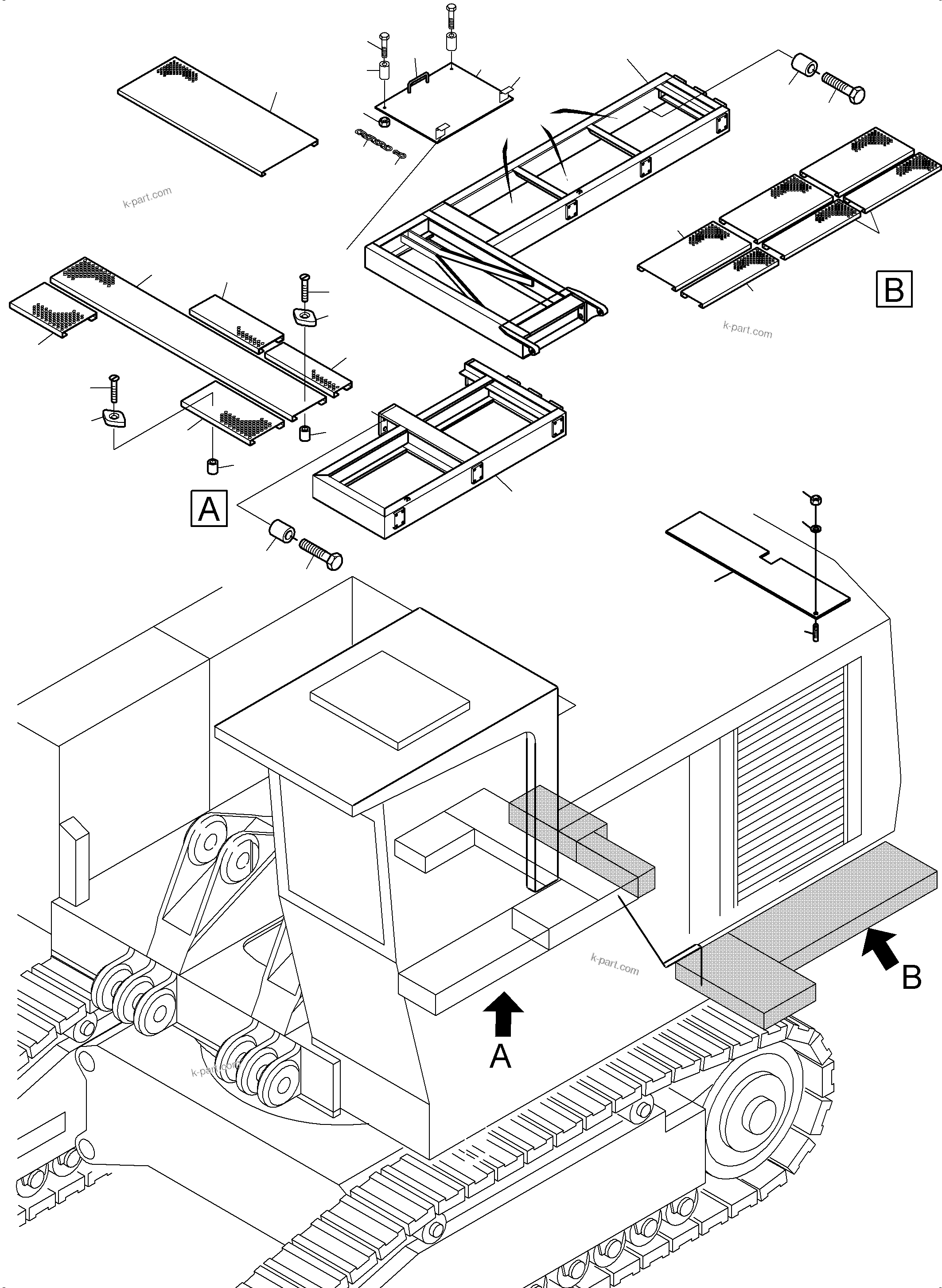

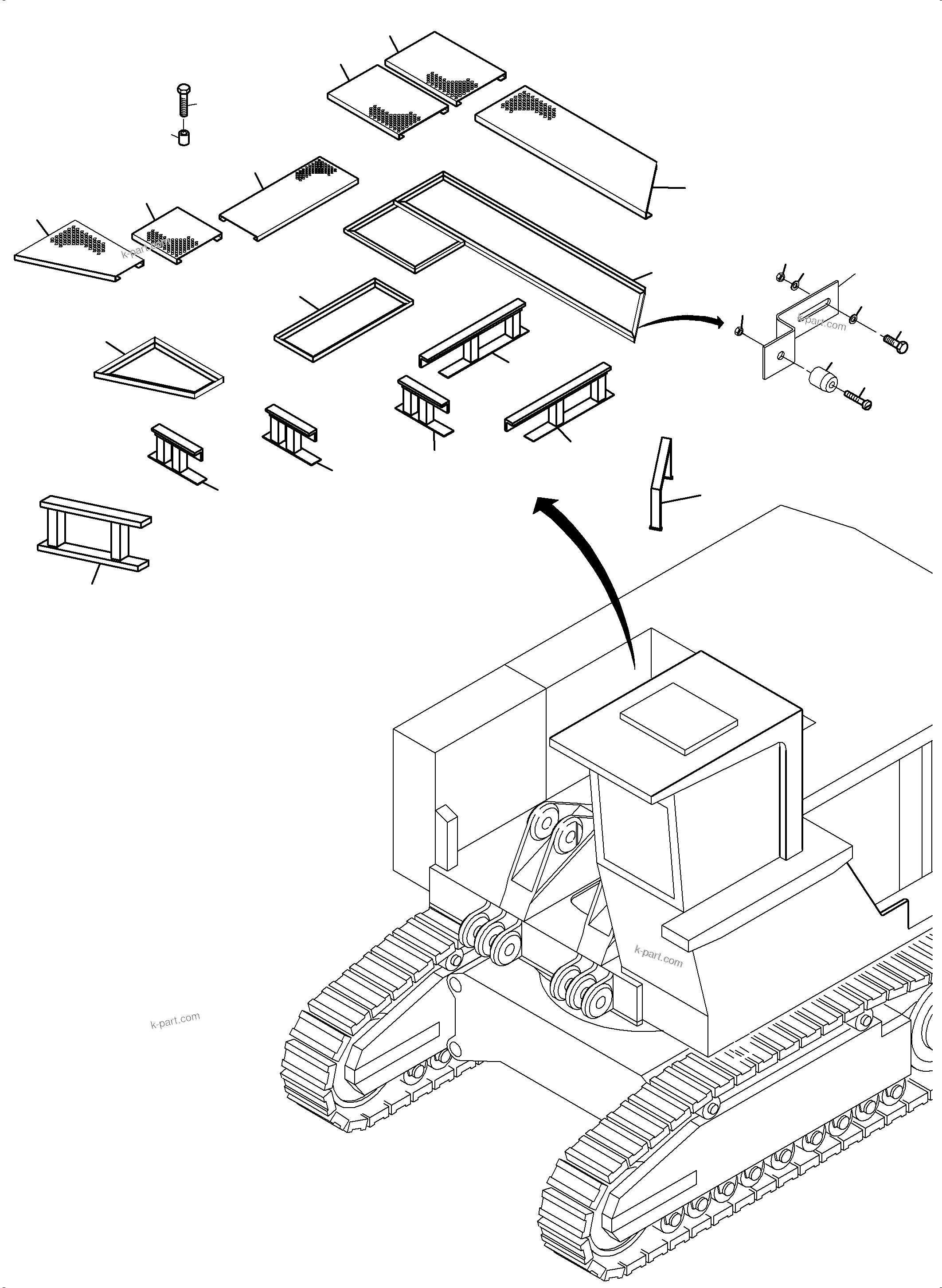

Diagram image 1 of 3

PC3000-6 S/N 46213

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 46213

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 46213

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	927 603 40	Catwalk	1
?	308 605 99	Bolt	14
?	510 744 98	Resilient sleeve	14
?	915 375 40	Catwalk	1
?	308 405 99	Bolt	8
?	510 728 98	Resilient sleeve	8
?	915 340 40	Grating	3
?	894 621 40	Grating	2
?	937 982 40	Threaded block	9
?	318 388 99	Bolt	9
?	915 333 40	Grating	1
?	937 987 40	Grating	1
?	937 986 40	Grating	1
?	937 985 40	Grating	1
?	937 984 40	Grating	1
?	915 329 40	Angle	1
?	901 083 40	Grating	1
?	901 082 40	Grating	1
?	371 492 40	Grating	1
?	915 491 40	Grating	1
?	302 548 99	Bolt	8
?	510 729 98	Resilient sleeve	8
?	937 983 40	Grating	1
?	317 319 40	Threaded block	23
?	317 318 40	Wing nut, plastic	82
?	502 354 98	Bolt	82
?	883 747 40	Grating	1
?	377 750 99	Bolt	2
?	334 599 99	Nut	2
?	890 603 40	Grating	1
?	904 347 40	Grating	1
?	936 586 40	Grating (with emergency exit)	1
?	915 326 40	Grating	1
?	936 587 40	Grating (with emergency exit)	1
?	915 324 40	Angle	1
?	334 600 99	Nut	18
?	939 201 40	Plate	1
?	340 112 99	Washer	42
?	507 121 98	Thread pin	4
?	925 262 40	Cover plate	1
?	319 135 99	Bolt	4
?	507 025 98	Nut	4
?	081 282 40	Rubber block support	4
?	915 481 40	Console	1
?	915 484 40	Console	1
?	915 480 40	Console	1
?	915 479 40	Console	1
?	915 482 40	Console	1
?	915 483 40	Console	1
?	915 485 40	Console	1
?	930 044 40	Platform	1
?	915 492 40	Platform	1
?	925 261 40	Platform	1
?	915 489 40	Grating	1
?	915 490 40	Grating	1
?	915 487 40	Grating	1
?	915 486 40	Grating	1
?	604 186 40	Grating	1
?	915 488 40	Grating	1
?	308 437 99	Bolt	2
?	510 745 98	Resilient sleeve	2
?	939 226 40	Plate	1
?	307 777 99	Screw	2
?	340 465 99	Washer	2
?	507 037 98	Nut	2
?	915 342 40	Battery cover assy. consist. of fig-nos: 73-75	3
?	943 809 40	Hinge assy. consist. of fig-nos: 81 to 84	3
?	943 808 40	Hinge assy. consist. of fig-nos: 81 to 84	3
?	511 744 98	Yoke handle	1
?	341 271 99	Trigger snap	1
?	472 509 99	Chain	-2
?	510 741 98	Resilient sleeve	6
?	308 608 99	Bolt	6
?	503 341 98	Nut	6
?	081 320 40	Hinge	6
?	943 807 40	Hinge pin	6
?	518 151 98	Lubricating nipple	6
?	334 599 99	Nut	6

Komatsu PC3000-6 S/N 46213 parts catalog PDF

PLATFORM (WITH CATWALK FUEL TANK) (485-1052d) in PC3000-6 S/N 46213. Diagram image and parts list.
