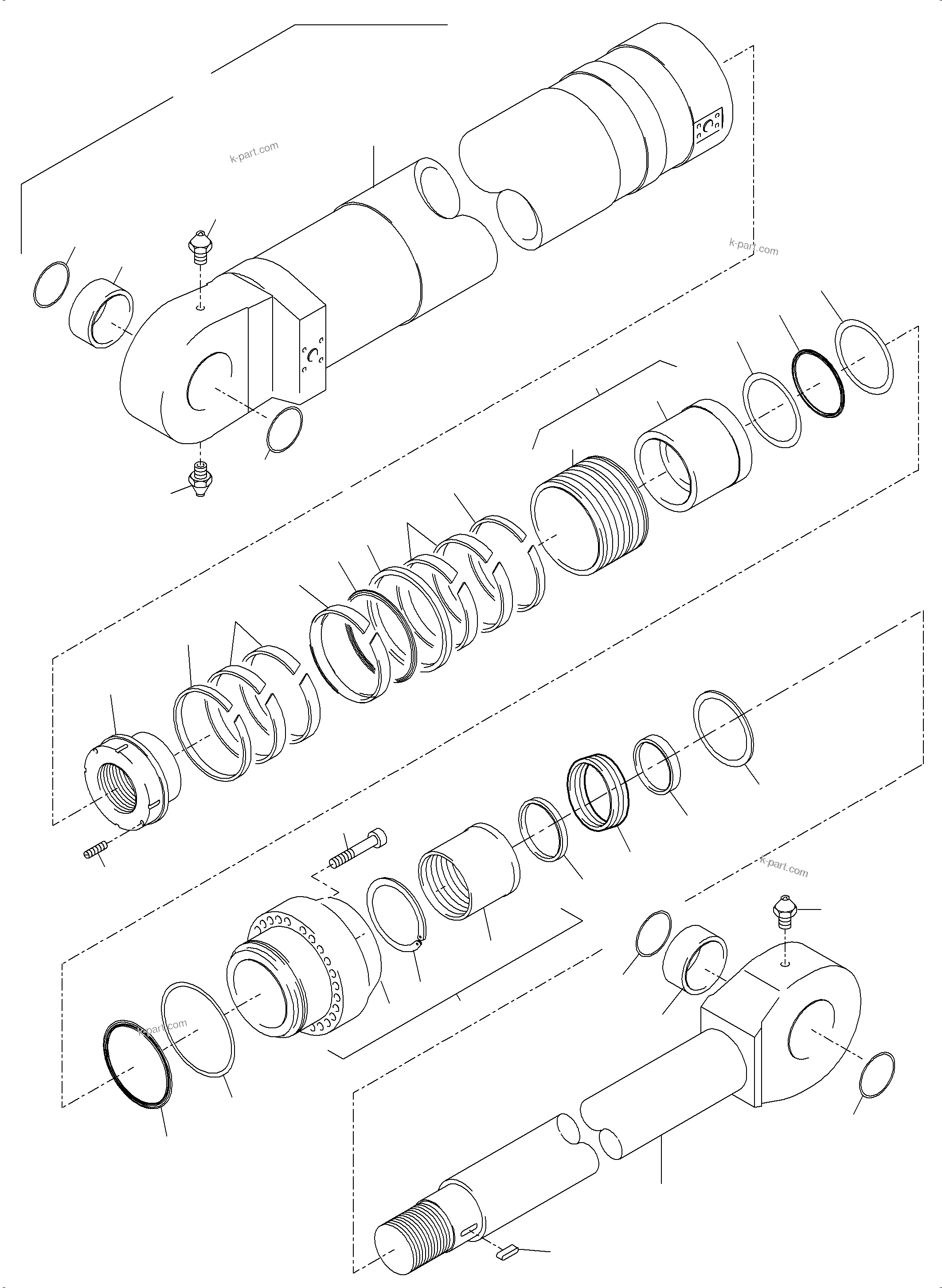

HYDRAULIC CYLINDER | PC3000-6E S/N 46231 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6E S/N 46231

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	960 210 40	Hydraulic cylinder (standard)	1
?	962 428 40	Hydraulic cylinder (cold weather design)	1
?	798 077 73	Cylinder barrel incl. fig-nos. 03,05,06,09	-2
?		Cylinder barrel	1
?	907 022 40	Seal ring	4
?	004 860 98	Grease nipple	3
?	792 429 73	Piston rod assy. incl. fig-nos. 05,06,08,09	1
?		Piston rod	1
?	947 131 40	Freeze-in bushing with spiral groove	2
?	926 859 40	Sealing flange incl. fig-nos. 11,12+17	1
?		Flanged bush	1
?	926 866 40	Bearing bush (no field repair item)	1
?	659 097 40	Piston assy. incl. fig-nos. 14+15	1
?		Piston	1
?	445 393 40	Liner (no field repair item)	1
?	947 190 40	Groove nut	1
?	342 698 99	Circlip	1
?	896 587 40	Sealing element	1
?	256 248 40	O-ring	1
?	269 579 40	Piston guide ring	5
?	269 494 40	Piston guide strap	2
?	440 675 40	O-ring	1
?	655 589 40	Support ring	2
?	517 018 98	O-ring	1
?	907 666 40	Support ring	1
?	318 798 99	Bolt (standard)	18
?	511 722 98	Screw (cold weather design)	18
?	354 389 99	Feather key	1
?	947 188 40	Thread pin	1
?	707 512 04 00	Buffer ring	1
?	707 512 03 00	Rod seal	1
?	707 562 07 60	Dust seal	1
?	517 563 98	Snap ring	1
?	767 498 73	Seal kit piston consist. of fig nos: 19-24	1
?	797 950 73	Seal kit piston rod consist. of fig.-nos: 26,27,33-35	1
