PC3000-6E S/N 46231

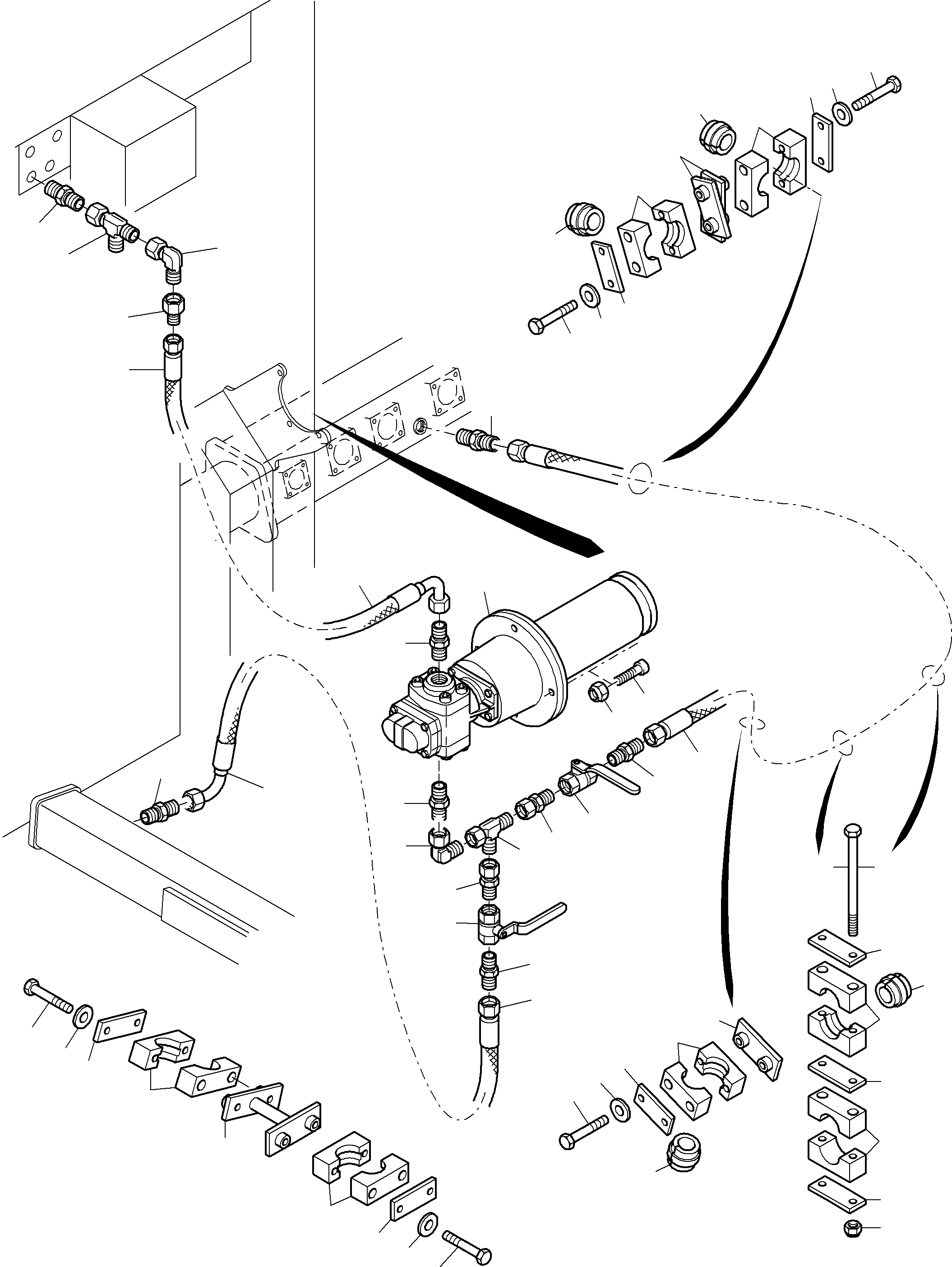

Komatsu parts book diagram for PC3000-6E S/N 46231: TRANSFUSING PUMP ARR.

02 03 04 05 06 06 06 06 07 08 09 09 10 11 12 12 13 13 14 14 15 15 16 17 18 18 18 18 18 19 19 19 19 19 20 20 20 20 20 20 20 20 21 21 22 22 22 22 23 23 23 24 25 26 27 28 28 29 33

	#	Part Number	Partname	Quantity	Options	Reference
	02		Gear pump unit	1		991-0449b
	03	511 873 98	Bolt	3
	04	515 220 98	Nut	3
	05	374 415 99	Socket	1
	06	374 460 99	Socket	4
	07	516 178 98	Socket	1
	08	551 300 40	Union	1
	09	374 422 99	Socket	2
	10	516 162 98	Socket	1
	11	516 473 98	Socket	1
	12	516 188 98	Socket	2
	13	516 753 98	Ball cock	2
	14	517 893 98	Hose assy. DN 32x1150	1
	15	518 400 98	Hose assy. DN 32x470	1
	16	516 395 98	Hose assy. DN 32x3300	1
	17	934 481 40	Retainer	1
	18	308 612 99	Bolt	10
	19	343 006 99	Washer	10
	20	534 008 99	Cover plate	13
	21	534 009 99	Weld on plate	2
	22	506 371 98	Pair of clamps	5
	23	511 246 98	Grommet	4
	24	502 977 98	Half clamp	2
	25	506 701 98	Bolt	2
	26	334 600 99	Nut	4
	27	514 934 98	Bolt	2
	28	518 035 98	Pair of clamps	2
	29	516 163 98	Socket	1
	33	502 626 98	Grommet	1
	\|$$30			-2
	\|$$31			-2
	\|$$32			-2
	\|$$33			-2
	\|$$34			-2
	\|$$35			-2
	\|$$36			-2
	\|$$37			-2
	\|$$38			-2
	\|$$39			-2
	\|$$40			-2
	\|$$41			-2
	\|$$42			-2
	\|$$43			-2
	\|$$44			-2
	\|$$45			-2
	\|$$46			-2
	\|$$47			-2
	\|$$48			-2
	\|$$49			-2
	\|$$50			-2
	\|$$51			-2
	\|$$52			-2
	\|$$53			-2
	\|$$54			-2
	\|$$55			-2
	\|$$56			-2
	\|$$57			-2
	\|$$58			-2
	\|$$59			-2
	\|$$60			-2
	\|$$61			-2

Komatsu PC3000-6E S/N 46231 parts catalog PDF

TRANSFUSING PUMP ARR. (255-1803) in PC3000-6E S/N 46231. Diagram image and parts list.
