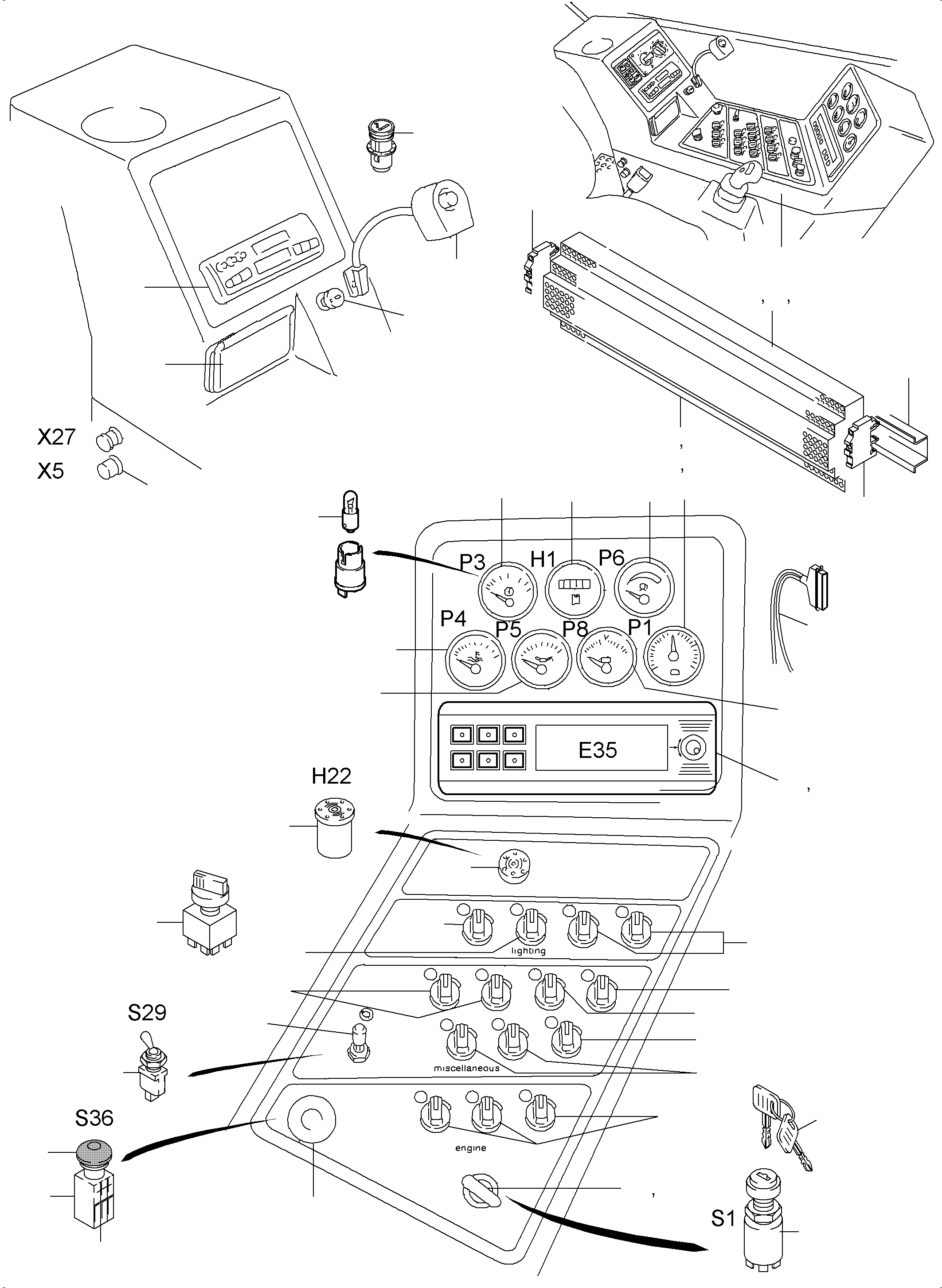

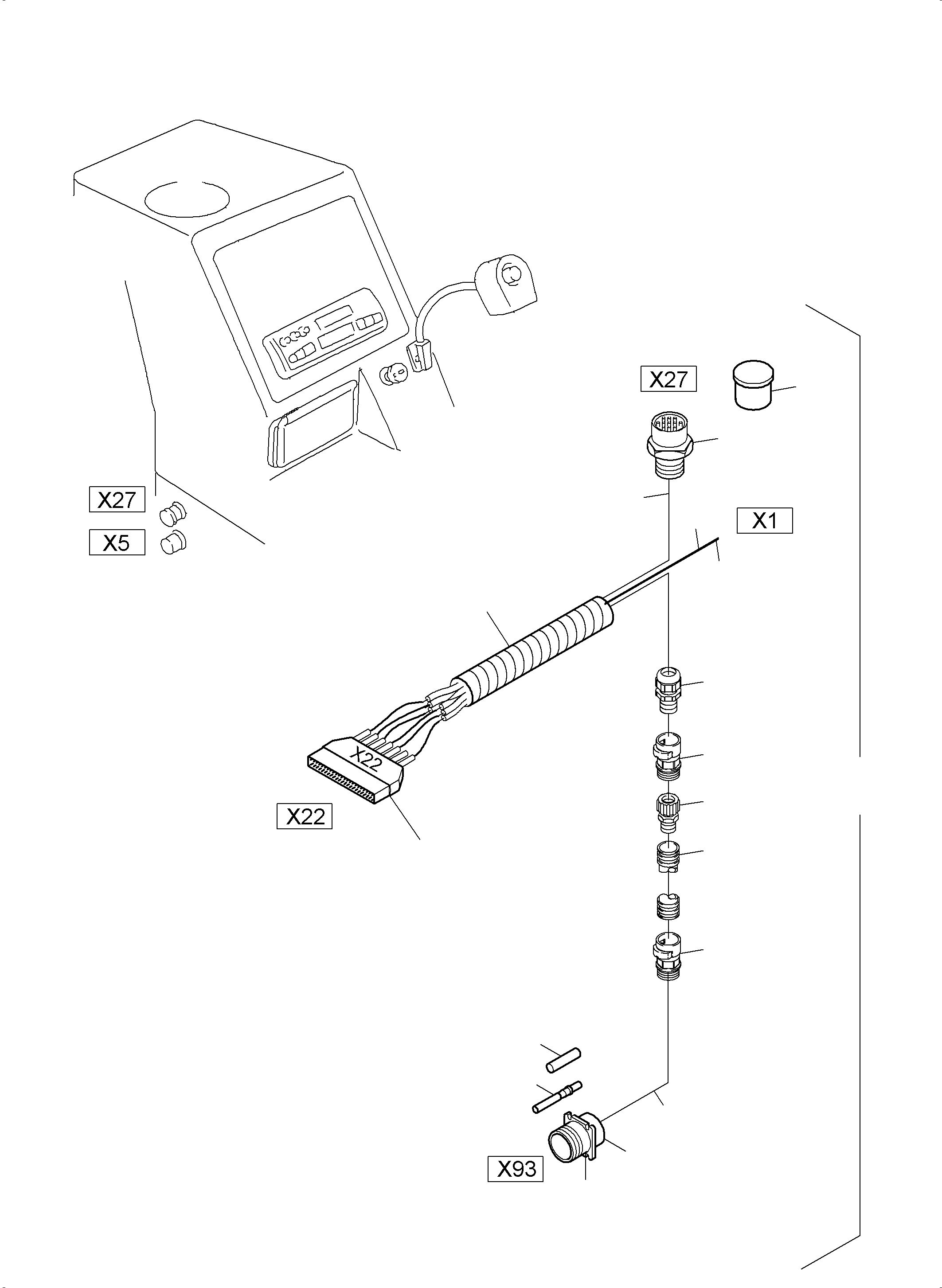

OPERATION PANEL NT/TT | PC3000-6 S/N 46228 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity
01		Display	1
03	324 718 40	Potential divider 24V / 12V	1
04	898 686 40	Connection cable V24	1
05	431 166 40	Level gauge	1
06	896 716 40	Hour meter	1
07	431 163 40	Remote thermometer hydr. Oil (NT)	1
07	515 105 40	Remote thermometer hydr. Oil (TT)	1
08	431 164 40	Remote thermometer cooling water (NT)	1
08	515 105 40	Remote thermometer cooling water (TT)	1
09	515 561 40	Pressure gauge 10 bar	1
10	440 129 40	Voltmeter	1
11	950 725 40	Ammeter	1
12	490 518 40	Alarm transmitter	1
13	896 473 40	Toggle switch	1
14	385 213 40	Cigarette lighter	1
15	414 866 40	Key operated switch (ignition)	1
16	698 239 73	Key	1
17	057 278 40	Socket	1
18	794 380 73	Lamp	1
19	794 381 73	Bulb	1
21	440 369 40	Turn switch, 3-stage	1
22	324 400 40	Turn switch	6
23	324 401 40	Turn switch, 1-stage	5
24	399 702 40	Turn switch	1
25	324 402 40	Turn switch, 2-stage	1
26	655 331 40	Ashtray	1
27	891 033 40	Emergency push button	1
28	655 686 40	Impact key	1
29	655 676 40	Spring element	1
30	635 115 40	Contact element	1
31	635 652 40	Contact element	1
32	961 147 40	Harness Display - X2 Switch box	1
33	941 761 40	Receptacle	1
34	515 313 40	Socket	1
35	896 467 40	Hood	1
36	056 070 40	Cable sleeve 1,0-1,5	2
37	906 490 40	Union	1
38	907 692 40	Fitting PG 9	1
39	635 896 40	Tube protection	1
40	655 650 40	Cable protection hose DN 12	2
41	907 477 40	Cable union DN 12	1
42	950 173 40	O-ring	1
43	950 166 40	Plug assy.	1
44	950 174 40	Pin contact	3
45	950 179 40	Contact element	1
46	950 178 40	Body	1
47	515 213 40	Cable 1mm2 blue	-2
49	950 435 40	Cable CAN-BUS	-2
50	907 703 40	Cable union	1
51	940 660 40	Seal	1
52	950 176 40	Protection cap	1
53	507 384 99	Bulb 3 W	6
54	507 382 99	Bulb 2 W	1
55	966 975	Socket	6
56	966 740	Socket	1
60	906 612 40	Through clamp 2,5	-2
61	906 630 40	Protective wire clip 2,5	-2
62	906 769 40	Through clamp 16,0	-2
63	906 613 40	Cover plate	-2
64	356 265 40	Clamp	-2
65	502 709 98	Assembly rail	-2
66	604 221 40	Wiring channel 60x100	-2
67	515 214 40	Cable 2,5 mm2	-2
68	655 675 40	Cable 6 mm2	-2
70	796 442 73	Data and Diagnostic Tool	1
71	796 443 73	Cable Set	1
