Diagram image 1 of 4

PC3000-6 S/N 46224

01 01 01 01 02 04 04 05 06 07 08 09 10 10 10 10 10 10 11 11 11 111 111 111 12 121 122 123 124 125 126 13 13 13 14 15 16 17 18 27 28 29 30 31 32 33 36 37 38 43 43 43 56 57 60 61 65 66 74 75 76

PC3000-6 S/N 46224

10 100 100 100 11 111 111 22 24 25 26 35 39 45 46 47 47 47 47 47 48 48 48 48 48 49 49 49 51 51 52 54 54 54 54 54 54 54 54 55 55 55 62 63 64 64 65 65 65 66 66 66 66 66 66 66 66 66 66 66 66 66 67 67 67 67 67 68 68 68 68 68 68 68 68 68 70 70 70 70 70 70 71 84 84 84 84 85 86 86 86 86 86 87 87 87 88 91 91 91 91 91 93 97 97 97 97 98 98

PC3000-6 S/N 46224

10 11 14 15 19 20 21 22 23 24 25 25 26 35 39 44 48 48 53 58 58 59 62 63 64 65 66 66 67 67 68 68 68 69 69 69 69 71 71 72 72 73 77 78 79 80 81 82 82 83 88 88 89 89 90 90 90 92

PC3000-6 S/N 46224

100 100 111 112 113 114 34 34 45 46 53 64 64 66 67 67 67 89 89 89 93 96 97 97 98 98 98 98

#	Part Number	Partname	Quantity
01	950 158 40	Head light assy.	10
02	952 071 40	Lamp retainer	1
04	797 352 73	Bulb	10
05	946 033 40	Lamp retainer, Counterweight	2
06	957 909 40	Lamp retainer, Oil cooler	1
07	946 030 40	Lamp retainer, Cab support	1
08	943 696 40	Wire cover, right hand	1
09	943 697 40	Wire cover, left hand	1
10	507 037 98	Nut	123
11	340 465 99	Washer	101
12	307 780 99	Bolt	8
13	340 467 99	Washer	7
14	307 775 99	Bolt	7
15	518 547 98	Lock washer	7
16	307 779 99	Bolt	4
17	517 121 98	Lock washer	12
18	307 754 99	Bolt	4
19	517 328 98	Reducing M25x1,5 - M20x1,5 M25/20	2
20	517 322 98	Cable nut M20	4
21	517 323 98	Cable nut M25	2
22	0443451610	Clip D 16	8
23	0443451210	Clip D 12	4
24	957 921 40	Harness roof frame - engine housing	1
25	0443452711	Clip D 27	10
26	0443452110	Clip D 21,5	54
27	926 550 40	Spotlight assy. consist of fig nos. 28-31	7
28	634 009 40	Spotlight	7
29	507 383 99	Halogen lamp	7
30	769 155 73	Seal	7
31	769 156 73	Pane, white	7
32	319 143 99	Screw	6
33	343 108 99	Lock washer	6
34	957 924 40	Harness Lighting Cab support	-2
35	510 744 98	Resilient sleeve	7
36	320 978 99	Screw	2
37	340 904 99	Washer	2
38	346 508 99	Lock washer	2
39	510 741 98	Resilient sleeve	43
43	321 010 99	Screw	16
44	950 132 40	Protection cap	1
45	941 777 40	Name plate	19
46	174 411 40	Cable strap	38
47	907 480 40	Cable union DN 10-90	5
48	440 109 40	Sleeve	6
49	907 692 40	Fitting M16/DN12	3
51	651 461 40	Housing assy.	2
52	655 634 40	Pipe adapter DN 23/17	1
53	907 971 40	Pipe adapter DN 23/12	1
54	655 629 40	T-Distributor DN 17	7
55	655 633 40	Pipe adapter DN 17/12	3
56	944 780 40	Emergency switch-off assy.	2
57	940 729 40	Emergancy switch off	1
58	655 627 40	Distributor DN 23/17	2
59	655 625 40	Distributor DN 12/10	1
60	944 781 40	Switch assy.	1
61	940 726 40	Light switch	1
62	907 704 40	Cable union	1
63	896 521 40	End pin	1
64	515 213 40	Cable 1,0	-2
65	515 214 40	Cable 2,5	-2
66	655 649 40	Cable protection hose DN 10	-2
67	655 650 40	Cable protection hose DN 12	-2
68	655 651 40	Cable protection hose DN 17	-2
69	655 652 40	Cable protection hose DN 23	-2
70	655 632 40	Pipe adapter DN 17/10 DN 17/10	5
71	907 623 40	Cable union DN 12	3
72	907 478 40	Cable union DN 17	2
73	517 327 98	Reducing	1
74	944 782 40	Safety switch assy.	1
75	940 728 40	Service switch	1
76	940 869 40	Socket	1
77	907 975 40	Fitting DN17	2
78	950 133 40	Plug	2
79	907 934 40	Pin	8
80	950 110 40	Plug assy.	1
81	0819105320	Pin	19
82	907 733 40	T-Distributor DN 23	2
83	907 979 40	Fitting PG35/DN 17	1
84	896 520 40	End pin	8
85	655 628 40	T-Distributor DN 10	1
86	517 321 98	Cable nut	6
87	056 054 40	Grommet	5
88	940 463 40	Insulating tube	-2
89	056 070 40	Cable sleeve 1,0-1,5	12
90	907 640 40	Wire end ferrule 2,5	3
91	907 577 40	Distributor	4
92	950 131 40	Protection cap	1
93	906 420 40	T-Distributor DN 12 DN 12	2
96	907 692 40	Fitting M16/DN 12	3
97	907 703 40	Cable union	9
98	952 675 40	Plug assy.	6
100	940 461 40	Insulating tube	-2
111	940 471 40	Fitting	3
112	655 809 40	Pipe adapter DN 29/10	1
113	941 240 40	Union	1
114	932 531 40	Fitting	1
121	898 629 40	Rotaflare light yellow assy. consist. of fig nos. 122-128	1
122	970 526 40	Retainer	1
123	896 497 40	Rotaflare light 24 yellow	1
124	655 621 40	Cable union DN 10	1
125	180 322 40	Plug	1
126	323 960 40	Tab	2
\|$$103			-2
\|$$104			-2

Komatsu PC3000-6 S/N 46224 parts catalog PDF

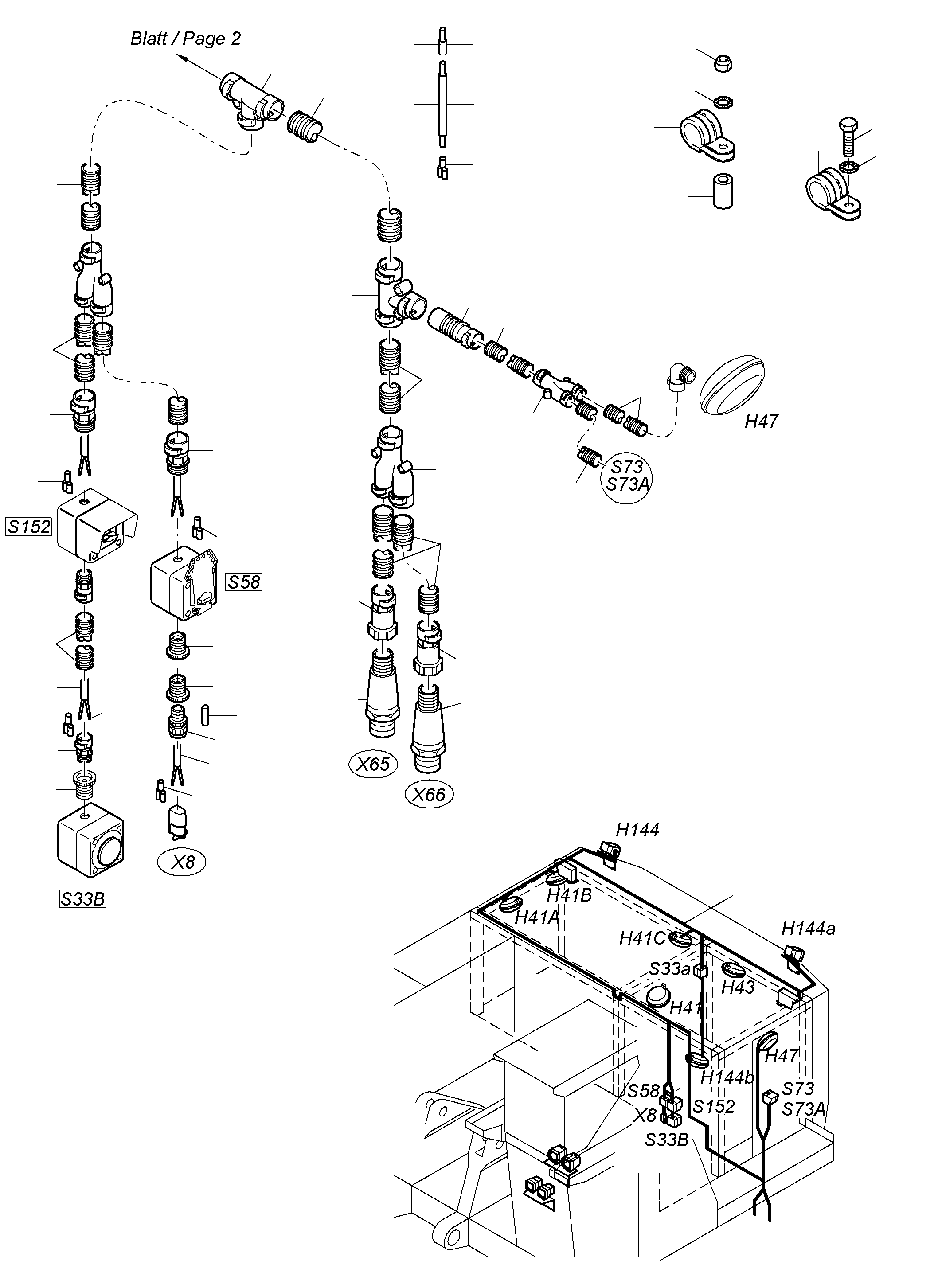

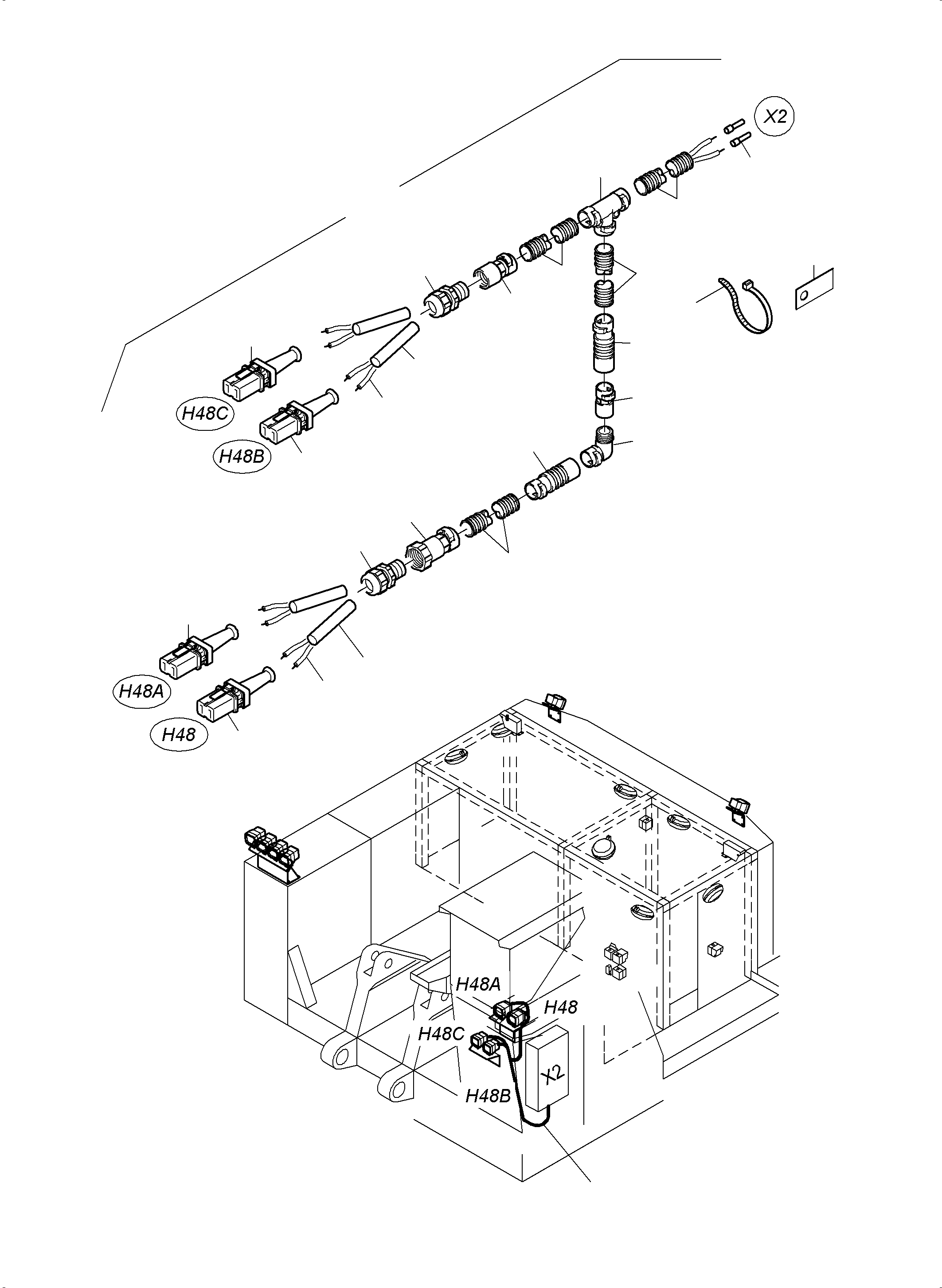

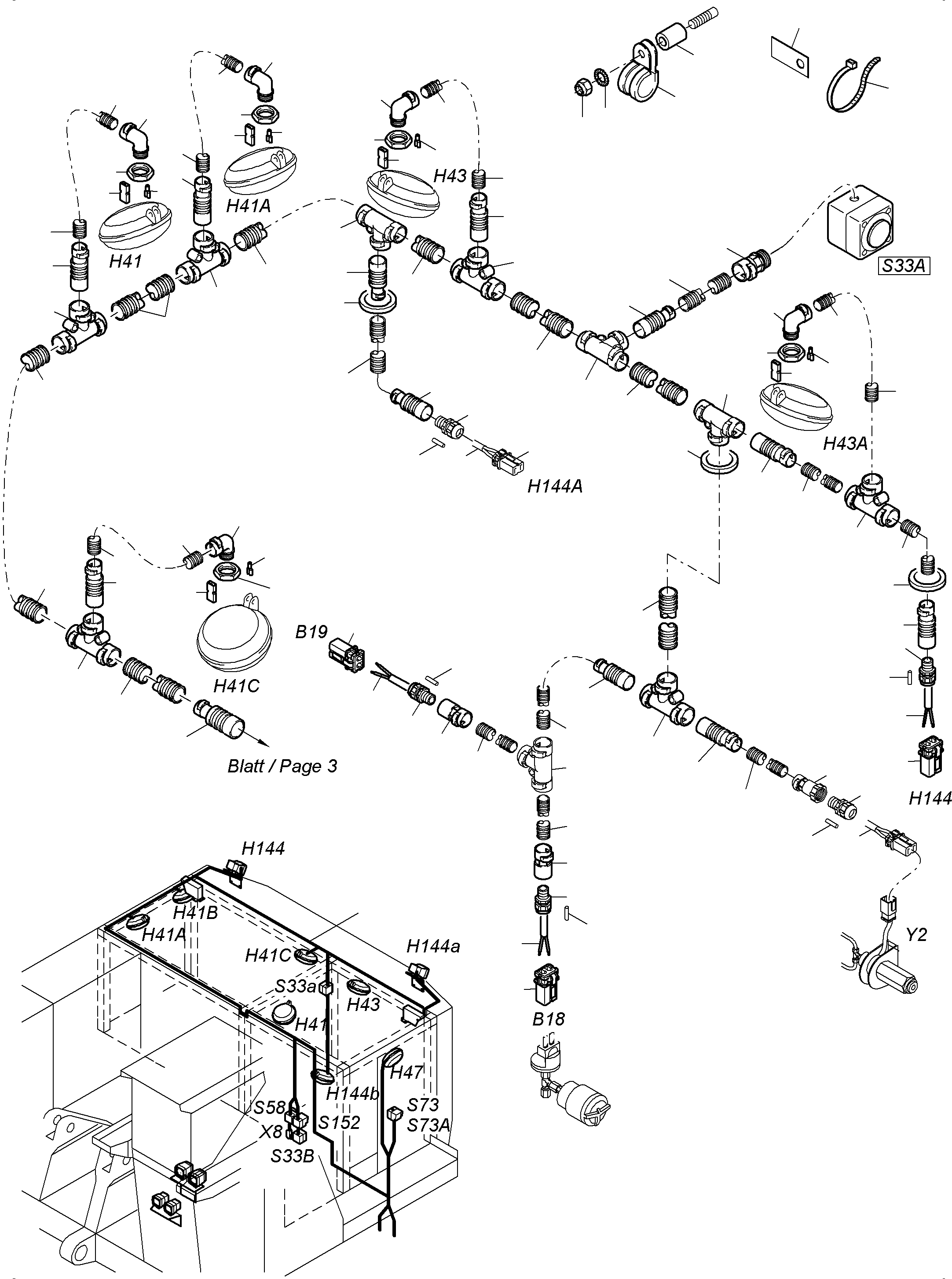

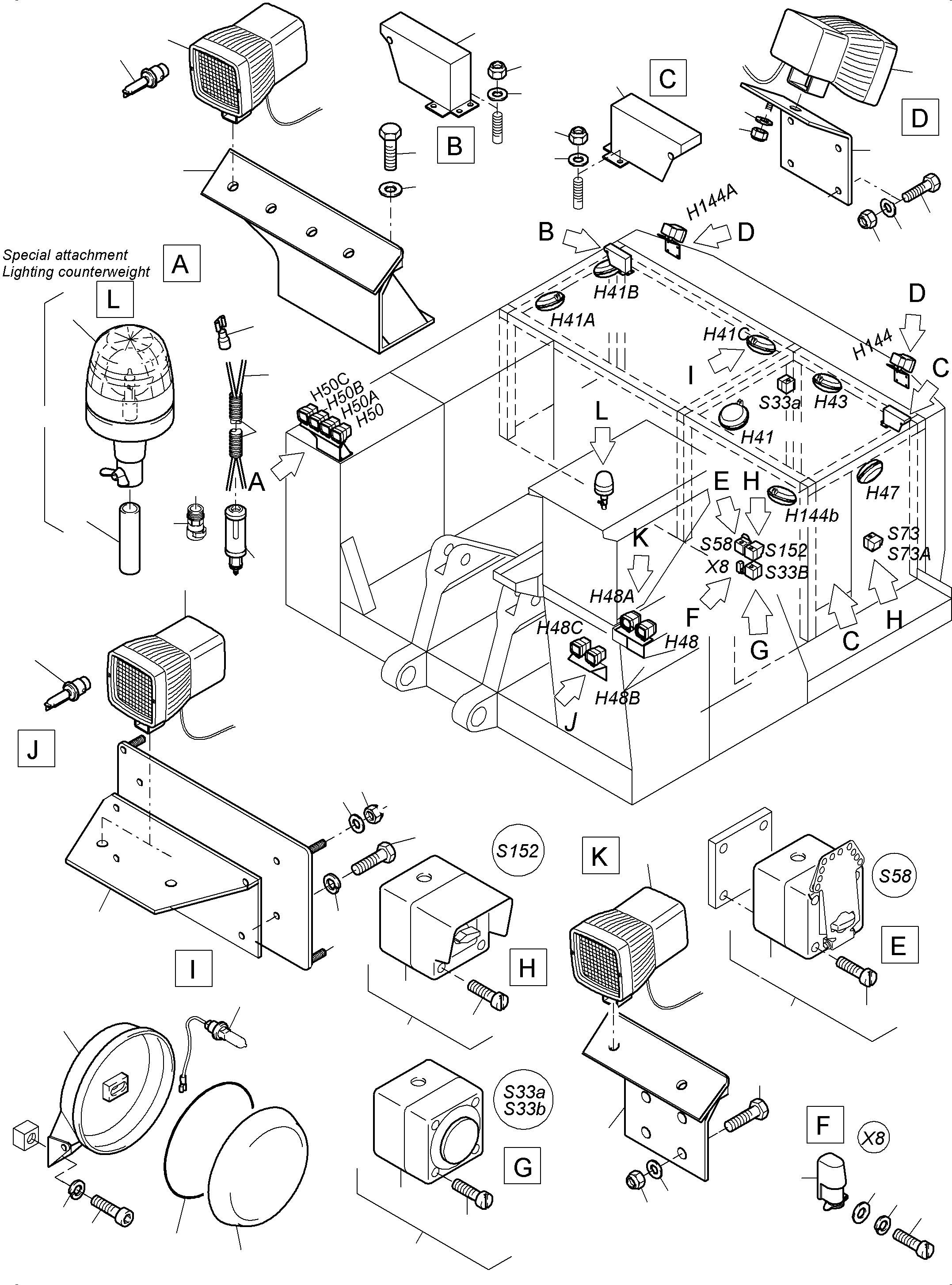

LIGHTING EQUIPMENT (485-2106i) in PC3000-6 S/N 46224. Diagram image and parts list.
