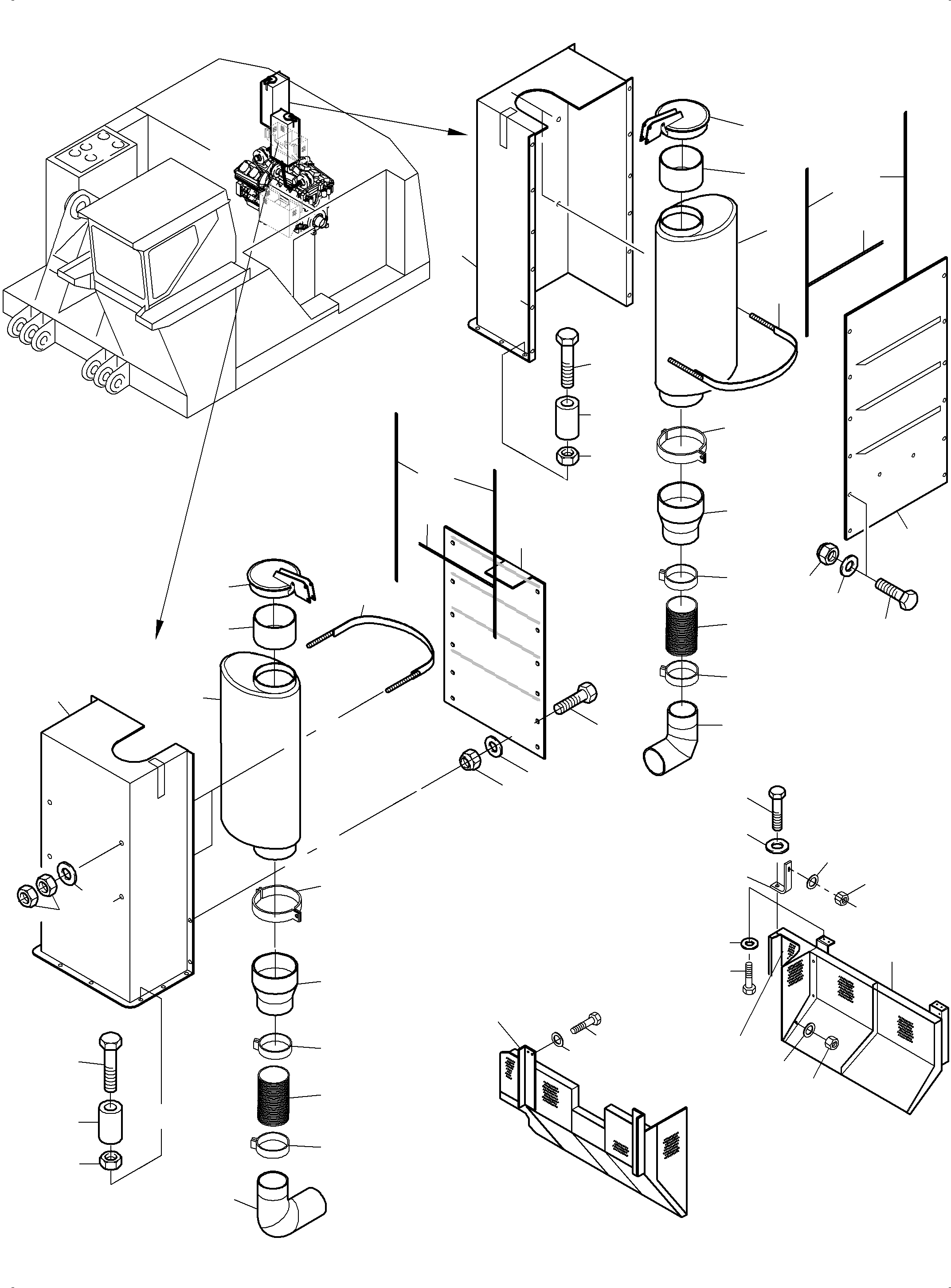

Komatsu parts book diagram for PC3000-6 S/N 46224: EXHAUST SYSTEM

01 01 02 02 03 03 04 05 06 06 07 07 08 08 09 09 10 10 11 11 11 11 12 12 14 14 16 16 17 17 18 18 20 21 21 22 22 23 24 24 26 26 31 32 33 33 33 34 34 34 35 36 37 37 38 38

	#	Part Number	Partname	Quantity	Options	Reference
	01	210 976 40	Muffler	2
	02	912 486 40	Holding device, muffler	2
	03	894 302 40	Exhaust pipe assy.	2
	04	923 988 40	Exhaust pipe	1
	05	923 989 40	Exhaust pipe	1
	06	941 668 40	Weather protecting cap	2
	07	894 268 40	Pipe	2
	08	894 258 40	Strap retainer	4
	09	635 520 40	Flex. pipe	2
	10	935 272 40	Cover plate	2
	11	635 521 40	Clamp	4
	12	950 594 40	Strap retainer	2
	14	510 733 98	Resilient sleeve	16
	16	307 779 99	Bolt	24
	17	502 434 98	Bolt	16
	18	507 037 98	Nut	28
	20	332 336 99	Nut	16
	21	332 355 99	Nut	16
	22	340 465 99	Washer	28
	23	340 688 99	Washer	8
	24	954 035 40	Foam profile	4
	26	954 036 40	Foam profile	2
	31	925 250 40	Motor heat protection, rear	1
	32	942 445 40	Motor heat protection, front	1
	33	307 800 99	Bolt	9
	34	517 118 98	Lock washer	9
	35	942 446 40	Motor heat protection, front	1
	36	942 447 40	Retainer	1
	37	507 037 98	Nut	4
	38	340 465 99	Washer	4
