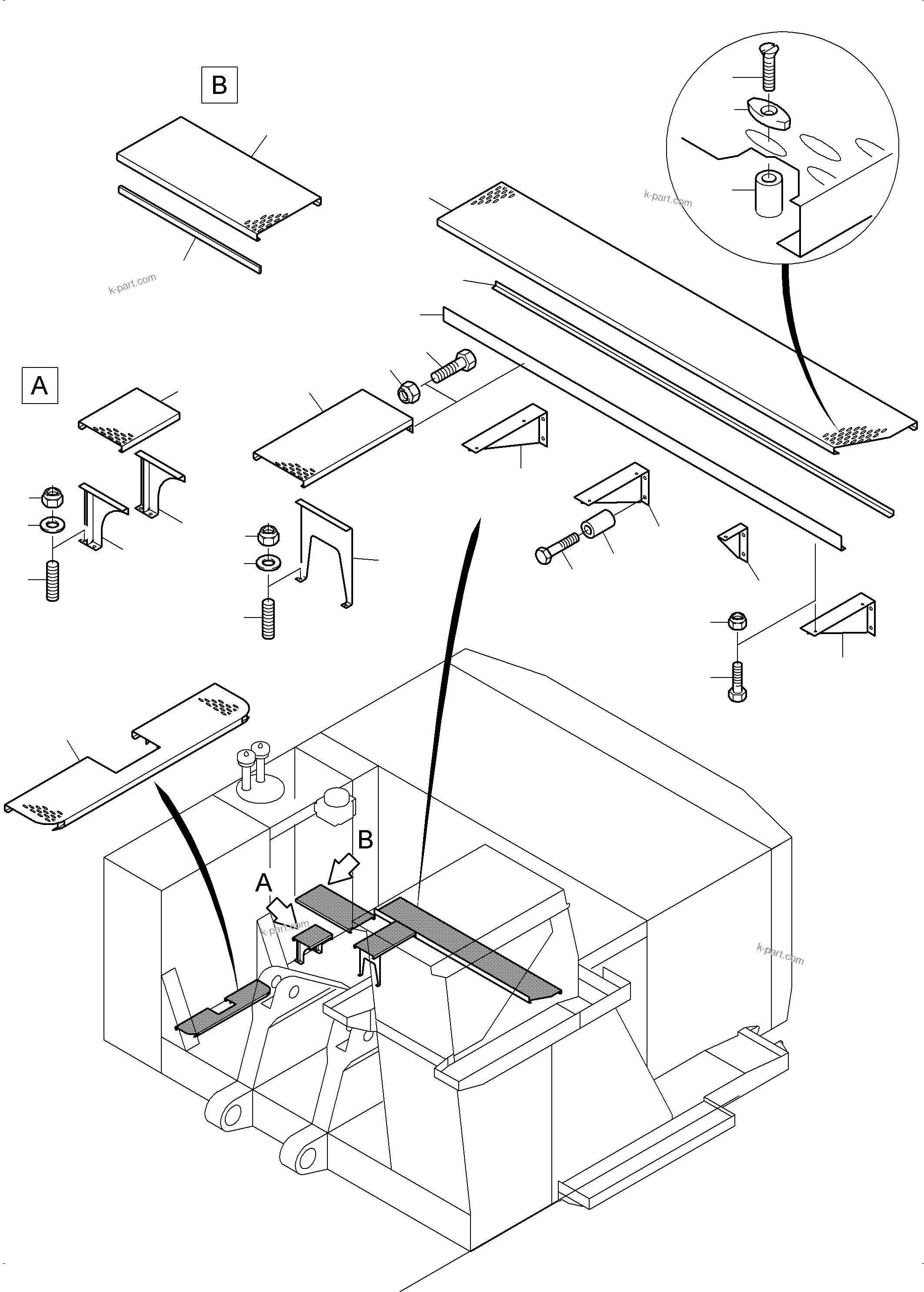

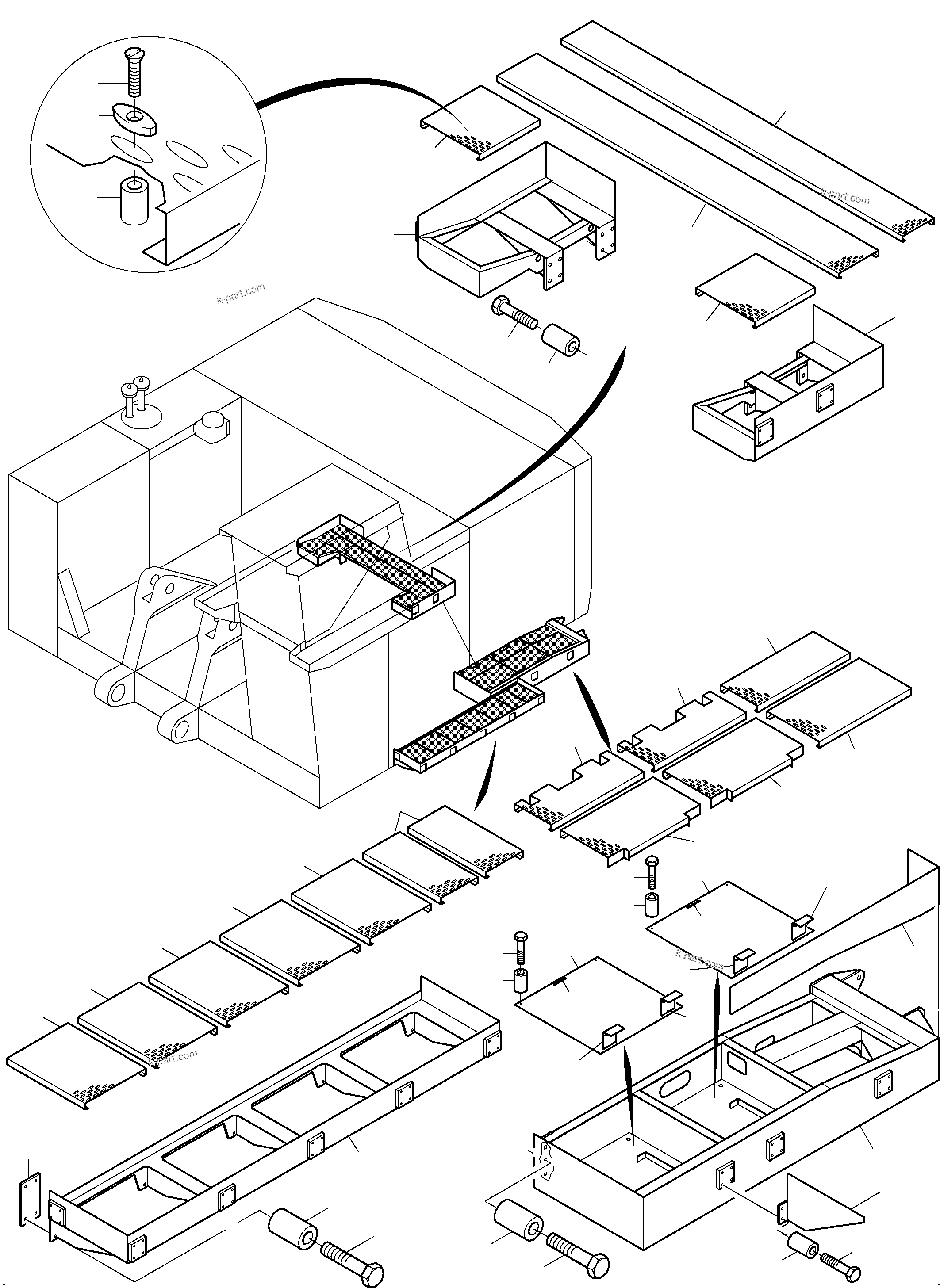

Diagram image 1 of 2

PC4000-6E S/N 08204

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6E S/N 08204

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	461 755 40	Grating	1
?	906 866 40	Grating	1
?	931 186 40	Platform	1
?	915 146 40	Grating	2
?	931 185 40	Platform	1
?	308 637 99	Bolt	16
?	510 733 98	Resilient sleeve	32
?	317 313 40	Grating	2
?	440 998 40	Grating	5
?	270 192 40	Grating	1
?	930 236 40	Grating	2
?	323 315 40	Grating	1
?	930 237 40	Grating	1
?	945 970 40	Sheet	1
?	930 218 40	Threaded plate	4
?	930 213 40	Platform	1
?	510 728 98	Resilient sleeve	6
?	308 404 99	Bolt	6
?	931 191 40	Retainer	1
?	510 744 98	Resilient sleeve	20
?	308 605 99	Bolt	20
?	502 354 98	Counter sunk screws	105
?	317 318 40	Plastic wing nut	105
?	317 319 40	Threaded block	105
?	324 395 40	Grating	1
?	931 486 40	Strip	1
?	904 310 40	Grating	4
?	904 308 40	Angle	1
?	954 102 40	Sheet metal	1
?	912 731 40	Grating	1
?	905 087 40	Grating	1
?	334 600 99	Nut	148
?	307 804 99	Bolt	2
?	901 007 40	Console	1
?	901 004 40	Console	2
?	334 599 99	Nut	8
?	307 754 99	Bolt	8
?	904 313 40	Console	2
?	939 450 40	Sheet metal	1
?	340 467 99	Washer	186
?	507 121 98	Bolt	6
?	937 598 40	Platform	1
?	904 307 40	Grating	1
?	945 946 40	Platform	1
?	930 235 40	Battery cover	1
?	945 756 40	Battery cover	1
?	943 809 40	Hinge ri.	2
?	943 808 40	Hinge le.	2
?	511 744 98	Handle	2
?	308 608 99	Bolt	4
?	510 741 98	Resilient sleeve	4
