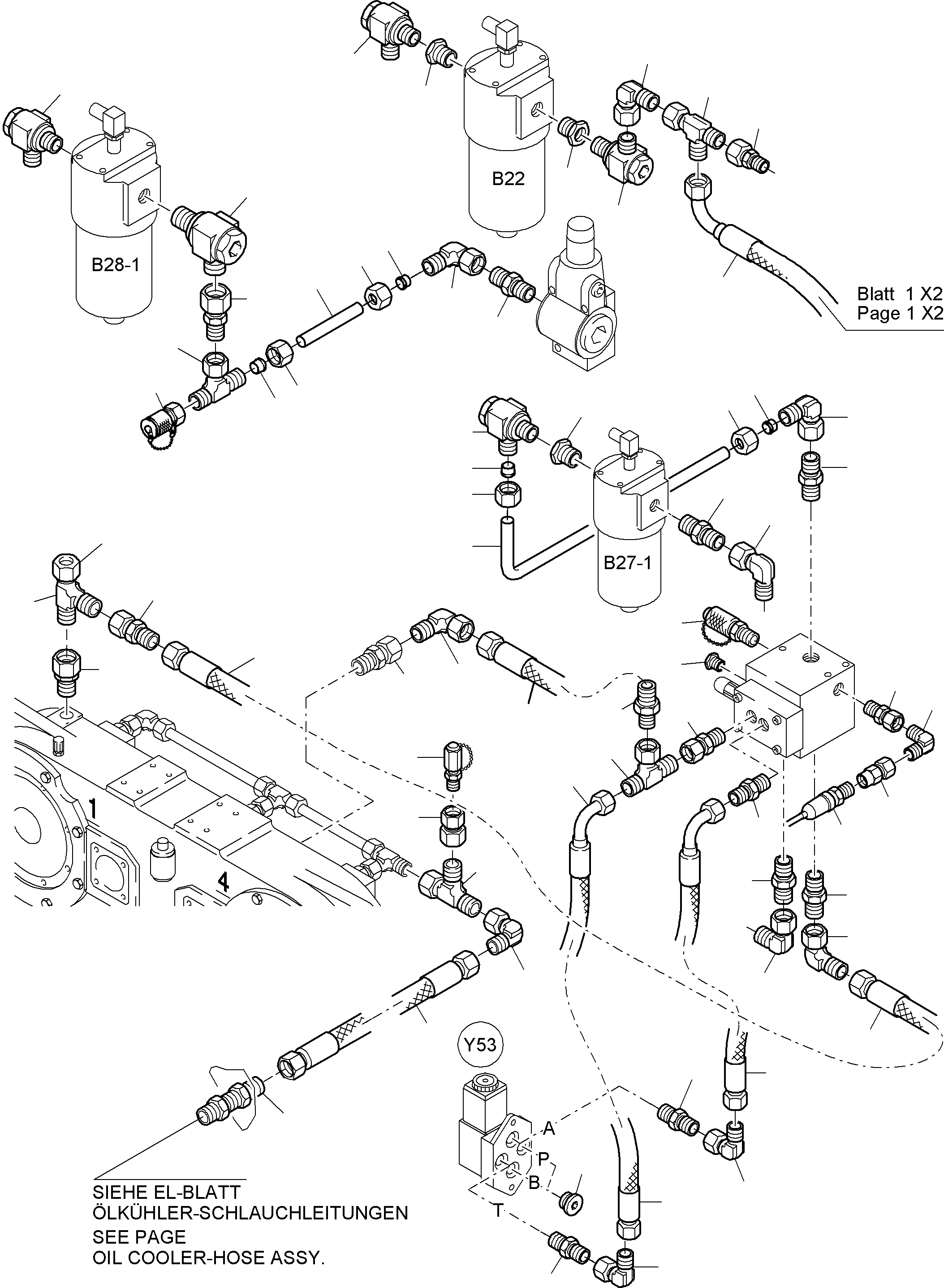

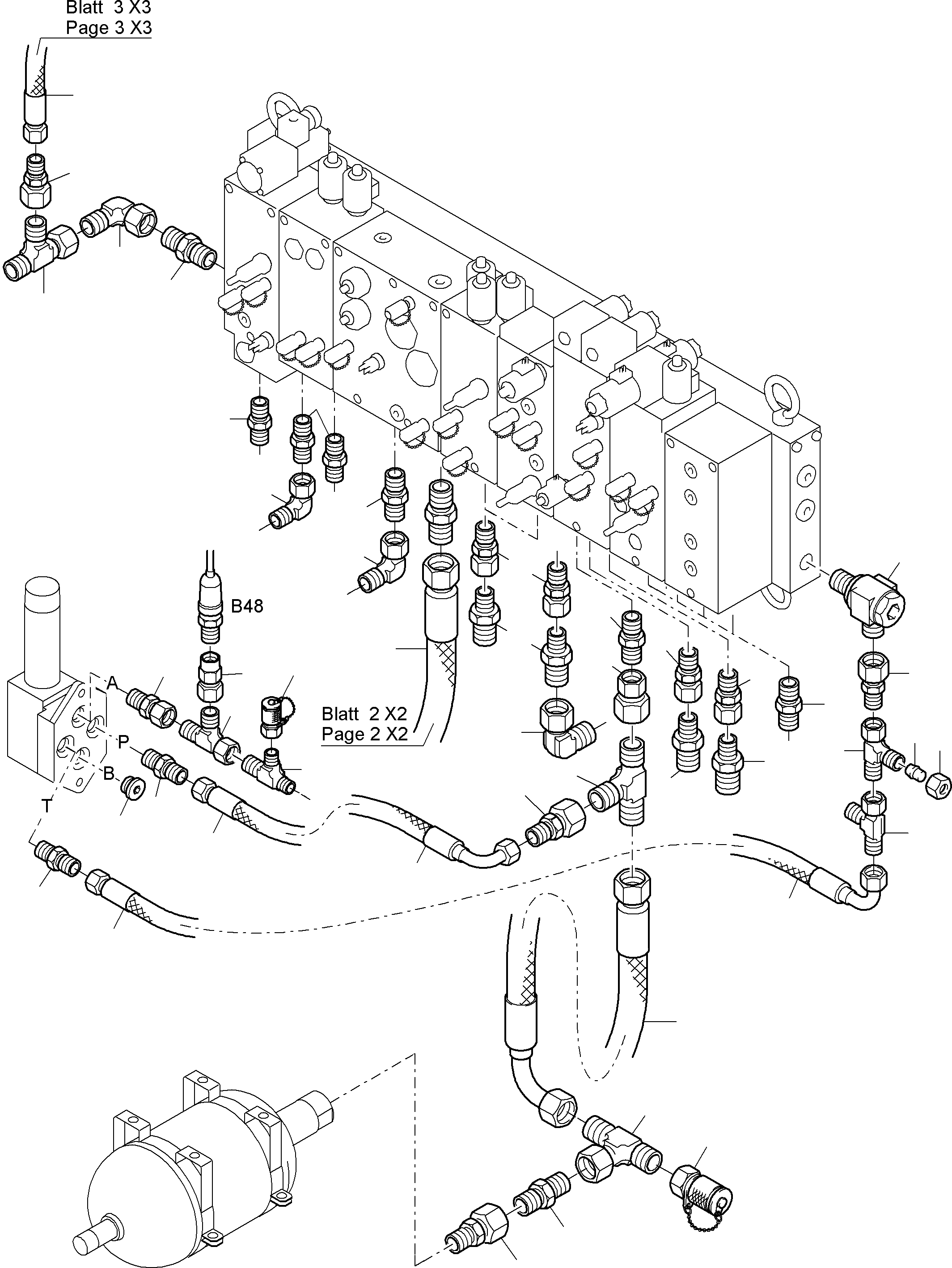

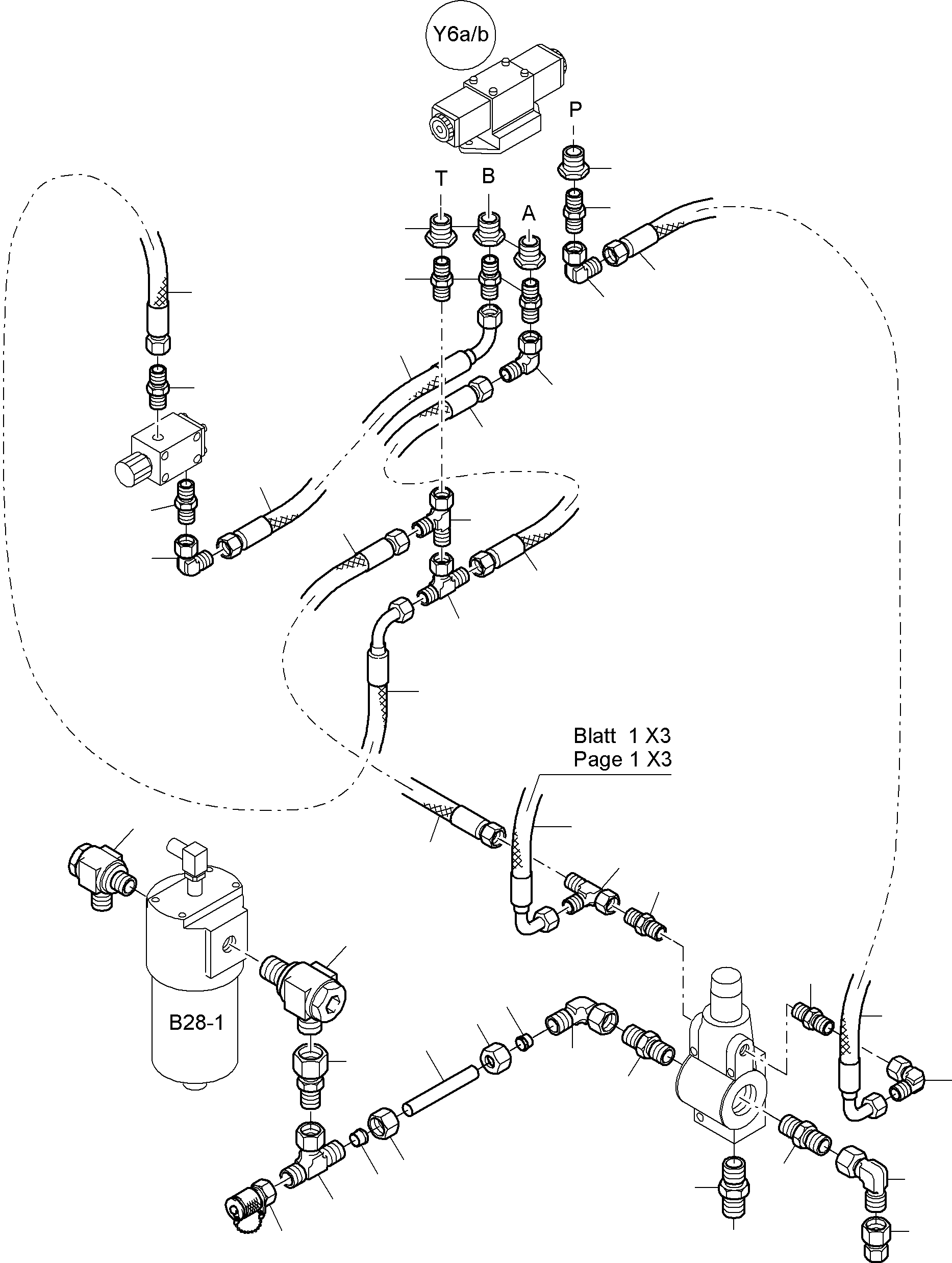

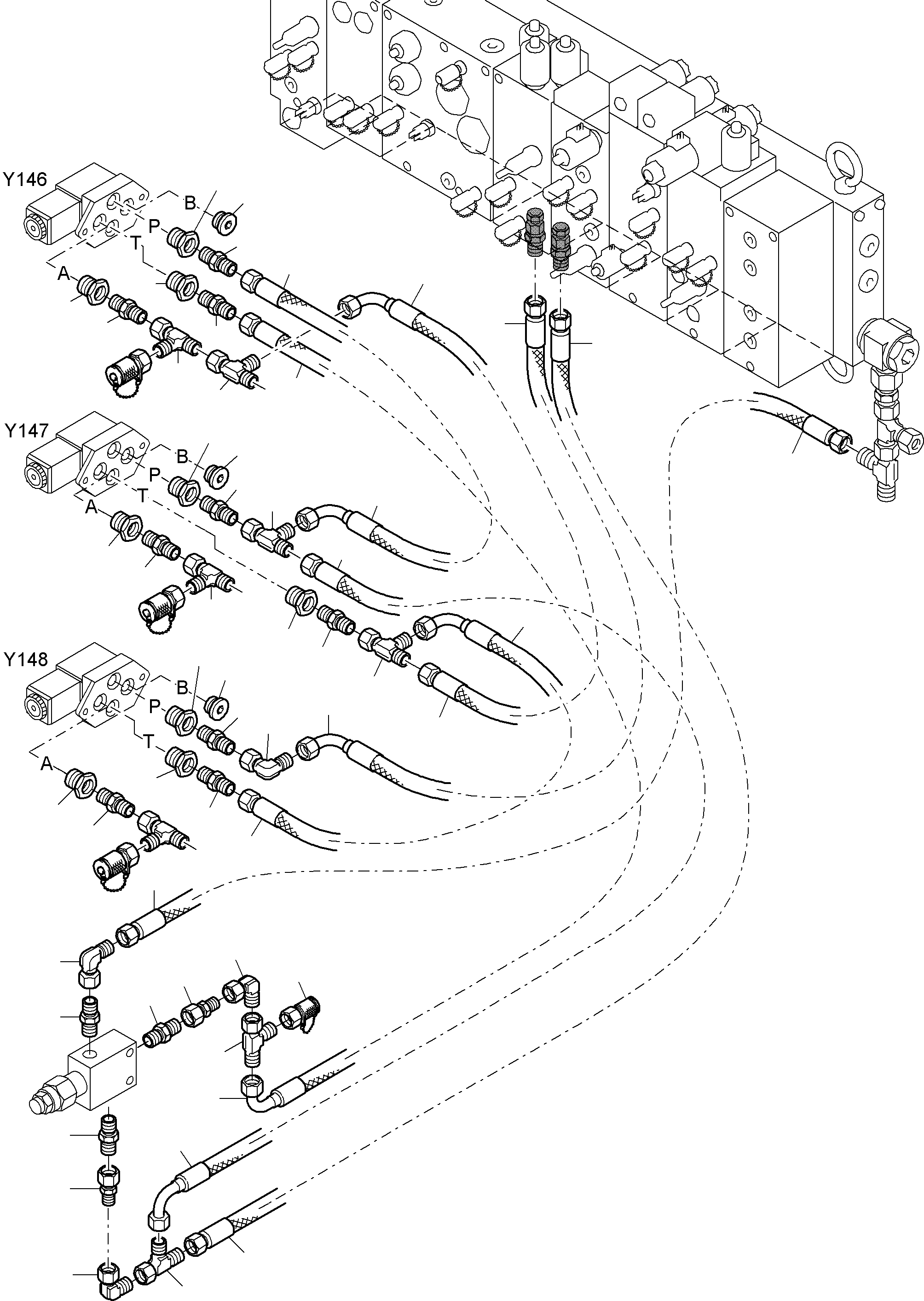

Diagram image 1 of 4

PC4000-6E S/N 08204

01 02 03 04 06 09 09 12 13 13 13 20 20 24 24 24 25 25 26 27 30 31 37 39 41 43 43 51 51 52 53 54 55 55 55 56 56 59 72 82 83 91 92 93 94 95

PC4000-6E S/N 08204

05 07 08 10 10 100 101 101 102 102 103 104 105 106 107 108 109 11 110 111 112 113 14 15 16 17 18 19 22 23 25 25 28 30 30 30 30 31 31 31 33 34 35 36 37 39 51 51 51 56 56 56 61 63 64 72 84 84 85 85 86 86 86 87 87 88 88 89 89 90

PC4000-6E S/N 08204

14 15 16 16 17 17 18 21 29 54 54 54 54 57 61 74 74 74 74 74 74 75 75 76 76 77 77 78 78 79 79 80 80 81 81 82 84 84 85 85 87 87

PC4000-6E S/N 08204

114 114 114 114 114 114 114 114 114 115 115 116 117 117 117 117 118 118 119 119 119 119 25 39 39 39 51 51 51 54 54 54 74 74 74 74 74 74 74 74 74 75 75 75 75 75 75 75 76 76 76 76 76 76

#	Part Number	Partname	Quantity
01	906 930 40	Union	1
02	515 865 98	Socket	1
03	511 135 98	Socket	1
04	576 403 40	Union	1
05	576 472 40	Union	1
06	592 069 40	Union	1
07	515 814 98	Coupling	1
08	516 177 98	Socket	1
09	604 762 40	Union	4
10	372 887 99	Socket	2
11	516 167 98	Socket	1
12	634 304 40	Union	1
13	374 430 99	Socket	6
14	634 482 40	Union	1
15	516 740 98	Socket	1
16	516 248 98	Socket	2
17	374 419 99	Socket	2
18	004 684 98	Coupling	1
19	371 948 99	Union	1
20	374 420 99	Socket	3
21	516 100 98	Socket	1
22	372 709 99	Union	1
23	516 183 98	Socket	1
24	516 182 98	Socket	5
25	516 157 98	Socket	2
26	371 274 99	Union nut	1
27	371 854 99	Plug	1
28	372 885 99	Socket	1
29	374 439 99	Socket	1
30	516 161 98	Socket	6
31	374 431 99	Socket	5
33	255 171 40	Union	1
34	516 744 98	Union	1
35	509 272 98	Nut	1
36	374 460 99	Socket	1
37	516 184 98	Socket	2
39	255 694 40	Plug	6
41	592 325 40	Union	1
43	516 377 98	Hose assy. DN 10x300	1
51	371 459 99	Socket	8
52	371 949 99	Union	1
53	502 752 98	Coupling	1
54	516 156 98	Socket	6
55	516 174 98	Socket	3
56	515 742 98	Hose assy. DN 10x520	3
57	516 224 98	Socket	1
59	634 423 40	Union	1
61	938 207 40	Pipe assy. Ш 25	1
63	908 018 40	Pipe assy. Ш 28	1
64	621 127 40	Union	1
72	513 692 98	Hose assy. DN 25x800	1
74	374 416 99	Socket	17
75	516 173 98	Socket	10
76	516 384 98	Hose assy. DN 08x360	4
77	516 606 98	Hose assy. DN 08x500	1
78	372 876 99	Socket	4
79	490 829 40	Hose assy. DN 08x920	1
80	516 441 98	Hose assy. DN 08x700	1
81	516 383 98	Hose assy. DN 08x250	1
82	516 317 98	Hose assy. DN 08x500	1
83	516 177 98	Socket	1
84	906 868 40	Olive	2
85	371 264 99	Union nut	2
86	907 149 40	Socket	3
87	907 150 40	Union	2
88	906 350 40	Olive	2
89	371 278 99	Union nut	2
90	516 162 98	Socket	1
91	374 425 99	Union	1
92	906 870 40	Union	1
93	510 939 98	Hose assy. DN 12x3200	1
94	516 175 98	Union	1
95	006 525 98	Coupling	1
100	513 598 98	Hose assy. DN 25x620	1
101	514 256 98	Hose assy. DN 12x1000	1
102	517 620 98	Hose assy. DN 25x2000	1
103	374 407 99	Socket	1
104	516 158 98	Socket	1
105	516 161 98	Socket	1
106	634 306 40	Union	1
107	374 415 99	Socket	1
108	516 178 98	Socket	1
109	371 860 99	Plug	1
110	502 752 98	Coupling	1
111	516 195 98	Union	1
112	906 919 40	Pressure switch	1
113	516 177 98	Plug	1
114	516 624 98	Socket	9
115	513 546 98	Union	2
116	004 398 98	Coupling	4
117	518 187 98	Hose assy. DN08x1400	2
118	518 188 98	Hose assy. DN10x1900	1
119	516 308 98	Hose assy. DN08x400	2

Komatsu PC4000-6E S/N 08204 parts catalog PDF

CONTROL- AND FILTER PLATE PIPING (356-1842c) in PC4000-6E S/N 08204. Diagram image and parts list.
