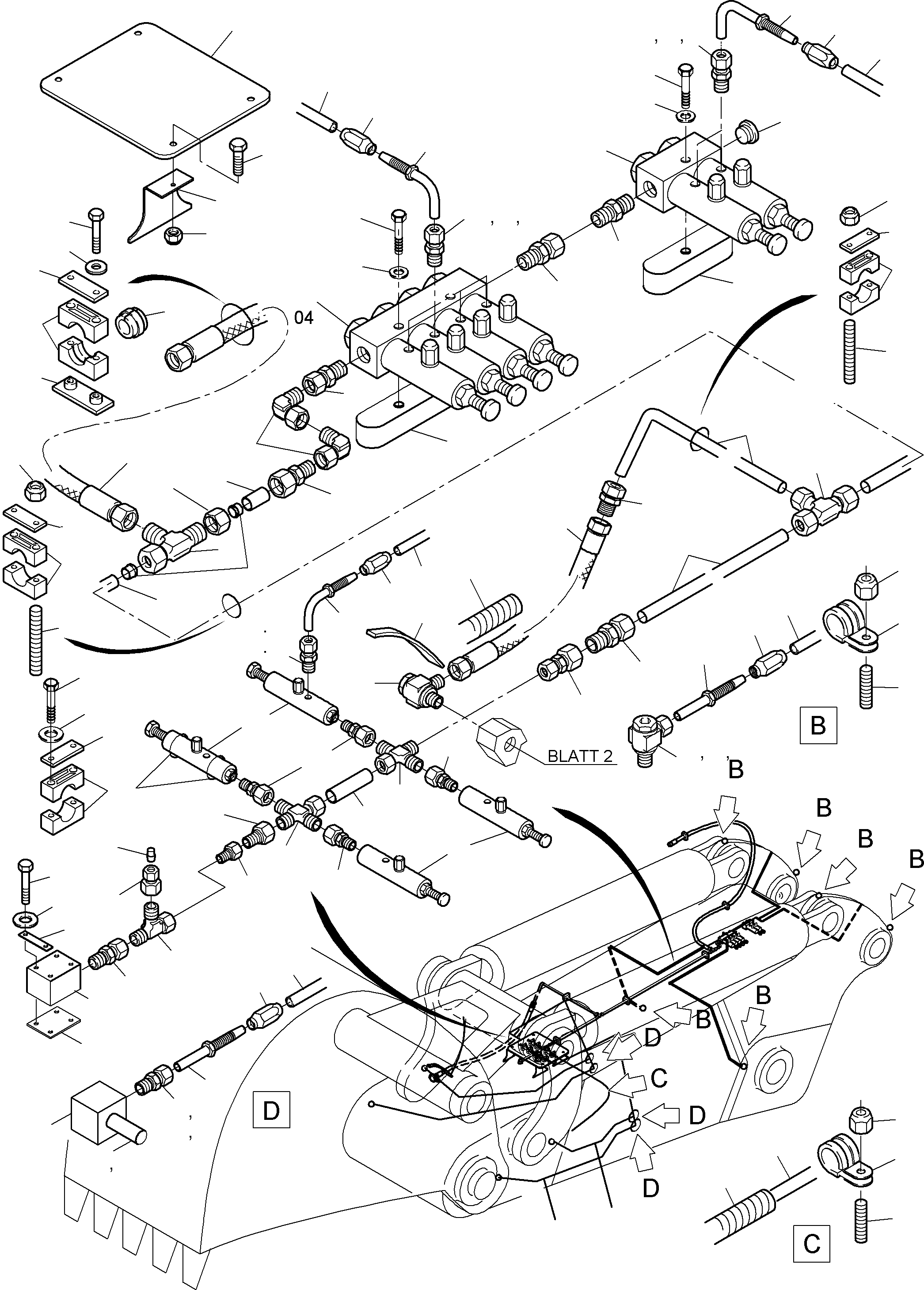

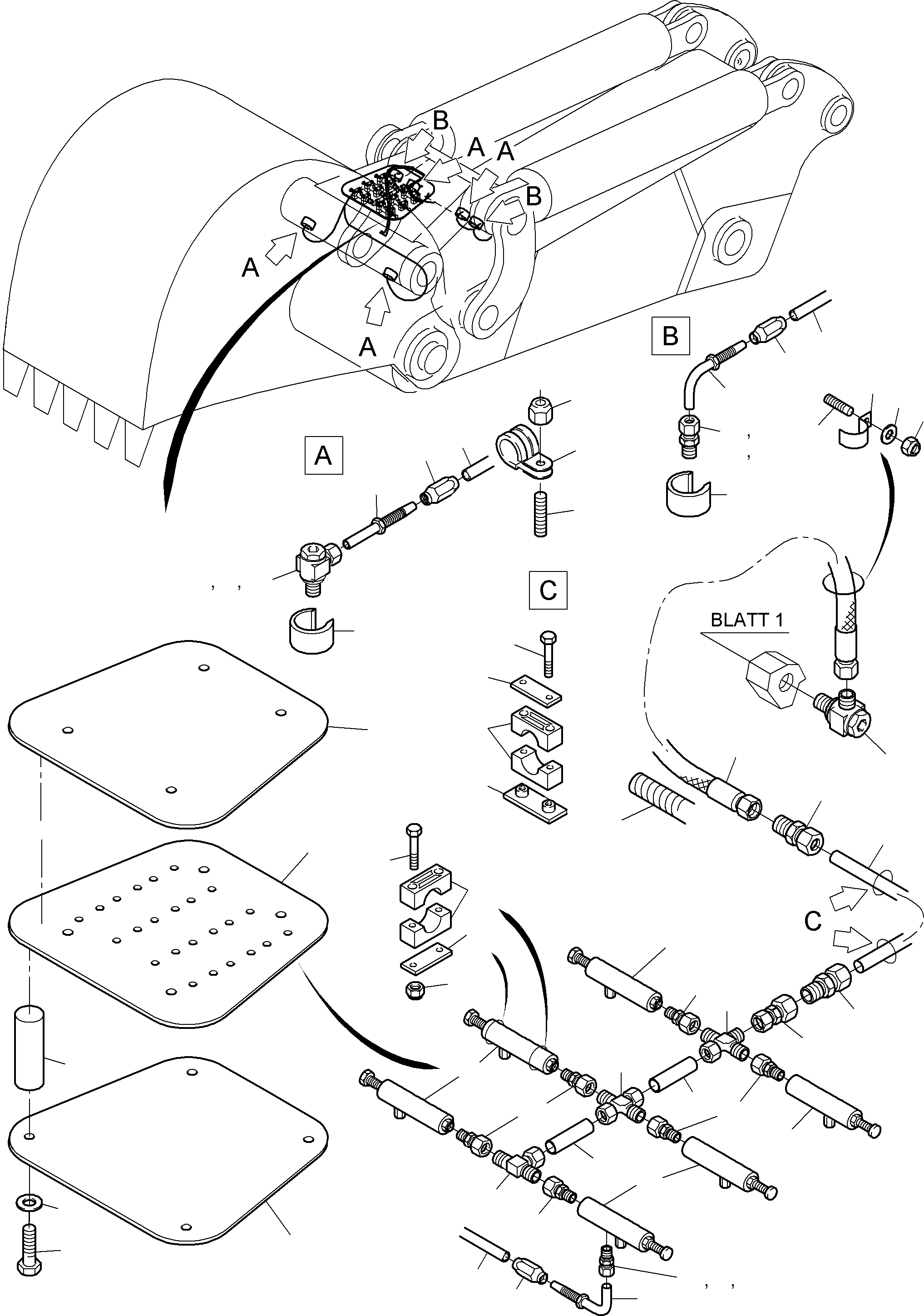

Diagram image 1 of 2

PC4000-6 S/N 08177

01 01 02 03 04 05 05 07 07 08 09 09 10 101 102 102 103 103 104 105 106 106 107 107 108 109 11 110 111 112 12 13 14 15 17 18 19 20 21 22 23 24 25 26 27 27 28 28 28 28 28 29 29 29 30 30 31 32 33 33 33 33 33 33 34 35 36 37 38 39 40 40 41 42 43 44 45 46 47 48 49 50 50 51 51 52 52 53 53 54 54 55 55 56 57 57 57 58 58 59 61 62 63 64 65 66 67 68 69 70 71 76 80 90 92 95 95 95 96 96 97 97 98 98 99 99 99 99 99

PC4000-6 S/N 08177

01 01 01 01 100 28 28 28 29 29 30 31 32 33 33 33 40 40 50 51 52 53 54 55 55 55 55 56 57 57 57 57 58 58 59 59 60 60 62 63 68 70 72 73 74 75 77 78 79 8 80 81 82 83 84 87 88 90 91 92 93 94 95 98 98 99 99 99

#	Part Number	Partname	Quantity	Reference
01		Metering valve	10	991-0323a
02		Metering valve	1	991-0091
03		Metering valve	1	991-0091
04	654 130 40	Protection cap	6
05	308 555 99	Bold	3
07	517 121 98	Washer	3
08	512 273 98	Socket	3
09	906 984 40	Union	1
10	324 672 40	Plug	1
11	516 741 98	Union	1
12	634 481 40	Union	1
13	516 834 98	Union	1
14	374 443 99	Union	1
15	551 456 40	Union	1
17	516 173 98	Socket	1
18	516 183 98	Socket	1
19	551 615 40	Union	1
20	371 861 99	Breech block	1
21	341 754 40	Ultimate pressure control	1
22	652 383 40	Shackle	2
23	511 773 98	Thread pin	4
24	507 037 98	Nut	4
25	512 672 98	Hose assy. DN 20x4400	1
26	936991 40	Pipe assy. Ш25	1
27	906 981 40	Union	6
28	515 028 40	Collet	32
29	515 029 40	Socket 90°	20
30	515 027 40	Socket, straight	12
31	517 291 98	Union	10
32	374 428 99	Union	6
33	576 160 40	Hose DN 4	-2
34	635 896 40	Tube protection	-2
35	942 824 40	Angle	4
36	923 356 40	Plate	1
37	931 890 40	Grease block	4
38	307 805 99	Bolt	4
39	634 546 40	Union	1
40	334 600 99	Nut	37
41	651 255 40	Clamp	4
42	634 978 40	Cover plate	8
43	512 055 98	Thread pin	8
44	502 618 98	Clamp Set	2
45	534 005 99	Weld on plate	2
46	534 004 99	Cover plate	2
47	504 926 98	Grommet	2
48	308 581 99	Bolt	4
49	500 801 98	Lock washer	4
50	006 303 98	Clamp	5
51	006 339 98	Clamp	32
52	006 301 98	Clamp	25
53	323 945 40	Thread pin	76
54	507 025 98	Nut	76
55	654 496 40	Protection cap	10
56	517 560 98	Union	10
57	502 303 98	Socket	10
58	655 268 40	Union	4
59	428 861 40	Pipe assy. Ш 16	4
60	909 206 40	Cover tube	6
61	516 700 98	Union	1
62	634 775 40	Clamp	20
63	634 774 40	Cover plate	20
64	308 611 99	Bold	16
65	634 271 40	Union	1
66	942 827 40	Pipe assy. Ш25	1
67	923 369 40	Pipe assy. Ш20	1
68	504 224 98	Clamp Set	4
69	907 334 40	Hose assy. DN 16x1500	1
70	374 442 99	Union	2
71	907 378 40	Swivel union	1
72	517 561 98	Union	1
73	0443453412	Clip	1
74	507 121 98	Thread pin	1
75	340 467 99	Washer	2
76	933 084 40	Guard plate	1
77	907 341 40	Straight swivel union	1
78	933 085 40	Pipe assy. Ш 20	1
79	517 148 98	Socket	1
80	907 377 40	Hose protection	2
81	933 083 40	Plate	1
82	923 366 40	Plate	1
83	923 367 40	Plate	1
84	923 361 40	Thread pin	4
87	307 454 99	Bolt	4
88	517 123 98	Washer	4
90	534 001 99	Cover plate	2
91	534 002 99	Weld-on plate	2
92	308 579 99	Bolt	4
93	308 612 99	Bolt	24
94	517 255 98	Union	1
95	371 271 99	Tube nut	16
96	933 081 40	Pipe Ш31,8	2
97	933 082 40	Pipe Ш31,8	2
98	371 257 99	Tube nut	16
99	907 080 40	Olive	32
100	907 436 40	Hose assy. DN16x1300	1
101	936 962 40	Pipe assy. Ш25	1
102	371 264 99	Union	6
103	906 868 40	Olive	6
104	371 260 99	Union	2
105	906 351 40	Olive	2
106	371 263 99	Union	7
107	907 151 40	Olive	7
108	936 978 40	Thread plate	1
109	936 979 40	Thread plate	1
110	517 118 98	Washer	16
111	942 851 40	Weld-on plate 90x90	1
112	517 122 98	Washer	4

Komatsu PC4000-6 S/N 08177 parts catalog PDF

STICK - LUBRICATION 4,5 M (355-2372e) in PC4000-6 S/N 08177. Diagram image and parts list.
