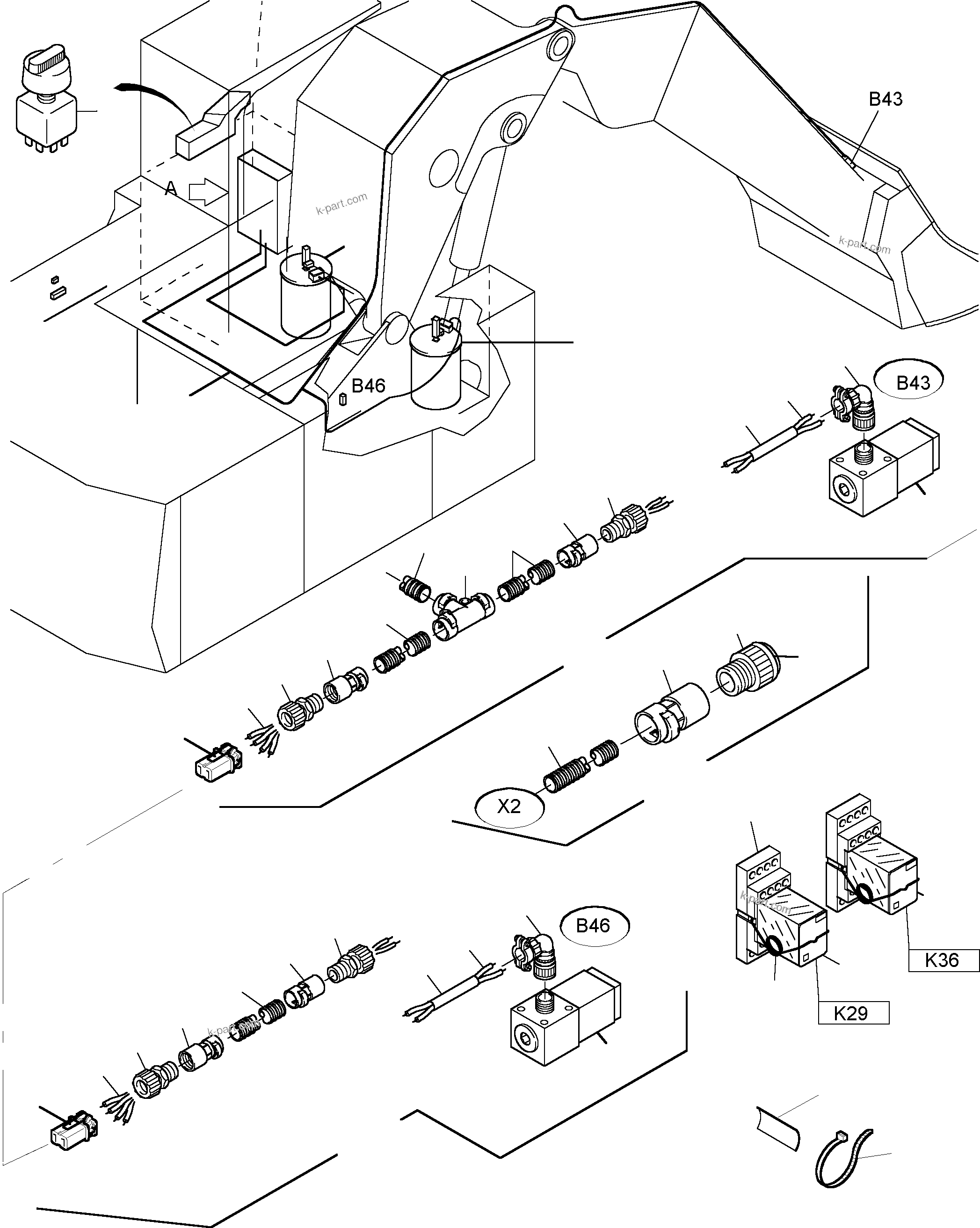

ELECTRIC PARTS | PC4000-6 S/N 08164 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC4000-6 S/N 08164

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	324 400 40	Turn switch	2
?	898 681 40	Relay assy.	2
?	356 184 40	Relay	2
?	323 910 40	Spring retainer	2
?	323 911 40	Socket	2
?	906 696 40	Protection cap	2
?	913 240 40	Harness - gear greasing by pinion	1
?	913 241 40	Harness - lube arr.	1
?	913 242 40	Harness - ultimate pressure control	1
?	341 754 40	Ultimate pressure control	2
?	621 547 40	Plug	2
?	896 765 40	Female contact 1-8	18
?	655 848 40	Fitting DN 17	2
?	655 651 40	Cable protection hose DN 17 Bulk ware, state length required	-2
?	915 244 40	Cable - ultimate pressure control B43 Bulk ware, state length required	1
?	515 213 40	Cable 1,0 Bulk ware, state length required	-2
?	056 070 40	Cable sleeve 1-1,5	20
?	910 029 40	Plug assy.	2
?	655 628 40	T-Distributor DN 10	1
?	655 805 40	Fitting PG 9	4
?	655 798 40	Cable union PG 9	4
?	896 520 40	End pin	6
?	655 649 40	Cable protection hose DN 10 Bulk ware, state length required	-2
?	346 524 40	Plug	2
?	455 757 99	Insulating tube B7x0,7 Bulk ware, state length required	-2
?	891 031 40	Plug assy.	1
?	891 039 40	Plug assy.	1
?	635 043 40	Name plate	6
?	056 292 40	Cable strap	6
