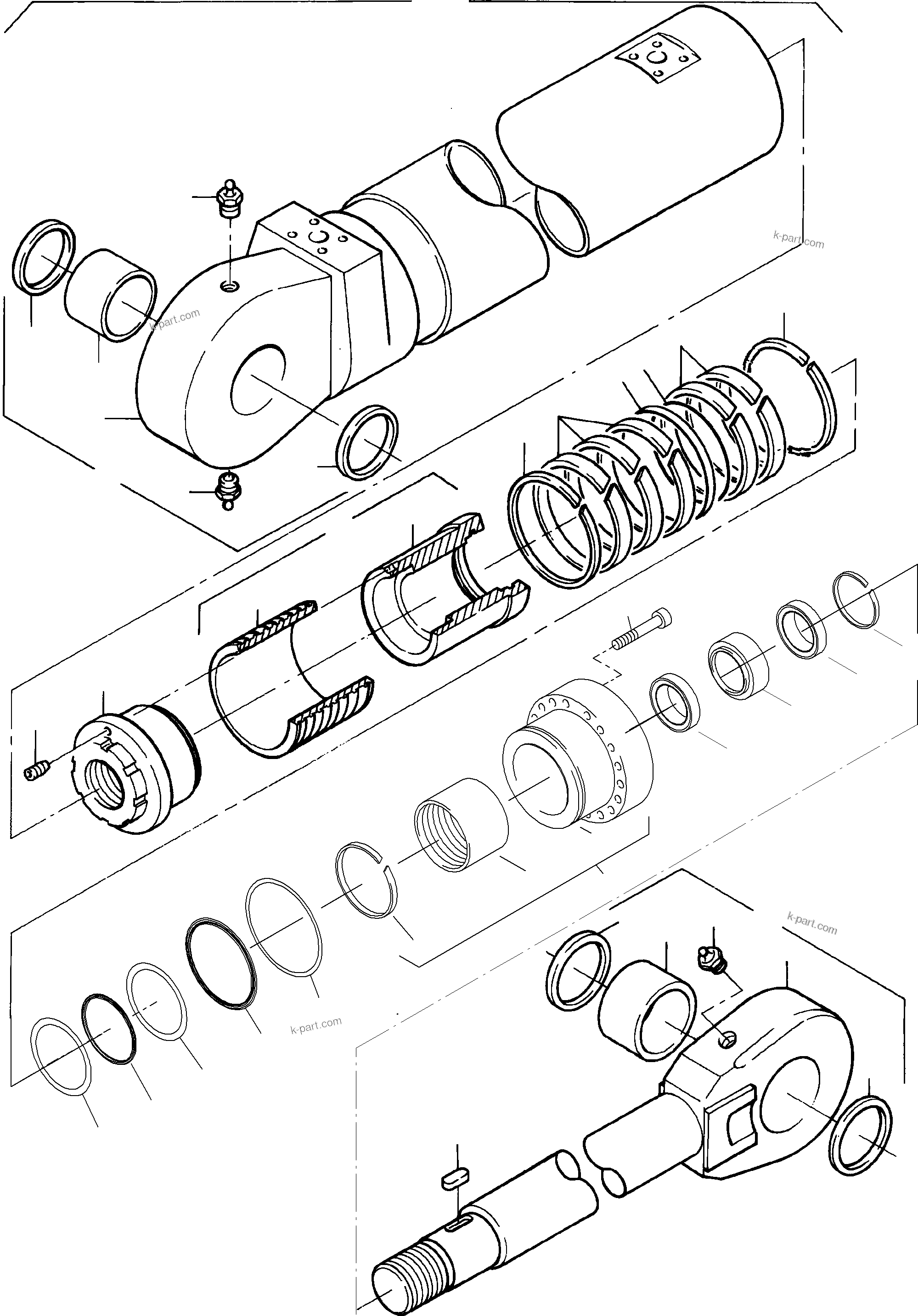

HYDRAULIC CYLINDER | PC4000-6 S/N 08164 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC4000-6 S/N 08164

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	929 265 40	Hydraulic cylinder assy. consist. of fig-no: 02-31	1
?	794 794 73	Cylinder assy. consist. of fig-no: 03-06	1
?		Cylinder These parts are not sold separately	1
?	627 572 40	Freeze-in bush	2
?	907 022 40	Seal ring	4
?	004 860 98	Nipple	3
?	347 449 99	Thread pin	1
?	886 833 40	Groove nut	1
?	886 838 40	Piston assy. consist. of fig-nos. 10 and 11	1
?	456 123 40	Piston bush (no field repair item)	1
?		Piston These parts are not sold separately	1
?	269 494 40	Piston guide	2
?	440 716 40	Piston guide	5
?	440 717 40	Seal	1
?	440 718 40	O-ring	1
?	324 443 40	Support ring	2
?	504 768 98	O-ring	1
?	502 086 98	O-ring	1
?	440 715 40	Support ring	1
?	318 782 99	Screw	20
?	927 998 40	Sealing flange consist. of fig-no: 22 and 23	1
?		Bush These parts are not sold separately	1
?	931 521 40	Bush (no field repair item)	1
?	517 839 98	Snap ring	1
?	932 547 40	Support ring	1
?	932 549 40	Rod seal	1
?	932 551 40	Scraper	1
?	501 560 98	Snap ring	1
?	354 389 99	Feather key	1
?	794 795 73	Piston rod assy. consist. of fig-no: 04-06 and 31	1
?		Piston rod These parts are not sold separately	1
?	794 796 73	Sealing kit for piston consist. of fig.no. 12-17	-2
?	794 797 73	Sealing kit for sealing flange fig-no: 18, 19, 25-27	-2
