01 |
915 830 40
|

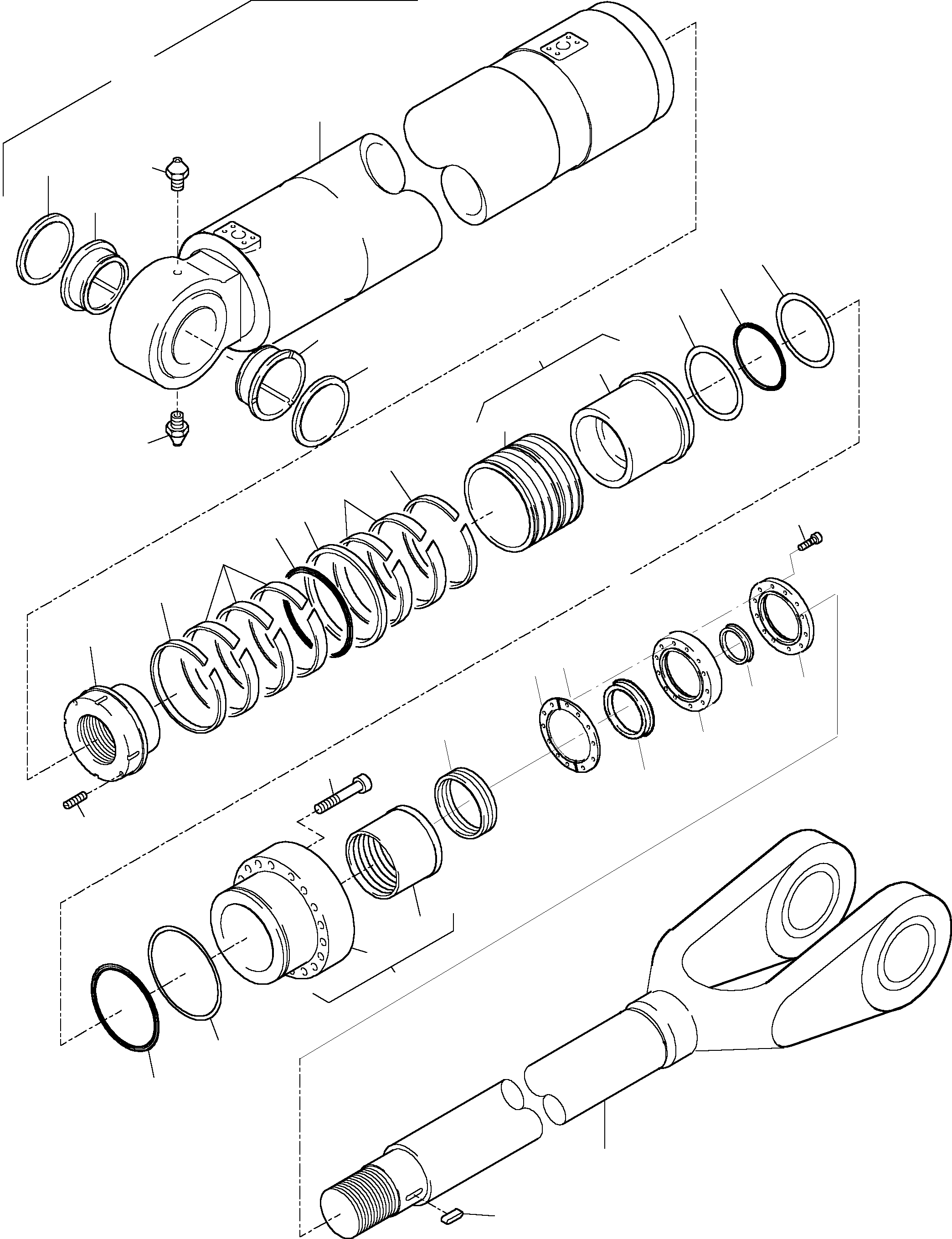

Hydraulic cylinder assy.
fig-nos: 02-30 |
1 |
|
|
|
|
02 |
792 129 73
|
Cylinder assy.
fig-nos: 03-05 |
1 |
|
|
|
|
03 |
|
Cylinder
These parts are not sold
separately |
1 |
|
|
|
|
04 |
904 529 40
|
Freeze-in bush |
2 |
|
|
|
|
05 |
004 860 98
|
Nipple |
2 |
|
|
|
|
06 |
347 449 99
|
Thread pin |
1 |
|
|
|
|
07 |
904 508 40
|
Groove nut |
1 |
|
|
|
|
08 |
324 906 40
|
Piston slyding strip 1070mm |
2 |
|
|
|
|
09 |
323 482 40
|
Piston wear ring |
5 |
|
|
|
|
10 |
324 479 40
|
O-ring |
1 |
|
|
|
|
11 |
324 442 40
|
Seal |
1 |
|
|
|
|
12 |
904 507 40
|
Piston assy.
fig-nos. 13 and 14
(finish work after bush is
( installed) |
1 |
|
|
|
|
13 |
904 512 40
|
Piston bush |
1 |
|
|
|
|
14 |
|
Piston
These parts are not sold
separately |
1 |
|
|
|
|
15 |
504 768 98
|
O-ring |
1 |
|
|
|
|
16 |
907 484 40
|
Support ring |
2 |
|
|
|
|
17 |
500 117 98
|
O-ring |
1 |
|
|
|
|
18 |
323 486 40
|
Support ring |
1 |
|
|
|
|
19 |
904 506 40
|
Sealing flange
fig-nos: 20 and 21
(finish work after bush is
installed) |
1 |
|
|
|
|
20 |
|
Bush
These parts are not sold
separately |
1 |
|
|
|
|
21 |
386 093 40
|
Bush |
1 |
|
|
|
|
22 |
515 731 98
|
Screw |
22 |
|
|
|
|
23 |
324 440 40
|
Seal kit |
1 |
|
|
|
|
24 |
906 074 40
|
Support ring |
1 |
|
|
|
|
25 |
909 367 40
|
Cover |
1 |
|
|
|
|
26 |
319 299 99
|
Screw |
16 |
|
|
|
|
27 |
906 542 40
|
Stripper |
1 |
|
|
|
|
28 |
501 352 98
|
Feather key |
1 |
|
|
|
|
29 |
768 604 73
|
Piston rod assy.
fig-nos: 28 ,30 |
1 |
|
|
|
|
30 |
|
Piston rod
These parts are not sold
separately |
1 |
|
|
|
|
32 |
891 819 40
|
Half shim |
8 |
|
|
|
|
33 |
909 364 40
|
Cover ring |
1 |
|
|
|
|
34 |
575 796 40
|
Seal ring |
2 |
|
|
|
|
35 |
906 730 40
|
Support ring for stripper fig no 27 |
1 |
|
|
|
|
|$$35 |
768 605 73
|
Seal kit for piston
fig-nos. 08-11,15 and 16 |
-2 |
|
|
|
|
|$$36 |
792 130 73
|
Seal kit for sealing flange
fig-nos: 17,18,23, 27 and 35 |
-2 |
|
|
