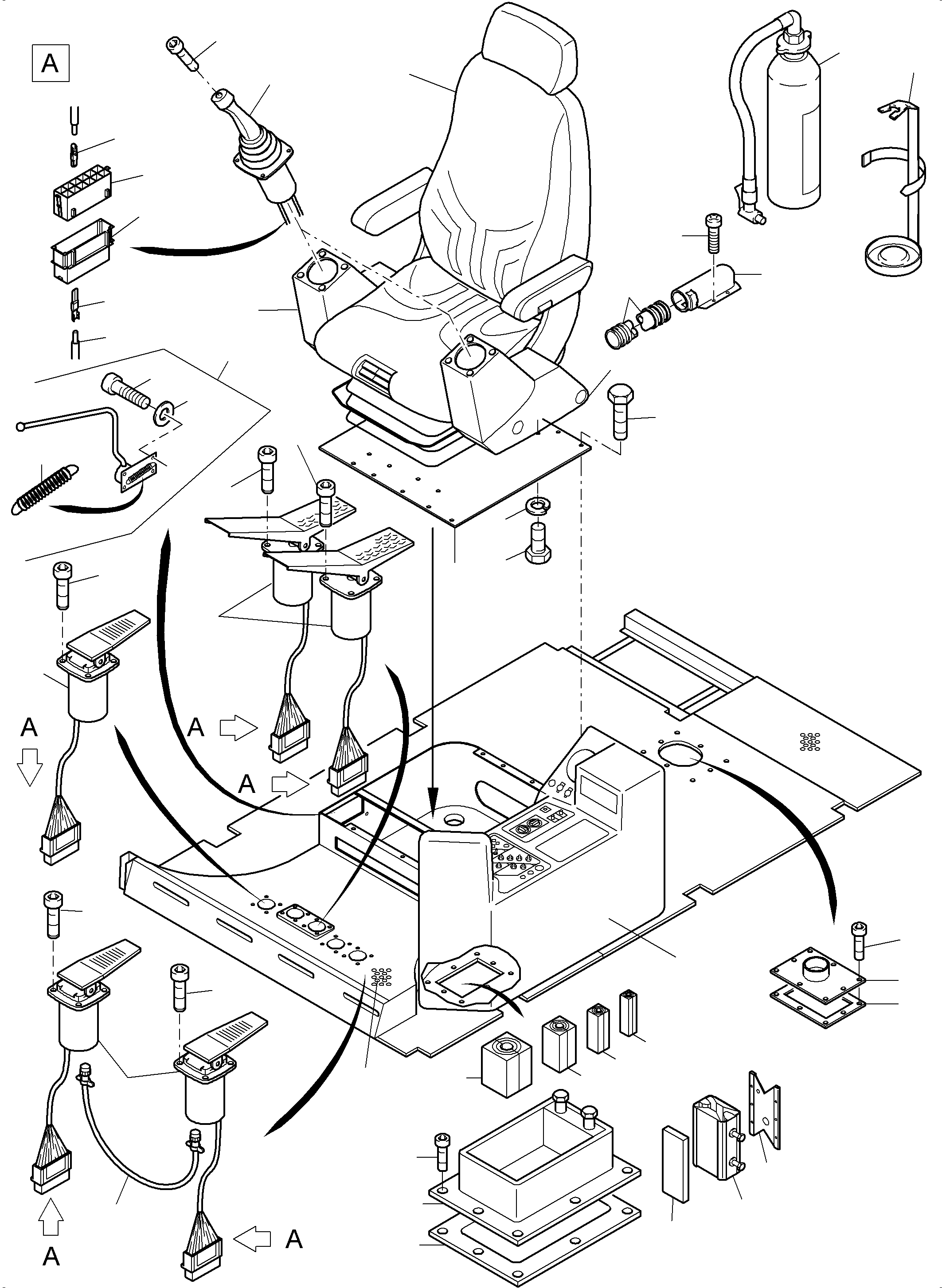

01 |
|
Operator's seat |
1 |
InternBDB: 904 600 40 | InternKon: 925 780 40 / 8
|
991-0330 |
|
|
02 |
|
Operation panel |
1 |
|
515-1922a |
|
|
03 |
|
Manipulator |
2 |
InternBDB: 921 521 40 | InternKon: 925 780 40 / 25
|
991-0514 |
|
|
04 |
|
Manipulator |
2 |
InternBDB: 903 401 40 | InternKon: 931 360 40 / 4
|
991-0122b |
|
|
05 |
|
Manipulator |
3 |
InternBDB: 903 402 40 | InternKon: 931 360 40 / 5
|
991-0121b |
|
|
06 |
490 958 40
|
Socket |
7 |
InternBDB: Gr. + Ha. GHW-NR 14019.562.699 | InternKon: 925 780 40 / 27
|
|
|
|
07 |
490 959 40
|
Housing |
7 |
InternBDB: Gr. + Ha. GHW-NR 14020.562.699 | InternKon: 925 780 40 / 28
|
|
|
|
08 |
515 129 40
|
Contact |
80 |
InternBDB: Gr. + Ha. GHW-NR 46851.213.179 | InternKon: 925 780 40 / 29
|
|
|
|
09 |
490 960 40
|
Tab |
80 |
InternBDB: Gr. + Ha. GHW-NR 26260.331.179 | InternKon: 925 780 40 / 30
|
|
|
|
10 |
634 374 40
|
Cable |
1 |
InternBDB: FSG 3522S10-90.00A
|
|
|
|
11 |
319 227 99
|
Screw |
28 |
InternBDB: M6x20 /912 10.9 | InternKon: 925 780 40 / 9
|
|
|
|
12 |
635 329 40
|
Cable 18-pol.
Bulk ware, state length required |
-2 |
InternKon: 925 780 40 / 16
|
|
|
|
13 |
769 587 73
|
Hose
Bulk ware, state length required |
-2 |
InternBDB: Matek 114 100 473 BRW Fluidtechnik 077 421 | InternKon: 001 550 153 / 4
|
|
|
|
14 |
793 738 73
|
Cable flange DN 48-90° |
2 |
InternBDB: PMA BVOD - P 488 GT | InternKon: 001 550 153 / 5
|
|
|
|
15 |
517 957 98
|
Bolt |
8 |
InternBDB: AM6x25/7985 4.8 | InternKon: 001 550 153 / 6
|
|
|
|
16 |
769 582 73
|
Control panel |
2 |
InternBDB: Matek 111 002 572 | InternKon: 001 550 153 / 3
|
|
|
|
17 |
318 604 99
|
Bolt |
8 |
InternBDB: M10x16 /912
|
|
|
|
18 |
343 110 99
|
Lock washer |
8 |
InternBDB: A 10 /127
|
|
|
|
19 |
769 588 73
|
Safety sheeting sw
Bulk ware, state length required |
-2 |
InternBDB: Matek 111 011 617 Reiff 107 1280 (1445x10000x4)
|
|
|
|
20 |
793 735 73
|
Cover plate |
1 |
InternBDB: Matek 509 004 000
|
|
|
|
21 |
320 471 99
|
Bolt |
10 |
InternBDB: M6x12 /7991
|
|
|
|
23 |
769 585 73
|
Seal |
2 |
InternBDB: Matek 503 000 007
|
|
|
|
24 |
318 914 99
|
Screw |
16 |
InternBDB: M8x16 /912
|
|
|
|
25 |
769 586 73
|
Face |
1 |
InternBDB: Matek-Nr. 503 003 000
|
|
|
|
26 |
907 748 40
|
Fire extinguisher |
1 |
InternBDB: Minimax WS 6 F-C Schaum
|
|
|
|
27 |
414 500 40
|
Bracket |
1 |
InternBDB: 521 695 90
|
|
|
|
28 |
307 779 99
|
Bolt |
2 |
InternBDB: M 10x30 / 933
|
|
|
|
29 |
907 104 40
|
Grommet 20 |
6 |
InternBDB: 20/0 +4-13,5 0120 Roxtec | InternKon: 903 480 40 / 6
|
|
|
|
30 |
921 523 40
|
Face |
1 |
InternKon: 931 360 40 / 14
|
|
|
|
31 |
906 761 40
|
Grommet 30 |
12 |
InternBDB: 30/0 +12 -22 0130 Roxtec | InternKon: 903 480 40 / 2
|
|
|
|
32 |
906 760 40
|
Grommet 40 |
3 |
InternBDB: 40/0 +22 -32 0140 Roxtec | InternKon: 903 480 40 / 3
|
|
|
|
33 |
907 223 40
|
Grommet 15 |
3 |
InternBDB: 15 W 40 3x0 +3,5 -10,5 0615 Roxtec | InternKon: 903 480 40 / 4
|
|
|
|
34 |
906 758 40
|
Seal |
1 |
InternBDB: 0500 Roxtec | InternKon: 903 480 40 / 1
|
|
|
|
35 |
906 762 40
|
Shim |
1 |
InternBDB: 10/0x12 0310 Roxtec | InternKon: 903 480 40 / 5
|
|
|
|
36 |
907 105 40
|
Rail |
2 |
InternBDB: 0503 | InternKon: 903 480 40 / 7
|
|
|
|
40 |
793 736 73
|
Safety lever assy. |
1 |
InternBDB: Matec 509 04 0000
|
|
|
|
41 |
793 737 73
|
Tension spring |
1 |
InternBDB: Matec 509 0400 10 | InternKon: 509 04 0000 / 10
|
|
|
|
42 |
319 140 99
|
Bolt |
4 |
InternBDB: M8x20/912 | InternKon: 509 04 0000 / 11
|
|
|
|
43 |
340 507 99
|
Washer |
4 |
InternBDB: 8,4/125 | InternKon: 509 04 0000 / 12
|
|
