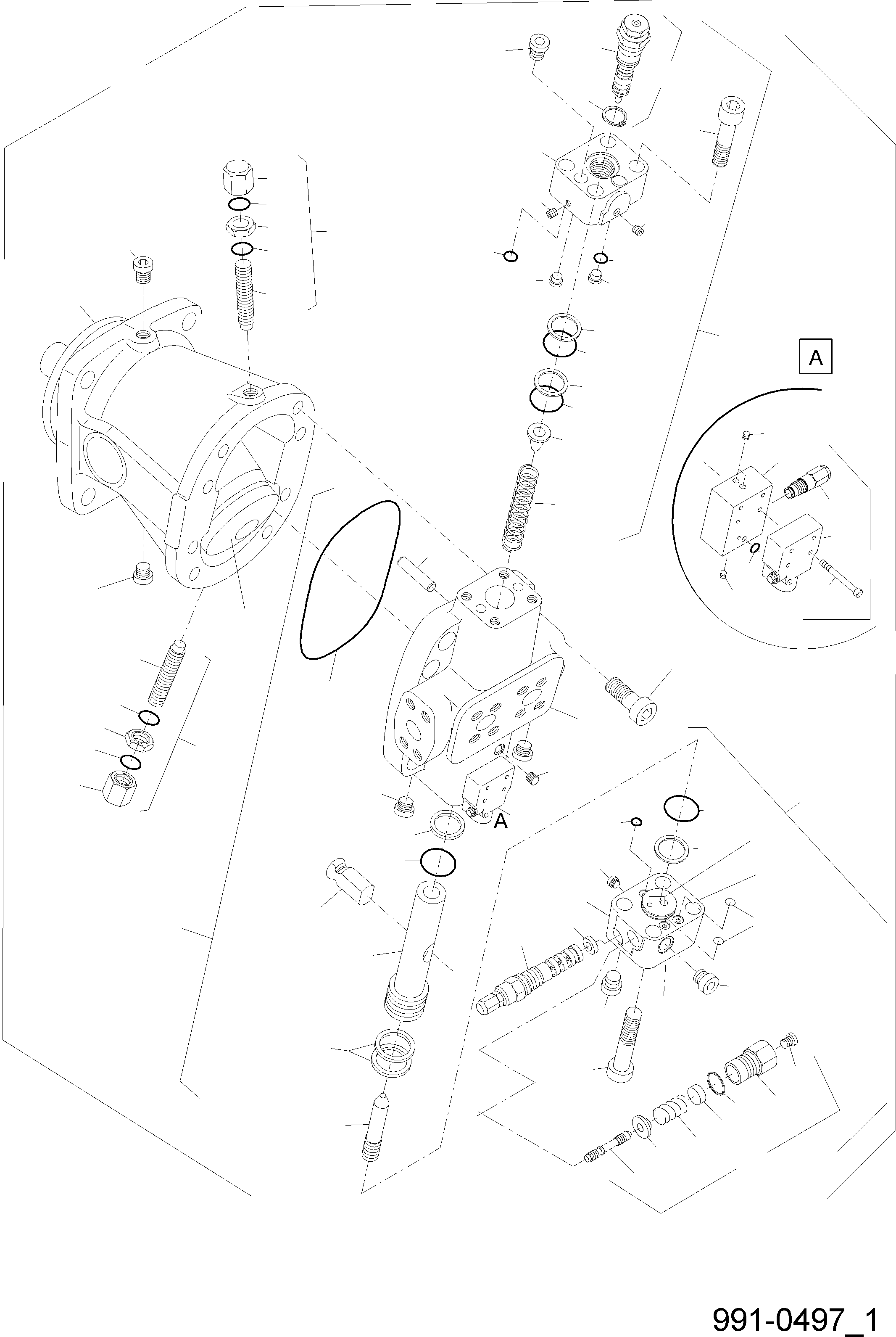

Diagram image 1 of 2

PC5500-6E S/N 15060

01 02 03 04 06 110 110 112 114 115 116 118 119 31 32 33 34 34 35 35 35 35 36 37 38 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 62 63 64 65 66 66 67 67 68 68 69 70 71 72 73 74 75 76 77 78 79 79 80 81 82 83 84 85 86 90 91 92 93 94 95 96 97 117

PC5500-6E S/N 15060

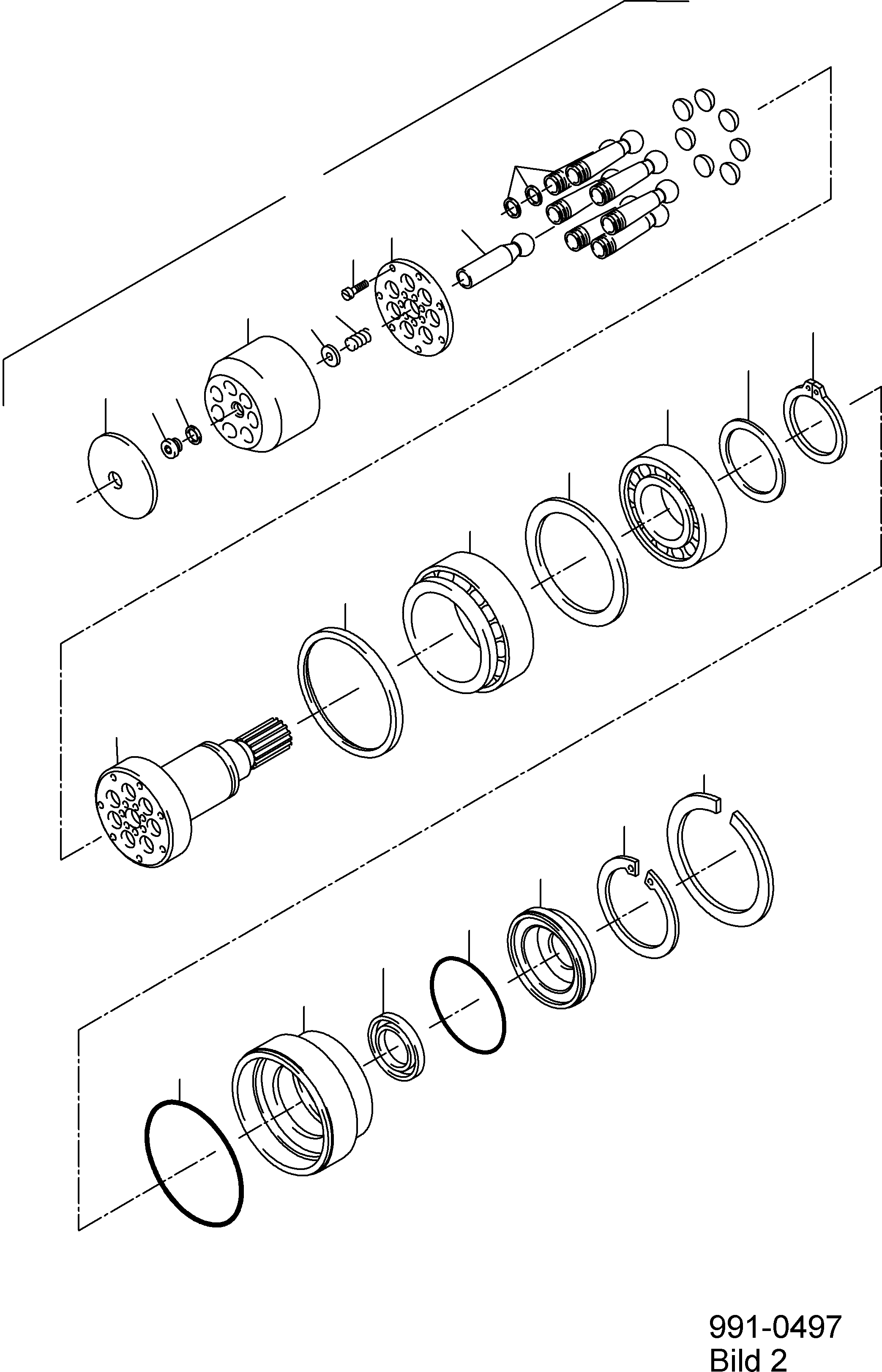

06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

#	Part Number	Partname	Quantity	Options
01	927 032 40	Hydr. motor assy.	1	InternBDB: Rexroth (Brueninghaus) A6VLM 355 HD1D /63 W2-VZH 010 B-S0185 AT-
02	767 316 73	Housing	1	InternBDB: 939 342 \| InternKon: 416 372 / 5
03	767 040 73	Plug	1	InternBDB: 636 797 HN 8-WD M33x2 V \| InternKon: 416 372 / 9
04	767 039 73	Plug	1	InternBDB: 532 347 HN 8-WD M14x1,5 V \| InternKon: 416 372 / 10
06	793 410 73	Transmission assy. consist. of fig-nos. 07-30	1	InternBDB: 416 373 \| InternKon: 416 372 / 1
07	793 436 73	Driving flange	1	InternBDB: 997 168 \| InternKon: 416 373 / 1
08	757 300 73	Piston with rings	7	InternBDB: 921 084 + 2x 997 178
09	757 296 73	Cylinder	1	InternBDB: 920 134 \| InternKon: 416 373 / 6
10	793 413 73	Control lense	1	InternBDB: 999 470 \| InternKon: 416 373 / 7
11	757 299 73	Pivot	1	InternBDB: 921 122 \| InternKon: 416 373 / 8
12	756 371 73	Withdrawal plate	1	InternBDB: 903 490 \| InternKon: 416 373 / 9
13	793 414 73	Race	1	InternBDB: 937 898 \| InternKon: 416 373 / 10
14	757 306 73	Sealing flange	1	InternBDB: 921 149 \| InternKon: 416 373 / 11
15	762 750 73	Adjusting ring	1	InternBDB: 936 002 \| InternKon: 416 373 / 13
16	793 416 73	Spring	1	InternBDB: 991 183 \| InternKon: 416 373 / 14
17	793 417 73	Washer	1	InternBDB: 990 563 \| InternKon: 416 373 / 15
18	793 418 73	Adjusting disc set	1	InternBDB: 416 438 \| InternKon: 416 373 / 16
19	757 294 73	Spacer screw	1	InternBDB: 933 066 \| InternKon: 416 373 / 17
20	793 419 73	Spring	1	InternBDB: 717 207 \| InternKon: 416 373 / 18
21	793 420 73	Roller bearing	1	InternBDB: 914 859 \| InternKon: 416 373 / 21
22	793 421 73	Roller bearing	1	InternBDB: 914 860 \| InternKon: 416 373 / 22
23	762 769 73	Shaft seal	1	InternBDB: BAB 4 SL 1,0 70x90x7 75V 595 619 728 \| InternKon: 416 373 / 24
24	514 025 98	O-ring	1	InternBDB: 205x5 V80 636 355 \| InternKon: 416 373 / 25
25	514 045 98	O-ring	1	InternBDB: 140x2,5 V80 912 211 \| InternKon: 416 373 / 26
26	998 898	Circlip	1	InternBDB: 215x5 513 202 \| InternKon: 416 373 / 28
27	342 679 99	Circlip	1	InternBDB: 145x4 /472 \| InternKon: 416 373 / 29
28	342 560 99	Circlip	1	InternBDB: 70x2,5 /471 \| InternKon: 416 373 / 30
29	793 425 73	Shim ring	1	InternBDB: 70x90x1,0 See 677 493 \| InternKon: 416 373 / 34
30	319 241 99	Bolt	14	InternBDB: M8x20 /912 10.9 \| InternKon: 416 373 / 39
31	768 896 73	Displacement section consist. of fig-nos. 32-35	1	InternBDB: 946 732 \| InternKon: 416 372 / 2
32	767 320 73	Thread pin	1	InternBDB: 917 555 M16x150 \| InternKon: 946 732 / 1
33	758 192 73	Cap nut	1	InternBDB: M16 933 539 \| InternKon: 946 732 / 2
34	757 878 73	Nut	2	InternBDB: M16 912 737 \| InternKon: 946 732 / 3
35	506 627 98	O-ring	4	InternBDB: PRP 017 17,17x1,78 V90 903 130 \| InternKon: 946 732 / 4
36	768 897 73	Displacement section consist. of fig-nos. 34,35,37,38	1	InternBDB: 940 783 \| InternKon: 940 783 / 3
37	756 513 73	Thread pin	1	InternBDB: M16x100 909 811 \| InternKon: 940 783 / 1
38	757 877 73	Cap nut	1	InternBDB: M16 933 540 \| InternKon: 940 783 / 2
41	793 438 73	Adjustment assy. consist. of fig-nos. 42-44	1	InternBDB: 414 708 \| InternKon: 940 783 / 2
42	793 423 73	Adjuster assy. consist. of fig-nos. 45-57	1	InternBDB: 999 828 \| InternKon: 414 708 / 1
43	768 900 73	Control part assy. consist. of fig-nos. 58-70	1	InternBDB: 976 231 \| InternKon: 414 708 / 2
44	793 423 73	Cover assy. consist. of fig-nos. 73-86	1	InternBDB: 414 840 \| InternKon: 414 708 / 3
45	793 424 73	Cover plate	1	InternBDB: 998 824 \| InternKon: 999 828 / 4
46	767 327 73	Piston	1	InternBDB: 939 114 \| InternKon: 999 828 / 5
47	793 431 73	Regulation journal	1	InternBDB: 413 011 \| InternKon: 999 828 / 6
48	753 131	Thread pin	1	InternBDB: 819 891 \| InternKon: 999 828 / 7
49	756 795 73	Quadring	2	InternBDB: 56x2,5 /34110 907 604 \| InternKon: 999 828 / 14
50	516 812 98	O-ring	1	InternBDB: PRP 276 278,99x3,53 V90 801 399 \| InternKon: 999 828 / 15
51	414 797 40	Seal ring	1	InternBDB: B + S RS 130 0450-T46 916 878 \| InternKon: 999 828 / 16
52	509 421 98	O-ring	1	InternBDB: PRP 329 50,17x5,33 N90 112 836 \| InternKon: 999 828 / 17
53	514 193 98	Parallel pin	2	InternBDB: 12 M6x28 /7 517 895 \| InternKon: 999 828 / 18
54	319 305 99	Bolt	8	InternBDB: M20x60 /912 10.9 544 744 \| InternKon: 999 828 / 19
55	964 736	Breaking plug	4	InternBDB: M8 977 645 \| InternKon: 999 828 / 20
56	767 039 73	Plug	2	InternBDB: HN8 - WD M14x1,5 V \| InternKon: 999 828 / 21
57	767 429 73	Seal ring	2	InternBDB: ED 14x1,5x-Viton
58	768 903 73	Spring plate	1	InternBDB: 939 087 \| InternKon: 976 231 / 3
59	768 904 73	Spring	1	InternBDB: 939 088 \| InternKon: 976 231 / 5
60	767 709 73	Valve insert consist. of fig-nos. 71-73	1	InternBDB: 926 601 \| InternKon: 976 231 / 1
61	767 330 73	Control housing	1	InternBDB: 939 086 \| InternKon: 976 231 / 2
62	767 331 73	Adjustable non-return valve	2	InternBDB: 974 659 \| InternKon: 976 231 / 8
63	321 597 99	Bolt	4	InternBDB: M16x65 /912 8.8 930 295 \| InternKon: 976 231 / 10
64	767 405 73	O-ring	2	InternBDB: 14x2 V80 976 410 \| InternKon: 976 231 / 13
65	767 724 73	O-ring	2	InternBDB: PRP 112 12,37x2,62 V90 518 336 \| InternKon: 976 231 / 14
66	767 345 73	O-ring	2	InternBDB: PRP 136 50,47x2,62 V90 \| InternKon: 976 231 / 15
67	655 377 40	Support ring	2	InternBDB: B + S (BP-22-H0515-PT00) SS 11109-137-A-56 (939 130) \| InternKon: 976 231 / 16
68	765 466 73	Breaking plug	1	InternBDB: M6 977 663 \| InternKon: 976 231 / 19
69	767 039 73	Plug	1	InternBDB: HN8 - WD M14x1,5 V R910532347 \| InternKon: 976 231 / 20
70	767 429 73	Seal ring	1	InternBDB: ED 14x1,5x-Viton
71	767 727 73	Valve insert	1	InternBDB: 942 919 \| InternKon: 926 601 / 1
72	342 524 99	Circlip	1	InternBDB: 24x1,2 /471 977 027 \| InternKon: 926 601 / 2
73	768 906 73	Valve insert	1	InternBDB: 928 411 \| InternKon: 414 840 / 1
74	793 437 73	Cover	1	InternBDB: 414 841 \| InternKon: 414 840 / 3
75	319 289 99	Bolt	4	InternBDB: M16x60 /912 10.9 189 707 \| InternKon: 414 840 / 6
76	767 039 73	Plug	3	InternBDB: HN8 - WD M14x1,5 V / 532 347 \| InternKon: 414 840 / 15
77	794 402 73	Breaking plug	2	InternBDB: 831 320 \| InternKon: 414 840 / 7
78	964 736	Breaking plug	3	InternBDB: M8 977 645 \| InternKon: 414 840 / 8
79	767 724 73	O-ring	3	InternBDB: PRP 112, 12,37x2,62 V90 / 518 336 \| InternKon: 414 840 / 11
80	765 471 73	O-ring	1	InternBDB: PRP 50,47x2,62 NB70, 535 834 \| InternKon: 414 840 / 12
81	655 377 40	Support ring	1	InternBDB: B + S (BP-22-H0515-PT00) SS 11109-137-A-56 (939 130) \| InternKon: 414 840 / 13
82	804 932 73	Nozzle 0,8 mm	1	InternBDB: M4x0,8 / 593 044 \| InternKon: 414 840 / 14
83	758 207 73	Spacer	1	InternBDB: 960 086 \| InternKon: 414 840 / 4
84	806 693 73	Nozzle	1	InternBDB: 436 941 \| InternKon: 414 840 / 18
85	768 715 73	Nozzle	1	InternBDB: 836 303 \| InternKon: 414 840 / 19
86	767 058 73	Plug	1	InternBDB: HN8 - WD M8x1 V / 788 317 \| InternKon: 414 840 / 20
90	768 614 73	Regulation Valve fig. nos 91-96	1	InternBDB: 988 553
91	768 716 73	Plug	1	InternBDB: 913 809 \| InternKon: 988 553 / 1
92	768 717 73	Piston valve	1	InternBDB: 986 239 \| InternKon: 988 553 / 2
93	753 869	Spring plate	1	InternBDB: 707 023 \| InternKon: 988 553 / 3
94	768 718 73	Washer	1	InternBDB: 988 556 \| InternKon: 988 553 / 4
95	753 868	Spring	1	InternBDB: 707 031 \| InternKon: 988 553 / 6
96	767 058 73	Plug	1	InternBDB: HN8 WD M8x1 V 788 317 \| InternKon: 988 553 / 8
97	768 719 73	O-ring	1	InternBDB: PRP 119 23,47x2,62 V90 / 919 322 \| InternKon: 988 553 / 9
110	767 338 73	Flow control valve consist. of fig-nos. 112-119	1	InternBDB: 974 640 \| InternKon: 974 638 / 3
112	767 335 73	Valve	1	InternBDB: 969 188 \| InternKon: 974 640 / 1
114	767 336 73	Flow limiter	1	InternBDB: MH 2 FR 12 KA 2X /15,0 M 974 642 \| InternKon: 974 640 / 2
115	767 337 73	Intermediate plate	1	InternBDB: MH 2 FR 12 KA 1X 968 963 \| InternKon: 974 640 / 4
116	341 419 99	Screw	5	InternBDB: M6x70 /912 8.8 120 189 \| InternKon: 974 640 / 6
117	767 346 73	O-ring	4	InternBDB: PRP 110 9,19x2,62 V90 516 066 \| InternKon: 974 640 / 7
118	964 736	Breaking plug	2	InternBDB: M8 977 645 \| InternKon: 974 640 / 8
119	999 046	Breaking plug	1	InternBDB: M6 977 663 \| InternKon: 974 640 / 9

Komatsu PC5500-6E S/N 15060 parts catalog PDF

HYDRAULIC MOTOR (991-0497) in PC5500-6E S/N 15060. Diagram image and parts list.
