Diagram image 1 of 3

PC8000-6E S/N 12061

01 02 03 04 05 06 06 07 07 08 09 10 103 103 11 12 120 120 121 121 125 126 127 129 13 130 131 132 133 133 135 137 14 141 142 143 15 16 17 18 19 20 21 22 24 25 31 33 33 34 34 35 36 37 38 38 39 40 41 42 43 44 45 45 45 45 45 46 47 48 49 50 50 51 51 71 72 72 73 73 73 74 74 83 83 83 84 87 89

PC8000-6E S/N 12061

09 10 106 107 107 108 109 11 110 111 128 134 136 23 26 27 28 29 30 45 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 68 68 69 69 69 69 70 72 73 73 74 74 75 76 77 78 79 80 81 82 83 83 85 85 86 88

PC8000-6E S/N 12061

08 100 101 102 104 105 112 113 114 115 116 117 118 119 122 123 124 127 127 136 138 138 139 14 14 140 144 145 146 22 22 24 25 31 31 31 31 32 32 32 32 45 68 69 71 73 74 83 83 85 90 90 91 91 91 92 93 94 94 95 96 97 97 98 99

#	Part Number	Partname	Quantity
01	903 769 40	Visor	1
02	903 764 40	Visor	1
03	461 398 40	Grating 40x480x1140	1
04	914 894 40	Grating	1
05	440 511 40	Grating 40x360x1800	2
06	307 425 99	Bolt	7
07	512 851 98	Nut	7
08	191 538 40	Shackle	6
09	317 319 40	Threaded block	52
10	317 318 40	Wing nut, plastic	52
11	502 354 98	Bolt	52
12	947 555 40	Rail	1
13	947 558 40	Rail	1
14	945 052 40	Ladder	1
15	945 045 40	Rail	1
16	945 055 40	Ladder	1
17	901 656 40	Ladder	1
18	945 060 40	Rail	1
19	945 062 40	Rail	1
20	945 027 40	Rail	1
21	945 043 40	Rail	1
22	945 029 40	Rail	1
23	945 038 40	Rail	1
24	472 508 99	Chain	-2
25	341 271 99	Trigger snap	6
26	945 066 40	Rail	1
27	906 815 40	Grating 40x480x840	4
28	945 094 40	Platform	1
29	945 097 40	Platform	1
30	945 098 40	Platform	1
31	510 744 98	Resilient sleeve	17
32	308 605 99	Bolt	9
33	945 085 40	Rail	2
34	945 83 40	Rail	2
35	943 829 40	Platform	1
36	317 305 40	Grating 40x480x390	1
37	487 578 40	Threaded plate	2
38	510 741 98	Resilient sleeve	4
39	308 782 99	Bolt	2
40	606 620 40	Catwalk	1
41	606 622 40	Grating	1
42	500 034 98	Half clamp	8
43	534 009 99	Weld-on plate	4
44	308 614 99	Bolt	8
45	334 600 99	Nut	276
46	934 194 40	Grate	2
47	934 193 40	Grate	1
48	914 886 40	Grate	1
49	914 887 40	Grate	1
50	500 814 98	Bolt	22
51	506 129 98	Washer	26
52	914 838 40	Hand rail	1
53	945 068 40	Rail	1
54	945 070 40	Rail	1
55	945 072 40	Rail	1
56	945 571 40	Rail	1
57	945 076 40	Rail	1
58	947 570 40	Rail	1
59	945 093 40	Platform	1
60	324 396 40	Grating 40x420x660	2
61	914 888 40	Grating	1
62	914 889 40	Grating	1
63	914 890 40	Grating	1
64	914 891 40	Grating	1
65	914 892 40	Grating	1
66	914 893 40	Grating	1
67	440 420 40	Grating 40x360x720	2
68	308 426 99	Bolt	44
69	510 730 98	Resilient sleeve	44
70	945 041 40	Pipe bend	1
71	946 181 40	Emergency jack	2
72	308 615 99	Bolt	232
73	504 004 98	Clamp set	169
74	534 008 99	Cover plate	165
75	919 700 40	Stairway	1
76	899 730 40	Stairway	1
77	637 873 40	Flap	2
78	500 873 98	Bolt	4
79	346 498 99	Lock washer	4
80	334 600 98	Nut	4
81	332 353 99	Nut	4
82	390 199 40	Hinge	4
83	512 545 40	Washer	342
84	919 729 40	Angle	2
85	445 601 40	Thread plate	10
86	445 602 40	Thread plate	2
87	646 164 40	Pin	2
88	308 425 99	Bolt	10
89	947 554 40	Rail	1
90	934 131 40	Eemergency ladder	1
91	934 101 40	Emergency ladder	1
92	934 106 40	Handle	1
93	945 099 40	Platform	1
94	945 080 40	Rail	1
95	896 719 40	Grating 2x40x420x600	1
96	346 518 40	Grating 2x40x360x600	2
97	946 189 40	Retainer	4
98	308 284 99	Bolt	4
99	507 036 98	Nut	4
100	340 461 99	Washer	4
101	934 123 40	Case f. emergency jack	1
102	939 957 40	Exit flap	1
103	945 048 40	Panel	1
104	939 956 40	Grate 536X930	1
105	934 198 40	Handle	1
106	621 108 40	Pin	1
107	390 600 40	Round bar steel	2
108	390 601 40	Round bar steel	1
109	340 612 99	Washer	1
110	342 061 99	Cotter pin	1
111	350 562 99	Grease nipple	1
112	945 032 40	Rail	1
113	934 114 40	Rail Pipe	1
114	930 031 40	Catch	1
115	517 697 98	Pin	1
116	340 605 99	Disc	1
117	342 045 99	Cotter pin	1
118	098 955 40	Ring	2
119	472 688 99	Chain	-2
120	945 086 40	Angle	2
121	945 087 40	Angle	2
122	621 983 40	Band roller with grease nipple	1
123	319 146 99	Bolt	2
124	939 955 40	Plate	2
125	947 561 40	Base board	1
126	947 562 40	Base board	1
127	902 410 40	Thread plate	3
128	945 040 40	Angle	1
129	947 813 40	Angle	1
130	945 047 40	Angle	1
131	945 051 40	Angle	1
132	945 065 40	Angle	1
133	931 187 40	Angle	2
134	921 688 40	Plate	3
135	308 616 99	Bolt	8
136	308 434 99	Bolt	88
137	947 811 40	Angle	1
138	947 538 40	Plate	1
139	947 539 40	Plate	1
140	308 616 99	Bolt	2
141	502 006 98	Bolt	2
142	340 467 99	Washer	2
143	334 682 99	Nut	2
144	323 652 40	Grating 2x40x420x690	1
145	324 745 40	Grating 2x40x420x1320	1
146	915 333 40	Grating 2x40x480x910	2

Komatsu PC8000-6E S/N 12061 parts catalog PDF

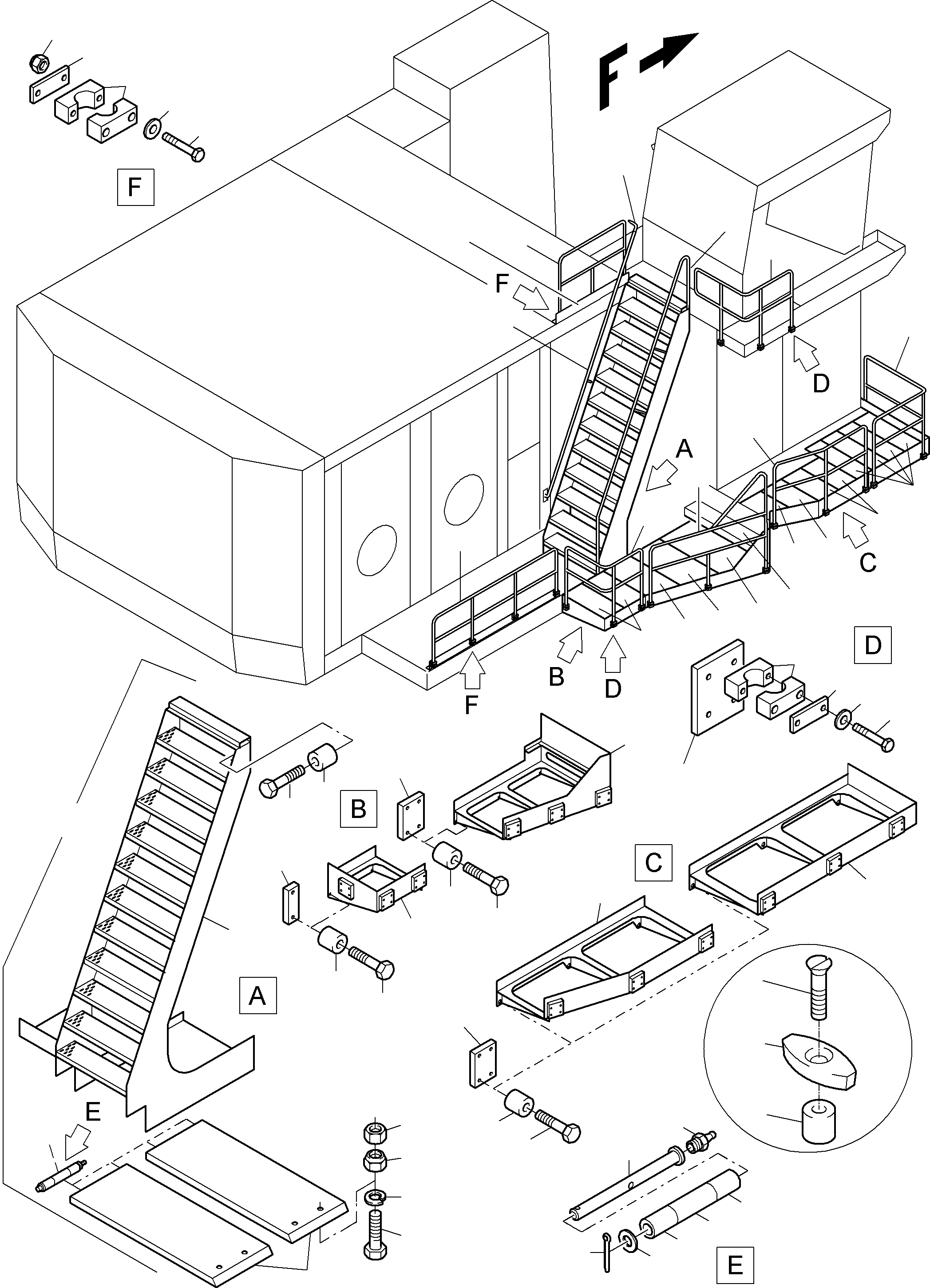

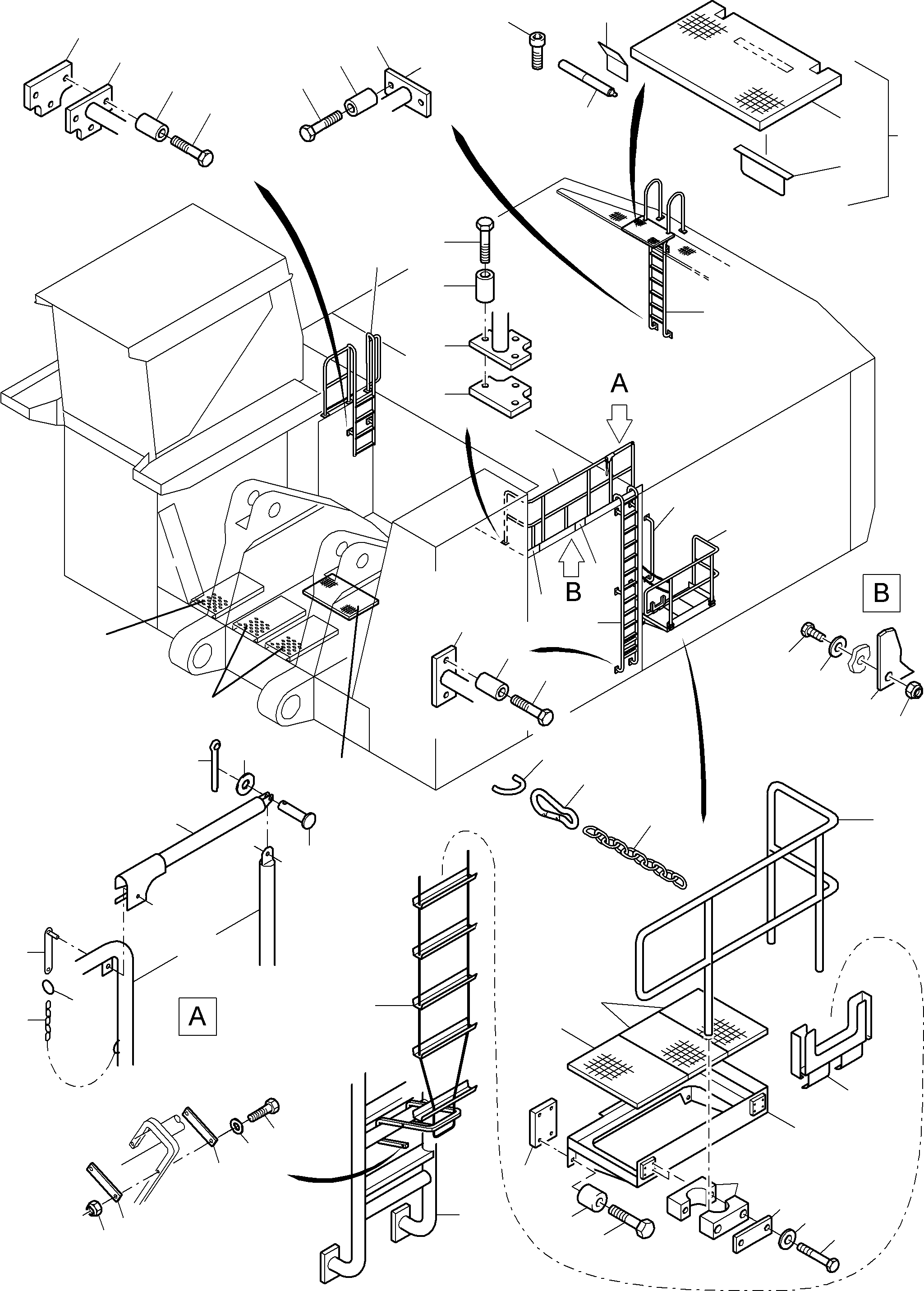

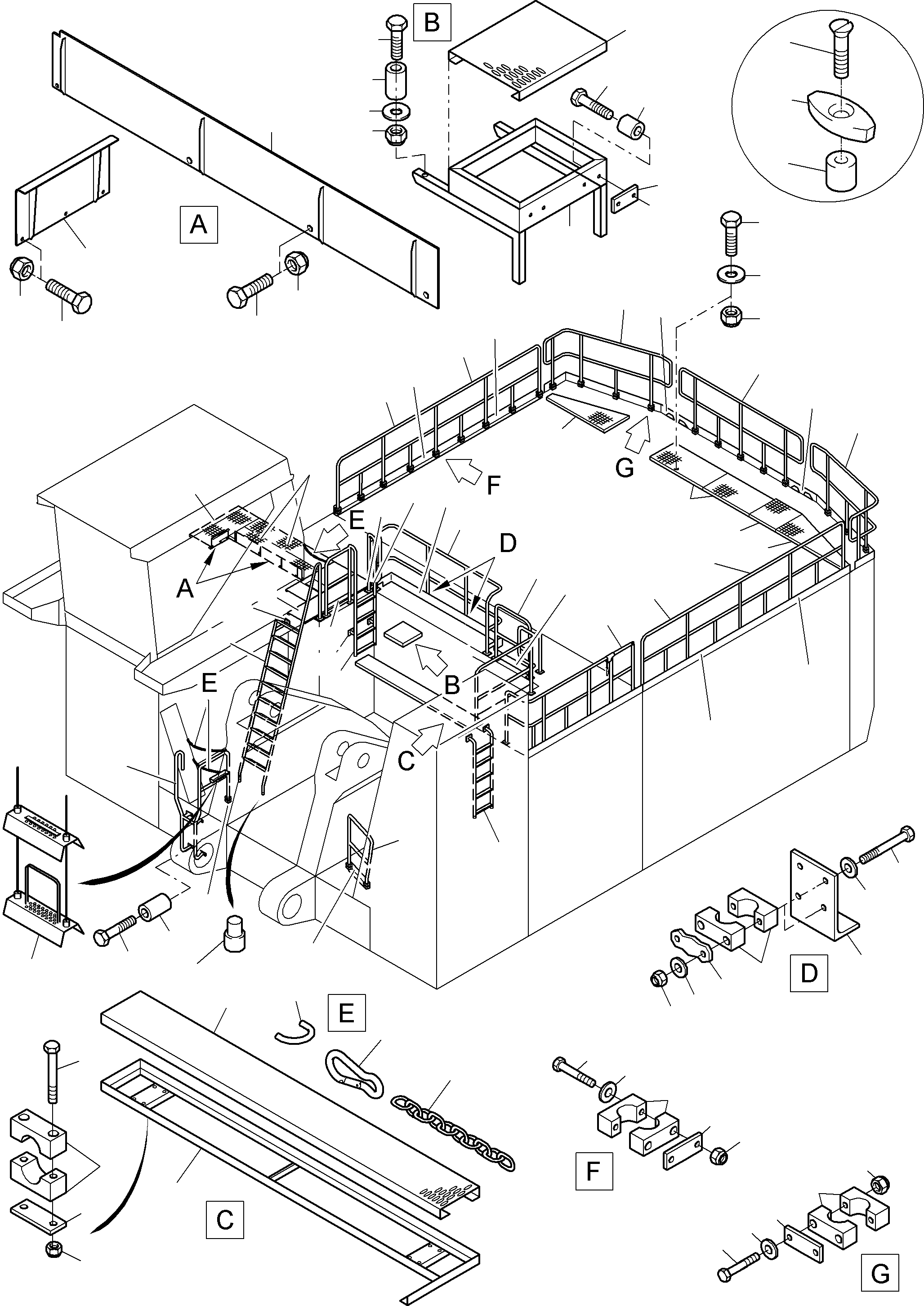

RAIL AND STEPS (612-1021b1) in PC8000-6E S/N 12061. Diagram image and parts list.
