#	Part Number	Partname	Quantity
01	932 687 40	Spread beam headlamp with voltage multiplier	4
02	340 459 99	Washer	8
03	334 649 99	Nut	8
04	307 665 99	Bolt	8
05	307 806 99	Bolt	4
06	945 875 40	Lamp bracket	1
07	945 876 40	Lamp bracket	1
08	945 874 40	Plate	2
09	945 873 40	Plate	2
10	940 726 40	Light switch	3
11	940 728 40	Safety switch	1
12	940 729 40	Emergency switch-off	4
13	321 010 99	Screw	32
14	794 517 73	Lamp	4
15	057 278 40	Socket	4
16	634 009 40	Spotlight	14
17	507 383 99	Halogen lamp	14
18	769 155 73	Seal	14
19	769 156 73	Glass, white	14
20	926 510 40	Plate	13
21	319 143 99	Screw	14
22	343 108 99	Lock washer	14
23	898 629 40	Rotaflare light yellow assy.	1
24	898 612 40	Retainer	1
25	896 497 40	Rotaflare light 24 yellow	1
26	180 322 40	Plug	1
27	323 960 40	Tab	2
28	907 476 40	Cable union DN 10	20
29	655 649 40	Cable protection hose DN 10	-2
30	517 326 98	Reducing M16/M12	2
31	517 320 98	cable nut M12	2
32	655 650 40	Cable protection hose DN 12	-2
33	655 631 40	Pipe adapter DN 12/10	2
34	515 213 40	Cable 1,0 qmm	-2
35	515 214 40	Cable 2,5 qmm	-2
36	906 420 40	T-Distributor DN 12	2
37	655 651 40	Cable protection hose DN 17	-2
38	655 629 40	T-Distributor DN 17	2
39	655 632 40	Pipe adapter DN 17/10	5
40	940 471 40	Fitting M 16 / DN 10	2
41	907 703 40	Cable union	2
42	940 463 40	Insulating tube Ш 7	-2
43	903 422 40	Plug assy.	4
44	940 451 40	Fitting M 12 / M 25	1
45	907 711 40	Cable union	1
46	896 521 40	End pin	2
47	655 628 40	T-Distributor DN 10	8
48	056 070 40	Cable sleeve 1,0-1,5	44
49	256 514 40	Name plate	8
50	056 292 40	Cable strap	8
51	006 301 98	Clamp 12/15	35
52	510 210 98	Thread pin	37
53	507 025 98	Nut	37
54	655 633 40	Pipe adapter DN 17/12	1
55	896 520 40	End pin	4
56	056 071 40	Cable sleeve 2,5	6
57	334 600 99	Nut	4
58	517 118 98	Lock washer	2
59	307 752 99	Bolt	16
60	517 121 98	Lock washer	16
61	944 639 40	Harness lighting equipment - engine housing engine	1
62	944 638 40	Harness lighting equipment - engine housing	1
63	944 637 40	Harness - socket- engine housing	1
64	944 636 40	Harness lighting equipment - ladder H47	1
65	944 635 40	Harness - safety switch S58	1
66	944 631 40	Harness - emergency push buttom S33A	1
67	944 632 40	Harness - emergency push buttom S33B	1
68	944 633 40	Harness - emergency push buttom S33C	1
69	944 634 40	Harness - emergency push buttom S33D	1
70	934 475 40	Harness - lighting equipment-oil cooler	1
71	934 464 40	Harness - lighting equipment-counter weight	1
72	334 599 99	Nut	19
73	907 854 40	Thread pin	4
74	0443450510	Clip	4
75	507 037 98	Nut	4
76	340 465 99	Washer	4
77	517 122 98	Lock washer	4
78	006 306 98	Clamp 30/25	5
79	509 875 98	Thread pin	5
80	500 486 98	Clamp 51/25	1
81	919 436 40	Retainer	30
82	307 727 99	Bolt	46
83	350 762 99	Washer	77
84	906 413 40	Cable channel	-2
85	906 802 40	Cable channel	-2
86	307 646 99	Bolt	39
87	334 506 99	Nut	39
88	946 284 40	Retainer	10
89	919 439 40	Retainer	4
90	346 499 99	Lock washer	16
91	350 763 99	Washer	8
92	946 316 40	Plate	1
93	510 363 98	Clamp 29/15	1
94	145 831 40	Clamp 20/15	1
95	919 437 40	Retainer	4

Komatsu PC8000-6E S/N 12061 parts catalog PDF

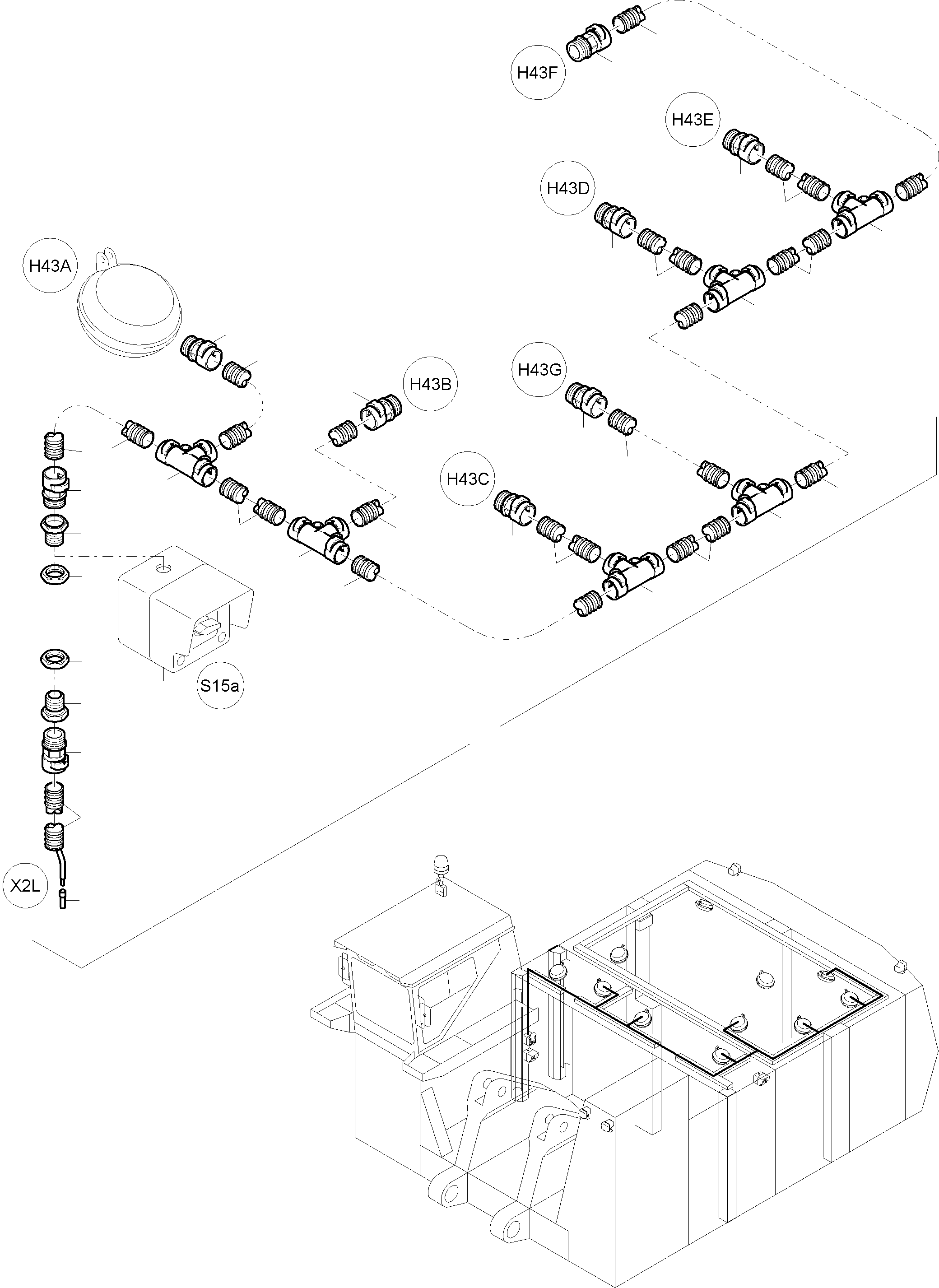

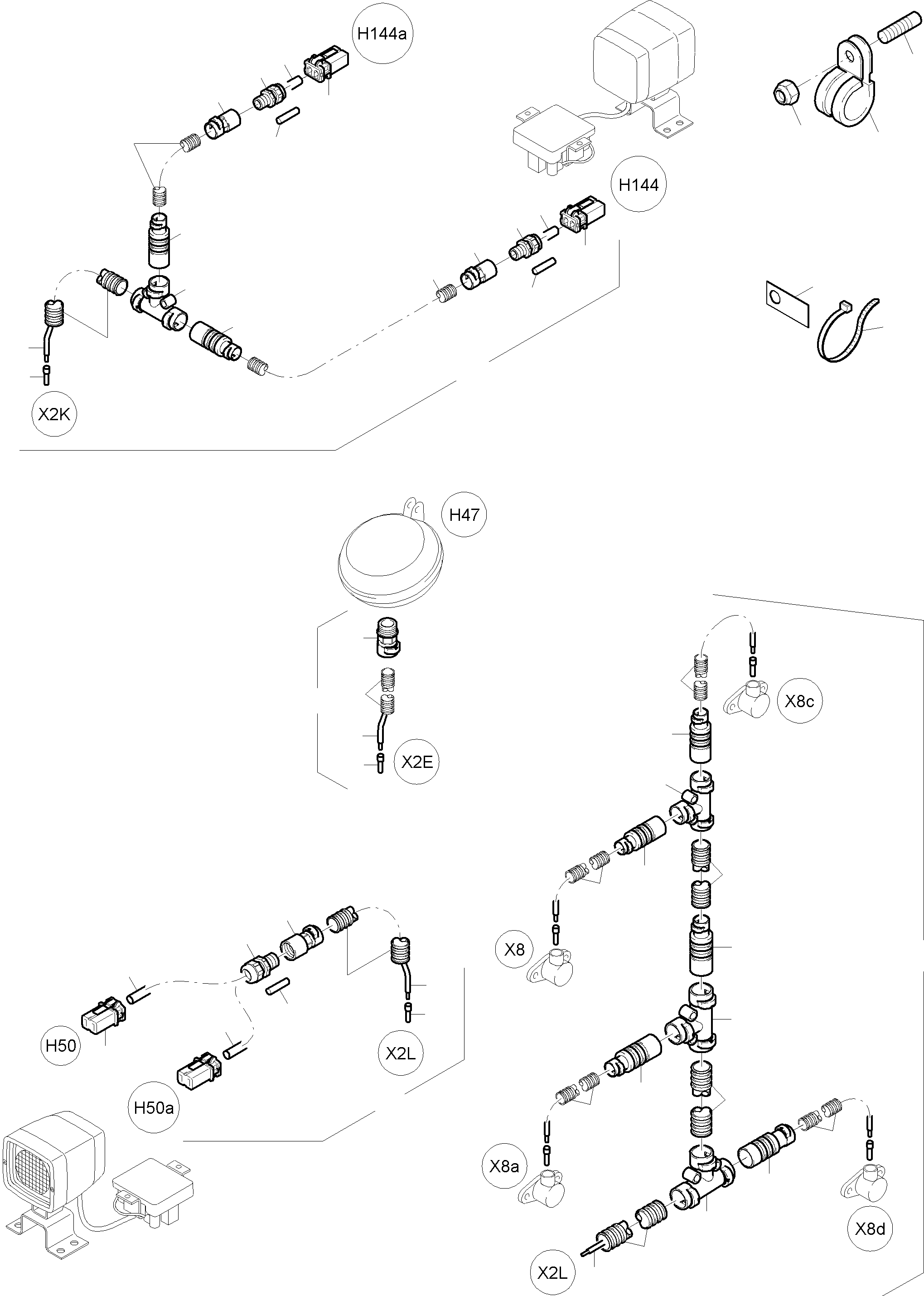

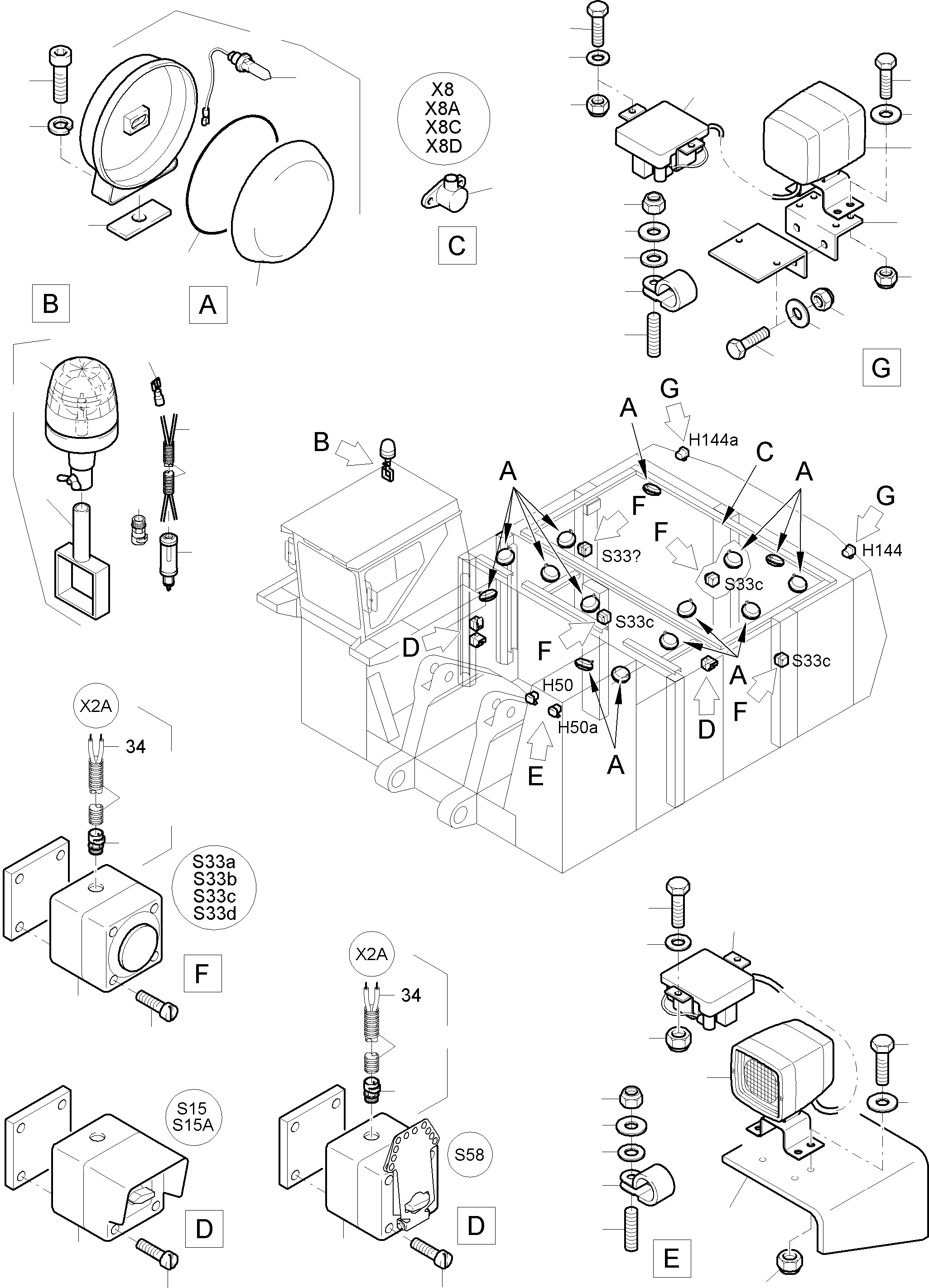

LIGHTING EQUIPMENT (612-2105l) in PC8000-6E S/N 12061. Diagram image and parts list.
