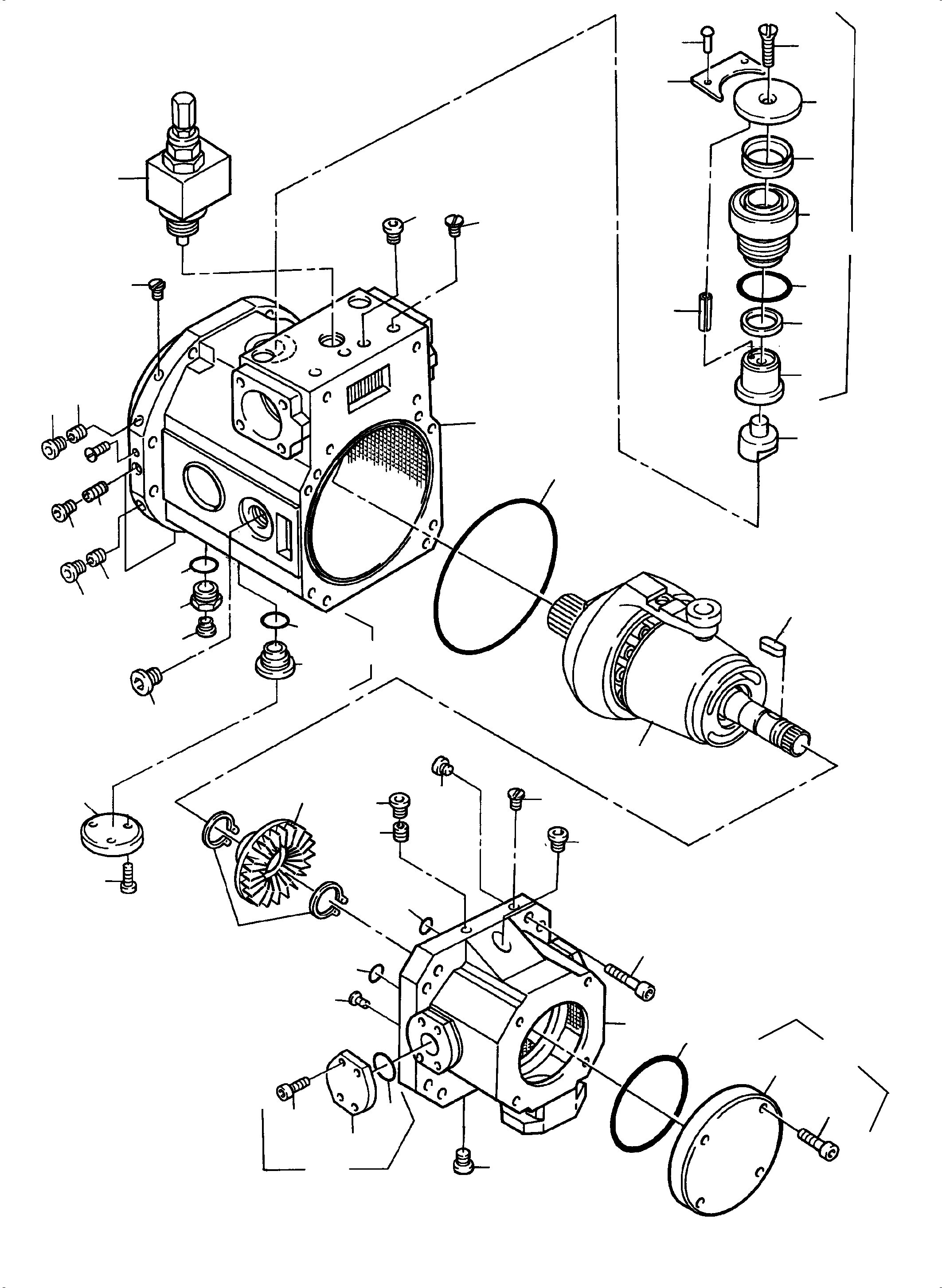

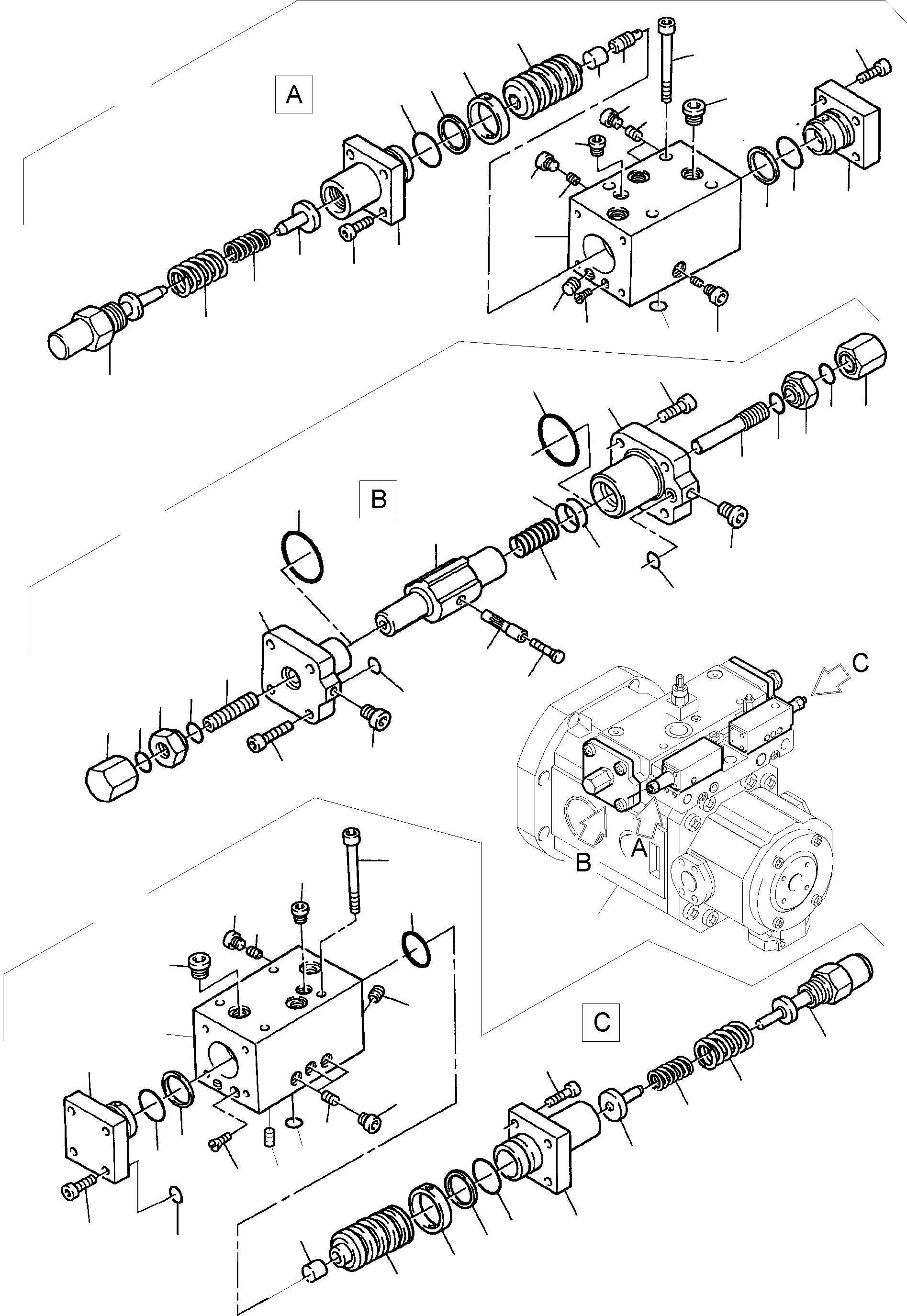

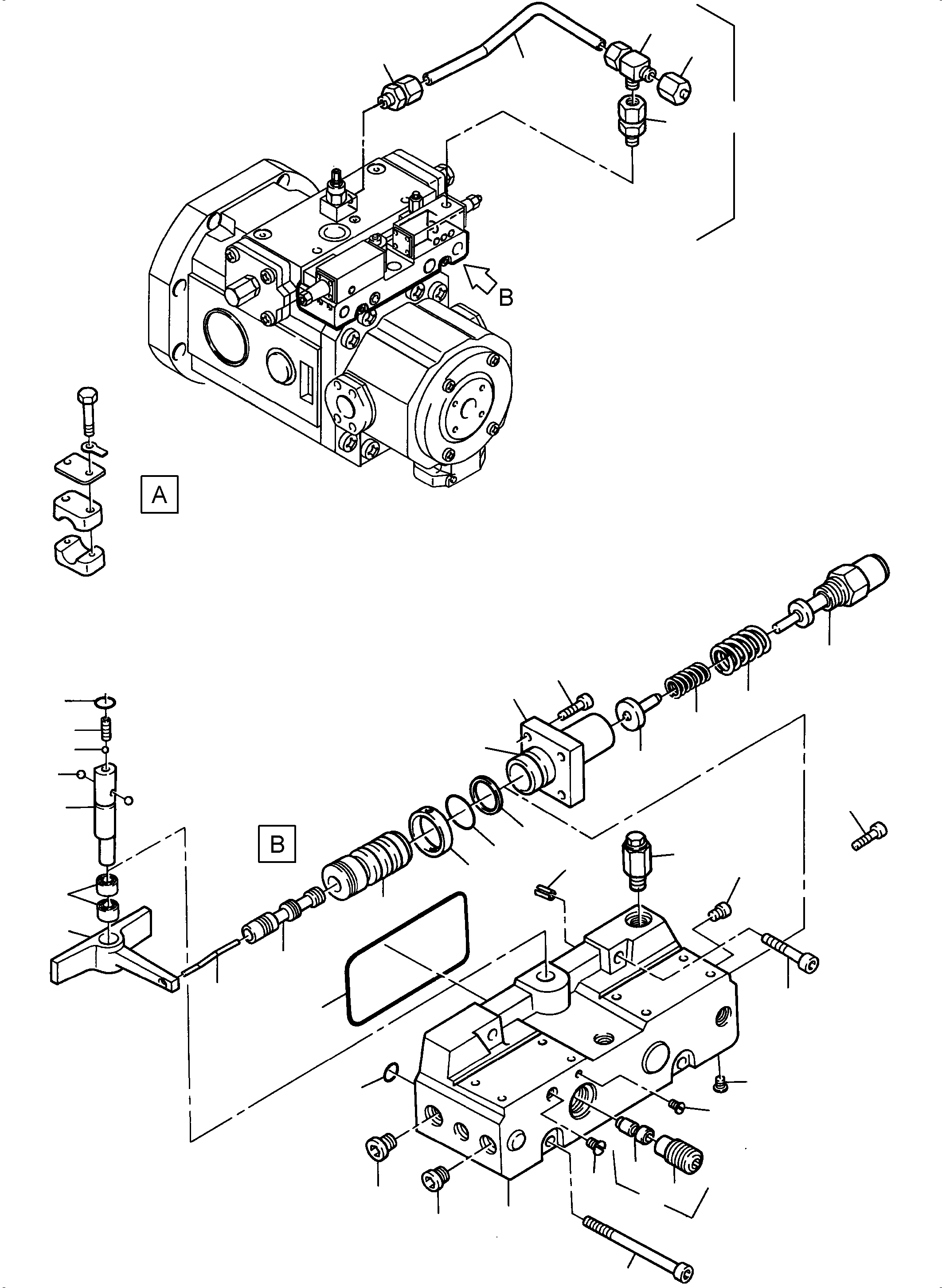

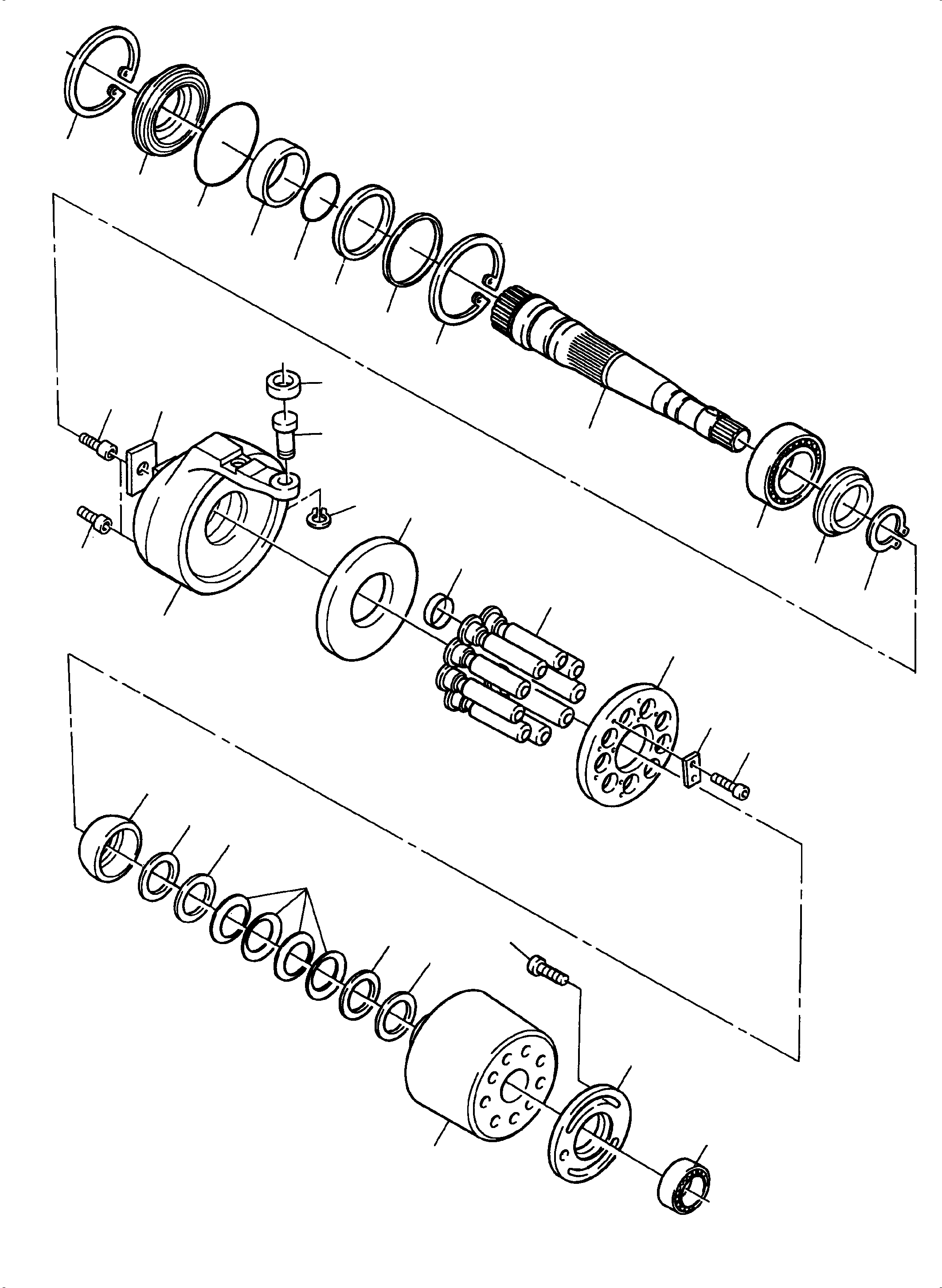

Diagram image 1 of 4

PC8000-6E S/N 12061

01 02 02 03 03 04 05 05 05 05 06 06 07 07 08 08 09 09 10 10 11 11 12 12 12 13 13 13 13 13 14 14 15 15 16 16 17 18 18 183 19 19 20 20 21 22 22 23 23 24 24 25 26 27 27 28 29 30 31 32 32 33 33 33 33 34 34 35 36 36 37 38 38 39 39 40 40 42 43 44 45 46 47 49 80 98 99

PC8000-6E S/N 12061

05 19 192 20 21 22 23 24 25 26 27 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 73 74 75 75 76 77 78 93 94

PC8000-6E S/N 12061

100 101 102 103 104 105 106 107 108 110 111 112 113 114 115 116 117 118 119 120 121 122 122 122 123 124 125 126 127 128 129 129 129 129 130 131 132 134 135 136 137 138 138 139 140 141 147 148 149 179 182 184 185 186 191 48

PC8000-6E S/N 12061

150 151 152 153 154 155 156 157 158 158 159 159 160 160 161 162 163 164 165 166 167 168 169 170 171 172 176 177 178 180 181 187 188 189 190

#	Part Number	Partname	Quantity
01			-2
01	915 247 40	Hydraulic pump assy.	1
01	919 597 40	Hydraulic pump assy. adjusted for a working altitude of 1600m	1
01	919 598 40	Hydraulic pump assy. adjusted for a working altitude of 4200m	1
02	767 051 73	Piston housing	2
03	767 052 73	Cover	2
04	767 053 73	Nozzle	1
05	319 540 99	Bolt	16
06	767 054 73	O-ring	2
07	767 055 73	Support ring	2
08	964 770	Plug	4
09	767 039 73	Plug	5
\|$$13	767 429 73	Gasket to fig.-no. 09	-2
10	767 056 73	Plug	2
11	319 248 99	Bolt	8
12	767 057 73	Threaded pin	6
13	767 058 73	Plug	8
14	511 561 98	O-ring	10
15	313 405 99	Plug	2
16	767 061 73	Roller	2
17	767 062 73	Piston	1
18	767 063 73	Piston	2
19	767 064 73	ring	2
20	767 065 73	Support ring	2
21	767 066 73	O-ring	1
22	767 067 73	O-ring	2
23	767 068 73	Spring housing	2
24	767 069 73	Spring plate	2
25	767 070 73	Spring	1
26	767 071 73	Spring	1
27	767 072 73	Adjustment	2
28	767 939 73	Nozzle	1
29	767 073 73	Spring	1
30	767 074 73	Spring	1
31	763 523 73	Pilot valve assy	1
32	767 936 73	Nut	2
33	768 978 73	O-ring	4
34	767 935 73	Nut	2
35	767 934 73	Treaded pin	1
36	319 337 99	Bolt	8
37	768 979 73	Piston housing	1
38	767 056 73	Bolt	5
\|$$43	767 429 73	Gasket to fig.-no. 38	-2
39	767 092 73	O-ring	2
40	514 917 98	O-ring	2
42	767 933 73	Set piston	1
43	766 693 73	Bushing	1
44	767 085 73	Guide shoe	1
45	767 938 73	Spring	1
46	767 937 73	Threaded pin	1
47	768 980 73	Piston housing	1
48	767 127 73	Bolt	2
\|$$53	767 431 73	Gasket to fig.-no. 48	-2
49	763 522 73	Pilot valve assy	1
50	766 694 73	Valve assy.	1
51	766 695 73	Valve housing	1
52	767 039 73	Plug	3
\|$$58	767 429 73	Gasket to fig.-no. 52	-2
53	767 127 73	Plug	2
\|$$60	767 431 73	Gasket to fig.-no. 53	-2
54	767 092 73	O-ring	4
55	767 093 73	O-ring	1
56	509 812 98	Bolt	2
57	769 128 73	Breaking plug	3
58	999 046	Breaking plug	3
59	767 095 73	Breaking plug	2
60	319 150 99	Bolt	2
61	796 778 73	Non-return valve	1
62	767 344 73	Gasket	1
63	345 040 99	Dowel sleeve	1
64	766 697 73	Non return valve mounting kit	1
65	767 106 73	O-ring	1
66	509 633 98	Threaded pin	1
67	363 539 99	Ball	1
68	363 424 99	Ball	2
69	767 098 73	Eccentric stud	1
70	756 820 73	Needle cage	2
71	767 099 73	Lever	1
72	767 100 73	Parallel pin	1
73	767 101 73	Sleeve	1
74	767 102 73	Bolt	1
75	767 103 73	Union	2
76	795 120 73	Pipe Ш 8	-2
77	767 104 73	Union	1
78	767 105 73	Plug	1
80	994 325	O-ring	2
93	767 942 73	Plug	1
94	767 943 73	Plug	1
98	514 919 98	O-ring	1
99	767 945 73	Sliding ring	1
100	766 698 73	Indicator assy	1
101	350 902 99	Grove drive stud	2
102	319 417 99	Bolt	1
103	766 699 73	Pointer	1
104	766 700 73	Seal	1
105	767 118 73	Scale	1
106	766 701 73	Threaded pin	1
107	767 120 73	O-ring	1
108	767 121 73	Quad-ring	1
110	766 702 73	Pivot	1
111	767 124 73	Joint part	1
112	345 370 99	Dowel sleeve	1
113	964 736	Breaking plug	1
114	767 901 73	Plug	1
115	767 902 73	Plug	1
116	767 904 73	Cover	1
117	319 140 99	Bolt	3
118	767 903 73	Plug	1
119	767 900 73	Plug	1
120	767 125 73	Pilot valve	1
121	766 703 73	Pump housing	1
122	767 127 73	Plug	5
\|$$113	767 431 73	Gasket to fig.-no. 122	-2
123	767 128 73	Plug	3
124	767 129 73	Thread pin assy.	1
125	514 913 98	O-ring	1
126	766 704 73	Power unit	1
127	796 302 73	O-ring	1
128	763 178 73	O-ring	2
129	767 056 73	Plug	3
130	767 132 73	Dummy flange assy.	1
131	767 896 73	Housing	1
132	319 340 99	Bolt	8
134	514 916 98	O-ring	1
135	767 897 73	Cover assy.	1
136	307 822 99	Bolt	4
137	767 930 73	Cover	1
138	767 899 73	Plug	4
139	767 892 73	Reducing union	1
140	767 893 73	Seal	1
141	767 096 73	Plug	1
147	767 923 73	Feather key	1
148	342 555 99	Ring	2
149	767 922 73	Idler	1
150	342 690 99	Ring	1
151	768 981 73	Sealing flange	1
152	766 715 73	Ring	1
153	000 224 98	O-ring	1
154	766 706 73	Drive shaft	1
155	768 982 73	Supporting disc	1
156	767 924 73	Bearing	1
157	342 569 99	Ring	1
158	767 920 73	Shim washer	2
159	767 921 73	Shim washer	2
160	767 927 73	Bolt	2
161	767 912 73	Sliding block	1
162	767 911 73	Pivot	1
163	342 532 99	Ring	1
164	767 919 73	Slider	1
165	767 910 73	Balancer	1
166	767 916 73	Segment	4
167	766 707 73	Piston / guide shoe	9
168	767 913 73	Plate	1
169	767 915 73	Spacer block	4
170	319 424 99	Bolt	8
171	766 708 73	Ball	1
172	767 926 73	Spring	20
176	319 429 99	Bolt	6
177	768 983 73	Cylinder with bushing	1
178	767 908 73	Distribution plate	1
179	766 710 73	Throttle screw	1
180	767 925 73	Bearing	1
181	767 918 73	Bushing	2
182	767 410 73	O-ring	1
183	768 984 73	Adjustment assy.	1
184	512 978 98	Bolt	4
185	767 409 73	O-ring	1
186	767 397 73	Dummy flange	1
187	766 713 73	Sealing bush	1
188	766 714 73	Wheel	1
189	766 717 73	O-ring	1
190	342 676 99	Circlip	1
191	767 929 73	Thread pin	1
192	318 914 99	Screw	4
\|$$175	795 709 73	Seal kit pump without valves concist. of fig no.33,39,40 98,99,104,107,108,125,127 128,134,153,182,185,189	1
\|$$176	767 160 73	Seal kit, pilot valve	1
\|$$177	767 795 73	Seal kit adjustment assy.	1
\|$$178	796 779 73	Seal kit, pilot valve	1
\|$$179	767 312 73	Seal kit valve concist. of fig no. 52,53,54 55,62,20,21	1
\|$$180			-2

Komatsu PC8000-6E S/N 12061 parts catalog PDF

VARIABLE DISPLACEMENT PUMP (991-0357e) in PC8000-6E S/N 12061. Diagram image and parts list.
