Diagram image 1 of 5

PC8000-6E S/N 12061

23 23 23 23 24 24 24 24 24 25 26 27 28 28 29 29 29 30 31 32 32 33 33 34 35 35 36 36 37 38 40 41 48 51 59 59 73 74 75

PC8000-6E S/N 12061

23 23 23 24 24 24 24 25 26 27 28 28 28 29 29 29 30 31 32 32 33 33 34 35 35 36 36 37 38 46 47 48 49 50 52 59 59

PC8000-6E S/N 12061

23 23 24 24 24 25 25 26 26 27 28 29 31 32 33 33 34 34 35 35 39 42 43 44 45 57 57

PC8000-6E S/N 12061

32 33 34 35 60 62 63 63 64 65 66 67 67 68 69 70 71

PC8000-6E S/N 12061

01 02 03 04 05 06 07 07 07 07 08 09 10 11 12 13 14 15 16 16 17 17 18 18 19 19 20 20 21 21 21 21 22 22 22 22 72

#	Part Number	Partname	Quantity
01	932 144 40	Boom weldment	1
02	891 665 40	Pin	2
03	891 664 40	Pin	2
04	932 146 40	Pin	2
05	891 660 40	Pin	1
06	890 998 40	Flanged bush	4
07	928 118 40	Bushing	4
08	890 997 40	Flanged bush	4
09	932 145 40	Flanged bush	4
10	890 995 40	Flanged bush	2
11	890 994 40	Flanged bush	2
12	890 993 40	Axle stirrup	4
13	890 992 40	Axle stirrup	4
14	932 147 40	Axle stirrup	4
15	890 990 40	Axle stirrup	2
16	890 989 40	Cover	4
17	890 988 40	Cover	3
18	890 987 40	Ring	3
19	307 826 99	Bolt	24
20	307 829 99	Bolt	18
21	517 123 98	Washer	42
22	907 028 40	Seal ring	4
23	504 445 98	Clamp Set	37
24	534 008 99	Cover plate	49
25	308 599 99	Bolt	28
26	509 310 98	Locking plate	14
27	504 446 98	Clamp Set	16
28	510 151 98	Bolt	62
29	332 334 99	Nut	70
30	911 138 40	Angle	4
31	504 448 98	Flange	28
32	504 449 98	Collar ring	34
33	385 243 40	Flange seal	42
34	319 313 99	Bolt	136
35	504 662 98	Nut	160
36	504 898 98	Flange	12
37	504 461 98	Collar ring	6
38	502 538 98	Bolt	24
39	319 305 99	Bolt	8
40	795 590 73	Pipe assy. Ш 65	1
41	795 591 73	Pipe assy. Ш 65	1
42	768 026 73	Pipe assy. Ш 65	1
43	768 027 73	Pipe assy. Ш 65	1
44	768 028 73	Pipe assy. Ш 65	1
45	768 029 73	Pipe assy. Ш 65	1
46	795 592 73	Pipe assy. Ш 65	1
47	795 593 73	Pipe assy. Ш 65	1
48	768 032 73	Pipe assy. Ш 65	4
49	768 033 73	Pipe assy. Ш 65	1
50	768 034 73	Pipe assy. Ш 65	1
51	796 451 73	Pipe assy. Ш 65	3
52	796 452 73	Pipe assy. Ш 65	3
57	940 420 40	Hose assy.	4
59	940 385 40	Hose assy.	4
60	940 328 40	Hose assy.	6
62	948 198 40	Plate 8X299X1040	1
63	504 853 98	Clamp set	6
64	505 212 98	Grommet	6
65	308 643 99	Bolt	12
66	334 601 99	Nut	12
67	502 618 98	Clamp set	1
68	504 926 98	Grommet	1
69	534 004 99	Cover plate	1
70	308 584 99	Bolt	2
71	507 037 98	Nut	2
72	919 363 40	Ring	2
73	936 467 40	Cover plate	1
74	936 464 40	Cover plate	2
75	506 291 98	Bolt	8

Komatsu PC8000-6E S/N 12061 parts catalog PDF

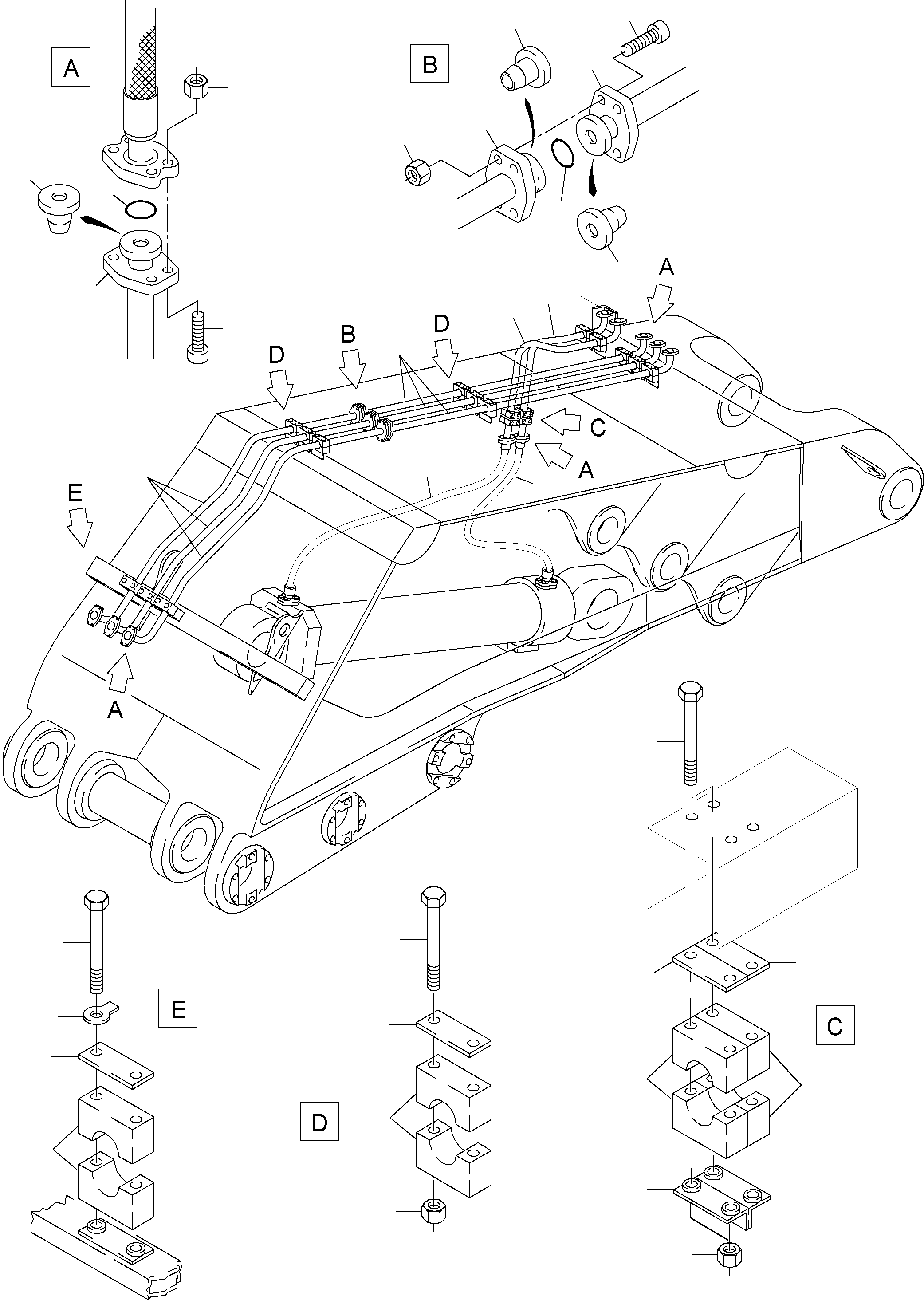

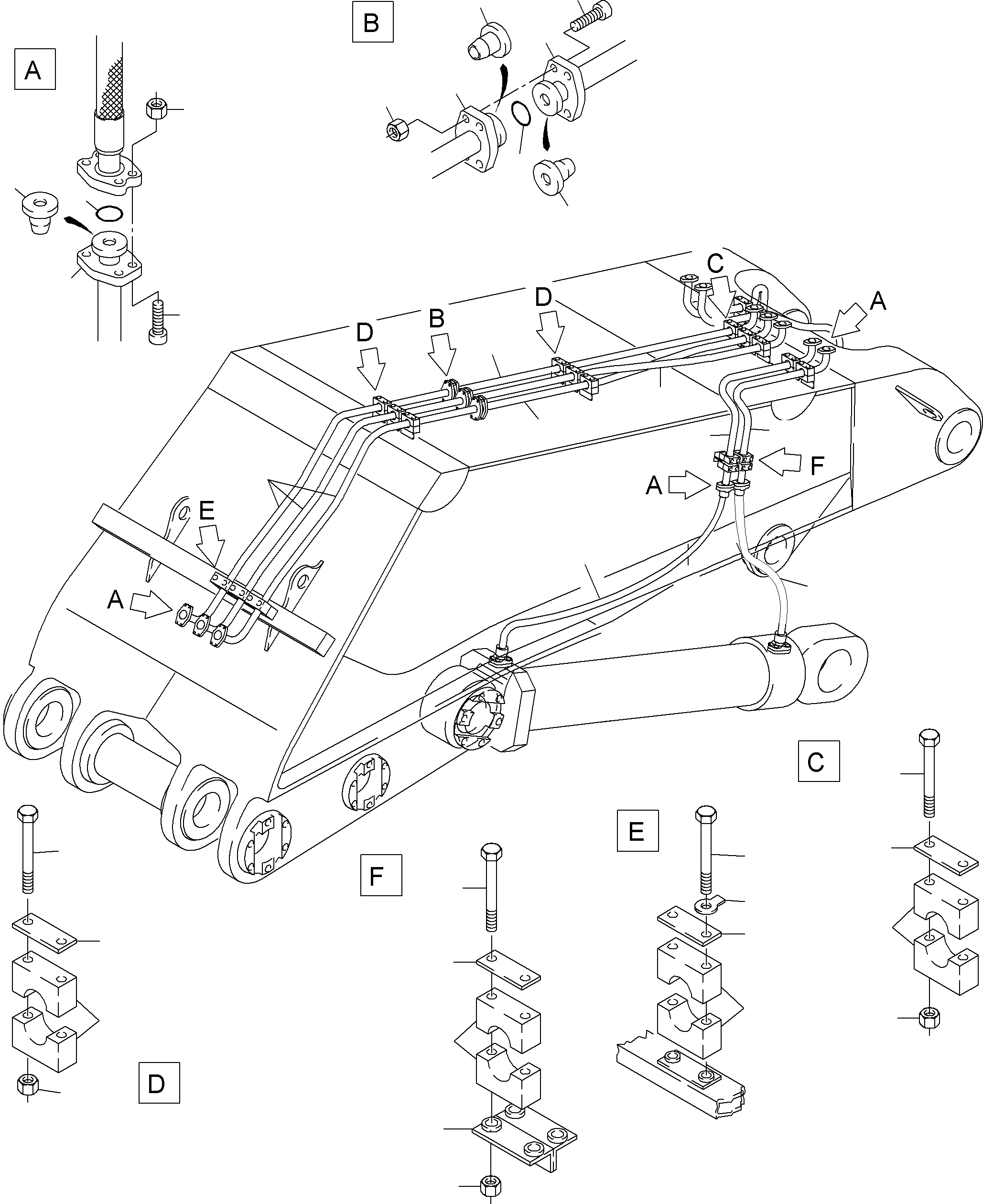

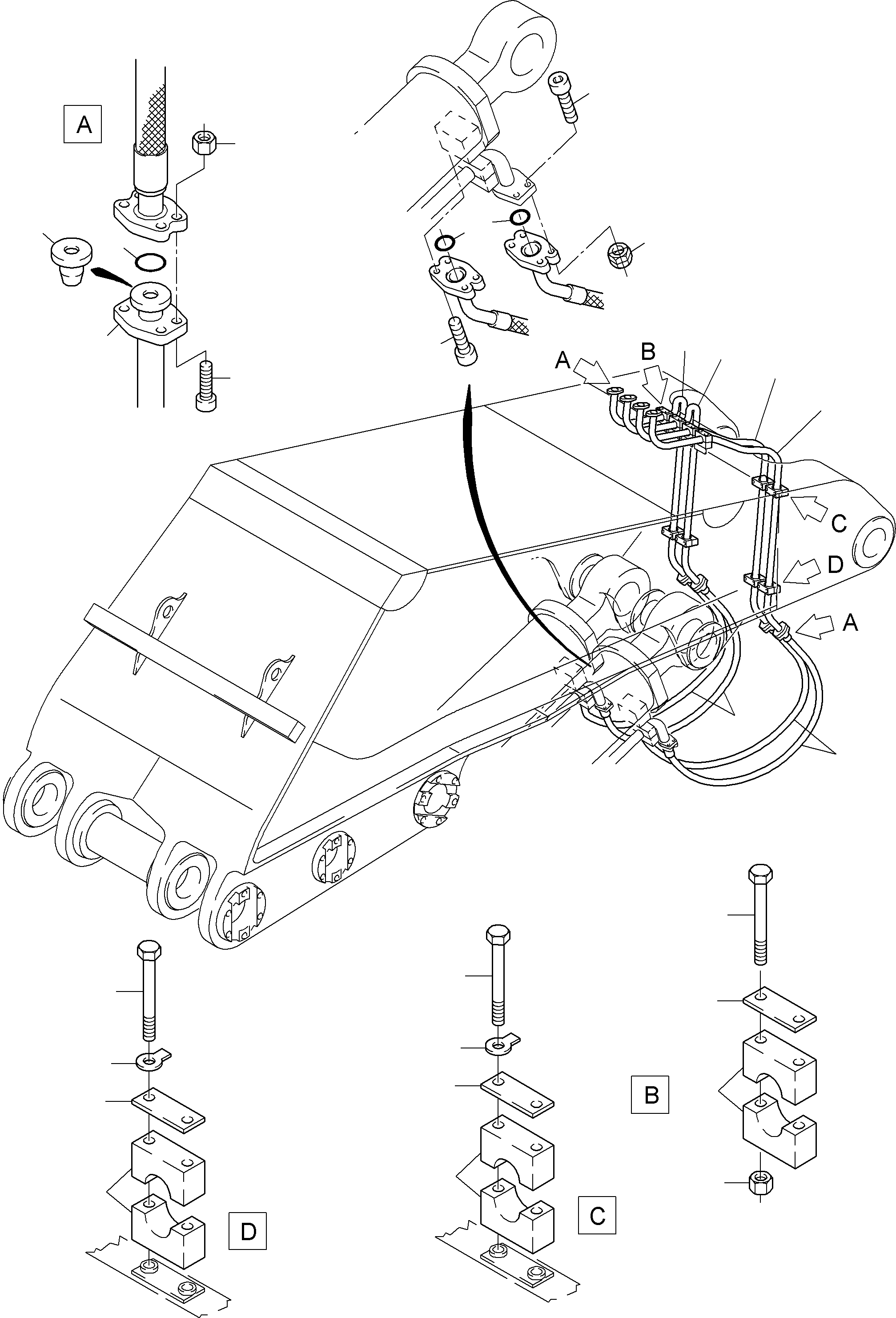

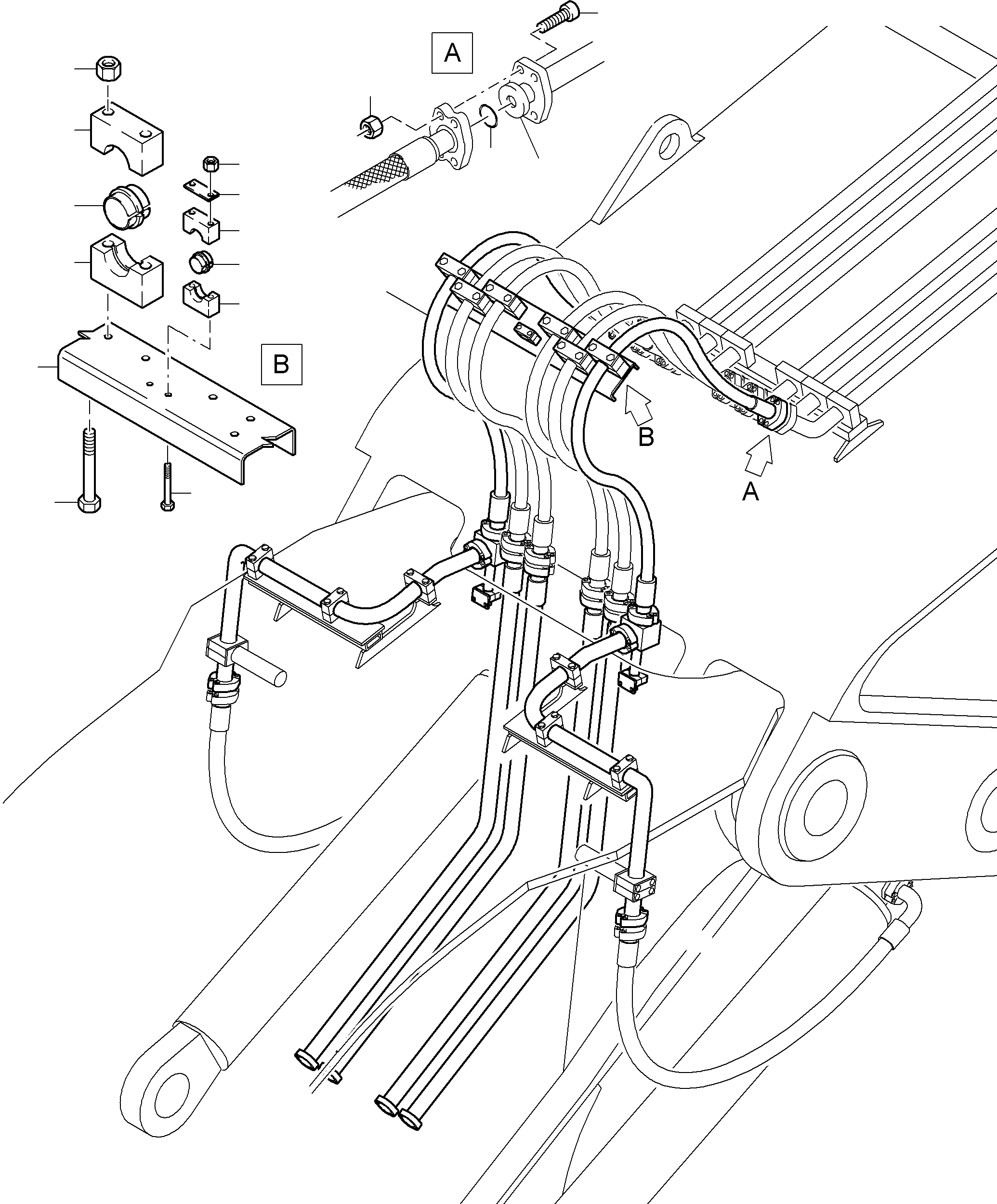

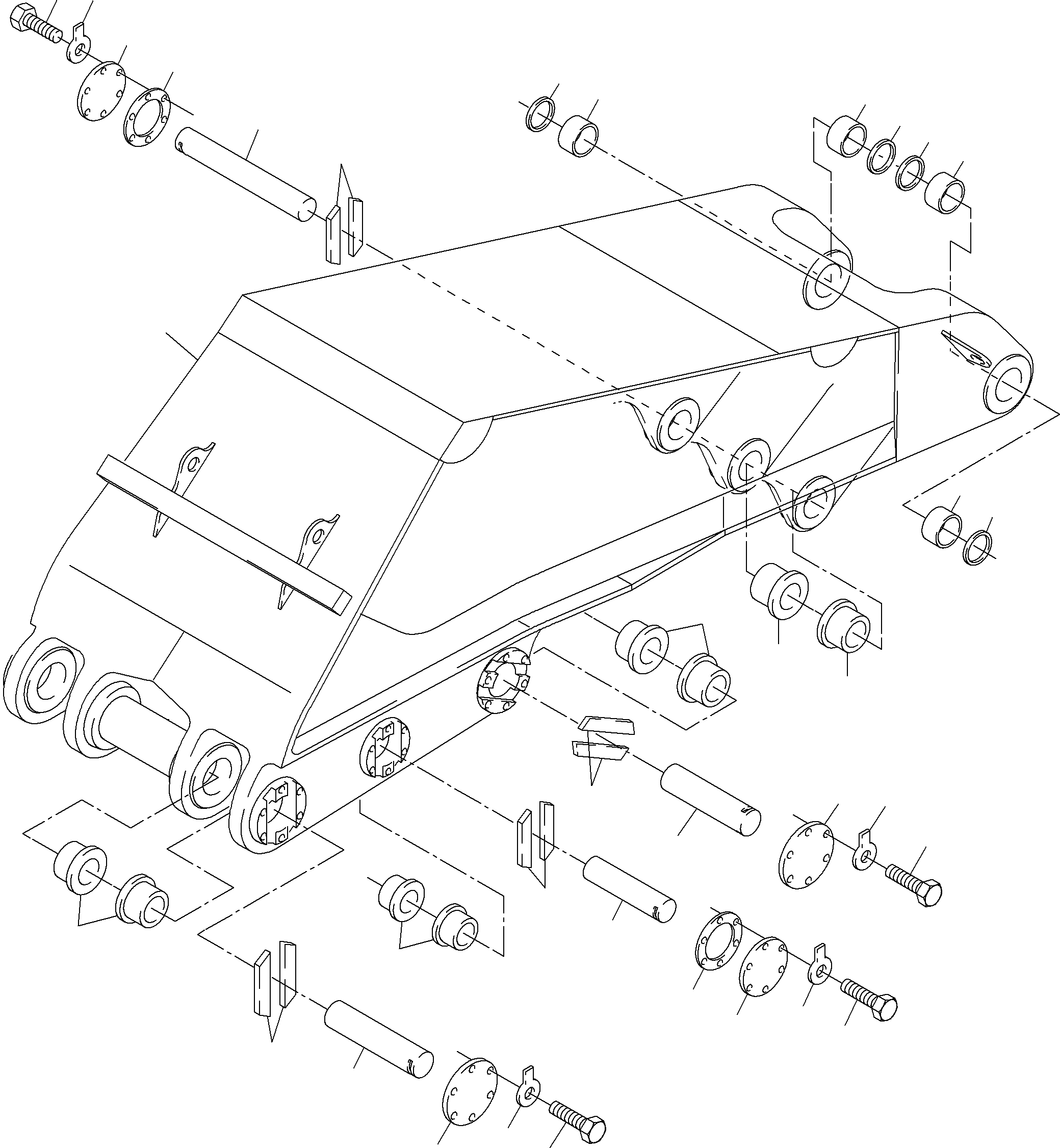

BOOM 8.15 M (113-4001c) in PC8000-6E S/N 12061. Diagram image and parts list.
