SLEW GEARBOX WITH BRAKE | PC8000-6E S/N 12085 | Komatsu parts book catalogue

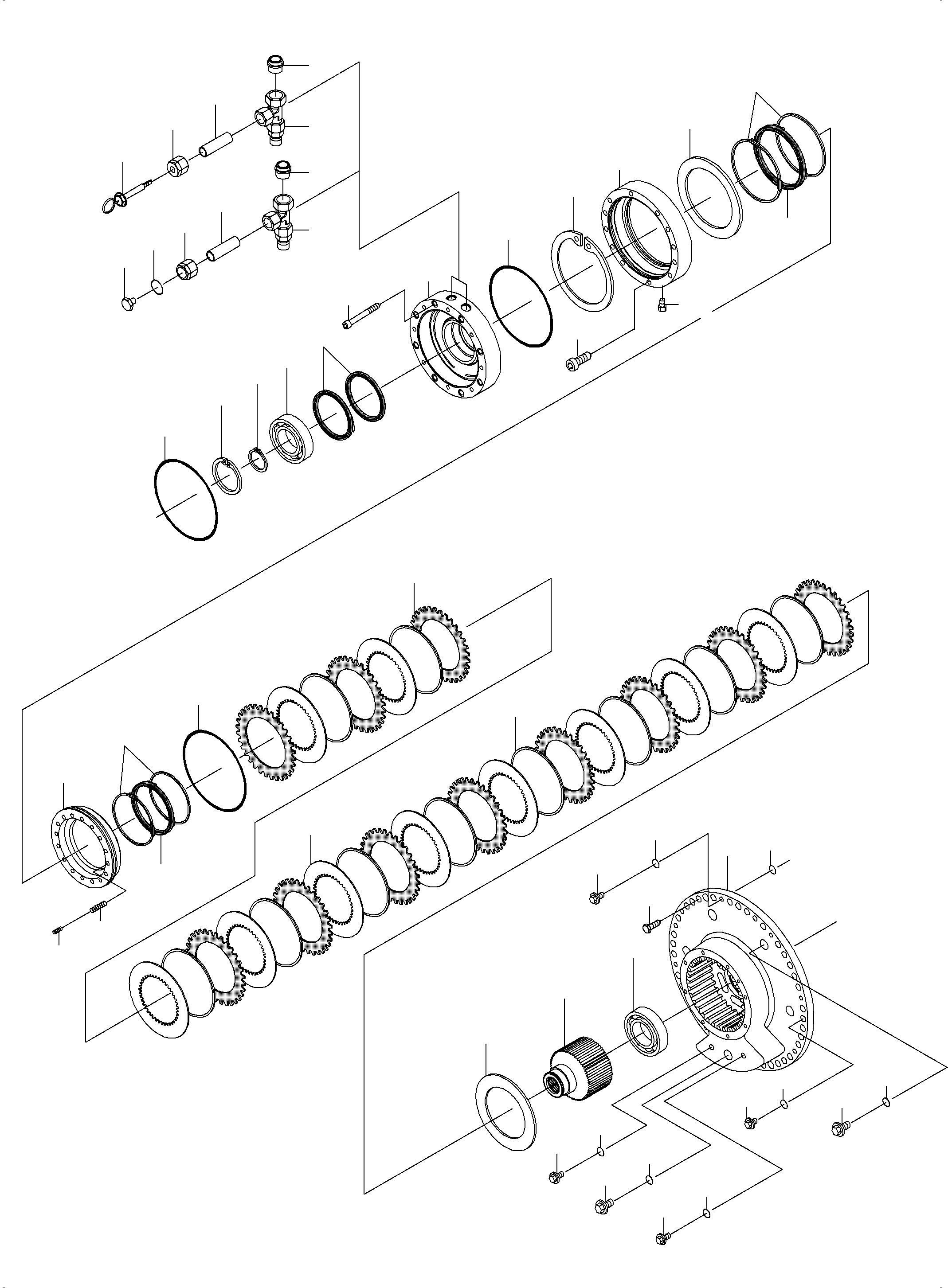

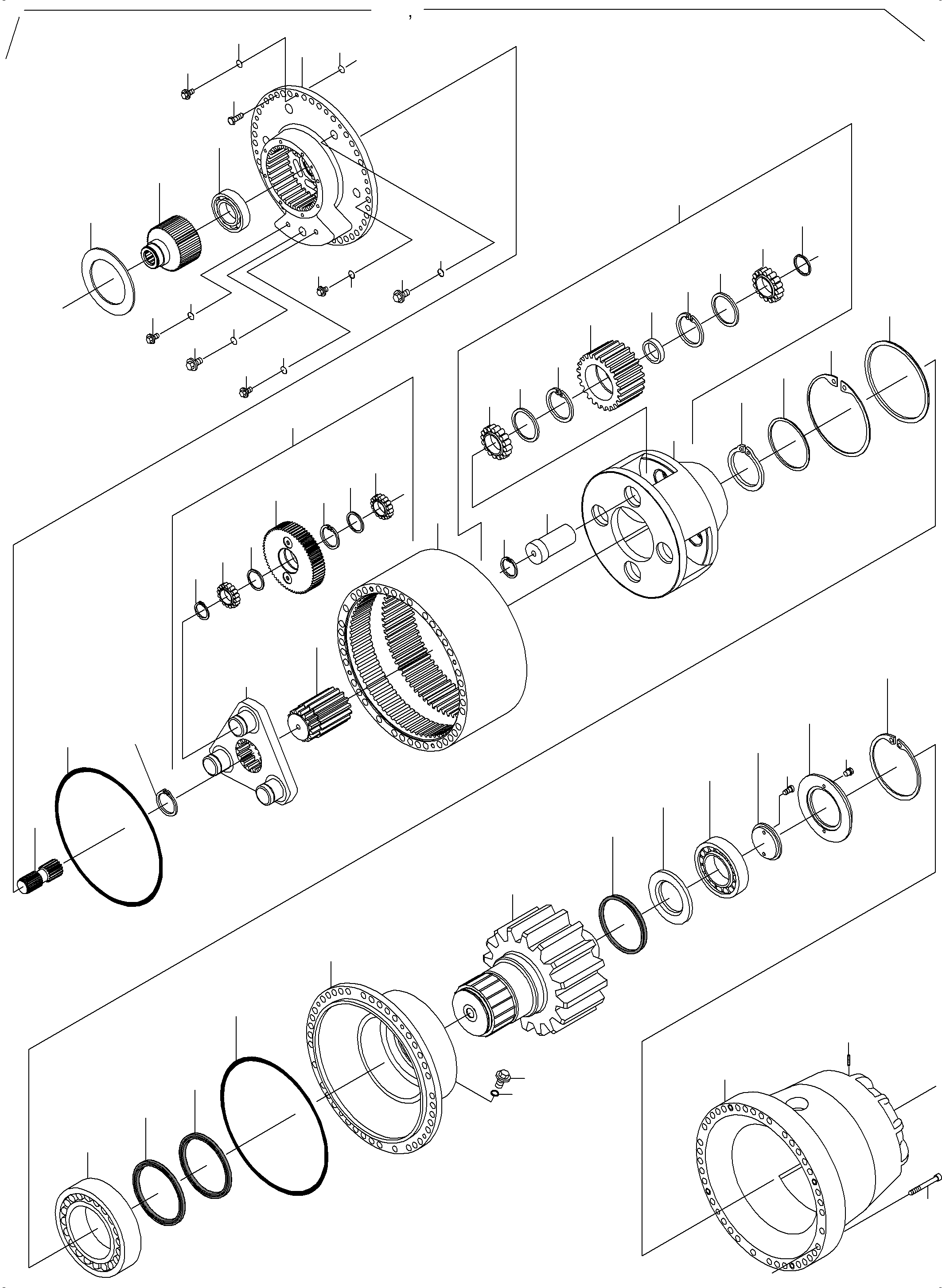

Diagram image 1 of 2

PC8000-6E S/N 12085

01 02 03 04 06 08 09 11 113 116 12 123 125 126 126 127 127 13 130 131 133 14 155 156 162 17 180 19 19 20 21 23 24 25 26 27 29 30 32 32 331 332 332 333 334 334 335 336 35 37 37 39 42 501 504 51 52 53 558 62 70 89 90 91 91 94 94 95 96 97

PC8000-6E S/N 12085

116 126 126 127 127 130 133 203 203 204 204 205 206 211 213 215 316 331 332 332 333 334 334 335 336 348 501 502 503 504 505 506 507 508 509 510 511 512 513 514 515 516 519 520 521 522 525 526 549 550 551 555 556 62 63

#	Part Number	Partname	Quantity	Reference
01	926 795 40	Slew gearbox assy. NT	1
02	792 234 73	Ring gear	1
03	792 235 73	Cartridge	1
04	792 236 73	Sunn gear z=15	1
06	792 237 73	Output shaft GFB 174	1
08	792 238 73	Planet carrier GFB 174	1
09	757 238 73	Planet bolt GFA 174	4
\|$$8		Brake assy	1	991-0457a
11	792 239 73	Planet gear z=27	4
12	792 269 73	Planetary Carrier assy consists of fig. no. 08,09,11, 19,30,32,37,52,53	1
13	763 730 73	Disk	1
14	757 360 73	Sun gear shaft	1
17	768 454 73	Disk	1
19	507 751 98	Cylindrical roller bearing	8
20	792 260 73	Cylindrical roller bearing	1
21	513 531 98	Spherical roller bearing	1
23	501 933 98	Circlip	1
24	757 252 73	Clamp collar	1
25	504 544 98	Radial shaft seal ring	1
26	507 748 98	O-ring	1
27	517 015 98	Radial shaft seal ring	1
29	342 572 99	Circlip	1
30	342 666 99	Circlip	4
32	342 679 99	Circlip	8
35	342 497 99	Circlip	1
37	592 242 40	Locating ring	6
39	349 989 99	Screw plug	1
42	340 084 99	Seal ring	1
51	513 136 98	Socket head cap screw	4
52	757 240 73	Spacer ring	3
53	763 731 73	Spacer ring	3
62	513 532 98	Ball bearing	1
63	517 016 98	Ball bearing	1
70	792 233 73	Cover	1
89	792 240 73	Planet carrier GFB 174	1
90	767 764 73	Planet gear GFB 174	3
91	506 448 98	Cylindrical roller bearing	6
94	806 076 73	Locating ring	6
95	342 560 99	Circlip	3
96	342 670 99	Circlip	3
97	792 268 73	Planetary carrier assy consists of fig. no.04,89,90,91 94,95,96	1
113	792 241 73	Disk	1
116	509 834 98	Socket head cap screw	8
123	342 707 99	Circlip	1
125	507 748 98	O-ring	1
126	313 178 99	Screw plug	6
127	339 950 99	Seal ring	6
130	792 242 73	Drive Shaft	1
131	768 464 73	Plug	2
133	912 094	O-ring	2
155	319 155 99	Socket head cap srew	6
156	792 243 73	Cover	1
162	763 736 73	Bearing ring	1
180	517 514 98	Thread pin	1
203	371 856 99	Union	2
204	763 841 73	Union	2
205	215 812 99	Precision tubing 18x1,5, lg 0,1 m	-2
206	372 824 99	Union	1
211	372 834 99	Union	1
213	792 244 73	Dipstick G1/2" x156	1
215	215 812 99	Precision tubing 18x1,5, lg 0,1 m	-2
316	319 349 99	Socket head cap srew	2
331	313 314 99	Plug	1
332	331 322 99	Plug	3
333	340 294 99	Seal ring	1
334	339 998 99	Seal ring	2
335	313 367 99	Plug	4
336	339 932 99	Seal ring	4
348	376 666 99	Radial shaft seal ring	2
501	792 246 73	Disk housing	1
502	792 247 73	Piston	1
503	792 248 73	Bearing ring	1
504	792 249 73	Disk	1
505	792 250 73	Inner disk	10
506	792 251 73	Outer disk	11
507	963 624	Pressure spring	16
508	342 678 99	Snap ring	1
509	806 036 73	Pressure spring	14
510	972 122	O-ring	1
511	972 122	O-ring	1
512	792 252 73	Piston seal	1
513	792 253 73	Support ring	2
514	792 254 73	Piston seal	1
515	792 256 73	Support ring	2
516	792 255 73	Plug	1
519	513 135 98	Socket head cap srew	8
520	342 708 99	Snap ring	1
521	792 257 73	Locating ring	1
522	340 236 99	Seal ring	1
525	972 122	O-ring	1
526	313 314 99	Plug	1
549	342 568 99	Snap ring	1
550	792 258 73	Housing	1
551	792 259 73	Sine ring	10
555	907 602 40	O-ring TTT -55	1
556	907 603 40	O-ring TTT -55	1
558	934 361 40	Slew gearbox assy., TTT-55°, with O-Ring 555,556 instead of 512,514	1
\|$$98	792 273 73	Seal Kit Slew Gearbox consists of fig. no. 25, 26, 27,125, 348, 510	1
\|$$99	792 271 73	Repair Kit Brake consists of fig. nos. 505, 506, 507, 509, 512, 513, 514, 515	1
\|$$100	795 297 73	Repair Kit Brake consists TT-55 of fig. nos. 505, 506, 507, 509, 513, 515, 555, 556	1
