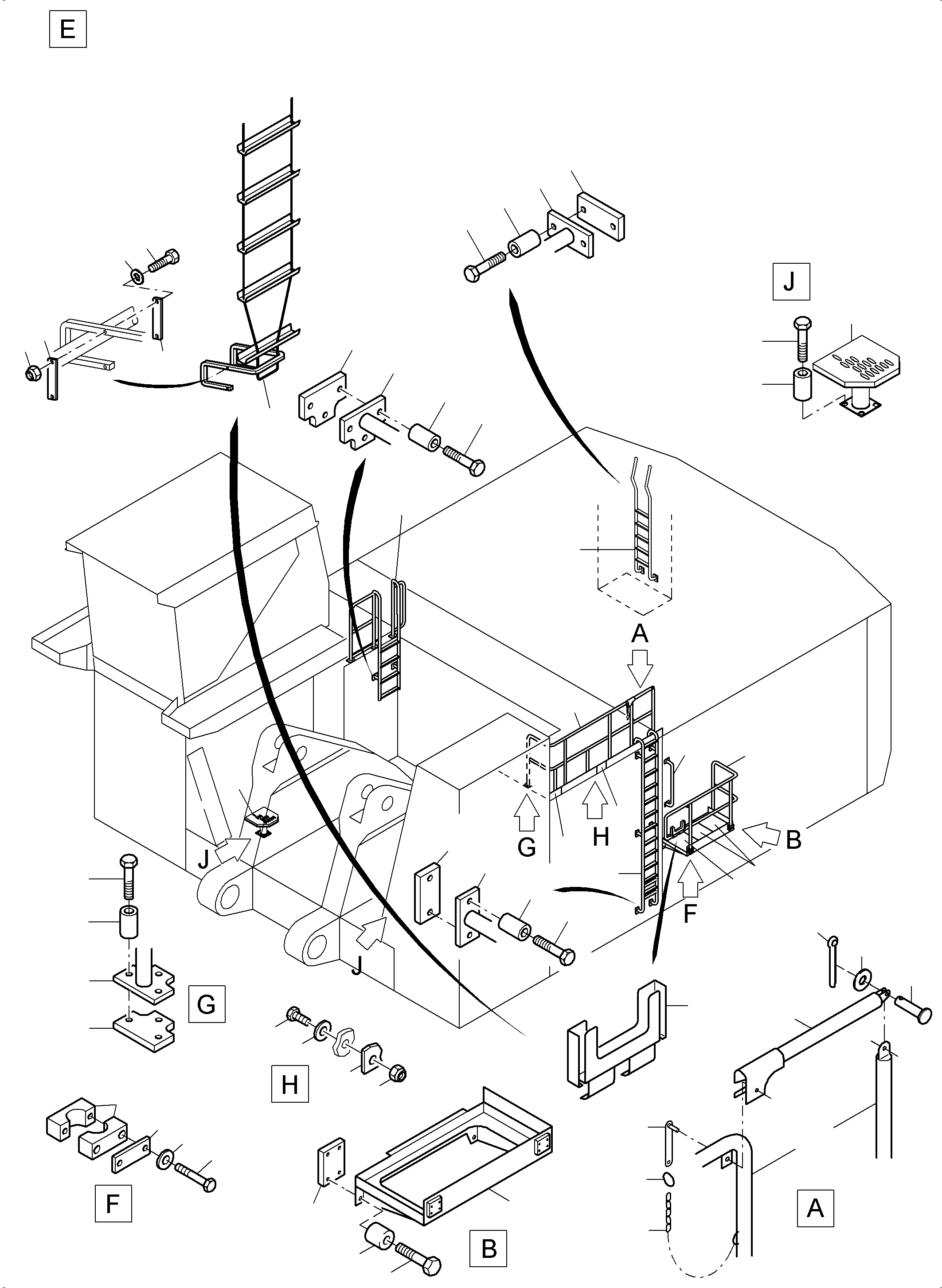

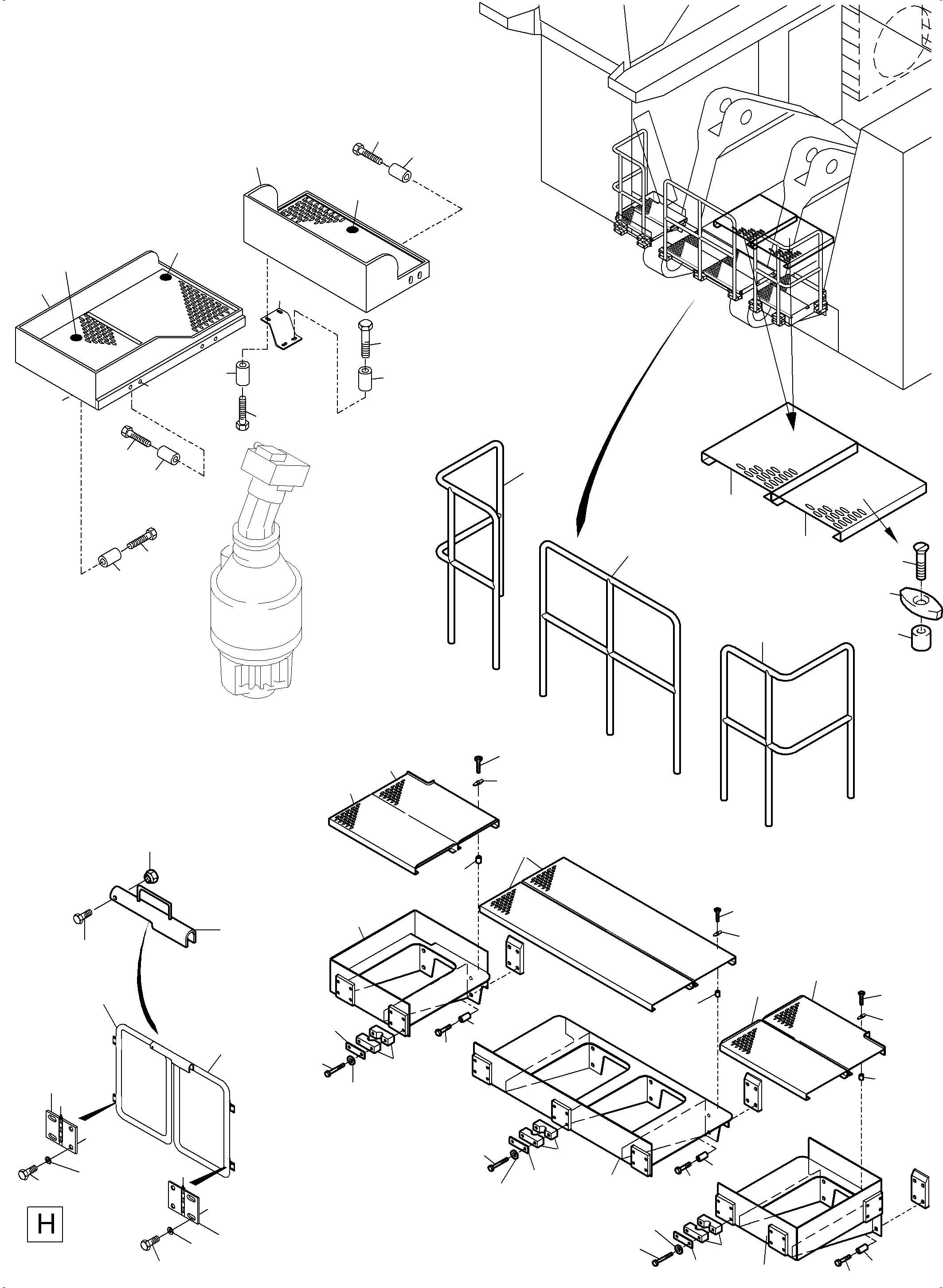

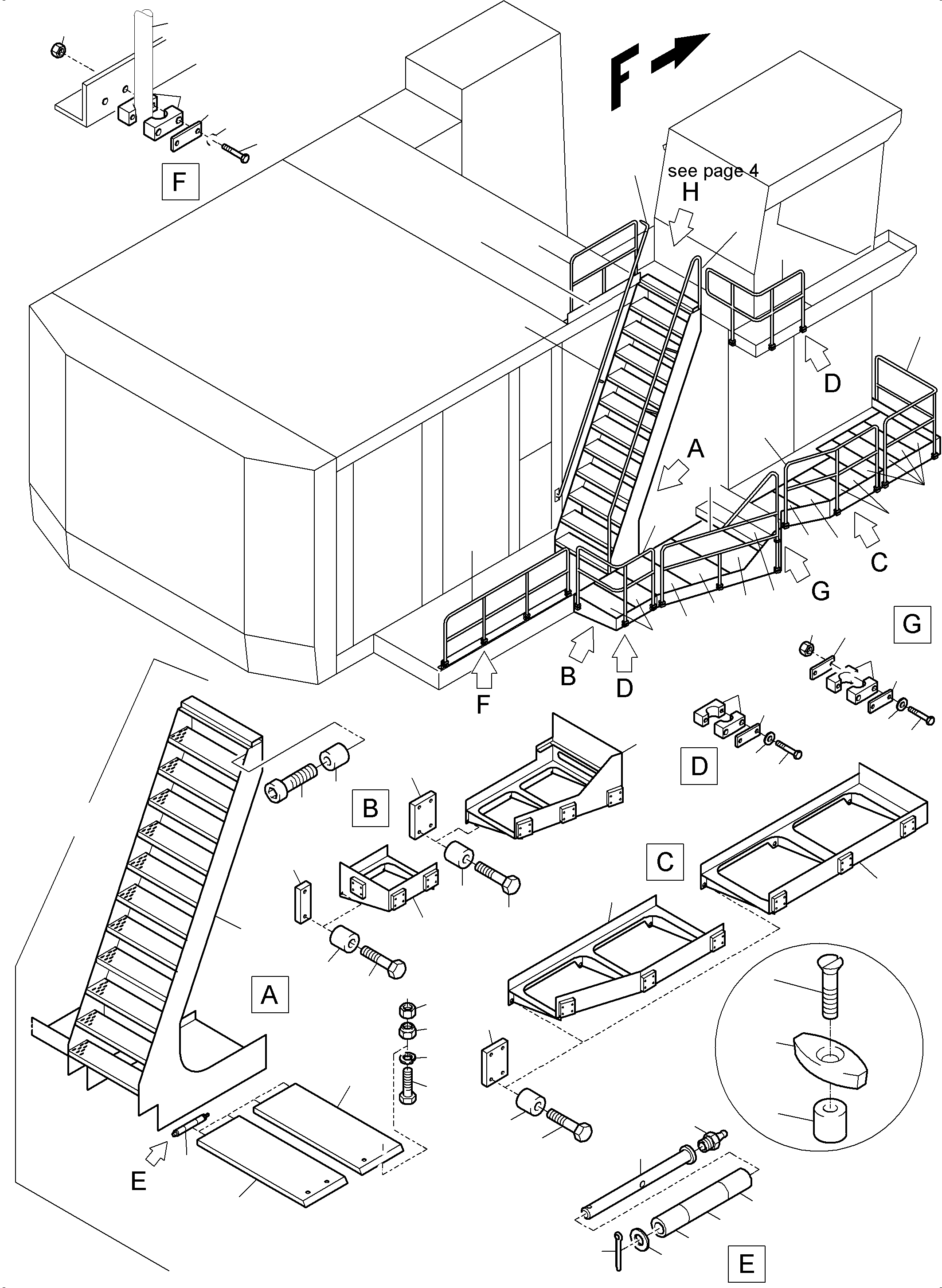

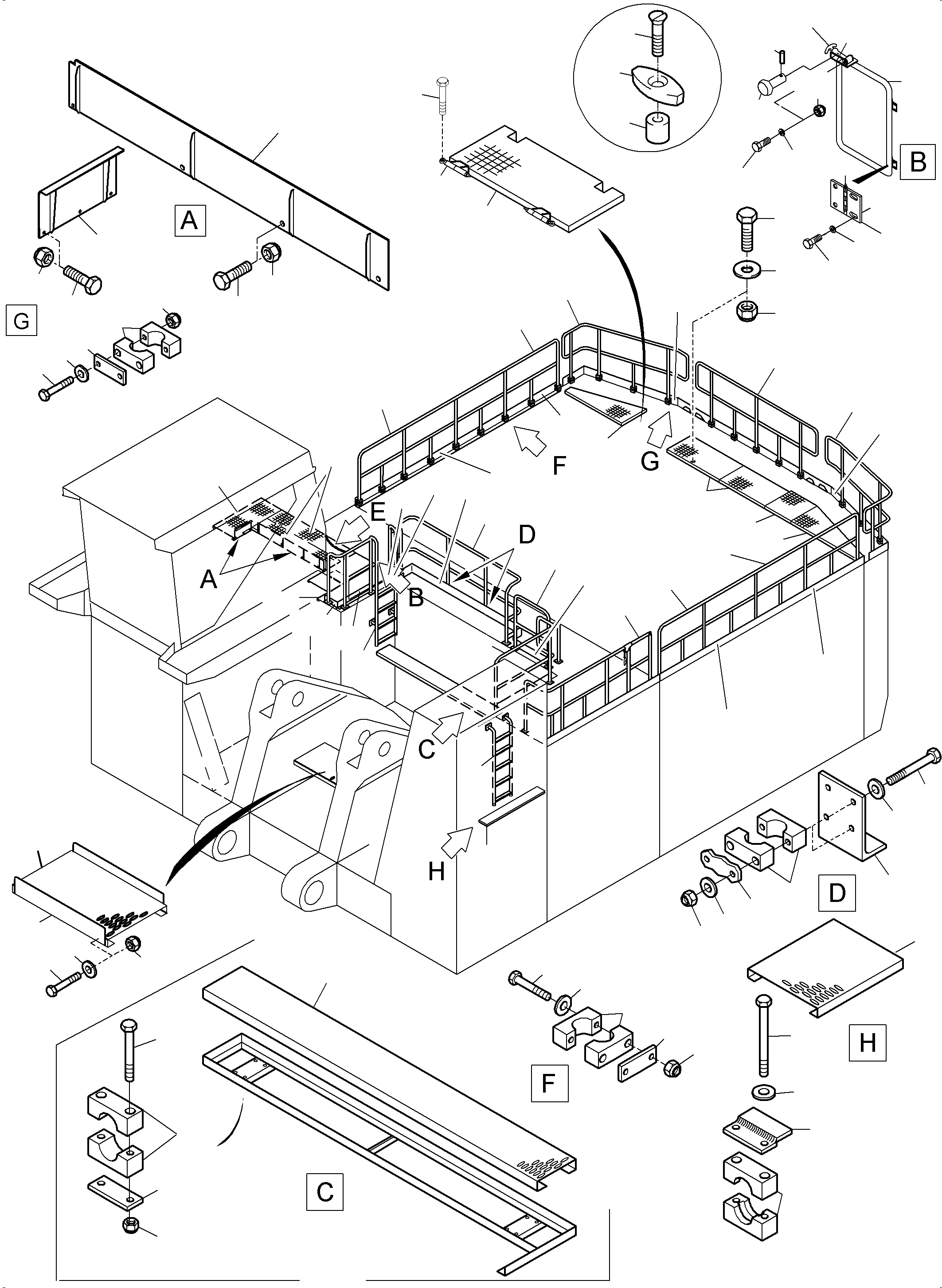

Diagram image 1 of 4

PC8000-6E S/N 12087

01 02 03 04 07 08 09 100 103 105 109 112 113 114 115 116 118 121 122 123 124 14 141 143 144 145 146 147 148 149 153 154 155 175 176 176 177 177 178 178 179 179 189 191 192 193 194 195 27 28 29 30 40 41 42 43 49 49 52 54 54 55 56 57 60 61 64 65 66 66 66 67 67 67 68 69 69 70 70 70 71 71 72 72 72 72 72 73 73 89 90 91 99

PC8000-6E S/N 12087

05 06 100 11 111 123 128 129 15 16 17 18 19 196 197 198 198 199 20 200 201 202 203 205 206 206 207 208 209 21 210 22 23 24 25 25 31 32 33 34 35 36 37 38 39 45 45 46 50 50 50 55 56 57 59 59 59 59 69 69 69 70 70 70 71 72 72 72 73 73

PC8000-6E S/N 12087

02 02 09 09 100 102 102 104 110 110 120 120 120 120 123 126 126 127 167 168 169 170 171 172 173 174 215 215 45 50 52 53 59 69 70 72 73 74 74 74 74 74 75 82 83 84 85 86 87 87 88 88 92 95 95 96 97 98

PC8000-6E S/N 12087

10 100 100 100 106 107 108 12 123 123 123 13 130 132 133 134 135 137 138 138 139 139 140 140 141 142 146 146 147 147 150 151 152 156 156 50 50 50 51 51 55 55 55 55 56 56 56 56 57 57 57 57 58 59 59 59 69 69 69 70 70 70 72 74 74 76 77 93 93 94

#	Part Number	Partname	Quantity
01	945 027 40	Rail	1
02	945 029 40	Rail	1
03	947 555 40	Rail	1
04	947 558 40	Rail	1
05	960 035 40	Rail	1
06	945 041 40	Pipe bend	1
07	956 991 40	Rail	1
08	956 995 40	Rail	1
09	960 052 40	Ladder	1
10	954 488 40	Platform	1
11	962 016 40	Rail	1
12	954 489 40	Platform	1
13	954 490 40	Platform	1
14	960 056 40	Ladder	1
15	914 838 40	Hand rail	1
16	960 030 40	Rail	1
17	945 093 40	Platform	1
18	962 014 40	Platform	1
19	945 097 40	Platform	1
20	945 098 40	Platform	1
21	945 070 40	Rail	1
22	962 017 40	Rail	1
23	947 571 40	Rail	1
24	945 076 40	Rail	1
25	947 570 40	Rail	1
27	934 193 40	Grate 536X1179	1
28	934 194 40	Grate 536X1110	2
29	914 886 40	Grate	1
30	914 887 40	Grate	1
31	914 888 40	Grating	1
32	914 889 40	Grating	1
33	914 890 40	Grating	1
34	914 891 40	Grating	1
35	914 892 40	Grating	1
36	914 893 40	Grating	1
37	906 815 40	Grating 480x840	4
38	324 396 40	Grating 420x660	2
39	440 420 40	Grating 360x720	2
40	954 499 40	Grating 360X1140	1
41	947 554 40	Rail	1
42	440 511 40	Grating 360x1800	2
43	461 398 40	Grating	1
45	445 601 40	Thread plate	10
46	445 602 40	Thread plate	2
49	906 003 40	Grating 300x1650	1
50	308 426 99	Bolt	77
51	308 608 99	Bolt	6
52	500 814 98	Bolt	18
53	307 805 99	Bolt	4
54	506 129 98	Washer	26
55	317 319 40	Threaded block	64
56	317 318 40	Wing nut, plastic	64
57	502 354 98	Bolt	64
58	510 741 98	Resilient sleeve	6
59	510 730 98	Resilient sleeve	87
60	939 955 40	Plate 40x50	2
61	954 402 40	Cover plate aasy	3
64	903 769 40	Visor	1
65	903 764 40	Visor	1
66	307 425 99	Bolt	13
67	512 851 98	Nut	13
68	919 729 40	Angle	2
69	518 266 98	Clamp set	147
70	534 008 99	Cover plate	143
71	308 615 99	Bolt	148
72	334 600 99	Nut	163
73	340 467 99	Washer	174
74	510 744 98	Resilient sleeve	53
75	946 181 40	Emergency jack	1
76	954 497 40	Grating 300X630	1
77	954 498 40	Grating 300X630	1
82	945 099 40	Platform	1
83	945 080 40	Rail	1
84	934 106 40	Handle	1
85	896 719 40	Grating 420x600	1
86	346 518 40	Grating 360x600	2
87	934 101 40	Emergency ladder	1
88	934 131 40	Eemergency ladder	1
89	956 989 40	Base board	1
90	939 957 40	Escape hatch	1
91	621 983 40	Hinge	2
92	934 123 40	Case f. emergency jack	1
93	317 313 40	Grating 300x630	2
94	324 744 40	Grating 300x1320	2
95	946 189 40	Retainer	4
96	308 284 99	Bolt	4
97	507 036 98	Nut	4
98	340 461 99	Washer	4
99	319 146 99	Bolt	2
100	517 118 98	Locking washer	124
102	954 482 40	Retainer	1
103	947 561 40	Base board 140X1024	1
104	954 487 40	Grating 180X240	2
105	947 562 40	Base board 140X1022	1
106	949 209 40	Rail	1
107	949 210 40	Rail	1
108	949 213 40	Rail	1
109	506 371 98	Clamp set	3
110	902 410 40	Thread plate	3
111	945 040 40	Angle	1
112	947 813 40	Angle	1
113	956 997 40	Angle	1
114	956 105 40	Angle	1
115	956 104 40	Angle	1
116	324 006 40	Grating	1
118	340 464 99	Washer	6
120	308 605 99	Bolt	39
121	955 753 40	Plate	2
122	308 616 99	Bolt	8
123	308 434 99	Bolt	130
124	947 811 40	Angle	1
126	947 538 40	Plate	1
127	947 539 40	Plate	1
128	228 713 40	Plate	1
129	308 617 99	Bolt	2
130	937 390 40	Frame	1
132	956 692 40	Platform	1
133	956 693 40	Retainer	1
134	490 237 40	Grating 420x390	1
135	323 298 40	Grating 300x390	1
137	440 984 40	Grating 300x600	1
138	516 092 98	Resilient sleeve	4
139	308 610 99	Bolt	4
140	308 604 99	Bolt	6
141	956 953 40	Hinge, kpl. left	4
142	956 952 40	Hinge, kpl. right	2
143	960 007 40	Plate 5X48X88	1
144	950 469 40	Knob	1
145	518 776 98	Pin	1
146	517 122 98	Lock washer	24
147	307 775 99	Bolt	24
148	334 599 99	Nut	1
149	340 464 99	Washer	3
150	956 950 40	Catch	1
151	960 040 40	Door	1
152	960 038 40	Door	1
153	960 050 40	Door	1
154	308 555 99	Bolt	1
155	081 474 40	Cover retainer	1
156	896 862 40	Grating 480x930	2
167	945 032 40	Rail	1
168	934 114 40	Rail Pipe	1
169	930 031 40	Catch	1
170	517 697 98	Pin	1
171	340 605 99	Washer	1
172	342 045 99	Cotter pin	1
173	098 955 40	Ring	2
174	472 688 99	Chain	-2
175	518 266 98	Clamp set	36
176	945 085 40	Rail	2
177	945 083 40	Rail	2
178	945 087 40	Angle	2
179	945 086 40	Angle	2
189	340 467 99	Washer	72
191	606 620 40	Catwalk	1
192	606 622 40	Grating	1
193	500 034 98	Clamp set	8
194	534 009 99	Weld on plate	4
195	308 614 99	Bolt	8
196	308 425 99	Bolt	10
197	919 700 40	Stairway assy.	1
198	637 873 40	Flap	2
199	390 199 40	Hinge	4
200	500 873 98	Bolt	4
201	346 498 99	Lock washer	4
202	332 353 99	Nut	4
203	899 730 40	Stairway	1
205	621 108 40	Pin	1
206	390 600 40	Bushing	2
207	390 601 40	Bushing	1
208	340 612 99	Washer	1
209	342 061 99	Cotter pin	1
210	350 562 99	Grease nipple	1
215	237 129 40	Thread plate	6
