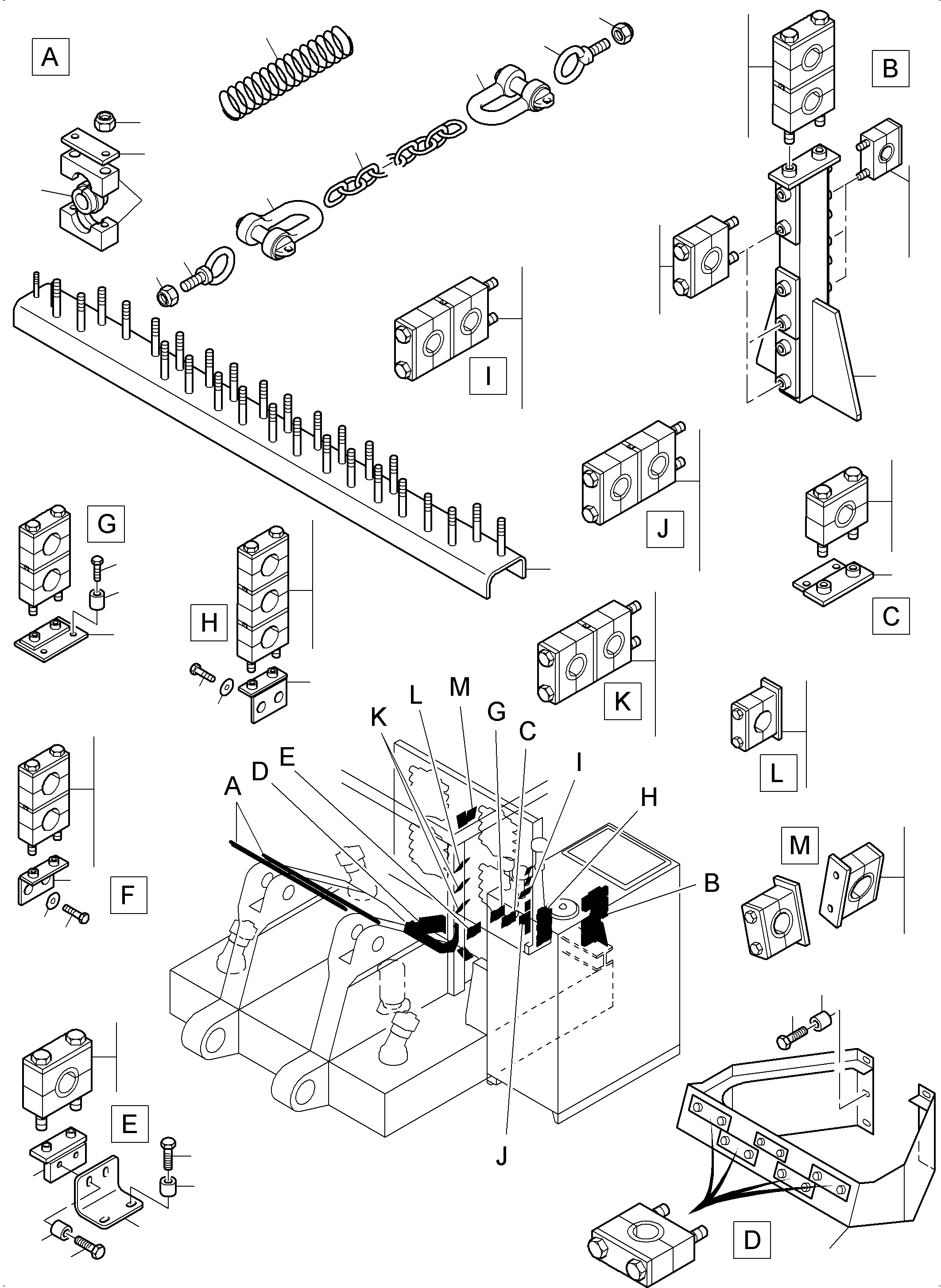

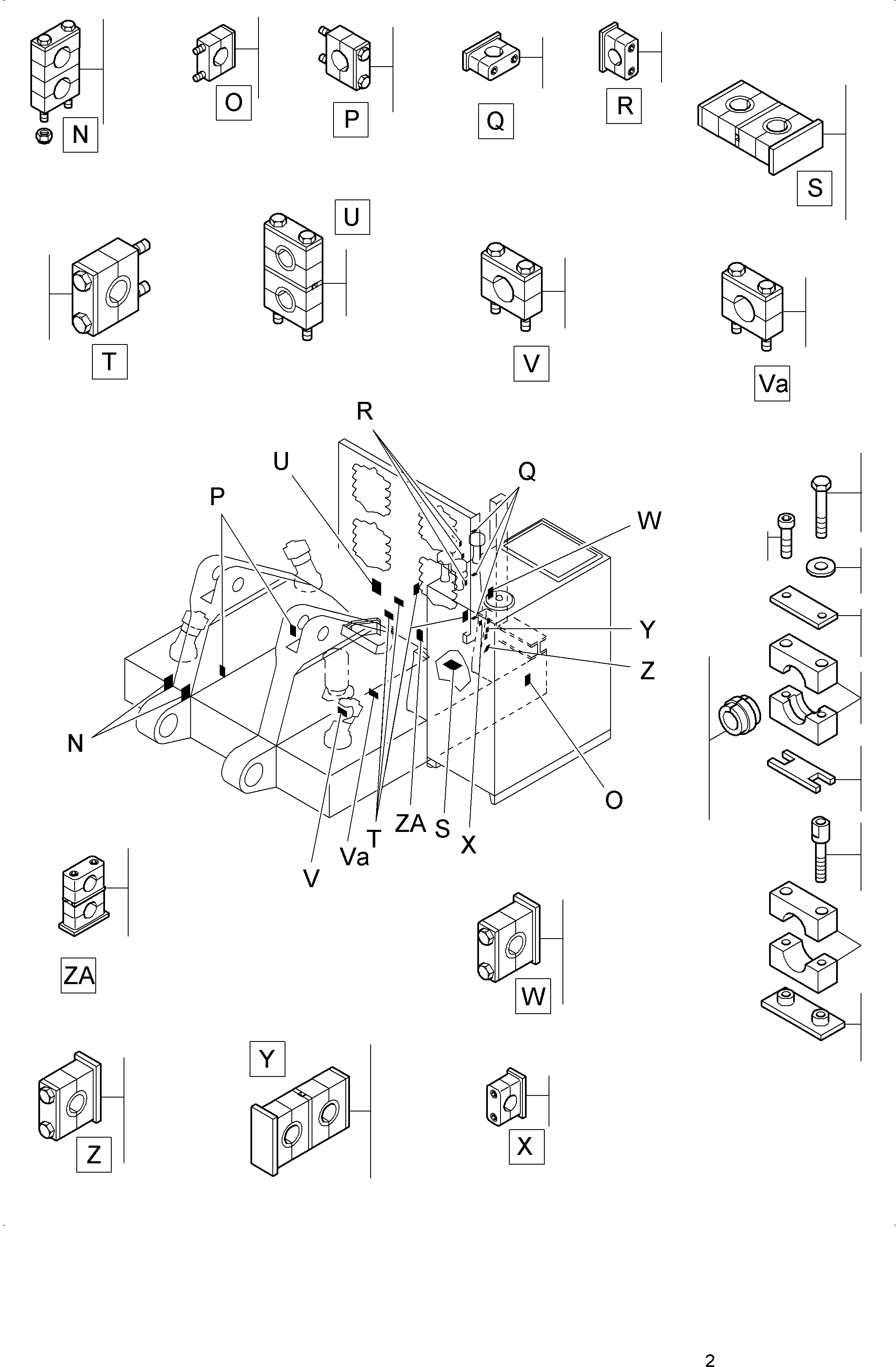

Diagram image 1 of 2

PC8000-6E S/N 12087

01 02 03 04 05 06 06 07 08 09 09 10 11 12 12 13 13 14 14 14 15 15 15 15 15 16 17 18 18 19 19 19 19 19 19 20 23 24 25 25 27 27 28 29 30 32 33 34 34 35 37 37 37 37 38 38 38 38 38 38 38 39 39 40 41 41 41 41 41 44 45 45 45 45 45 48 48 48 50 50 50 50 50 50 50 50 51 51 51 51 52 52 53 56 56 57 57 58 58 58 59 59 59 59 59 59 59 60 61

PC8000-6E S/N 12087

15 15 15 16 16 16 16 17 18 18 18 19 19 19 20 20 21 21 22 22 23 24 25 25 25 26 27 27 27 28 28 29 30 31 31 32 33 33 33 34 34 34 35 35 36 36 36 36 36 37 37 37 38 38 38 38 38 38 38 38 39 40 41 41 41 42 42 43 43 43 44 45 45 45 46 46 47 47 48 48 48 49 49 49 49 49 50 50 50 50 51 52 53 54 54 54 55 55 55 58 58 58 59 59 59 59 59 59 60 60 61 61 62

#	Part Number	Partname	Quantity
01	918 301 40	Clamp line	2
02	962 032 40	Console	1
03	939 925 40	Clamp retainer	1
04	947 588 40	Clamp retainer	1
05	954 411 40	Retainer assy.	2
06	954 413 40	Retainer assy.	2
07	954 442 40	Retainer assy.	2
08	954 445 40	Sheet metal 8X140X172	2
09	954 446 40	Washer 13/ 60X 32	4
10	324 358 40	Chain	-2
11	896 607 40	Hose protection	12
12	300 055 99	Clevis	4
13	313 503 99	Eyebolt	4
14	334 601 99	Nut	52
15	504 853 98	Clamp set	40
16	502 976 98	Clamp set	4
17	502 641 98	Clamp set	2
18	502 977 98	Clamp set	9
19	502 371 98	Clamp set	27
20	502 618 98	Clamp set	4
21	504 780 98	Clamp set	5
22	518 421 98	Clamp Set	5
23	516 024 98	Grommet	6
24	505 212 98	Grommet	24
25	517 756 98	Grommet	7
26	515 846 98	Grommet	3
27	502 626 98	Grommet	14
28	505 729 98	Grommet	4
29	512 053 98	Grommet	4
30	518 009 98	Grommet	1
31	511 258 98	Grommet	3
32	504 926 98	Grommet	1
33	500 399 98	Weld on plate	8
34	534 009 99	Weld on plate	7
35	534 005 99	Weld on plate	2
36	533 989 99	Weld on plate	4
37	500 398 98	Cover plate	39
38	534 008 99	Cover plate	31
39	534 004 99	Cover plate	3
40	515 928 98	Locking plate	1
41	504 787 98	Locking plate	11
42	504 789 98	Locking plate	1
43	505 011 98	Locking plate	1
44	515 927 98	Screw	2
45	504 786 98	Screw	6
46	504 788 98	Screw	2
47	505 012 98	Screw	2
48	308 641 99	Bolt	30
49	308 615 99	Bolt	12
50	308 612 99	Bolt	50
51	308 606 99	Bolt	14
52	308 605 99	Bolt	8
53	308 581 99	Bolt	6
54	319 133 99	Screw	10
55	319 132 99	Screw	8
56	510 745 98	Resilient sleeve 13 /25X 40	6
57	510 744 98	Resilient sleeve 13 /25X 32	12
58	517 123 98	Lock washer	30
59	517 118 98	Lock washer	54
60	517 122 98	Lock washer	6
61	316 216 99	Washer	8
62	334 600 99	Nut	8

Komatsu PC8000-6E S/N 12087 parts catalog PDF

HOSE MOUNTING PARTS PIPING PLAN (113-1879) in PC8000-6E S/N 12087. Diagram image and parts list.
