Diagram image 1 of 2

PC8000-6E S/N 12087

01 01 01 01 02 03 03 04 05 05 05 06 07 07 07 08 10 10 11 13 13 16 16 18 22 23 24 26 26 27 27 27 27 28 29 29 30 30 31 33 33 34 34 37 38 38 41 42 42 43 43 44 45 45 47 49 52 52 55 56 57 57 59 59 60 61 61 61 61 63 64 65 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 82 82 82 83 83 83 83 86 86 86 86 87 87 87 87

PC8000-6E S/N 12087

01 01 01 01 02 05 05 05 05 06 07 07 07 08 09 09 10 11 12 14 15 17 19 20 21 23 24 25 26 26 27 27 27 27 28 29 29 29 29 30 30 36 37 38 38 38 39 40 41 42 42 42 43 43 45 45 45 45 46 46 47 48 52 52 52 52 53 54 55 55 55 57 57 59 59 60 61 62 63 64 69 69 69 70 71 72 73 74 75 78 79 79 79 82 82 82 83 83 83 84 85 86 87

#	Part Number	Partname	Quantity	Reference
01		Metering valve	8	991-0323a
02		Metering valve	2	991-0091
03	374 443 99	Union	2
04	918 263 40	Pipe assy. Ш 25	1
05	517 255 98	Union	7
06	514 937 98	Union	2
07	502 303 98	Socket	8
08	576 270 40	Union	4
09	517 291 98	Union	14
10	634 775 40	Clamp	16
11	308 611 99	Bolt	32
12	341 754 40	Ultimate pressure control	1
13	308 555 99	Bolt	6
14	907 855 40	Thread pin	4
15	652 383 40	Shackle	2
16	517 121 98	Lock washer	6
17	907 854 40	Thread pin	46
18	953 803 40	Union Ш 25	1
19	502 000 98	Socket	1
20	513 386 98	Union	1
21	371 861 99	Breech block	1
22	953 816 40	Pipe assy. Ш 25	1
23	953 804 40	Pipe assy. Ш 25	1
24	373 772 99	Union	2
25	170 427 40	Cable strap	50
26	516 741 98	Union	4
27	428 861 40	Pipe assy. Ш 16	8
28		Metering valve	2	991-0091
29	576 160 40	Hose DN 4	-2
30	516 929 98	Hose assy. DN 20x2600	1
31	517 597 98	Union	1
33	534 000 99	Clamp set	9
34	534 001 99	Cover plate	9
36	371 502 99	Union	1
37	517 118 98	Lock washer	32
38	515 029 40	Hose connection 90	16
39	515 027 40	Hose connection	12
40	515 883 98	Socket	1
41	634 774 40	Cover plate	16
42	906 981 40	Union	18
43	324 672 40	Plug	4
44	307 789 99	Bolt	2
45	515 028 40	Collet	28
46	516 156 98	Union	2
47	0443551210	Clip	30
48	0443451210	Clip	14
49	517 598 98	Union	1
52	507 037 98	Nut	50
53	948 497 40	Hose protection assy.	2
54	374 471 99	Union	1
55	371 257 99	Union Nut	28
56	534 002 99	Weld-on plate	8
57	512 273 98	Socket	4
59	654 130 40	Protection cap with o-ring	14
60	504 445 98	Clamp set	3
61	654 496 40	Protection cap	8
62	534 008 99	Cover plate	2
63	308 612 99	Bolt	6
64	509 310 98	Locking plate	3
65	918 258 40	Plate	1
67	308 579 99	Bolt	16
68	509 308 98	Locking plate	8
69	340 465 99	Washer	44
70	534 009 99	Weld-on plate	3
71	360 940 40	Connecting tube	4
72	918 276 40	Connecting tube	4
73	373 014 99	Union	4
74	509 373 98	Union	4
75	516 839 98	Union	2
76	936 983 40	Thread plate	2
77	936 978 40	Thread plate	2
78	946 891 40	Thread plate	4
79	907 080 40	Olive	28
80	371 259 99	Union Nut	6
81	906 347 40	Olive	6
82	371 263 99	Union Nut	17
83	907 151 40	Olive	17
84	371 258 99	Union Nut	5
85	906 346 40	Olive	5
86	371 264 99	Union Nut	8
87	906 868 40	Olive	8

Komatsu PC8000-6E S/N 12087 parts catalog PDF

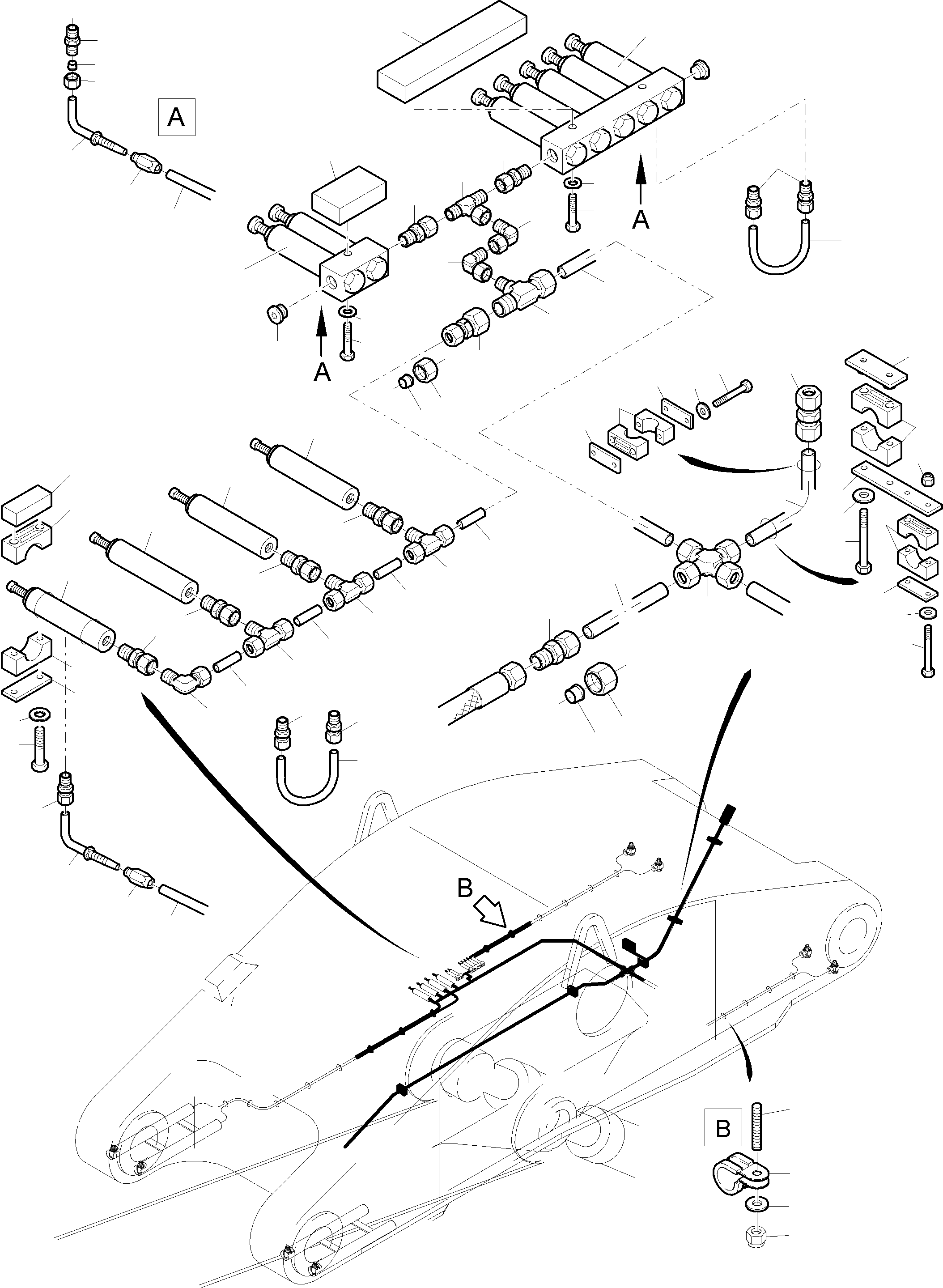

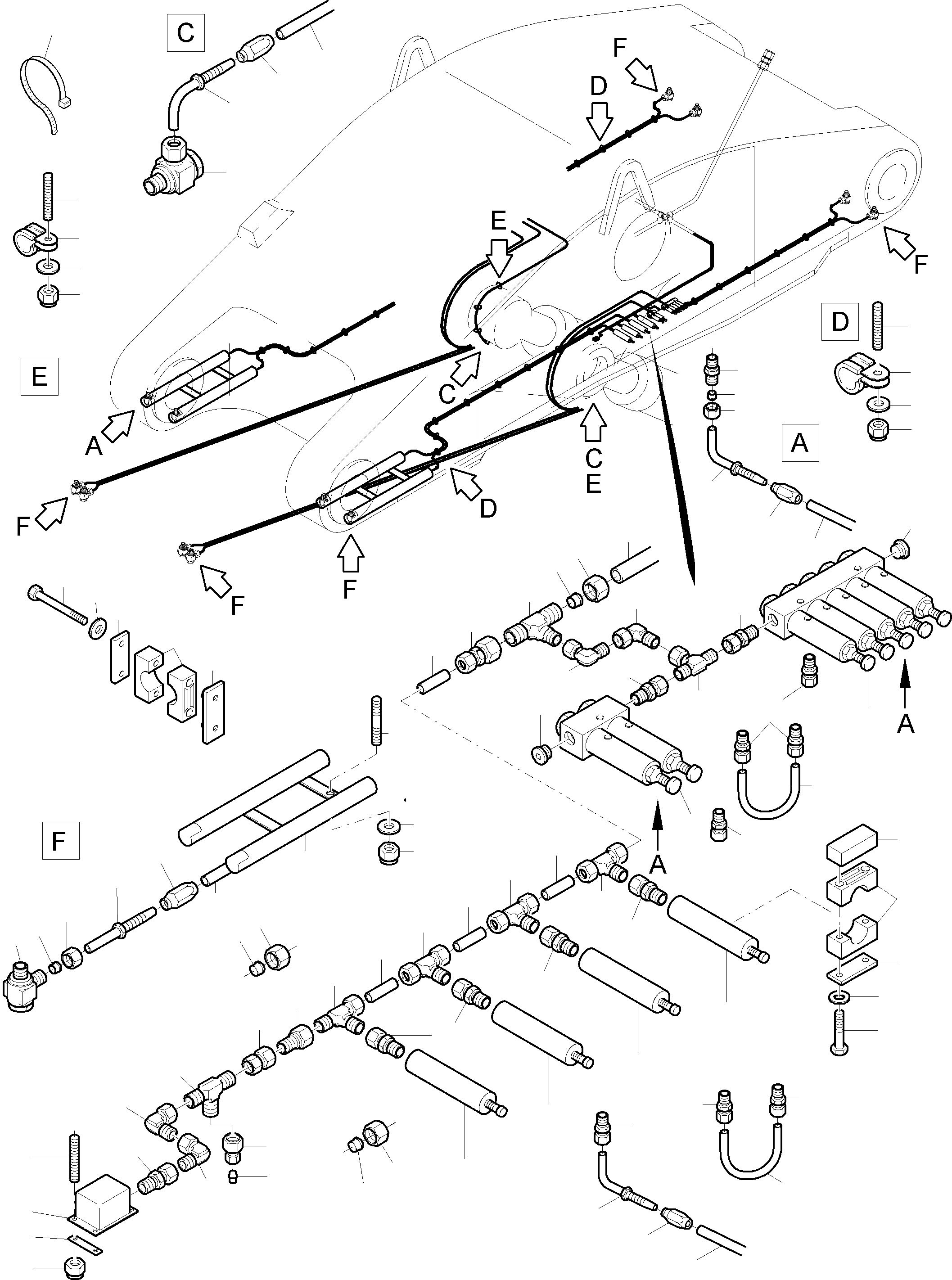

STICK 5.75 M - CENTRAL LUBRICATION (113-2346d) in PC8000-6E S/N 12087. Diagram image and parts list.
