SWITCH FRAMING 1X1 | PC8000-6 S/N 12082 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

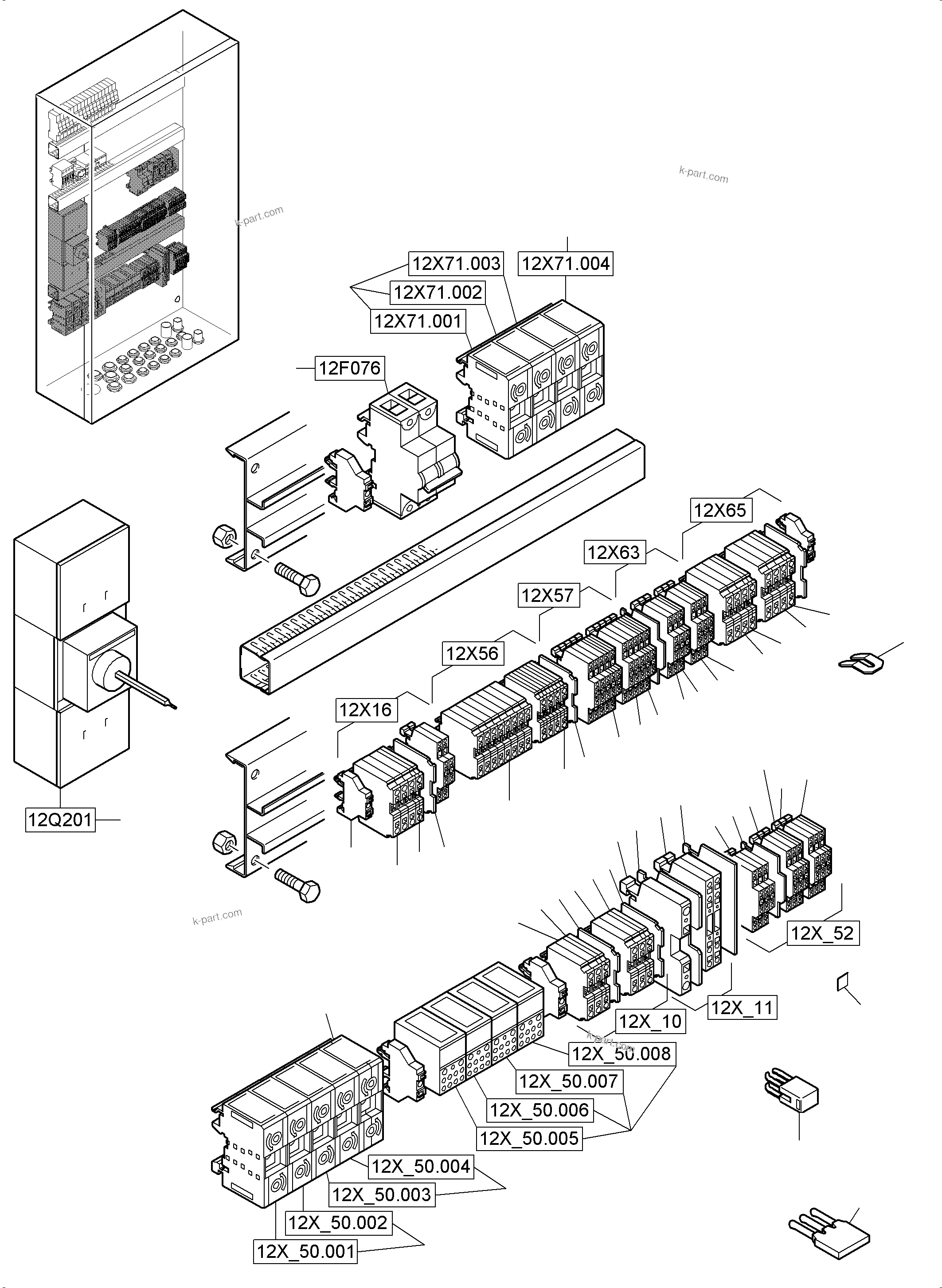

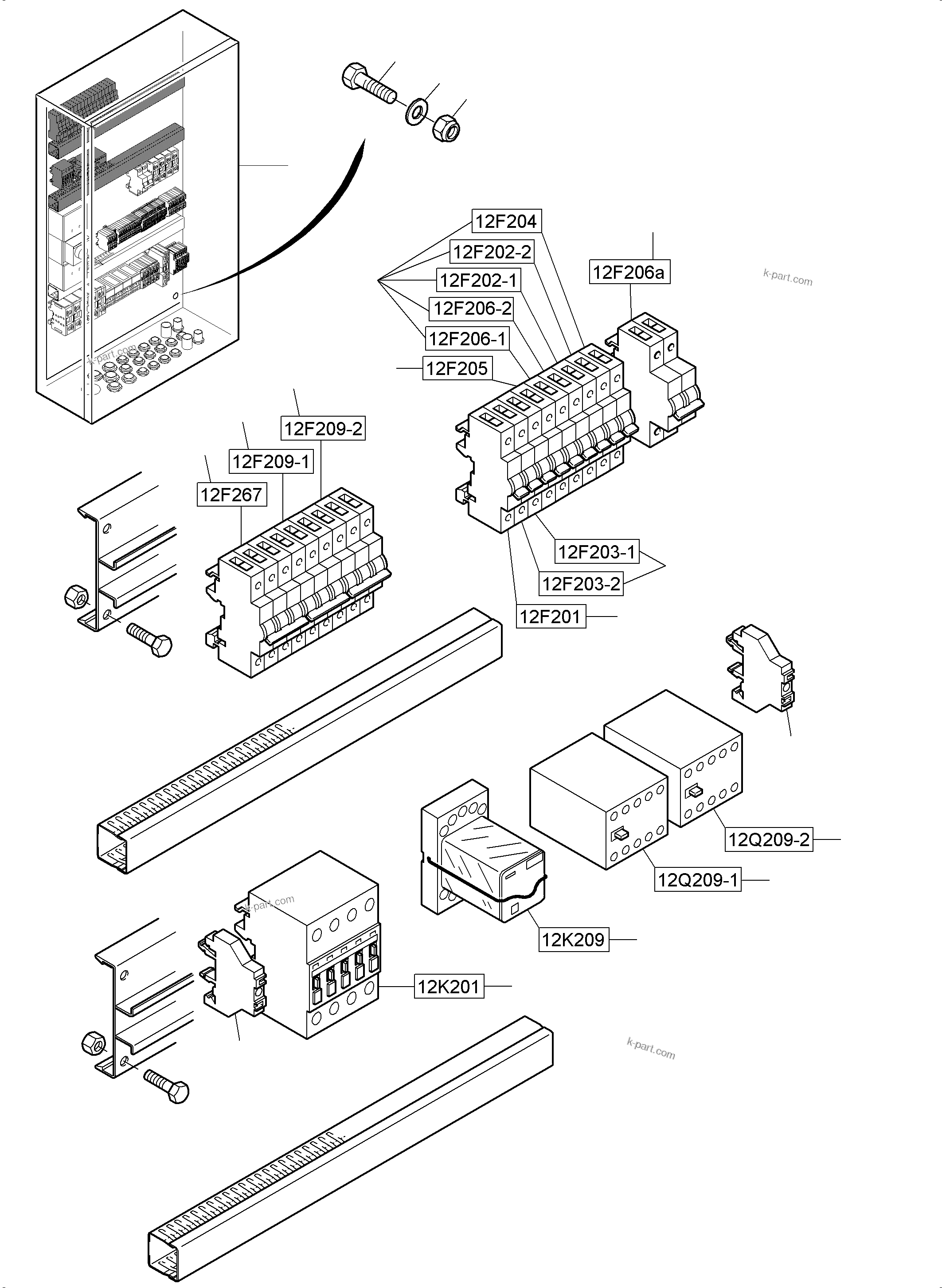

Diagram image 1 of 2

PC8000-6 S/N 12082

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC8000-6 S/N 12082

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	941 234 40	Switch box	1
?	940 674 40	Clamp	13
?	940 677 40	Power contactor	1
?	940 021 40	Relay	1
?	941 828 40	Contactor	2
?	940 617 40	Power switch	1
?	906 745 40	Through clamp 95,0	8
?	906 796 40	Protective wire clamp 95,0 GN/GL	1
?	906 612 40	Through clamp 2,5	19
?	906 613 40	Cover plate	6
?	941 736 40	Clamp	2
?	941 741 40	Cover plate	2
?	941 739 40	Clamp	1
?	334 599 99	Nut	36
?	906 769 40	Through clamp 16,0	25
?	906 773 40	Cover plate	4
?	941 673 40	Breaker 100A	1
?	940 678 40	Distribution block	4
?	906 792 40	Protective wire clip 6,0	9
?	906 630 40	Protective wire clip 2,5	8
?	907 841 40	Breaker 50A	1
?	907 842 40	Breaker 40A	2
?	907 831 40	Breaker 32A	1
?	907 828 40	Breaker 6A	7
?	907 827 40	Breaker 16A	1
?	906 614 40	Bridge 2-fold	15
?	906 624 40	Marker	1
?	906 625 40	Marker	1
?	906 626 40	Marker	1
?	906 627 40	Marker	1
?	906 628 40	Marker	1
?	906 629 40	Marker	1
?	500 106 98	Bolt	36
?	940 552 40	Brigde 35,0	1
?	906 777 40	Bridge 10,0	6
?	340 654 99	Washer	36
?	907 824 40	Breaker 16A	1
