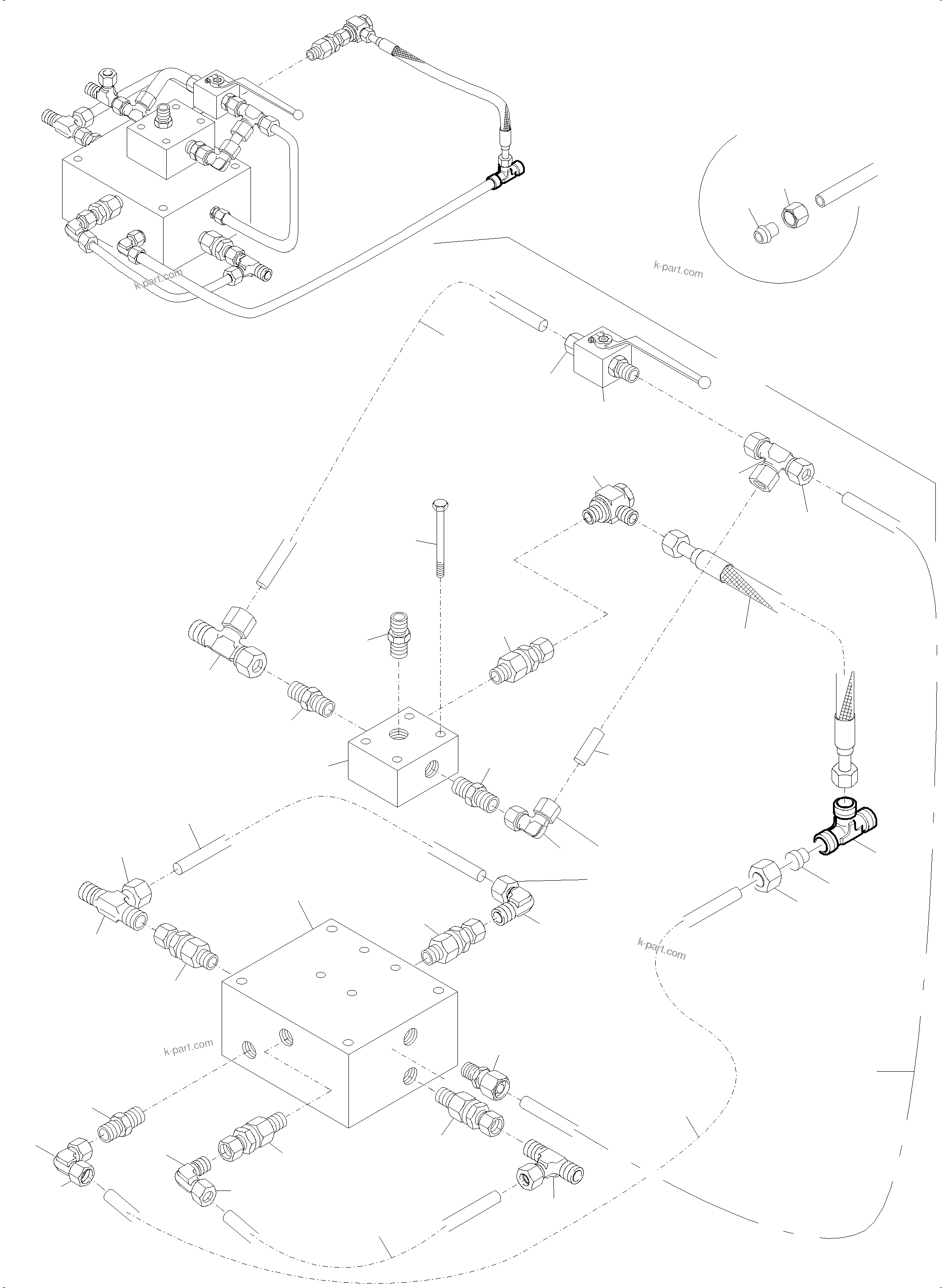

VALVE BLOCK ( HYDRAULIC TRACK ADJUSTING ) | PC4000-6 S/N 58125

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC4000-6 S/N 58125

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	566 516 40	Valve block	1
?	761 591 73	Pressure sequence stag	1
?	448 991 40	Valve block	1
?	517 073 98	Union	1
?	518 793 98	Non-return valve	2
?	518 792 98	Non-return valve	2
?	516 180 98	Socket	4
?	516 165 98	Socket	3
?	374 418 99	Socket	2
?	516 158 98	Socket	1
?	374 413 99	Socket	1
?	502 135 98	Bolt	4
?	374 407 99	Socket	1
?	488 026 40	Pipe assy. Ш 20	1
?	457 299 40	Pipe assy. Ш 20	1
?	488 027 40	Pipe assy. Ш 20	1
?	462 812 40	Pipe assy. Ш 20	1
?	371 260 99	Union nut	10
?	906 351 40	Olive	10
?	461 133 40	Ball cock	1
?	215 539 99	Pipe Ш 20	1
?	371 275 99	Union nut	2
?	551 465 40	Union	1
?	623 450 40	Hose assy. DN 8 x 590	1
?	374 407 99	Union	1
?	215 811 99	Pipe assy. Ш 15	1
?	906 348 40	Olive	2
?	566 530 40	Valve block assy.	1
