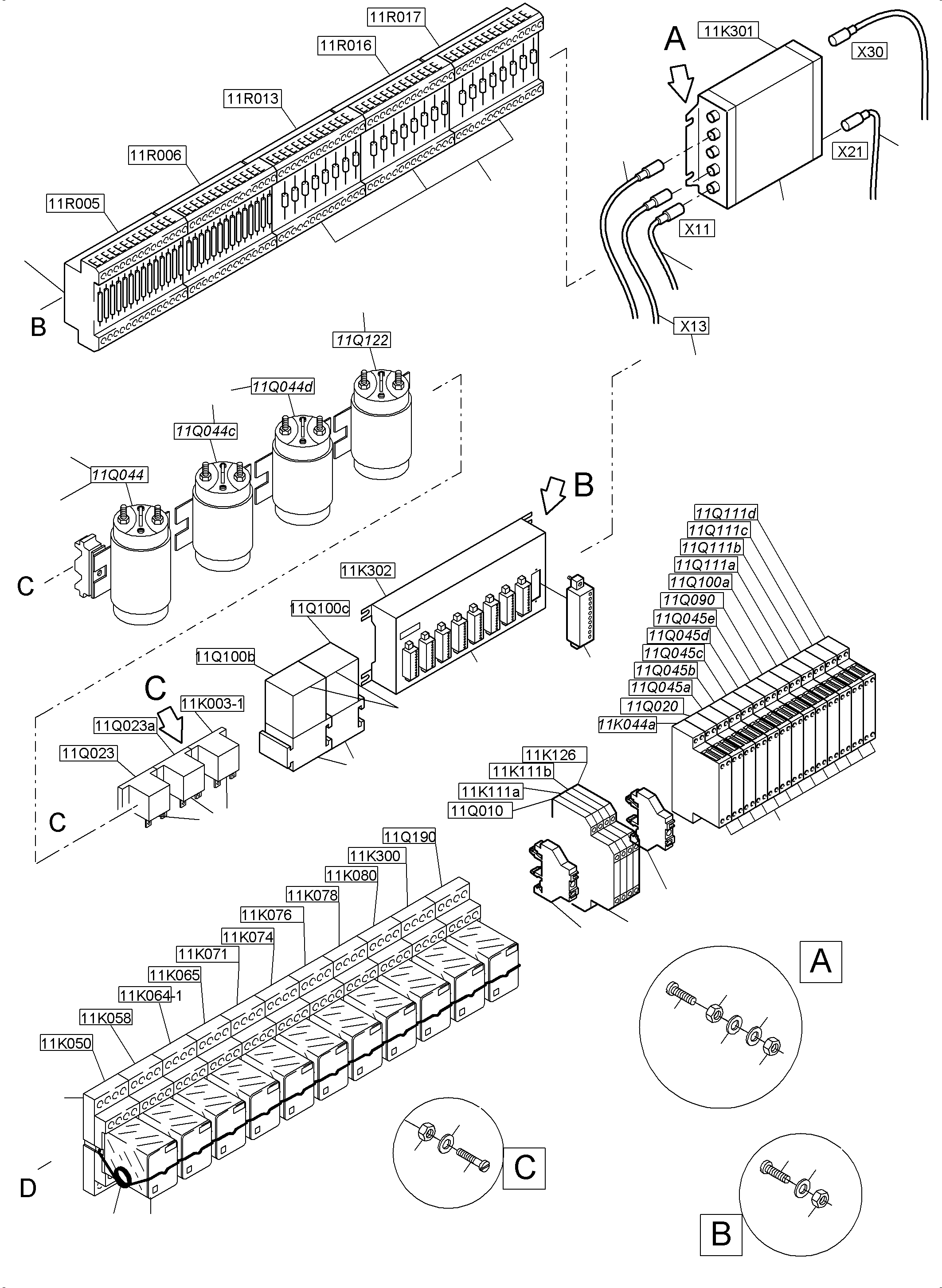

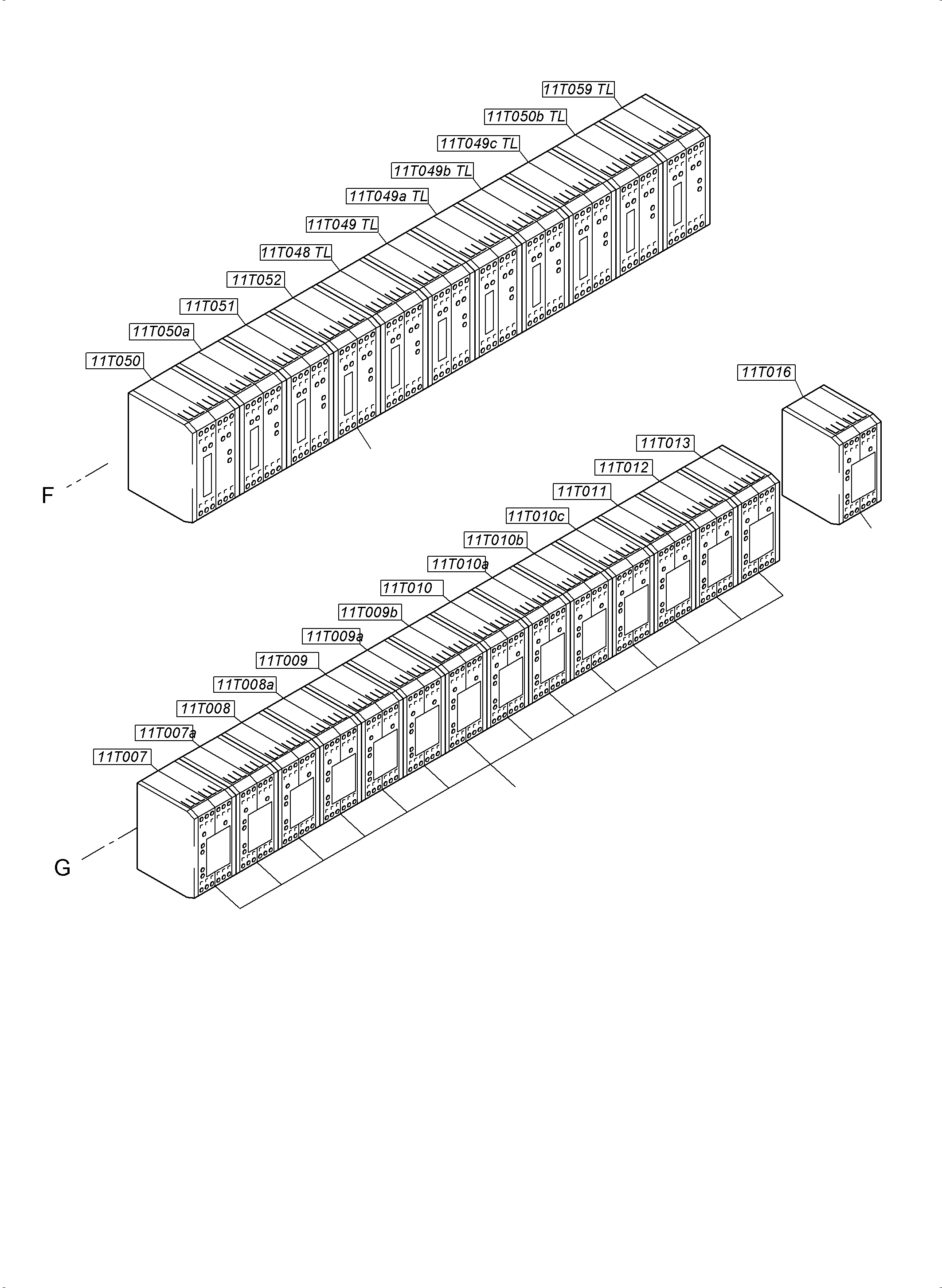

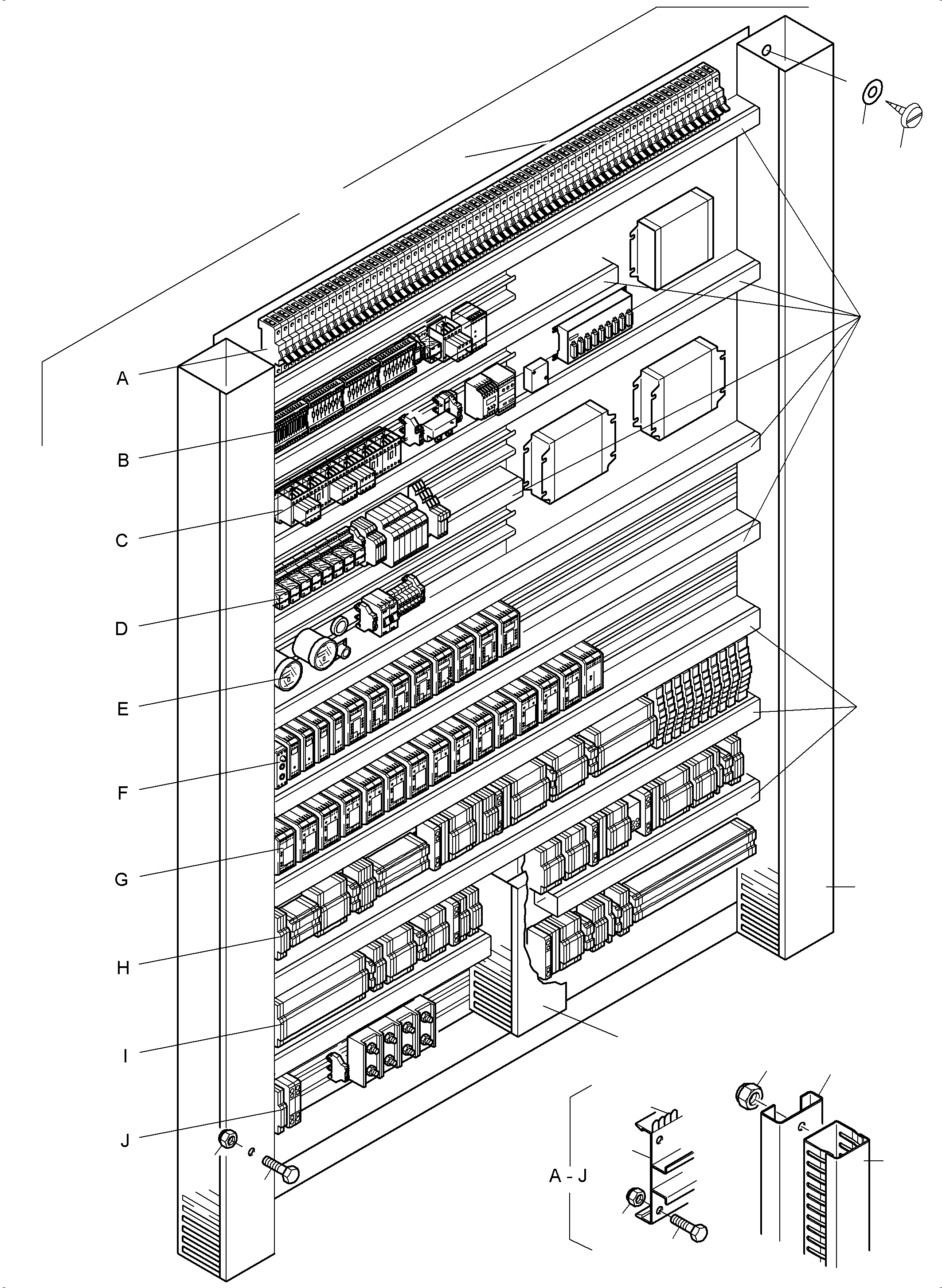

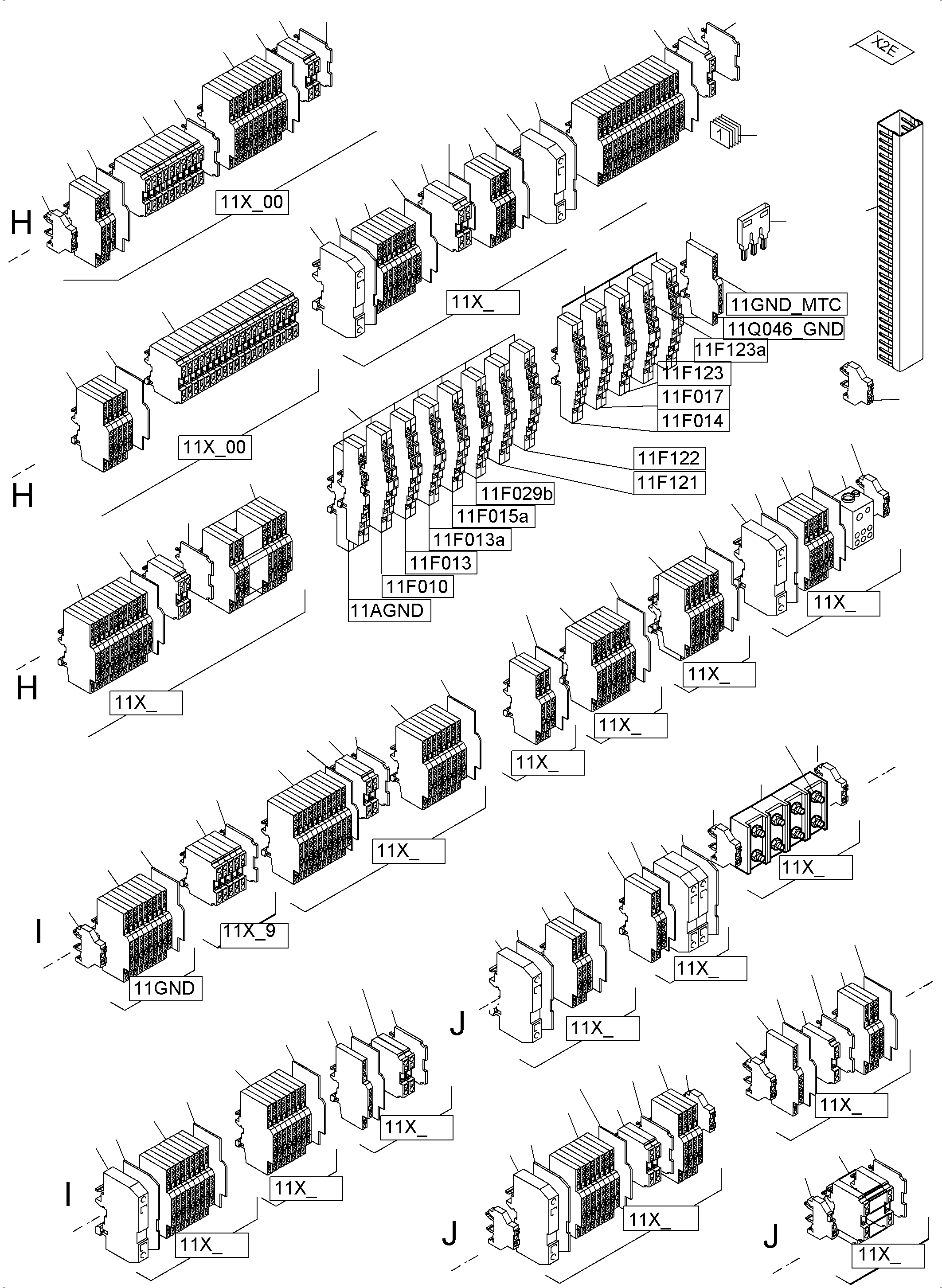

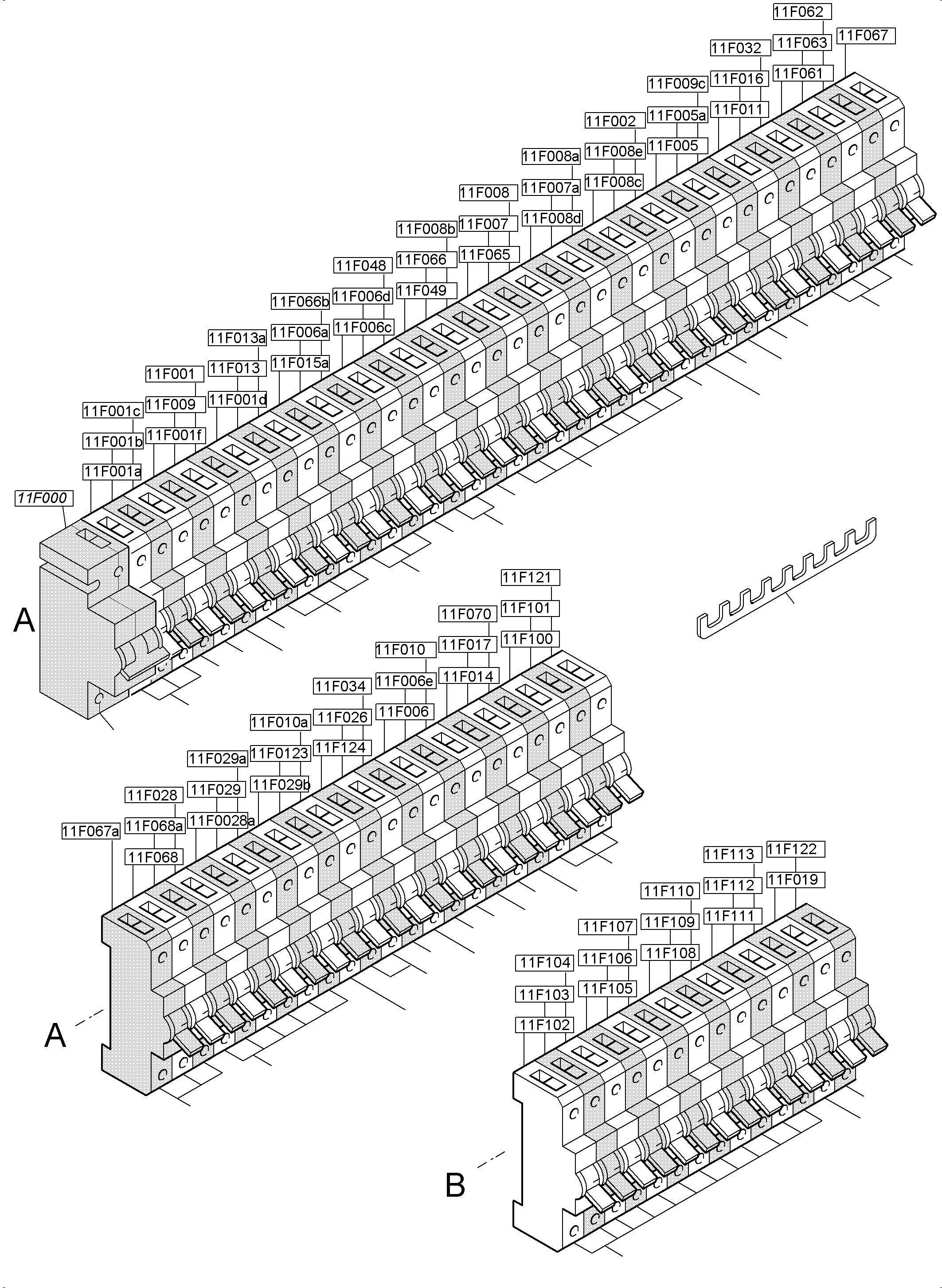

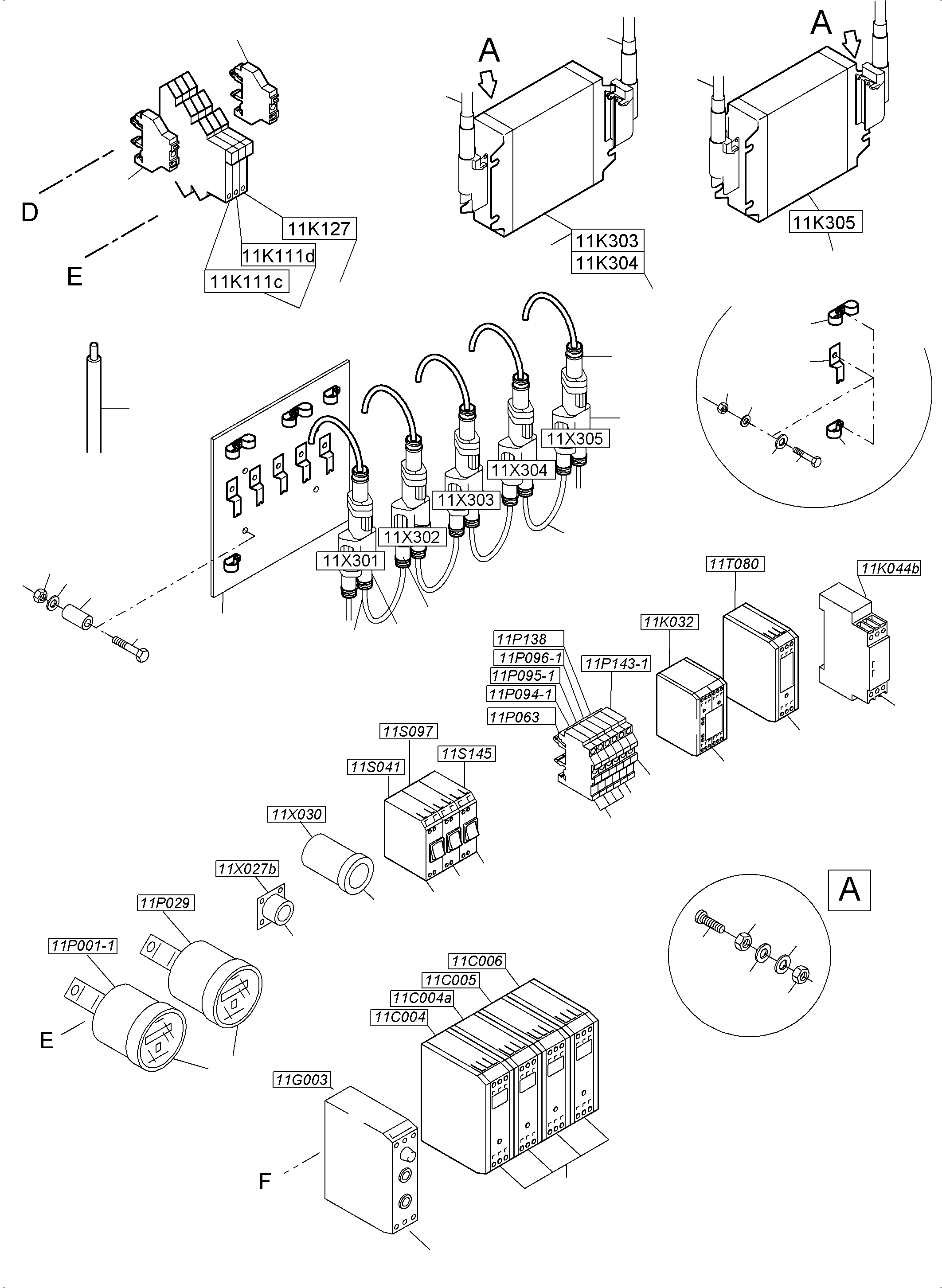

Diagram image 1 of 6

PC4000-6 S/N 58132

01 123 124 125 155 156 157 158 158 159 160 160 160 161 162 162 163 164 165 34 35 36 37 38 57 57

PC4000-6 S/N 58132

02 03 03 03 03 03 03 03 03 03 03 04 04 04 04 04 04 04 04 04 05 05 05 05 05 05 06 07 08 09 09 09 09 09 10 33 60

PC4000-6 S/N 58132

108 11 114 115 117 117 118 118 119 12 121 121 122 128 130 131 132 135 137 137 140 141 142 170 171 172 173 190 190 191 22 23 24 24 25 26 32 47 50 52 53 54 66 66 94

PC4000-6 S/N 58132

103 104 105 106 107 111 112 113 114 115 116 120 121 121 121 122 122 150 151 16 17 175 176 176 177 178 179 18 180 180 185 186 187 19 20 21 27 28 29 30 31 39 40 41 42 43 44 45 46 46 48 49 49 51 58 66 66 92 93 93

PC4000-6 S/N 58132

13 14 15

PC4000-6 S/N 58132

10 100 101 102 109 110 12 126 127 13 15 160 20 20 30 31 40 51 55 56 59 59 60 61 61 62 62 63 64 65 65 66 66 66 66 66 66 66 66 66 67 67 68 68 68 68 68 68 68 68 68 68 68 68 68 68 68 68 68 68 68 68 68 68 68 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 70 70 71 71 71 72 72 73 73 74 74 74 74 74 74 74 74 74 74 74 75 75 75 75 75 75 75 75 75 75 75 76 77 78 79 80 80 80 80 80 80 80 80 81 81 81 81 81 81 81 82 82 82 82 82 82 82 83 84 85 86 87 88 89 90 91 95 96 97 98 99

#	Part Number	Partname	Quantity
01	952 476 40	Switch framing location 11 assy.	1
02	907 840 40	Breaker 1 A	1
03	907 828 40	Breaker 6 A	12
04	907 829 40	Breaker 10 A	37
05	907 827 40	Breaker 16 A	11
06	907 830 40	Breaker 25 A	1
07	907 843 40	Breaker 20 A	1
08	907 831 40	Breaker 32 A	1
09	907 839 40	Breaker 50 A	7
10	940 640 40	Rail collector end cap	26
11	960 613 40	Resistor array assy. consist. of fig nos. 130-132	2
12	655 748 40	Diode array	3
13	941 479 40	Amplifier	13
14	906 671 40	Modul	4
15	461 039 40	Amplifier	1
16	621 506 40	Module	1
17	941 278 40	Socket	1
18	896 716 40	Hour meter	2
19	896 754 40	Switch modul	1
20	323 590 40	Switch modul	1
21	603 346 40	Voltage measuring clamp	1
22	963 818 40	Relay assy. consist. of ifg nos. 135-137	3
23	898 680 40	Relay assy. consist. of ifg nos. 140-142	11
24	950 600 40	Relay 75A	3
25	941 487 40	Semiconductor relay	4
26	941 488 40	Semiconductor relay	13
27	490 889 40	Series terminal with diode, red	4
28	490 890 40	Series terminal with diode, green	1
29	926 505 40	Series terminal with diode, red assy	1
30	654 439 40	Time-lag relay	1
31	894 577 40	Socket assy. consist. of fig nos 150-151	1
32	950 613 40	Relay 120A	1
33	950 614 40	Breaker 100A	1
34	963 812 40	Switch framing consist. of fig nos 155-165	1
35	323 234 40	Cover	-2
36	655 517 40	Cover 40 BN	-2
37	940 609 40	Makrolon plate	-2
38	940 610 40	Makrolon plate	-2
39	515 213 40	Cable 1,0	-2
40	515 214 40	Cable 2,5	-2
41	906 022 40	Cable 4.0	-2
42	655 675 40	Cable 6.0	-2
43	896 727 40	Cable 10,0	-2
44	907 553 40	Cable 16,0	-2
45	515 218 40	Cable 16mm2	-2
46	950 435 40	Cable	-2
47	941 430 40	Modul	1
48	941 431 40	Contoller housing	1
49	941 432 40	Contoller housing	1
50	941 412 40	Plug connector	9
51	958 955 40	Can-bushing	5
52	941 435 40	Lead cable	1
53	941 819 40	Cable	1
54	941 724 40	Cable	1
55	940 878 40	Distribution block	1
56	940 508 40	Isolation tube	-2
57	940 061 40	Rivet	115
58	318 156 99	Bolt	4
59	940 675 40	Sleeve with srew	26
60	907 951 40	Rail collector	-2
61	941 787 40	Terminal	4
62	955 334 40	Cross connection	1
63	941 502 40	Potencial clamp	11
64	941 503 40	Cover plate	8
65	941 685 40	Group plate	11
66	940 673 40	Clamp	71
67	950 185 40	Protective wire clip	44
68	906 612 40	Through clamp 2.5	204
69	906 613 40	Cover plate	25
70	906 614 40	Bridge 2-fold	31
71	906 615 40	Bridge 3-fold	4
72	906 616 40	Bridge 4-fold	3
73	906 617 40	Bridging comb 5-fold 2,5	1
74	461 322 40	Cover plate	10
75	461 321 40	Terminal	95
76	490 542 40	Cross connection	13
77	941 736 40	Clamp	6
78	941 737 40	Cover plate	10
79	941 738 40	Cover plate	1
80	941 739 40	Clamp	8
81	941 740 40	Cross connection	8
82	941 741 40	Cover plate	7
83	906 623 40	Marking strip	10
84	906 624 40	Marker	4
85	906 625 40	Marker	2
86	906 626 40	Marker	2
87	906 627 40	Marker	2
88	906 628 40	Marker	1
89	906 629 40	Marker	3
90	906 687 40	Marker	1
91	906 688 40	Marker	1
92	950 456 40	Optokoppler part	2
93	941 235 40	Safty cut off 24V	1
94	963 201 40	Relais assy. consist. of fig nos 170-173	1
95	356 281 40	Marking strips 1-10	1
96	356 282 40	Marking strips 11-20	1
97	356 283 40	Marking strips 21-30	1
98	356 284 40	Marking strips 31-40	1
99	356 285 40	Marking strips 41-50	1
100	356 286 40	Marking strips 51-60	1
101	356 287 40	Marking strips 61-70	1
102	356 289 40	Marking strips 81-90	1
103	621 735 40	Capacitor	4
104	960 619 40	Opto-isolator	1
105	960 562 40	Plug assy. ICNV-11K303	1
106	960 563 40	Plug assy. ICNV-11K304	1
107	960 564 40	Plug assy. ICNV-11K305	1
108	941 561 40	Lead cable	1
109	963 800 40	Cover	1
110	950 607 40	Cap nut	4
111	323 346 40	Touch contact	1
112	957 090 40	Junction plate consist. of fig nos 175-180	1
113	511 262 98	Resilient sleeve	4
114	307 732 99	Bolt	12
115	518 546 98	Washer	12
116	307 737 99	Bolt	4
117	307 665 99	Bolt	4
118	332 202 99	Nut	4
119	340 459 99	Washer	4
120	955 973 40	Cable-Can bus cab support	1
121	332 331 99	Nut	16
122	340 506 99	Washer	20
123	504 207 98	Screw	1
124	332 197 99	Nut	2
125	518 547 98	Lock washer	3
126	906 768 40	Through clamp 6,0	2
127	906 772 40	Cover plate	1
128	942 129 40	Modul	1
130	906 611 40	Mounting part	2
131	604 733 40	Resistor 2 W	30
132	960 623 40	Cross connection	2
135	323 179 40	Relay	3
137	343 104 99	Lock washer	6
140	940 020 40	Relay	11
141	592 338 40	Socket	11
142	414 369 40	Spring retainer	11
150	907 642 40	Socket	1
151	907 643 40	Dust cap	1
155	490 708 40	Sectional plate	9
156	906 284 40	Assembly rail	2
157	323 237 40	Wiring terminal	8
158	323 233 40	Wiring profile	-2
159	516 651 98	Angle	-2
160	896 747 40	Wiring channel 100	-2
161	500 106 98	Bolt	42
162	334 599 99	Nut	42
163	340 654 99	Washer	42
164	501 670 98	Screw	44
165	145 743 40	Washer	44
170	941 734 40	Relay	1
171	344 498 40	Supporting trestle	17
172	941 686 40	Relay socket	1
173	320 975 99	Screw	1
175	957 091 40	Plate	1
176	0443450810	Clip	5
177	0819320010	Clip	7
178	307 445 99	Bolt	10
179	507 037 98	Nut	10
180	518 547 98	Lock washer	10
185	906 647 40	T-Splitter	5
186	958 955 40	Can-bushing	4
187	958 956 40	Can-Bushing	4
190	256 945 40	cable shoe	6
191	950 662 40	cable shoe	4

Komatsu PC4000-6 S/N 58132 parts catalog PDF

SWITCH FRAMING X2 LOCATION 11 (355-2265-2b) in PC4000-6 S/N 58132. Diagram image and parts list.
