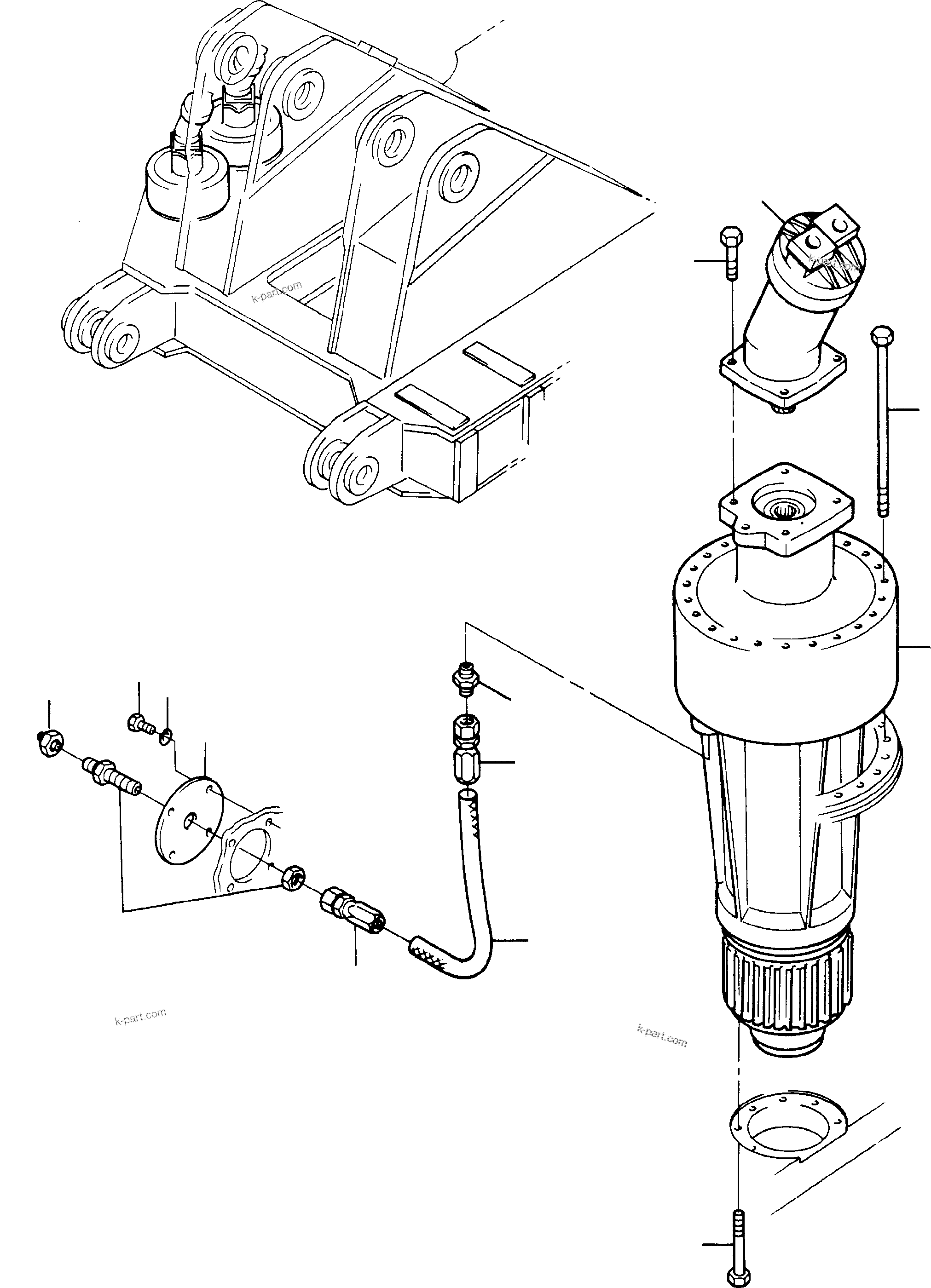

Komatsu parts book diagram for H285 S/N 78099: INSTALLATION - SWING GEAR,- AND MOTOR

? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?		Swing gear	2	InternBDB: 414 835 40 \| InternKon: 374 399 40 / 3	090-1978
	?	304 327 99	Bolt	48	InternBDB: M24x330 /931 10.9 \| InternKon: 374 399 40 / 5
	?	308 640 99	Bolt	14	InternBDB: M16x120 /931 \| InternKon: 374 399 40 / 4
	?		Swing gear motor	2	InternBDB: 461 946 40 \| InternKon: 374 399 40 / 4	090-1370a
	?	307 846 99	Bolt	8	InternBDB: M20x55 /933 \| InternKon: 374 399 40 / 7
	?	374 431 99	Scoket	2	InternBDB: L 28 M /3901 \| InternKon: 374 399 40 / 15
	?	269 392 40	Hose fittings	4	InternBDB: Aeroquip 07.002-28-20 \| InternKon: 374 399 40 / 17
	?	323 901 40	Hose DN 25x1500 lg. Bulk ware, state length required	2	InternBDB: Aeroquip 2651-20 \| InternKon: 374 399 40 / 18
	?	385 896 40	Cover	2	InternKon: 374 399 40 / 16
	?	346 510 99	Lock washer	8	InternBDB: 8 /128 \| InternKon: 374 399 40 / 22
	?	307 750 99	Bolt	8	InternBDB: M8x15 /933 \| InternKon: 374 399 40 / 21
	?	372 593 99	Union	2	InternBDB: RL 28 /2353 \| InternKon: 374 399 40 / 19
	?	371 858 99	Plug	2	InternBDB: 28-L 011 638 99 \| InternKon: 374 399 40 / 20

Komatsu H285 S/N 78099 parts catalog PDF

INSTALLATION - SWING GEAR,- AND MOTOR (114-1500d) in H285 S/N 78099. Diagram image and parts list.
