3D84N-2AA S/N 3845-UP

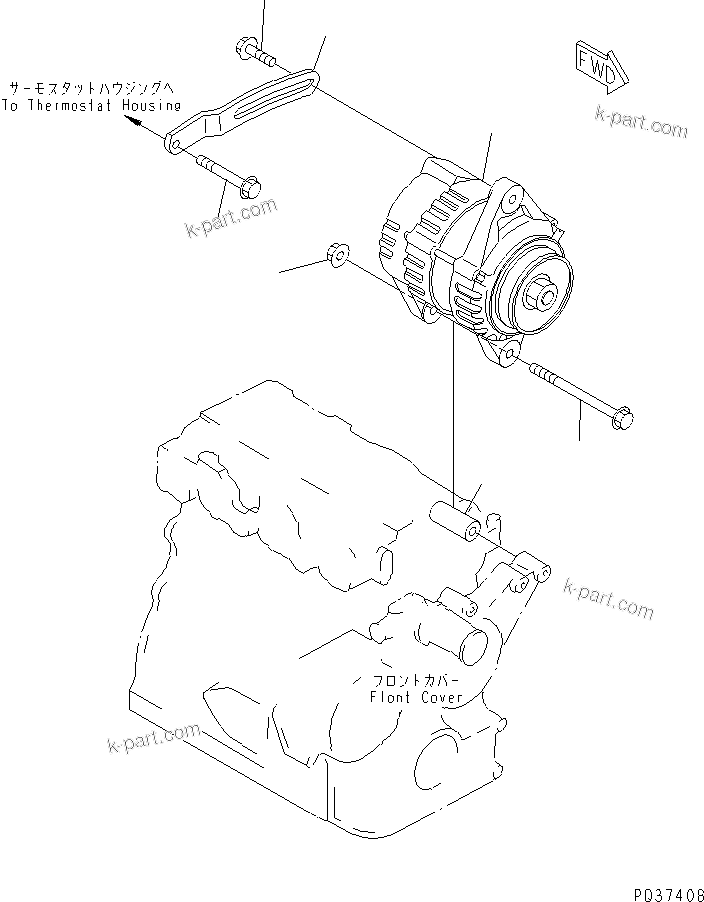

Komatsu parts book diagram for 3D84N-2AA S/N 3845-UP: ALTERNATOR AND MOUNTING (40A)

? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	YM119836-77200	ALTERNATOR A. (40A),(SEE FIG.0641)	1	SN: 3845-UP
	?	YM119820-77340	SPACER	1	SN: 3845-UP
	?	YM129136-77250	BOLT	1	SN: 3845-UP
	?	YM26366-080002	NUT	1	SN: 3845-UP
	?	YM129410-77330	PLATE,ADJUST	1	SN: 3845-UP
	?	YM26014-080252	BOLT	1	SN: 3845-UP
	?	YM26106-080602	BOLT,(SEE FIG.0501)	1	SN: 3845-UP

Komatsu 3D84N-2AA S/N 3845-UP parts catalog PDF

ALTERNATOR AND MOUNTING (40A) (0601) in 3D84N-2AA S/N 3845-UP. Diagram image and parts list.
