3D84E-5X-AB S/N 00101-UP

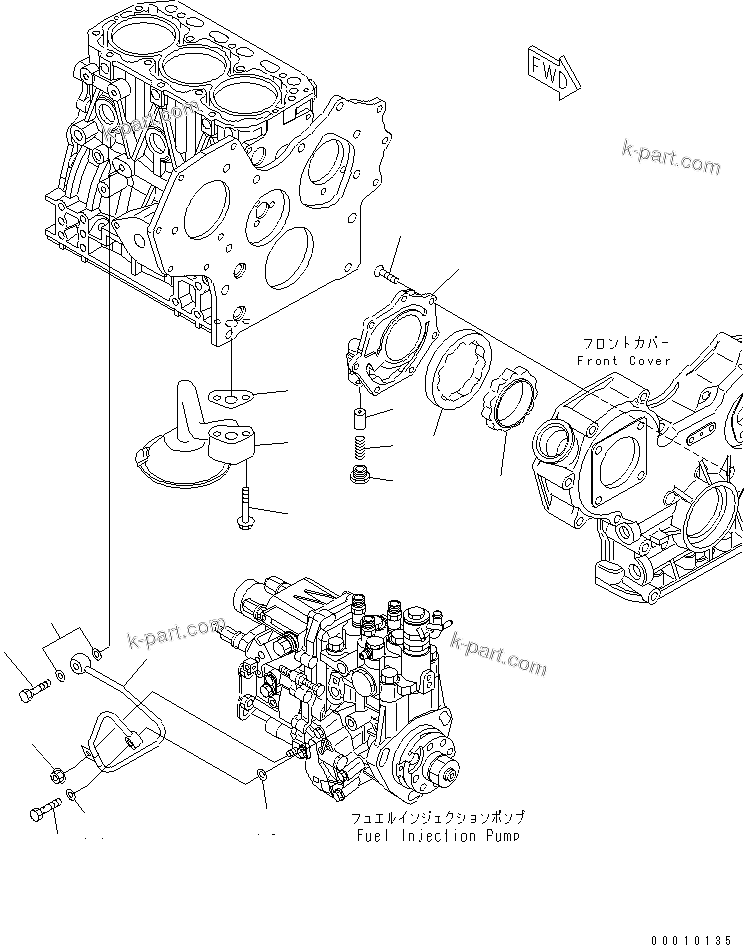

Komatsu parts book diagram for 3D84E-5X-AB S/N 00101-UP: LUBRICATING OIL PUMP(#01020-)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	YM119802-32100	COVER ASS'Y	1	SN: 01020-UP
	?	YM119802-32070	COVER	1	SN: 01020-UP
	?	YM129900-32130	VALVE,RELIEF	1	SN: 01020-UP
	?	YM129418-32320	SPRING	1	SN: 01020-UP
	?	YM129001-32330	PLUG	1	SN: 01020-UP
	?	YM119802-32111	ROTOR,INNER	1	SN: 01020-UP
	?	YM119802-32120	ROTOR,OUTER	1	SN: 01020-UP
	?	YM119802-32130	SCREW	7	SN: 01020-UP
	?	YM129150-35041	GASKET (KIT)	1	SN: 01020-UP
	?	YM129150-35091	PIPE ASS'Y,SUCTION	1	SN: 01020-UP
	?	YM26106-080352	BOLT	2	SN: 01020-UP
	?	YM124160-39140	BOLT,JOINT	1	SN: 01020-UP
	?	YM119802-39450	PIPE	1	SN: 01020-UP
	?	YM129005-59830	BOLT ASS'Y	1	SN: 01020-UP
	?	YM23857-030000	BOLT,JOINT	1	SN: 01020-UP
	?	YM22190-080002	SEAL,RING (KIT)	1	SN: 01020-UP
	?	YM22190-080002	SEAL,RING (KIT)	1	SN: 01020-UP
	?	YM22190-100002	SEAL,RING (KIT)	2	SN: 01020-UP
	?	YM26366-060002	NUT	1	SN: 01020-UP

Komatsu 3D84E-5X-AB S/N 00101-UP parts catalog PDF

LUBRICATING OIL PUMP(#01020-) (A3010-A0A2) in 3D84E-5X-AB S/N 00101-UP. Diagram image and parts list.
