4D88E-5X-AB S/N 00101-UP

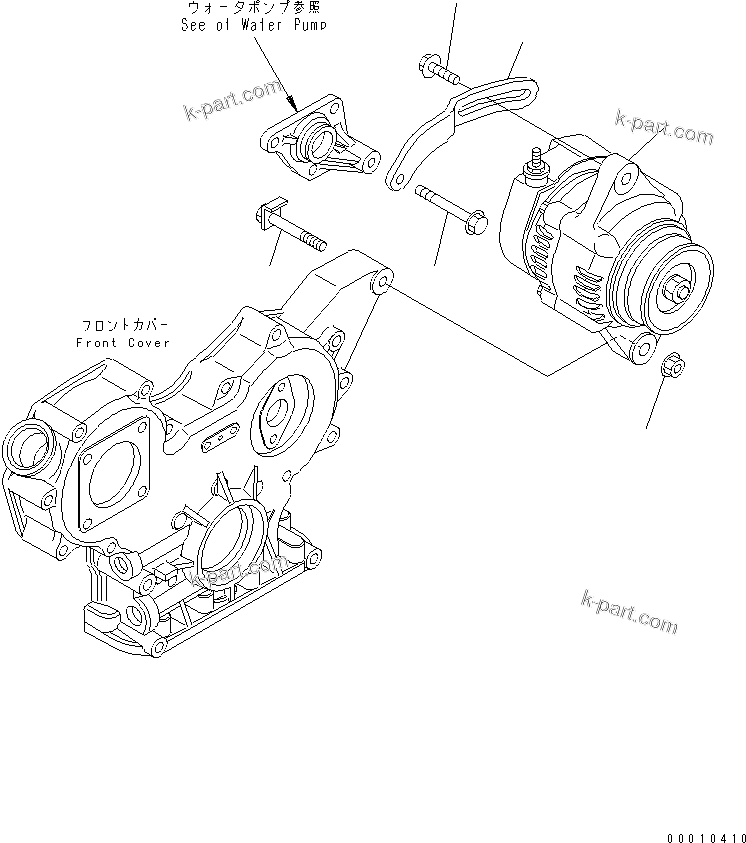

Komatsu parts book diagram for 4D88E-5X-AB S/N 00101-UP: ALTERNATOR AND MOUNTING (40A)

? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	YM26106-080452	BOLT	1	SN: 00101-UP
	?	YM119802-77320	PLATE,ADJUST	1	SN: 00101-UP
	?	YM129423-77200	ALTERNATOR A. (40A),(SEE FIG.A6010-B0A1)	1	SN: 00101-UP
	?	YM26306-100002	NUT	1	SN: 00101-UP
	?	YM119740-77250	BOLT	1	SN: 00101-UP
	?	YM119810-77340	BOLT	1	SN: 00101-UP

Komatsu 4D88E-5X-AB S/N 00101-UP parts catalog PDF

ALTERNATOR AND MOUNTING (40A) (A6010-A0A1) in 4D88E-5X-AB S/N 00101-UP. Diagram image and parts list.
