4D88E-3F S/N 00101-UP

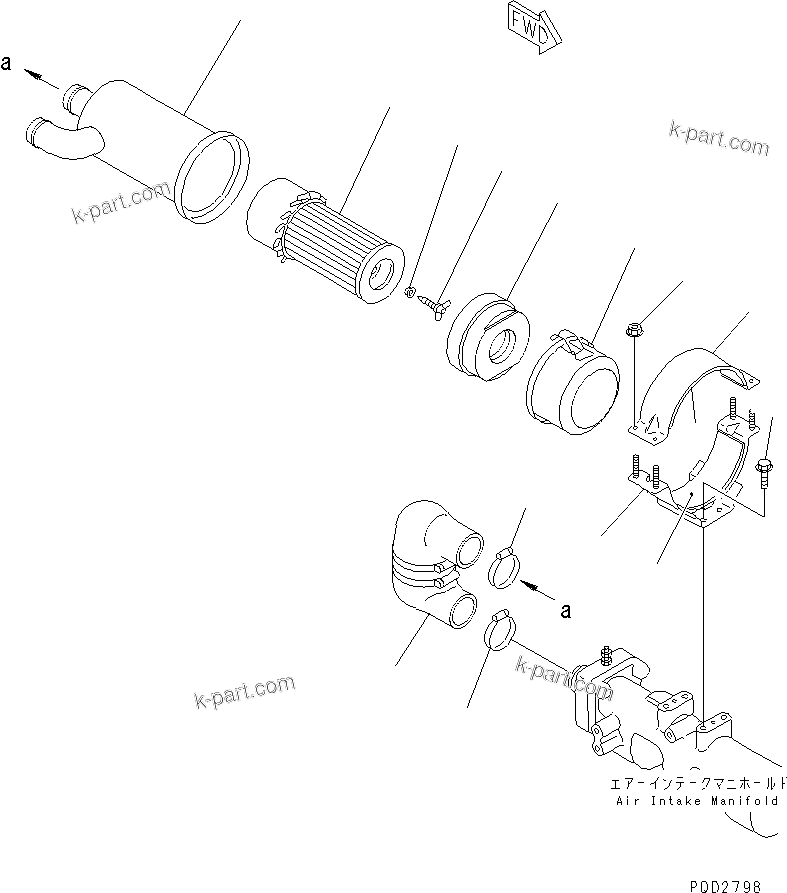

Komatsu parts book diagram for 4D88E-3F S/N 00101-UP: AIR CLEANER AND MOUNTING

? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	YM129430-12220	SILENCER,SUCTION	1	SN: 00101-UP
	?	YM129030-12522	AIR CLEANER ASS'Y	1	SN: 10582-UP
	?	YM129030-12521	AIR CLEANER ASS'Y	1	SN: 00101-10581
	?	YM129030-12530	PAN,DUST	1	SN: 10582-UP
	?	YM121120-12531	PAN	1	SN: 00101-10581
	?	YM121120-12541	BUFFLE	1	SN: 00101-UP
	?	YM121120-12561	BOLT,WING	1	SN: 00101-UP
	?	YM121120-12571	WASHER,SEAL	1	SN: 00101-UP
	?	YM129150-12510	ELEMENT	1	SN: 00101-UP
	?	YM121400-12540	BAND ASS'Y	1	SN: 00101-UP
	?	YM121400-12560	BAND	1	SN: 00101-UP
	?	YM121400-12570	SEAT	1	SN: 00101-UP
	?	YM171351-12580	SUPPORT ASS'Y	1	SN: 00101-UP
	?	YM171351-12560	SUPPORT	1	SN: 00101-UP
	?	YM171351-12570	SEAT	1	SN: 00101-UP
	?	YM23000-060000	CLAMP	2	SN: 00101-UP
	?	YM26106-080142	BOLT	4	SN: 00101-UP
	?	YM26366-060002	NUT	4	SN: 00101-UP

Komatsu 4D88E-3F S/N 00101-UP parts catalog PDF

AIR CLEANER AND MOUNTING (A1410-A0A4) in 4D88E-3F S/N 00101-UP. Diagram image and parts list.
