#	Part Number	Partname	Quantity	Options

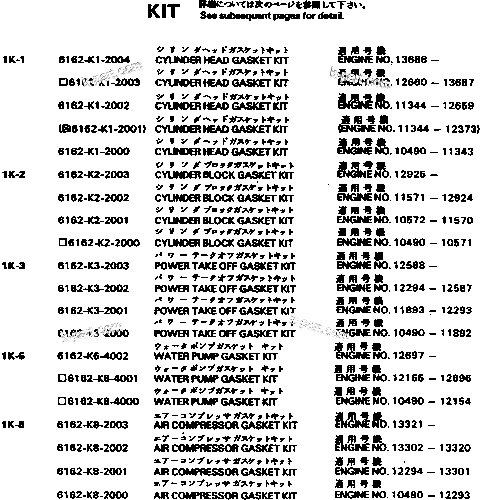

?	6162-K1-2004	GASKET KIT,CYLINDER HEAD	1	SN: 13688-UP
?	6162-K1-2003	GASKET KIT,CYLINDER HEAD	1	SN: 12660-13687
?	6162-K1-2002	GASKET KIT,CYLINDER HEAD	1	SN: 11344-12659
?	6162-K1-2001	GASKET KIT,CYLINDER HEAD	1	SN: (11344-12373)
?	6162-K1-2000	GASKET KIT,CYLINDER HEAD	1	SN: 10490-11343
?	6162-12-1152	O-RING	6	SN: 10490-UP
?	07000-63028	O-RING	12	SN: 10490-UP
?	6162-17-1812	GASKET	6	SN: 12660-UP
?	6162-17-1811	GASKET	6	SN: 12374-12659
?	6162-13-1811	GASKET	6	SN: 10490-12373
?	6162-13-1810	GASKET	6	SN: (10490-11343)
?	6162-13-7812	GASKET	6	SN: 12660-UP
?	6162-13-7810	GASKET	6	SN: 10490-12659
?	6162-13-7822	PACKING	6	SN: 12660-UP
?	6162-13-7820	PACKING	6	SN: 10490-12659
?	6162-13-8811	GASKET	6	SN: 12660-UP
?	6162-13-8810	GASKET	6	SN: 10490-12659
?	6162-13-8181	PACKING	6	SN: 10490-UP
?	6162-13-8180	PACKING	6	SN: (10490-12373)
?	6162-13-4810	GASKET	6	SN: 10490-UP
?	6162-13-4740	GASKET	1	SN: 10490-UP
?	02895-67075	O-RING	4	SN: 10490-UP
?	02895-67081	O-RING	4	SN: 10490-UP
?	6127-81-4821	GASKET	1	SN: 10490-UP
?	6162-13-5810	GASKET	6	SN: 10490-UP
?	6162-83-2810	GASKET	1	SN: 10490-UP
?	6151-11-5710	GASKET	1	SN: 10490-UP
?	6162-14-5540	GASKET	1	SN: 13688-UP
?	6162-13-5610	GASKET	2	SN: 10490-UP
?	6166-11-6290	O-RING	12	SN: 12660-UP
?	07000-05065	O-RING	12	SN: 10490-12659
?	07005-01612	GASKET	2	SN: 10490-UP
?	6162-13-6570	GASKET	1	SN: 10490-UP
?	07000-02070	O-RING	1	SN: 10490-UP
?	6162-13-6440	SEAL	2	SN: 11344-UP
?	6162-13-6440	SEAL	3	SN: 10490-11343
?	6162-13-6430	GASKET	1	SN: 10490-UP
?	6162-13-6480	GASKET	1	SN: 10490-UP
?	195-03-14380	GASKET	1	SN: 10490-UP
?	6162-63-6880	O-RING	2	SN: 12660-UP
?	02893-05043	O-RING	2	SN: 10490-12659
?	6151-51-8150	GASKET	1	SN: 10490-UP
?	6127-51-6821	GASKET	1	SN: 10490-UP
?	07005-01212	GASKET	2	SN: 10490-UP
?	08034-00414	BAND	5	SN: 11344-UP
?	08034-00519	BAND	5	SN: 11344-UP
?	6162-K2-2003	GASKET KIT,CYLINDER BLOCK	1	SN: 12925-UP
?	6162-K2-2002	GASKET KIT,CYLINDER BLOCK	1	SN: 11571-12924
?	6162-K2-2001	GASKET KIT,CYLINDER BLOCK	1	SN: 10572-11570
?	6162-K2-2000	GASKET KIT,CYLINDER BLOCK	1	SN: 10490-10571
?	6128-11-6811	GASKET	1	SN: 10490-UP
?	07005-01412	GASKET	2	SN: 10490-UP
?	07005-01012	GASKET	1	SN: 10490-UP
?	6162-23-2250	SEAL	6	SN: 10490-UP
?	6162-23-2220	O-RING	6	SN: 10490-UP
?	6162-23-2240	O-RING	6	SN: 10490-UP
?	07000-62016	O-RING	6	SN: 10490-UP
?	6162-23-6520	GASKET	1	SN: 10490-UP
?	6127-51-6821	GASKET	1	SN: 10572-UP
?	07000-03045	O-RING	1	SN: 10490-UP
?	07000-02012	O-RING	1	SN: 10490-UP
?	6162-23-3250	GASKET	1	SN: 10490-UP
?	07000-65175	O-RING	1	SN: 10490-UP
?	6162-23-3510	SEAL¤ FRONT	1	SN: 10490-UP
?	6162-23-3810	GASKET	1	SN: 10490-UP
?	07000-63025	O-RING	1	SN: 12925-UP
?	07000-63028	O-RING	1	SN: 10490-12924
?	07002-23634	O-RING	1	SN: 10490-UP
?	07005-01412	GASKET	8	SN: 12925-UP
?	07005-01412	GASKET	4	SN: 10490-12924
?	6127-21-4813	GASKET	1	SN: 10490-UP
?	6162-23-4231	SEAL¤ REAR	1	SN: 12925-UP
?	6162-23-4230	SEAL¤ REAR	1	SN: 10490-12924
?	6150-21-4740	GASKET	1	SN: 10490-UP
?	07000-02012	O-RING	1	SN: 10490-UP
?	07000-62015	O-RING	1	SN: 10490-UP
?	6111-61-6810	GASKET	1	SN: 10490-UP
?	6162-53-6370	O-RING	1	SN: 10490-UP
?	07000-63042	O-RING	1	SN: (10490-12902)
?	6127-51-6821	GASKET	1	SN: 10490-UP
?	6162-53-5430	PACKING	1	SN: 10490-12924
?	07000-63050	O-RING	2	SN: 10490-UP
?	07000-63028	O-RING	2	SN: 10490-UP
?	07000-63050	O-RING	2	SN: 10490-UP
?	MK-2M-36E-215	O-RING	1	SN: 10490-UP
?	07005-00812	GASKET	8	SN: 10490-UP
?	6162-63-2280	GASKET	2	SN: 11571-UP
?	6162-63-2190	GASKET	2	SN: 10490-11570
?	6162-63-2290	O-RING	2	SN: 11571-UP
?	6162-63-5740	GASKET	1	SN: 10490-UP
?	6162-63-2131	GASKET	1	SN: 10572-UP
?	6162-63-2130	GASKET	1	SN: 10490-10571
?	6162-63-2180	GASKET	1	SN: 10490-UP
?	6162-63-6730	GASKET	1	SN: 10490-UP
?	07000-03115	O-RING	1	SN: 10490-UP
?	07000-02012	O-RING	1	SN: 10490-UP
?	6127-71-3250	SEAL	1	SN: 10490-UP
?	6162-73-1960	WASHER	1	SN: 10490-UP
?	6162-73-1930	GASKET	1	SN: 10490-UP
?	07005-01412	GASKET	4	SN: 10572-UP
?	07005-00812	GASKET	2	SN: 10490-12924
?	07005-01412	GASKET	9	SN: 10572-UP
?	07005-01412	GASKET	5	SN: 10490-10571
?	6128-81-4620	GASKET	2	SN: 10490-UP
?	600-815-2190	GASKET	2	SN: 10490-UP
?	6675-11-4960	GASKET	2	SN: 10490-UP
?	07012-00050	SEAL	1	SN: 10490-10571
?	07000-02075	O-RING	1	SN: 10490-10571
?	6162-63-1691	SEAL	1	SN: 12925-UP
?	6162-63-1690	SEAL	1	SN: (12925-14040)
?	07012-20048	SEAL	1	SN: 10490-12924
?	07000-62095	O-RING	1	SN: 10490-UP
?	07000-01009	O-RING	1	SN: 10490-UP
?	6610-81-2210	GASKET	2	SN: 10490-UP
?	6162-23-3581	SEAL	1	SN: 12925-UP
?	07000-02110	O-RING	1	SN: 12925-UP
?	07000-51009	O-RING	1	SN: 12925-UP
?	08034-00414	BAND	5	SN: 10490-UP
?	08034-00519	BAND	5	SN: 10490-UP
?	6162-K3-2003	GASKET KIT,POWER TAKE OFF	1	SN: 12588-UP
?	6162-K3-2002	GASKET KIT,POWER TAKE OFF	1	SN: 12294-12587
?	6162-K3-2001	GASKET KIT,POWER TAKE OFF	1	SN: 11893-12293
?	6162-K3-2000	GASKET KIT,POWER TAKE OFF	1	SN: 10490-11892
?	6128-21-4600	SHIM ASS'Y	1	SN: 12294-UP
?	6128-21-4360	LOCK	1	SN: 10490-12587
?	07000-05160	O-RING	2	SN: 10490-UP
?	07000-05200	O-RING	2	SN: 10490-UP
?	01658-07623	WASHER	2	SN: 10490-UP
?	07000-05160	O-RING	2	SN: 10490-UP
?	07000-02135	O-RING	1	SN: 10490-11892
?	07000-01009	O-RING	1	SN: 10490-11892
?	6128-21-4600	SHIM ASS'Y	1	SN: 12294-UP
?	6162-K6-4002	GASKET KIT,WATER PUMP	1	SN: 12697-UP
?	6162-K6-4001	GASKET KIT,WATER PUMP	1	SN: 12155-12696
?	6162-K6-4000	GASKET KIT,WATER PUMP	1	SN: 10490-12154
?	6162-63-6880	O-RING	2	SN: 12697-UP
?	02893-05043	O-RING	2	SN: 12155-12696
?	6162-63-1570	SEAL	1	SN: 12155-UP
?	6162-63-1540	SEAL	1	SN: 10490-12154
?	6162-63-1511	SEAL¤ WATER	1	SN: 12155-UP
?	6162-63-1510	SEAL¤ WATER	1	SN: 10490-12154
?	07000-05145	O-RING	1	SN: 10490-UP
?	07000-62012	O-RING	1	SN: 12155-UP
?	6127-61-2971	O-RING	1	SN: 10490-12154
?	6162-63-1810	GASKET	1	SN: 10490-UP
?	6162-K8-2003	GASKET KIT,AIR COMPRESSOR	1	SN: 13321-UP
?	6162-K8-2002	GASKET KIT,AIR COMPRESSOR	1	SN: 13302-13320
?	6162-K8-2001	GASKET KIT,AIR COMPRESSOR	1	SN: 12294-13301
?	6162-K8-2000	GASKET KIT,AIR COMPRESSOR	1	SN: 10490-12293
?	07000-02085	O-RING	1	SN: 10490-UP
?	07000-03028	O-RING	1	SN: 10490-UP
?	07000-02015	O-RING	1	SN: 10490-UP
?	6162-23-3580	SEAL	1	SN: 12294-13301
?	07012-00060	SEAL	1	SN: 10490-12293
?	07000-02110	O-RING	1	SN: 10490-13301
?	07000-51009	O-RING	1	SN: 10490-13301
?	07003-11217	GASKET	1	SN: 10490-UP
?	07005-01412	GASKET	5	SN: 13302-UP
?	07005-01412	GASKET	2	SN: 10490-13301
?	6164-91-6220	GASKET	4	SN: 13321-UP
?	07005-02416	GASKET	3	SN: 10490-13320
?	07005-01412	GASKET	6	SN: 12294-UP
?	07005-01412	GASKET	4	SN: 10490-12293
?	DK487061-4300	O-RING	1	SN: 10490-UP
?	DK487061-4500	O-RING	1	SN: 10490-UP
?	DK487061-3700	O-RING	1	SN: 10490-UP
?	DK487020-2200	GASKET	1	SN: 10490-UP
?	DK016530-1040	O-RING	2	SN: 10490-UP
?	DK487020-3100	GASKET	1	SN: 10490-UP
?	DK487020-2900	GASKET	1	SN: 10490-UP
?	DK026506-1040	GASKET	1	SN: 10490-UP
?	DK026512-1540	GASKET	2	SN: 10490-UP
?	08034-00414	BAND	2	SN: 10490-UP
?	08034-00519	BAND	2	SN: 10490-UP
