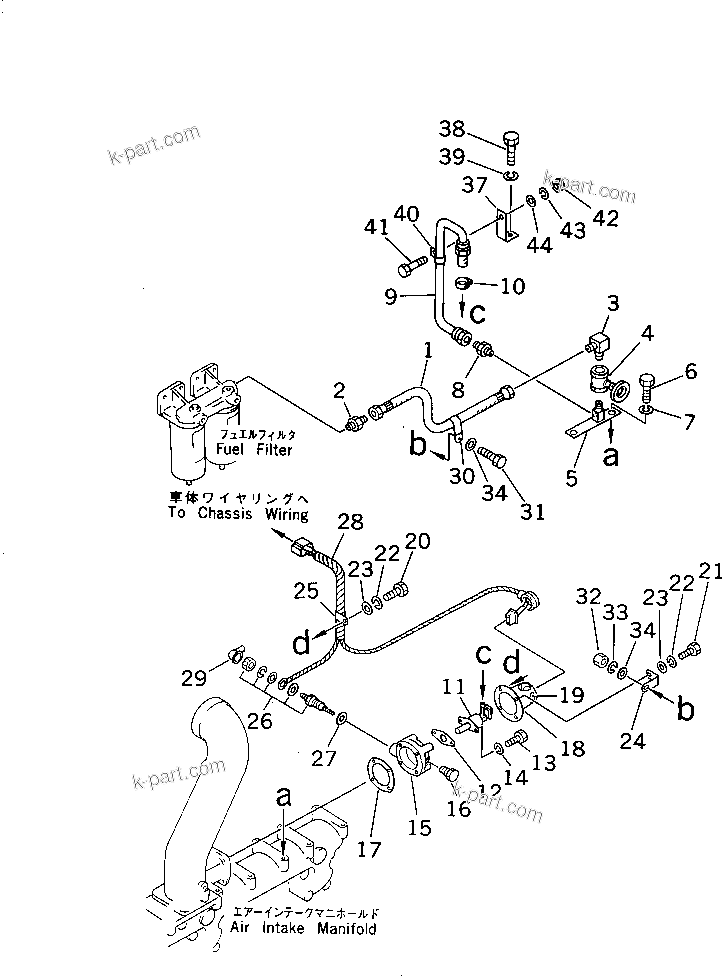

AUTO PRIMING SYSTEM | S6D155-4S S/N 52707-UP | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6127-81-4771	HOSE	1	SN: 52707-UP
?	6127-81-4570	HOSE,(FOR SLAG HANDLING)	1	SN: 52707-UP
?	6128-81-4840	NIPPLE	1	SN: 52707-UP
?	6127-81-4791	ELBOW	1	SN: 52707-UP
?	6128-81-4810	VALVE	1	SN: 52707-UP
?	6127-81-4752	BRACKET	1	SN: 52707-UP
?	01010-31430	BOLT	2	SN: 52707-UP
?	01602-01442	WASHER,SPRING	2	SN: 52707-UP
?	6128-81-4840	NIPPLE	1	SN: 52707-UP
?	6127-81-4880	HOSE	1	SN: 52707-UP
?	6127-81-4560	HOSE,(FOR SLAG HANDLING)	1	SN: 52707-UP
?	07281-00137	CLAMP	1	SN: 52707-UP
?	07281-00197	CLAMP,(FOR SLAG HANDLING)	1	SN: 52707-UP
?	6128-81-4630	NOZZLE	1	SN: 52707-UP
?	6128-81-4620	GASKET (K1)	1	SN: 52707-UP
?	01010-30612	BOLT	2	SN: 52707-UP
?	01602-20619	WASHER,SPRING	2	SN: 52707-UP
?	6128-81-4911	COVER	1	SN: 52707-UP
?	6162-83-4810	PLUG	1	SN: 52707-UP
?	6675-11-4960	GASKET (K1)	1	SN: 52707-UP
?	6128-81-4831	COVER	1	SN: 52707-UP
?	6128-81-4850	PLATE¤ CAUTION	1	SN: 52707-UP
?	01010-30860	BOLT	3	SN: 52707-UP
?	01010-30865	BOLT	1	SN: 52707-UP
?	01602-00825	WASHER,SPRING	4	SN: 52707-UP
?	01640-20816	WASHER	4	SN: 52707-UP
?	6127-11-4421	PLATE	1	SN: 52707-UP
?	08036-11210	CLIP	1	SN: 52707-UP
?	08036-A1210	CLIP,(FOR SLAG HANDLING)	1	SN: 52707-UP
?	7821-04-1410	GLOW PLUG	1	SN: 55444-UP
?	600-815-2180	GLOW PLUG	1	SN: 52707-55443
?	600-815-2190	GASKET (K1)	1	SN: 52707-UP
?	600-815-1581	WIRE ASS'Y	1	SN: 52707-UP
?	6127-81-4580	WIRE HARNESS,(FOR SLAG HANDLING)	1	SN: 52707-UP
?	140-06-18260	CAP	1	SN: 52707-UP
?	08038-10518	CAP,(FOR SLAG HANDLING)	1	SN: 52707-UP
?	6128-81-4780	CLAMP	1	SN: 52707-UP
?	6128-81-4710	CLIP,(FOR SLAG HANDLING)	1	SN: 52707-UP
?	01010-30825	BOLT	1	SN: 52707-UP
?	01580-00806	NUT	1	SN: 52707-UP
?	01602-00825	WASHER,SPRING	1	SN: 52707-UP
?	01640-20816	WASHER	2	SN: 52707-UP
?	6128-81-4981	PLATE¤ OPERATING,(NOT SHOWN)	1	SN: 52707-UP
?	6128-82-4980	PLATE¤ CAUTION,(NOT SHOWN)	1	SN: 52707-UP
?	6127-81-4550	BRACKET,(FOR SLAG HANDLING)	1	SN: 52707-UP
?	01010-31425	BOLT,(FOR SLAG HANDLING)	1	SN: 52707-UP
?	01602-01442	WASHER,SPRING (FOR SLAG HANDLING)	1	SN: 52707-UP
?	6127-81-2841	CLAMP,(FOR SLAG HANDLING)	1	SN: 52707-UP
?	01010-30816	BOLT,(FOR SLAG HANDLING)	1	SN: 52707-UP
?	01580-00806	NUT,(FOR SLAG HANDLING)	1	SN: 52707-UP
?	01602-00825	WASHER,SPRING (FOR SLAG HANDLING)	1	SN: 52707-UP
?	01640-20816	WASHER,(FOR SLAG HANDLING)	1	SN: 52707-UP
