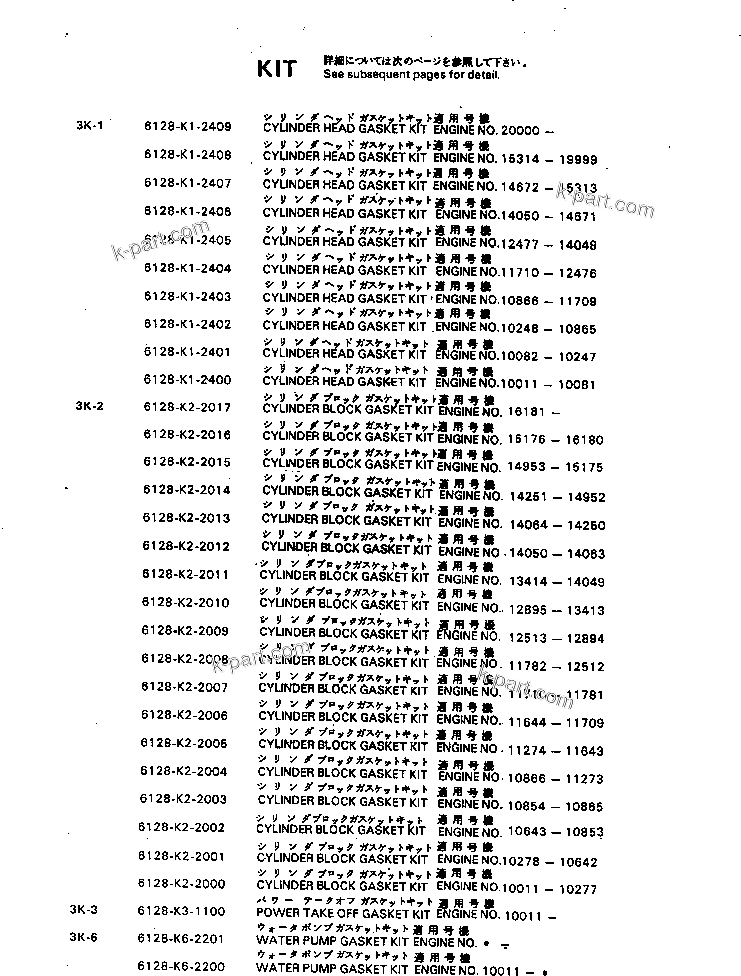

GASKET KIT | S6D155-4C S/N 10011-UP | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6128-K1-2409	GASKET KIT,CYLINDER HEAD	1	SN: 20000-UP
?	6128-K1-2408	GASKET KIT,CYLINDER HEAD	1	SN: 15314-19999
?	6128-K1-2407	GASKET KIT,CYLINDER HEAD	1	SN: 14672-15313
?	6128-K1-2406	GASKET KIT,CYLINDER HEAD	1	SN: 14050-14671
?	6128-K1-2405	GASKET KIT,CYLINDER HEAD	1	SN: 12477-14049
?	6128-K1-2404	GASKET KIT,CYLINDER HEAD	1	SN: 11710-12476
?	6128-K1-2403	GASKET KIT,CYLINDER HEAD	1	SN: 10866-11709
?	6128-K1-2402	GASKET KIT,CYLINDER HEAD	1	SN: 10248-10865
?	6128-K1-2401	GASKET KIT,CYLINDER HEAD	1	SN: 10082-10247
?	6128-K1-2400	GASKET KIT,CYLINDER HAED	1	SN: 10011-10081
?	6127-41-4541	SEAL	12	SN: 10011-UP
?	6127-11-1087	GASKET ASS'Y	3	SN: 12477-UP
?	6127-11-1084	GASKET ASS'Y	3	SN: 10011-12476
?	6110-61-6831	GASKET	2	SN: 10011-UP
?	07000-02016	O-RING	4	SN: 10011-UP
?	6127-11-7811	GASKET	3	SN: 10011-UP
?	6127-11-8812	GASKET	3	SN: 10011-UP
?	6127-11-8850	GASKET	1	SN: 10011-UP
?	07000-03022	O-RING	6	SN: 10011-UP
?	6127-11-4450	O-RING	2	SN: 10011-UP
?	07003-01824	GASKET	1	SN: 10011-UP
?	07003-01015	GASKET	1	SN: 10011-UP
?	6127-11-4620	GASKET	2	SN: 10011-14671
?	6675-11-4960	GASKET	1	SN: 10011-11709
?	6127-11-4460	O-RING	4	SN: 10011-UP
?	6128-11-5610	GASKET	1	SN: 10011-14049
?	6610-81-4150	GASKET	1	SN: 11710-UP
?	6127-11-4640	GASKET	2	SN: 10011-UP
?	600-815-2190	GASKET	1	SN: 11710-UP
?	6127-11-4820	GASKET	3	SN: 10011-UP
?	6675-11-4960	GASKET	2	SN: 11710-UP
?	6610-81-4240	O-RING	1	SN: 11710-UP
?	6127-81-4821	GASKET	1	SN: 10011-UP
?	6128-11-5610	GASKET	2	SN: 14050-UP
?	07003-01824	GASKET	2	SN: 10011-14671
?	07003-01015	GASKET	2	SN: 10011-14671
?	6127-11-5810	GASKET	6	SN: 10011-UP
?	6127-11-5190	LOCK	6	SN: 10011-UP
?	6128-81-2810	GASKET	1	SN: 10011-UP
?	07003-01824	GASKET	1	SN: 10011-14049
?	07003-01015	GASKET	1	SN: 10011-14049
?	6128-51-8150	GASKET	1	SN: 10011-UP
?	6125-11-5660	GASKET	1	SN: 10011-10247
?	6128-11-5481	GASKET	1	SN: 14050-UP
?	07000-03075	O-RING	1	SN: 10011-15313
?	6128-11-6811	GASKET	6	SN: 20338-UP
?	6128-11-6800	GASKET ASS'Y	6	SN: 10011-20337
?	6128-11-6810	GASKET	1	SN: 10011-UP
?	6128-11-6820	SEAL	1	SN: 10011-UP
?	6127-11-6430	GASKET	1	SN: 10011-UP
?	6127-11-6470	GASKET	1	SN: 10011-UP
?	6127-61-6850	GASKET	1	SN: 10011-10081
?	07000-05075	O-RING	1	SN: 15314-UP
?	07000-05065	O-RING	1	SN: 15314-UP
?	07000-05055	O-RING	2	SN: 15314-UP
?	6710-11-6451	SEAL	2	SN: 10011-UP
?	07000-63035	O-RING	1	SN: 10011-UP
?	6128-51-8150	GASKET	2	SN: 10011-UP
?	07000-23038	O-RING	1	SN: 10011-UP
?	07000-63032	O-RING	1	SN: 10866-UP
?	07005-00812	SEAL, WASHER	24	SN: 10011-UP
?	6128-K2-2017	GASKET KIT,CYLINDER BLOCK	1	SN: 16181-UP
?	6128-K2-2016	GASKET KIT,CYLINDER BLOCK	1	SN: 15176-16180
?	6128-K2-2015	GASKET KIT,CYLINDER BLOCK	1	SN: 14953-15175
?	6128-K2-2014	GASKET KIT,CYLINDER BLOCK	1	SN: 14251-14952
?	6128-K2-2013	GASKET KIT,CYLINDER BLOCK	1	SN: 14064-14250
?	6128-K2-2012	GASKET KIT,CYLINDER BLOCK	1	SN: 14050-14063
?	6128-K2-2011	GASKET KIT,CYLINDER BLOCK	1	SN: 13414-14049
?	6128-K2-2010	GASKET KIT,CYLINDER BLOCK	1	SN: 12895-13413
?	6128-K2-2009	GASKET KIT,CYLINDER BLOCK	1	SN: 12513-12894
?	6128-K2-2008	GASKET KIT,CYLINDER BLOCK	1	SN: 11782-12512
?	6128-K2-2007	GASKET KIT,CYLINDER BLOCK	1	SN: 11710-11781
?	6128-K2-2006	GASKET KIT,CYLINDER BLOCK	1	SN: 11644-11709
?	6128-K2-2005	GASKET KIT,CYLINDER BLOCK	1	SN: 11274-11643
?	6128-K2-2004	GASKET KIT,CYLINDER BLOCK	1	SN: 10866-11273
?	6128-K2-2003	GASKET KIT,CYLINDER BLOCK	1	SN: 10854-10865
?	6128-K2-2002	GASKET KIT,CYLINDER BLOCK	1	SN: 10643-10853
?	6128-K2-2001	GASKET KIT,CYLINDER BLOCK	1	SN: 10278-10642
?	6128-K2-2000	GASKET KIT,CYLINDER BLOCK	1	SN: 10011-10277
?	07003-01419	GASKET	1	SN: 10011-UP
?	6127-21-1740	LOCK	14	SN: 10011-16180
?	01650-21212	WASHER	4	SN: 10011-UP
?	6127-21-2530	LOCK	1	SN: 10011-UP
?	01650-21012	WASHER	3	SN: 10011-UP
?	6127-21-2431	LOCK	1	SN: 10011-UP
?	07000-62016	O-RING	6	SN: 10011-UP
?	6127-21-6720	GASKET	2	SN: 10011-UP
?	6127-21-2221	O-RING	6	SN: 10011-UP
?	6127-21-2250	SEAL	6	SN: 11710-20337
?	6127-21-2221	O-RING	6	SN: 10011-UP
?	6127-21-2241	O-RING	16	SN: 10011-UP
?	6127-21-6521	GASKET	2	SN: 10011-UP
?	6127-21-3160	GROMMET	2	SN: 10011-UP
?	6127-21-3811	GASKET	1	SN: 10011-11643
?	6127-21-3810	GASKET	1	SN: 11644-UP
?	6120-21-6150	WASHER	3	SN: 10011-UP
?	6128-21-3230	GASKET	1	SN: 14953-UP
?	6124-21-3230	GASKET	1	SN: 10011-14952
?	6124-21-3240	GASKET	1	SN: 10011-UP
?	6127-21-3510	SEAL, FRONT	1	SN: 10011-UP
?	07000-03035	O-RING	1	SN: 10866-14063
?	6127-21-5811	GASKET	1	SN: 10011-UP
?	6127-21-5161	GASKET	1	SN: 10011-UP
?	6177-21-5420	GASKET	1	SN: 10011-UP
?	07000-03032	O-RING	1	SN: 10011-UP
?	07000-02015	O-RING	1	SN: 10011-14049
?	07000-63035	O-RING	1	SN: 14050-UP
?	6127-31-1330	WASHER	12	SN: 10011-UP
?	6127-31-1350	LOCK	3	SN: 10011-UP
?	6124-31-1360	LOCK	3	SN: 10011-UP
?	6127-21-4813	GASKET	1	SN: 10011-UP
?	6128-21-4230	SEAL, REAR	1	SN: 10011-UP
?	07000-65220	O-RING	1	SN: 10011-UP
?	6127-21-4240	LOCK	2	SN: 10011-UP
?	6127-21-4250	LOCK	1	SN: 10011-UP
?	6127-21-4260	LOCK	1	SN: 10011-UP
?	6643-21-4731	PLATE	4	SN: 10011-UP
?	6127-31-8150	PLATE	3	SN: 10011-UP
?	6127-31-3332	LOCK	12	SN: 10011-UP
?	6127-51-1660	GASKET	2	SN: 10011-UP
?	01653-21412	WASHER	1	SN: 10011-UP
?	6127-51-6920	GASKET	2	SN: 10011-UP
?	6120-61-6850	GASKET	1	SN: 10011-UP
?	6128-51-6830	GASKET	1	SN: 10011-UP
?	07003-02733	GASKET	1	SN: 10011-UP
?	07000-23022	O-RING	2	SN: 10011-UP
?	07000-63030	O-RING	1	SN: 10011-UP
?	6127-51-1660	GASKET	2	SN: 10011-UP
?	07000-62015	O-RING	1	SN: 10011-UP
?	6120-51-5180	GASKET	3	SN: 10643-UP
?	6127-51-5810	GASKET	1	SN: 10011-UP
?	07005-01212	SEAL, WASHER	6	SN: 10011-UP
?	07005-01012	SEAL, WASHER	1	SN: 12513-UP
?	07003-01015	GASKET	1	SN: 10011-12512
?	6124-61-2181	GROMMET	2	SN: 10011-UP
?	6127-61-2131	GASKET	1	SN: 10011-UP
?	07000-02090	O-RING	1	SN: 10011-UP
?	07003-11419	GASKET	10	SN: 10011-10853
?	07005-01412	SEAL, WASHER	10	SN: 10854-UP
?	07005-00812	SEAL, WASHER	1	SN: 13414-14049
?	6110-73-6830	GASKET	1	SN: 10011-13413
?	07005-01412	SEAL, WASHER	4	SN: 10854-UP
?	07003-11419	GASKET	4	SN: 10011-10853
?	6127-71-3170	LOCK	3	SN: 10011-UP
?	6610-71-1911	SEAL	1	SN: 10011-UP
?	6610-71-1930	GASKET	1	SN: 10011-UP
?	07000-02018	O-RING	1	SN: 10011-UP
?	01658-23923	WASHER	1	SN: 10011-UP
?	6127-71-3380	GROMMET	1	SN: 10011-UP
?	07000-03115	O-RING	1	SN: 10011-UP
?	07000-03032	O-RING	1	SN: 10011-UP
?	07000-05140	O-RING	1	SN: 10011-UP
?	07000-05165	O-RING	1	SN: 10011-UP
?	6127-61-1190	GROMMET	1	SN: 10011-UP
?	6128-61-6860	GASKET	1	SN: 10011-UP
?	07000-05185	O-RING	1	SN: 10011-UP
?	6127-61-3360	SEAL	1	SN: 10011-UP
?	07000-03045	O-RING	1	SN: 10011-UP
?	01653-23318	WASHER	1	SN: 10011-UP
?	06122-04504	SEAL	2	SN: 11782-UP
?	06122-04004	SEAL	2	SN: 10011-11781
?	01653-10808	WASHER	1	SN: 10011-UP
?	6127-61-3770	SEAL	1	SN: 10011-UP
?	6127-61-3790	LOCK	1	SN: 10011-UP
?	6124-61-3740	GASKET	1	SN: 10011-UP
?	6124-61-3790	LOCK	2	SN: 10011-UP
?	6127-21-3260	GASKET	1	SN: 10011-15175
?	01653-22016	WASHER	1	SN: 10011-10277
?	07000-05110	O-RING	1	SN: 10011-UP
?	07000-05135	O-RING	1	SN: 10011-UP
?	6127-21-2251	SEAL,(NOT SHOWN)	6	SN: 20338-UP
?	6127-61-8650	GASKET,(NOT SHOWN)	1	SN: 10011-UP
?	6128-K3-1100	GASKET KIT,POWER TAKE OFF	1	SN: 10011-UP
?	07000-05175	O-RING	1	SN: 10011-UP
?	07000-05165	O-RING	1	SN: 10011-UP
?	01658-26823	WASHER	1	SN: 10011-UP
?	6128-21-4360	LOCK	1	SN: 10011-UP
?	07000-03095	O-RING	1	SN: 10011-UP
?	07000-03110	O-RING	1	SN: 10011-UP
?	6127-21-4550	LOCK	3	SN: 10011-UP
?	6128-K6-2201	GASKET KIT,WATER PUMP	1	SN: .-UP
?	6128-K6-2200	GASKET KIT,WATER PUMP	1	SN: 10011-.
?	07012-20042	SEAL	1	SN: 10011-UP
?	6127-61-1514	SEAL, WATER	1	SN: 10011-UP
?	6127-61-1320	RING	1	SN: 10011-20337
?	01658-22016	WASHER	1	SN: 10011-20337
?	07000-05165	O-RING	1	SN: .-20337
?	01654-22016	WASHER	1	SN: 10011-20337
?	6610-61-1512	SEAL, WATER,(NOT SHOWN)	1	SN: 10011-20337
