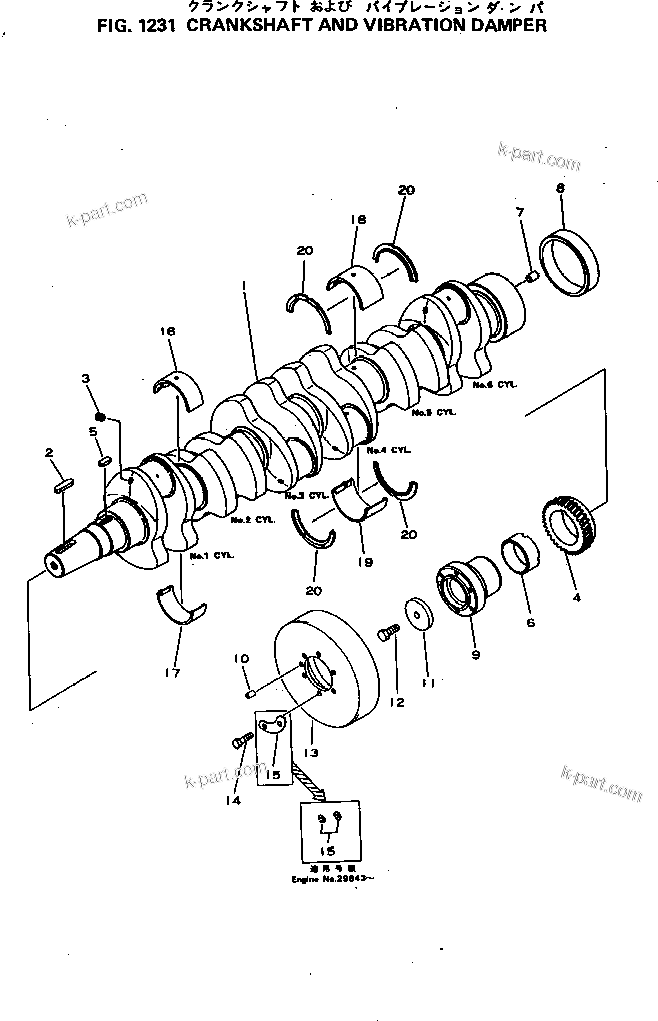

CRANKSHAFT AND VIBRATION DAMPER | S6D155-4C S/N 10011-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6127-31-1012	CRANKSHAFT ASS'Y	1	SN: .-UP
?	6127-31-1011	CRANKSHAFT ASS'Y	1	SN: 10079-.
?	6127-31-1010	CRANKSHAFT ASS'Y	1	SN: 10011-10078
?		CRANKSHAFT	1	SN: .-UP
?		CRANKSHAFT	1	SN: 10079-.
?		CRANKSHAFT	1	SN: 10011-10078
?	04000-01570	KEY	1	SN: 10011-UP
?	02720-20204	PLUG	6	SN: 10011-UP
?	6127-31-1120	GEAR	1	SN: 10011-UP
?	04000-01540	KEY	1	SN: 10011-UP
?	6127-31-1190	SLEEVE	1	SN: 10011-UP
?	04020-01842	PIN	2	SN: 10011-UP
?	6127-31-1293	SLEEVE	1	SN: 10011-UP
?	6127-31-1021	FLANGE ASS'Y	1	SN: 10079-UP
?	6127-31-1020	FLANGE ASS'Y	1	SN: 10011-10078
?	6127-31-1412	FLANGE	1	SN: 10079-UP
?	6127-31-1411	FLANGE	1	SN: 10011-10078
?	04020-01228	PIN	1	SN: 10011-UP
?	6127-31-1440	WASHER	1	SN: 10011-UP
?	6110-33-1411	BOLT	1	SN: 10278-UP
?	6110-33-1410	BOLT	1	SN: 10011-10277
?	6127-31-8100	DAMPER	1	SN: 10011-UP
?	01010-31225	BOLT	6	SN: 10011-UP
?	01602-01236	WASHER	6	SN: .-UP
?	6127-31-8150	PLATE (K2)	3	SN: 10011-.
?		STANDARD	-1
?	6127-21-8001	METAL ASS'Y	1	SN: 10011-UP
?	6127-21-8070	MAIN METAL ASS'Y	1	SN: 10011-UP
?	6127-21-8011	MAIN METAL ASS'Y,NO.1,2,4,6,7	5	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?	6127-21-8021	MAIN METAL ASS'Y,NO.3,5	2	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?	6127-21-8051	THRUST METAL ASS'Y	1	SN: 10082-UP
?	6127-21-8050	THRUST METAL ASS'Y	1	SN: 10011-10081
?		METAL	4	SN: 10082-UP
?		METAL	4	SN: 10011-10081
?		UNDERSIZE 0.25MM	-1
?	6127-29-8070	MAIN METAL ASS'Y	1	SN: 10011-UP
?	6127-29-8011	MAIN METAL ASS'Y,NO.1,2,4,6,7	5	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?	6127-29-8021	MAIN METAL ASS'Y,NO.3,5	2	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?		UNDERSIZE 0.50MM	-1
?	6127-28-8070	MAIN METAL ASS'Y	1	SN: 10011-UP
?	6127-28-8011	MAIN METAL ASS'Y,NO.1,2,4,6,7	5	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?	6127-28-8021	MAIN METAL ASS'Y,NO.3,5	2	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?		UNDERSIZE 0.75MM	-1
?	6127-27-8070	MAIN METAL ASS'Y	1	SN: 10011-UP
?	6127-27-8011	MAIN METAL ASS'Y,NO.1,2,4,6,7	5	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?	6127-27-8021	MAIN METAL ASS'Y,NO.3,5	2	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?		UNDERSIZE 1.00MM	-1
?	6127-26-8070	MAIN METAL ASS'Y	1	SN: 10011-UP
?	6127-26-8011	MAIN METAL ASS'Y,NO.1,2,4,6,7	5	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?	6127-26-8021	MAIN METAL ASS'Y,NO.3,5	2	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?		METAL	1	SN: 10011-UP
?		UNDERSIZE 0.25MM	-1
?	6127-29-8051	THRUST METAL ASS'Y	1	SN: 10082-UP
?	6127-29-8050	THRUST METAL ASS'Y	1	SN: 10011-10081
?		METAL,FRONT	2	SN: 10082-UP
?		METAL,FRONT	2	SN: 10011-10081
?		METAL,REAR	2	SN: 10082-UP
?		METAL,REAR	2	SN: 10011-10081
?		UNDERSIZE 0.50MM	-1
?	6127-28-8051	THRUST METAL ASS'Y	1	SN: 10082-UP
?	6127-28-8050	THRUST METAL ASS'Y	1	SN: 10011-10081
?		METAL	4	SN: 10082-UP
?		METAL	4	SN: 10011-10081
?		UNDERSIZE 0.75MM	-1
?	6127-27-8051	THRUST METAL ASS'Y	1	SN: 10082-UP
?	6127-27-8050	THRUST METAL ASS'Y	1	SN: 10011-10081
?		METAL,FRONT	2	SN: 10082-UP
?		METAL,FRONT	2	SN: 10011-10081
?		METAL,REAR	2	SN: 10082-UP
?		METAL,REAR	2	SN: 10011-10081
?		UNDERSIZE 1.00MM	-1
?	6127-26-8051	THRUST METAL ASS'Y	1	SN: 10082-UP
?	6127-26-8050	THRUST METAL ASS'Y	1	SN: 10011-10081
?		METAL	4	SN: 10082-UP
?		METAL	4	SN: 10011-10081
