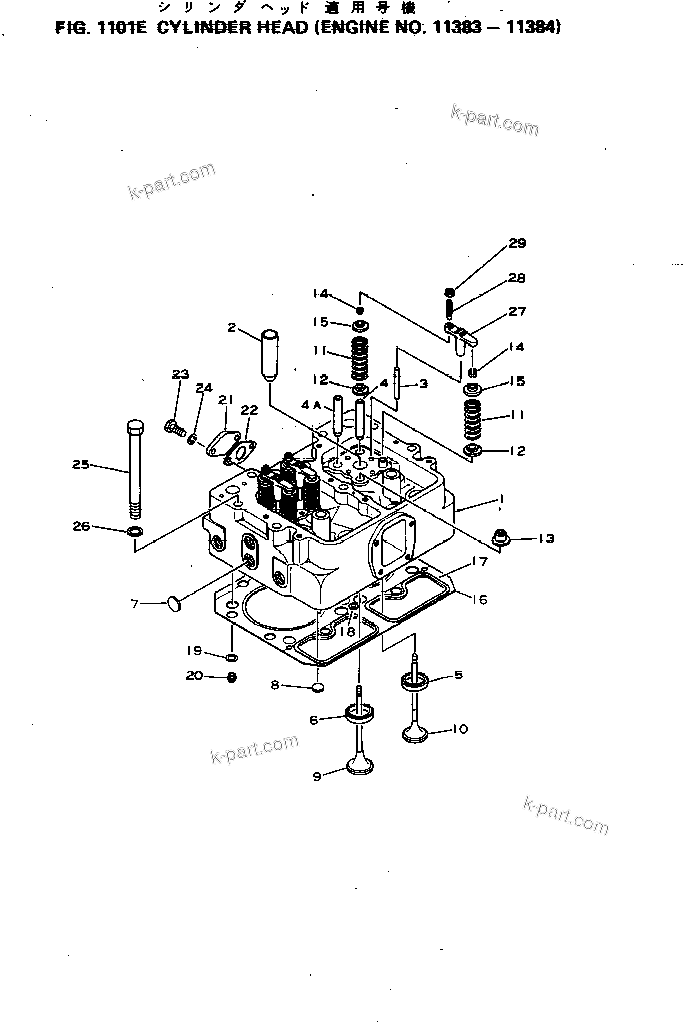

CYLINDER HEAD(#11383-11384) | S6D155-4C S/N 10011-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6127-11-1021	CYLINDER HEAD A.	3	SN: 11383-11384
?		HEAD	1	SN: 11383-11384
?	6128-11-1130	SLEEVE	2	SN: 11383-11384
?	6127-11-1130	SLEEVE	2	SN: 11383-11384
?	6127-11-1141	GUIDE	4	SN: 11383-11384
?	6127-11-1341	GUIDE	4	SN: 11383-11384
?	6127-11-1311	GUIDE	4	SN: 11383-11384
?	6127-11-1341	GUIDE	4	SN: 11383-11384
?	6127-11-1311	GUIDE	4	SN: 11383-11384
?	6127-11-1325	SEAT,EXHAUST (STD)	4	SN: 11383-11384
?	6127-11-1323	SEAT,EXHAUST (STD)	4	SN: 11383-11384
?	6127-19-1325	SEAT, 0.25MM,EXHAUST (OS)	4	SN: 11383-11384
?	6127-19-1323	SEAT, 0.25MM,EXHAUST (OS)	4	SN: 11383-11384
?	6127-18-1325	SEAT, 0.50MM,EXHAUST (OS)	4	SN: 11383-11384
?	6127-18-1323	SEAT, 0.50MM,EXHAUST (OS)	4	SN: 11383-11384
?	6127-17-1325	SEAT, 0.75MM,EXHAUST (OS)	4	SN: 11383-11384
?	6127-17-1323	SEAT, 0.75MM,EXHAUST (OS)	4	SN: 11383-11384
?	6127-16-1325	SEAT, 1.00MM,EXHAUST (OS)	4	SN: 11383-11384
?	6127-16-1323	SEAT, 1.00MM,EXHAUST (OS)	4	SN: 11383-11384
?	6127-11-1335	SEAT,INTAKE (STD)	4	SN: 11383-11384
?	6127-11-1334	SEAT,INTAKE (STD)	4	SN: 11383-11384
?	6127-19-1335	SEAT, 0.25MM,INTAKE (OS)	4	SN: 11383-11384
?	6127-19-1334	SEAT, 0.25MM,INTAKE (OS)	4	SN: 11383-11384
?	6127-18-1335	SEAT, 0.50MM,INTAKE (OS)	4	SN: 11383-11384
?	6127-18-1334	SEAT, 0.50MM,INTAKE (OS)	4	SN: 11383-11384
?	6127-17-1335	SEAT, 0.75MM,INTAKE (OS)	4	SN: 11383-11384
?	6127-17-1334	SEAT, 0.75MM,INTAKE (OS)	4	SN: 11383-11384
?	6127-16-1335	SEAT, 1.00MM,INTAKE (OS)	4	SN: 11383-11384
?	6127-16-1334	SEAT, 1.00MM,INTAKE (OS)	4	SN: 11383-11384
?	07046-13020	PLUG	13	SN: 11383-11384
?	07046-12520	PLUG	2	SN: 11383-11384
?	6127-41-4112	VALVE,INTAKE	12	SN: 11383-11384
?		(6127-41-4113,6127-40-4501(2))	-1
?	6127-41-4211	VALVE,EXHAUST	12	SN: 11383-11384
?		(6127-41-4214,6127-40-4501(2))	-1
?	6127-41-4410	SPRING	24	SN: 11383-11384
?	6127-41-4530	SEAT	12	SN: 11383-11384
?	6127-41-4541	SEAL (K1)	12	SN: 11383-11384
?	6127-40-4500	VALVE COTTER ASS'Y	24	SN: 11383-11384
?	6127-41-4521	COTTER	2	SN: 11383-11384
?	6127-41-4510	SEAT	1	SN: 11383-11384
?	6127-11-1084	GASKET ASS'Y (K1)	3	SN: 11383-11384
?		GASKET	1	SN: 11383-11384
?	6127-11-1824	RING	2	SN: 11383-11384
?	6127-11-1830	GROMMET	1	SN: 11383-11384
?	6127-11-1841	GROMMET	8	SN: 11383-11384
?	6127-11-1840	GROMMET	8	SN: 11383-11384
?	6127-11-1851	RETAINER	8	SN: 11383-11384
?	6127-11-1410	COVER	3	SN: 11383-11384
?	6110-61-6831	GASKET (K1)	2	SN: 11383-11384
?	01010-31030	BOLT	4	SN: 11383-11384
?	01602-01030	WASHER	4	SN: 11383-11384
?	6127-11-1612	BOLT	30	SN: 11383-11384
?	6127-11-1620	WASHER	30	SN: 11383-11384
?	6127-41-5614	CROSSHEAD	12	SN: 11383-11384
?	6127-41-5641	SCREW	12	SN: 11383-11384
?	6127-41-5630	NUT	12	SN: 11383-11384
