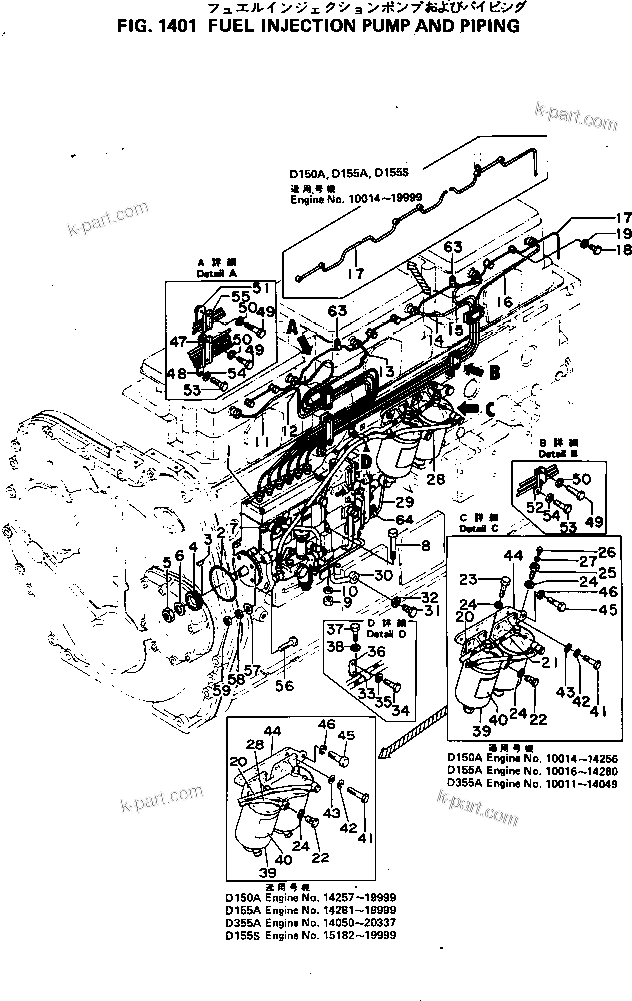

FUEL INJECTION PUMP AND PIPING | S6D155-4C S/N 10011-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6128-71-1030	INJECTION PUMP ASS'Y,(SEE FIG.1451)	1	SN: ..-UP
?	6128-71-1014	INJECTION PUMP ASS'Y,(SEE FIG.1451)	1	SN: 11710-..
?	6128-71-1013	INJECTION PUMP ASS'Y,(SEE FIG.1451)	1	SN: 11294-11709
?	6128-71-1012	INJECTION PUMP ASS'Y,(SEE FIG.1451)	1	SN: .-11293
?	6128-71-1011	INJECTION PUMP ASS'Y,(SEE FIG.1451)	1	SN: 10692-.
?	6128-71-1010	INJECTION PUMP ASS'Y,(SEE FIG.1451)	1	SN: (10011-10691)
?	6128-71-1002	INJECTION PUMP ASS'Y,(SEE FIG.1451)	1	SN: (10011-10112)
?	07000-02090	O-RING (K2)	1	SN: 10011-UP
?	04010-10519	KEY	1	SN: 10011-UP
?	6128-71-1210	COUPLING	1	SN: 10011-UP
?	01582-01815	NUT	1	SN: 10011-UP
?	01602-01854	WASHER	1	SN: 10011-UP
?	6127-71-1610	PIPE	1	SN: 10011-11709
?	6127-71-7110	BOLT	2	SN: 10011-UP
?	01582-01008	NUT	2	SN: 10011-UP
?	01602-01030	WASHER	2	SN: 10011-UP
?	6127-71-5170	PIPE,NO.1	1	SN: 10011-UP
?	6127-71-5122	PIPE,NO.2	1	SN: 10011-UP
?	6127-71-5132	PIPE,NO.3	1	SN: 10011-UP
?	6127-71-5142	PIPE,NO.4	1	SN: 10011-UP
?	6127-71-5180	PIPE,NO.5	1	SN: 10011-UP
?	6127-71-5190	PIPE,NO.6	1	SN: 10011-UP
?	6127-71-5311	PIPE	1	SN: 10011-UP
?	6127-11-3152	BOLT	6	SN: 10278-UP
?	6127-11-3151	BOLT	6	SN: 10011-10277
?	07005-00812	SEAL, WASHER (K1)	12	SN: 12525-UP
?	6127-11-3160	GASKET	12	SN: 10011-12524
?	07271-01460	HOSE	1	SN: 14050-UP
?	6121-71-5630	HOSE	1	SN: 10011-14049
?	600-782-1770	HOSE,(B)	1	SN: 10011-14049
?	6120-71-5620	HOSE	2	SN: 10011-14049
?	600-782-1760	HOSE,(B)	2	SN: 10011-14049
?	07206-11014	BOLT	2	SN: 14050-UP
?	07206-11014	BOLT	1	SN: 10278-14049
?	07206-01014	BOLT	1	SN: 10011-10277
?	6127-71-5710	BOLT	2	SN: 10278-14049
?	6120-71-5710	BOLT	2	SN: 10011-10277
?	07005-01412	SEAL, WASHER	4	SN: 14050-UP
?	07005-01412	SEAL, WASHER (K2)	10	SN: 10854-14049
?	07003-11419	GASKET (K2)	10	SN: 10011-10853
?	6110-73-6242	BOLT	1	SN: 13414-14049
?	6110-73-6241	BOLT	1	SN: 10278-13413
?	6110-73-6240	BOLT	1	SN: 10011-10277
?	6110-73-6231	PLUG	1	SN: 13414-14049
?	6110-73-6230	PLUG	1	SN: 10011-13413
?	07005-00812	SEAL, WASHER (K2)	1	SN: 13414-14049
?	6110-73-6830	GASKET (K2)	1	SN: 10011-13413
?	07271-11475	HOSE	1	SN: 14050-UP
?	6127-71-5641	HOSE	1	SN: 10278-14049
?	6127-71-5640	HOSE	1	SN: 10011-10277
?	600-782-1781	HOSE,(B)	1	SN: 10011-14049
?	6127-71-5811	PIPE	1	SN: 10011-UP
?	6127-71-5821	PIPE	1	SN: 10011-UP
?	07206-11014	BOLT	2	SN: 10278-UP
?	07206-01014	BOLT	2	SN: 10011-10277
?	07005-01412	SEAL, WASHER (K2)	4	SN: 10854-UP
?	07003-11419	GASKET (K2)	4	SN: 10011-10853
?	6128-71-5911	CLIP	1	SN: 10278-UP
?	6128-71-5910	CLIP	1	SN: 10011-10277
?	01010-31016	BOLT	1	SN: 10011-UP
?	01602-01030	WASHER	1	SN: 10011-UP
?	6127-71-5990	CLIP	1	SN: 10011-UP
?	01010-30810	BOLT	1	SN: 10278-UP
?	01000-30810	BOLT	1	SN: 10011-10277
?	01602-00825	WASHER	1	SN: 10011-UP
?	6127-71-6201	FUEL FILTER ASS'Y,(SEE FIG.1411A)	1	SN: 15053-UP
?	6127-71-6200	FUEL FILTER ASS'Y,(SEE FIG.1411A)	1	SN: 14050-15052
?	6127-71-6100	FUEL FILTER ASS'Y,(SEE FIG.1411)	2	SN: 13332-14049
?	6110-73-6101	FUEL FILTER ASS'Y,(SEE FIG.1411)	2	SN: 10278-13331
?	6110-73-6100	FUEL FILTER ASS'Y,(SEE FIG.1411)	2	SN: 10011-10277
?	6110-73-6900	FUEL FILTER ASS'Y,(SEE FIG.1411)(B)	2	SN: 10011-14049
?	09643-00100	PLATE, CAUTION	1	SN: 10278-UP
?	6110-81-2154	PLATE, CAUTION	1	SN: 10011-10277
?	01010-31025	BOLT	4	SN: 10011-UP
?	01640-21016	WASHER	4	SN: 10011-UP
?	01602-01030	WASHER	4	SN: 10011-UP
?	6128-21-6311	BRACKET	1	SN: 10011-UP
?	01010-31025	BOLT	4	SN: 10011-UP
?	01602-01030	WASHER	4	SN: 10011-UP
?	6127-71-5411	CLAMP	1	SN: 10047-UP
?	6127-71-5410	CLAMP	1	SN: 10011-10046
?	6127-71-5422	CLAMP	1	SN: 10047-UP
?	6127-71-5421	CLAMP	1	SN: 10011-10046
?	01010-30830	BOLT	8	SN: 10278-UP
?	01000-30830	BOLT	8	SN: 10011-10277
?	01602-00825	WASHER	8	SN: 10014-UP
?	6127-71-5441	CLAMP	2	SN: 10278-UP
?	6127-71-5440	CLAMP	2	SN: 10011-10277
?	6127-71-5432	CLAMP	1	SN: 10278-UP
?	6127-71-5431	CLAMP	1	SN: 10011-10277
?	01010-31020	BOLT	2	SN: 10011-UP
?	01602-01030	WASHER	2	SN: 10011-UP
?	6127-71-5451	CLAMP	3	SN: 10278-UP
?	6127-71-5450	CLAMP	3	SN: 10011-10277
?	01050-31055	BOLT	4	SN: 10011-UP
?	01643-31032	WASHER	4	SN: 10011-UP
?	01602-01030	WASHER	4	SN: 10011-UP
?	01582-01008	NUT	4	SN: 10011-UP
?	6127-71-5380	CLAMP	2	SN: 10011-UP
?	6124-51-9520	CLIP	1	SN: 10011-UP
