#	Part Number	Partname	Quantity	Options

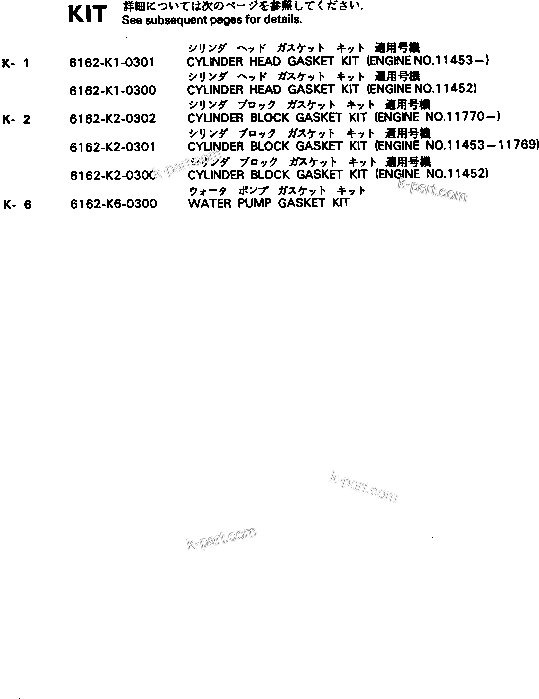

?	6162-K1-0301	GASKET KIT,CYLINDER HEAD	1	SN: 11453-UP
?	6162-K1-0300	GASKET KIT,CYLINDER HEAD	1	SN: 11452-11452
?	6162-12-1152	O-RING,SLEEVE	6	SN: 11452-UP
?	07000-63028	O-RING,PUSH ROD	12	SN: 11452-UP
?	6162-13-1810	GASKET,CYLINDER HEAD	6	SN: 11452-UP
?	6162-13-7810	GASKET,ROCKER ARM HOUSING	6	SN: 11452-UP
?	6162-13-7821	PACKING,ROCKER ARM HOUSING	6	SN: 11452-UP
?	6162-13-8810	GASKET,ROCKER ARM HOUSING COVER	6	SN: 11452-UP
?	6162-13-8180	PACKING,NOZZLE HOLDER	6	SN: 11452-UP
?	6162-63-6240	O-RING,AFTER COOLER	4	SN: 11452-UP
?	6162-13-4720	GASKET,AFTER COOLER CORE	2	SN: 11452-UP
?	6128-61-6830	GASKET,AFTER COOLER	2	SN: 11452-UP
?	07005-01412	GASKET,AFTER COOLER	2	SN: 11452-UP
?	6162-13-4810	GASKET,INTAKE MANIFOLD	6	SN: 11452-UP
?	6162-13-4740	GASKET,AIR CONNECTOR	1	SN: 11452-UP
?	02895-67091	O-RING,AIR CONNECTOR	4	SN: 11452-UP
?	6127-81-4821	GASKET,AIR CLEANER	2	SN: 11452-UP
?	02895-67116	O-RING,AIR CONNECTOR	2	SN: 11452-UP
?	6162-13-5810	GASKET,EXHAUST MANIFOLD	6	SN: 11452-UP
?	6162-83-2810	GASKET,TURBOCHARGER MOUNTING	1	SN: 11452-UP
?	07000-63095	O-RING,TURBOCHARGER	1	SN: 11452-UP
?	6501-11-1650	WASHER,LOCK	4	SN: 11452-UP
?	07000-05065	O-RING,WATER MANIFOLD	12	SN: 11452-UP
?	07005-01612	GASKET,THERMOSTAT HOUSING	2	SN: 11452-UP
?	6162-13-6570	GASKET,WATER PIPING	1	SN: 11452-UP
?	07000-02070	O-RING,WATER PIPING	1	SN: 11452-UP
?	6162-13-6440	SEAL,THERMOSTAT	2	SN: 11452-UP
?	6162-13-6430	GASKET,THERMOSTAT HOUSING	1	SN: 11452-UP
?	6162-13-6480	GASKET,THERMOSTAT HOUSING	1	SN: 11452-UP
?	6128-11-6811	GASKET,WATER PIPING	1	SN: 11452-UP
?	07000-03038	O-RING,WATER PIPING	4	SN: 11452-UP
?	6128-61-6830	GASKET,WATER PIPING	2	SN: 11452-UP
?	07000-03038	O-RING,WATER PIPING	3	SN: 11452-UP
?	195-03-14380	GASKET,WATER PIPING	1	SN: 11452-UP
?	02893-05043	O-RING,WATER PIPING	2	SN: 11452-UP
?	6127-51-6821	GASKET,OIL PIPING	2	SN: 11452-UP
?	6128-51-8151	GASKET,OIL PIPING	1	SN: 11452-UP
?	6675-11-4960	GASKET,APS	2	SN: 11452-UP
?	6162-K2-0302	GASKET KIT,CYLINDER BLOCK	1	SN: 11770-UP
?	6162-K2-0301	GASKET KIT,CYLINDER BLOCK	1	SN: 11453-11769
?	6162-K2-0300	GASKET KIT,CYLINDER BLOCK	1	SN: 11452-11452
?	6128-11-6811	GASKET,WATER PIPING	1	SN: 11452-UP
?	6128-11-6811	GASKET,WATER PIPING	1	SN: 11452-UP
?	07000-03038	O-RING,WATER PIPING	4	SN: 11452-UP
?	6162-63-2160	GASKET,WATER PIPING	1	SN: 11452-UP
?	07000-02070	O-RING,WATER PIPING	1	SN: 11452-UP
?	07000-02075	O-RING,WATER PIPING	1	SN: 11452-UP
?	07005-01412	GASKET,CYLINDER BLOCK	2	SN: 11452-UP
?	07005-01012	GASKET,CYLINDER BLOCK	1	SN: 11452-UP
?	6162-23-2250	SEAL,CREVICE ? CYLINDER LINER	6	SN: 11452-UP
?	6162-23-2220	O-RING,CENTER ? CYLINDER LINER	6	SN: 11452-UP
?	6162-23-2240	O-RING,LOWER ? CYLINDER LINER	6	SN: 11452-UP
?	07000-62016	O-RING,PISTON COOLING NOZZLE	6	SN: 11452-UP
?	6162-23-6520	GASKET,OIL FILLER	1	SN: 11452-UP
?	6127-51-6821	GASKET,CYLINDER BLOCK	1	SN: 11452-UP
?	07000-03045	O-RING,BREATHER	1	SN: 11452-UP
?	07000-02012	O-RING,OIL GAUGE	1	SN: 11452-UP
?	6162-23-3250	GASKET,GEAR CASE COVER	1	SN: 11452-UP
?	6162-23-3290	GASKET,COVER	1	SN: 11452-UP
?	07000-01009	O-RING,COVER	1	SN: 11452-UP
?	6162-23-3510	SEAL ? FRONT	1	SN: 11452-UP
?	07000-65175	O-RING,TRUNNION	1	SN: 11452-UP
?	6162-23-3810	GASKET,GEAR CASE	1	SN: 11452-UP
?	07000-01009	O-RING,GEAR CASE	1	SN: 11452-UP
?	07000-63028	O-RING,OIL DRAIN VALVE	1	SN: 11452-UP
?	6127-21-4813	GASKET,FLYWHEEL HOUSING	1	SN: 11452-UP
?	6162-23-4250	SEAL ? REAR	1	SN: 11452-UP
?	07016-00306	SEAL,DUST	1	SN: 11452-UP
?	6162-23-4940	GASKET,FLYWHEEL HOUSING	1	SN: 11452-UP
?	07000-62015	O-RING,OIL PUMP	1	SN: 11452-UP
?	6111-61-6810	GASKET,OIL SUCTION PIPE	1	SN: 11452-UP
?	07000-63042	O-RING,OIL PIPE	1	SN: 11452-UP
?	6127-51-6821	GASKET,OIL PIPE	1	SN: 11452-UP
?	07005-01612	GASKET,OIL FILTER	1	SN: 11452-11769
?	6162-53-5450	PACKING,OIL FILTER	1	SN: 11452-UP
?	6162-53-5430	PACKING,OIL FILTER	1	SN: 11452-UP
?	6162-53-5530	PACKING,OIL ADAPTER	1	SN: 11452-UP
?	07000-63050	O-RING,OIL ADAPTER	2	SN: 11452-UP
?	07000-63028	O-RING,OIL ADAPTER	2	SN: 11452-UP
?	07000-63050	O-RING,OIL FILTER	2	SN: 11452-UP
?	6127-51-6821	GASKET,OIL PIPING	2	SN: 11452-UP
?	MK-2M-36E-215	O-RING,MECHANICAL PUMP MOUNTING	1	SN: 11452-UP
?	07005-00812	GASKET,MECHANICAL PUMP PIPING	8	SN: 11452-UP
?	6162-63-2280	GASKET,OIL COOLER	2	SN: 11453-UP
?	6162-63-2190	GASKET,OIL COOLER	2	SN: 11452-11452
?	6162-63-2290	O-RING,OIL COOLER	2	SN: 11453-UP
?	6162-63-2131	GASKET,OIL COOLER	1	SN: 11452-UP
?	6162-63-2180	GASKET,OIL COOLER	1	SN: 11452-UP
?	07000-63030	O-RING,BYPASS VALVE	1	SN: 11452-UP
?	6162-63-5740	GASKET,BYPASS VALVE	1	SN: 11452-UP
?	6162-63-6730	GASKET,BYPASS VALVE	1	SN: 11452-UP
?	07000-03115	O-RING,INJECTION PUMP DRIVE HOUSING	1	SN: 11452-UP
?	07000-02012	O-RING,INJECTION PUMP DRIVE HOUSING	1	SN: 11452-UP
?	6127-71-3250	SEAL,OIL	1	SN: 11452-UP
?	6162-73-1960	WASHER,FELT	1	SN: 11452-UP
?	6162-73-1930	GASKET,INJECTION PUMP DRIVE HOUSING	1	SN: 11452-UP
?	07005-01412	GASKET,OIL PIPING	2	SN: 11452-UP
?	07005-01412	GASKET,OIL PIPING	4	SN: 11452-UP
?	07005-00812	GASKET,FUEL FILTER	2	SN: 11452-UP
?	07005-01412	GASKET,FUEL PIPING	8	SN: 11452-UP
?	08034-00414	BAND,FUEL PIPING	1	SN: 11452-UP
?	07002-04234	O-RING,FUEL FILTER	1	SN: 11452-UP
?	07005-01412	GASKET,FUEL PIPING	2	SN: 11452-UP
?	6128-81-4620	GASKET,APS	2	SN: 11452-UP
?	600-815-2190	GASKET,GLOW PLUG	2	SN: 11452-UP
?	6675-11-4960	GASKET,APS	2	SN: 11452-UP
?	6162-63-1810	GASKET,WATER PUMP MOUNTING	1	SN: 11452-UP
?	04081-05012	LOCK,FAN PULLEY	1	SN: 11452-UP
?	6162-63-3270	GASKET,FAN PULLEY	1	SN: 11452-UP
?	07012-00050	SEAL,OIL	1	SN: 11452-UP
?	6127-61-3790	LOCK,TENSION PULLEY	1	SN: 11452-UP
?	07000-02075	O-RING,TENSION PULLEY	1	SN: 11452-UP
?	6162-63-8130	GASKET,CORROSION RESISTOR	1	SN: 11452-UP
?	07012-20048	SEAL,OIL	1	SN: 11452-UP
?	07000-62095	O-RING,ALTERNATOR DRIVE	1	SN: 11452-UP
?	07000-01009	O-RING,ALTERNATOR DRIVE	1	SN: 11452-UP
?	6610-81-2210	GASKET,STARTING MOTOR	2	SN: 11452-UP
?	6162-K6-0300	GASKET KIT,WATER PUMP	1	SN: 11452-UP
?	02893-05043	O-RING,WATER PIPING	2	SN: 11452-UP
?	6162-63-2160	GASKET,WATER PIPING	1	SN: 11452-UP
?	07000-02070	O-RING,WATER PIPING	1	SN: 11452-UP
?	07000-02075	O-RING,WATER PIPING	1	SN: 11452-UP
?	6162-63-1570	SEAL,WATER PUMP	1	SN: 11452-UP
?	6162-63-1511	SEAL ? WATER	1	SN: 11452-UP
?	07000-05145	O-RING,WATER PUMP HOUSING	1	SN: 11452-UP
?	07000-62012	O-RING,WATER PUMP HOUSING	1	SN: 11452-UP
?	6162-63-1810	GASKET,WATER PUMP MOUNTING	1	SN: 11452-UP
?	6693-62-9241	GASKET,RADIATOR PIPING	1	SN: 11452-UP
?	07012-20048	SEAL,OIL	1	SN: 11452-UP
?	07000-62095	O-RING,ALTERNATOR DRIVE	1	SN: 11452-UP
?	07000-01009	O-RING,ALTERNATOR DRIVE	1	SN: 11452-UP
