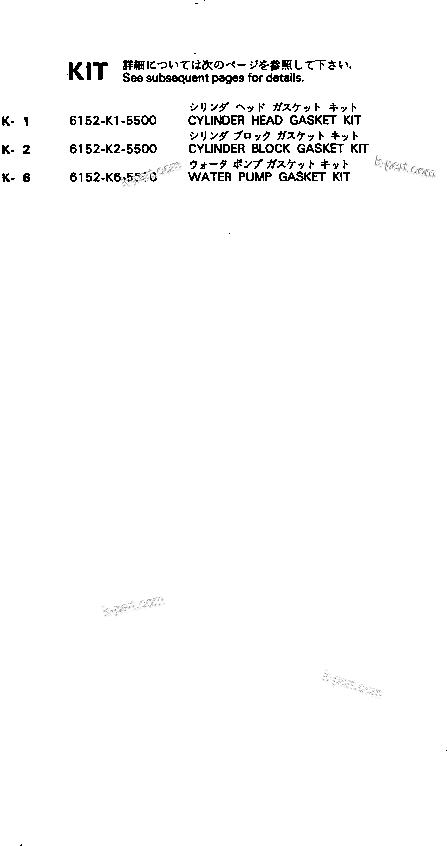

GASKET KIT | SA6D125-1T S/N 31492-UP | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6152-K1-5500	GASKET KIT,CYLINDER HEAD	1	SN: 31492-UP
?	6140-41-4540	SEAL,EXHAUST VALVE	12	SN: 31492-UP
?	6150-17-1812	GASKET,CYLINDER HEAD	6	SN: 31492-UP
?	6150-11-7810	GASKET,ROCKER ARM HOUSING	6	SN: 31492-UP
?	6150-11-8810	GASKET,ROCKER ARM HOUSING COVER	6	SN: 31492-UP
?	6150-11-8820	RUBBER,ROCKER ARM HOUSING COVER	24	SN: 31492-UP
?	6162-63-6240	O-RING,AFTER COOLER	4	SN: 31492-UP
?	6152-11-4710	GASKET,AFTER COOLER	2	SN: 31492-UP
?	6152-11-4720	GASKET,AIR CONNECTOR	1	SN: 31492-UP
?	6150-11-4810	GASKET,AIR INTAKE MANIFOLD	12	SN: 31492-UP
?	6127-81-4821	GASKET,AIR CLEANER	1	SN: 31492-UP
?	6150-11-5810	GASKET,EXHAUST MANIFOLD	6	SN: 31492-UP
?	6152-11-5250	RING,SEAL	2	SN: 31492-UP
?	6151-11-5710	GASKET,TURBOCHARGER	1	SN: 31492-UP
?	6150-11-5750	GASKET,EXHAUST CONNECTOR	2	SN: 31492-UP
?	6151-11-5270	RING,EXHAUST CONNECTOR	1	SN: 31492-UP
?	6150-11-5750	GASKET,EXHAUST CONNECTOR	1	SN: 31492-UP
?	07005-01612	GASKET,THERMOSTAT HOUSING	1	SN: 31492-UP
?	02893-05043	O-RING,WATER MANIFOLD	6	SN: 31492-UP
?	6150-11-6310	GASKET,WATER MANIFOLD	6	SN: 31492-UP
?	6138-11-6810	GASKET,THERMOSTAT	2	SN: 31492-UP
?	6152-61-6720	GASKET,WATER PIPING	1	SN: 31492-UP
?	07000-02021	O-RING,WATER PIPING	1	SN: 31492-UP
?	6152-61-6720	GASKET,WATER PIPING	1	SN: 31492-UP
?	07000-02021	O-RING,WATER PIPING	1	SN: 31492-UP
?	07000-03030	O-RING,WATER PIPING	1	SN: 31492-UP
?	6151-51-8160	GASKET,OIL PIPING	1	SN: 31492-UP
?	07005-01412	GASKET,OIL PIPING	2	SN: 31492-UP
?	6151-51-8150	GASKET,OIL PIPING	1	SN: 31492-UP
?	07005-00812	GASKET,NOZZLE HOLDER	12	SN: 31492-UP
?	07000-65065	O-RING,NOZZLE HOLDER	6	SN: 31492-UP
?	07005-01012	GASKET,NOZZLE HOLDER	12	SN: 31492-UP
?	6150-61-6830	GASKET,WATER CONNECTOR	1	SN: 31492-UP
?	08034-00414	BAND	1	SN: 31492-UP
?	6152-K2-5500	GASKET KIT,CYLINDER BLOCK	1	SN: 31492-UP
?	07002-22434	O-RING,CYLINDER BLOCK	1	SN: 31492-UP
?	07002-23034	O-RING,CYLINDER BLOCK	1	SN: 31492-UP
?	6150-21-1190	O-RING,CYLINDER BLOCK	2	SN: 31492-UP
?	6150-21-2230	O-RING,LOWER ? CYLINDER LINER	6	SN: 31492-UP
?	6150-21-2240	O-RING,UPPER ? CYLINDER LINER	6	SN: 31492-UP
?	6150-21-2250	SEAL,CREVICE ? CYLINDER LINER	6	SN: 31492-UP
?	07005-01412	GASKET,CYLINDER BLOCK	1	SN: 31492-UP
?	07005-01012	GASKET,CYLINDER BLOCK	1	SN: 31492-UP
?	6114-21-5190	O-RING,BREATHER	1	SN: 31492-UP
?	6150-21-6460	O-RING,CYLINDER BLOCK COVER	3	SN: 31492-UP
?	6136-11-8142	PACKING,CYLINDER BLOCK COVER	9	SN: 31492-UP
?	6150-21-3230	SEAL ? FRONT	1	SN: 31492-UP
?	6150-71-1910	SEAL,TACHOMETER DRIVE	1	SN: 31492-UP
?	6162-73-1960	WASHER,FELT	1	SN: 31492-UP
?	07000-03030	O-RING,TACHOMETER DRIVE	1	SN: 31492-UP
?	07000-02020	O-RING,TACHOMETER DRIVE	1	SN: 31492-UP
?	6130-82-5270	GASKET,CAP	1	SN: 31492-UP
?	07005-02416	GASKET,OIL DRAIN VALVE	1	SN: 31492-UP
?	07000-63028	O-RING,OIL DRAIN VALVE	1	SN: 31492-UP
?	07005-01612	GASKET,OIL PAN	3	SN: 31492-UP
?	6150-21-5811	GASKET,OIL PAN	1	SN: 31492-UP
?	6150-21-4230	SEAL ? REAR	1	SN: 31492-UP
?	6150-51-1710	RING,OIL PUMP	1	SN: 31492-UP
?	6150-51-1720	RING,OIL PUMP	1	SN: 31492-UP
?	07000-63045	O-RING,OIL STRAINER	1	SN: 31492-UP
?	6162-53-5430	PACKING,OIL FILTER	1	SN: 31492-UP
?	07000-63028	O-RING,OIL ADAPTER	1	SN: 31492-UP
?	07000-63035	O-RING,OIL ADAPTER	1	SN: 31492-UP
?	07000-62020	O-RING,OIL ADAPTER	1	SN: 31492-UP
?	07000-62015	O-RING,OIL ADAPTER	1	SN: 31492-UP
?	07000-63028	O-RING,OIL ADAPTER	1	SN: 31492-UP
?	6124-61-2181	GROMMET,OIL FILTER	3	SN: 31492-UP
?	6150-61-2510	O-RING,OIL COOLER	2	SN: 31492-UP
?	6150-61-2560	GASKET,OIL COOLER	2	SN: 31492-UP
?	6150-61-2550	O-RING,OIL COOLER	1	SN: 31492-UP
?	6150-61-2540	SEAL,THERMOSTAT	1	SN: 31492-UP
?	07000-63042	O-RING,OIL COOLER	1	SN: 31492-UP
?	6150-61-2812	GASKET,OIL COOLER	1	SN: 31492-UP
?	6151-71-3150	SEAL,OIL	1	SN: 31492-UP
?	07000-02125	O-RING,INJECTION PUMP	1	SN: 31492-UP
?	07005-01012	GASKET,INJECTION PUMP PIPING	2	SN: 31492-UP
?	07005-01412	GASKET,INJECTION PUMP PIPING	2	SN: 31492-UP
?	07005-01412	GASKET,INJECTION PUMP PIPING	2	SN: 31492-UP
?	07005-01412	GASKET,INJECTION PUMP PIPING	2	SN: 31492-UP
?	08034-00414	BAND,FUEL PIPING	1	SN: 31492-UP
?	07005-00812	GASKET,FUEL FILTER	2	SN: 31492-UP
?	07005-01412	GASKET,FUEL PIPING	8	SN: 31492-UP
?	08034-00414	BAND,FUEL PIPING	2	SN: 31492-UP
?	6610-81-2210	GASKET,STARTING MOTOR	1	SN: 31492-UP
?	6152-K6-5500	GASKET KIT,WATER PUMP	1	SN: 31492-UP
?	6150-61-1510	SEAL,OIL	1	SN: 31492-UP
?	6150-61-1520	SEAL ? WATER	1	SN: 31492-UP
?	6151-61-1161	GASKET,WATER PUMP COVER	1	SN: 31492-UP
?	07000-02115	O-RING,WATER PUMP MOUNTING	1	SN: 31492-UP
?	6150-61-1820	GASKET,WATER CONNECTOR	2	SN: 31492-UP
?	07005-01412	GASKET,WATER CONNECTOR	1	SN: 31492-UP
?	6150-61-6910	GASKET,WATER CONNECTOR	1	SN: 31492-UP
