SAA4D95LE-5L-W S/N 500001-UP

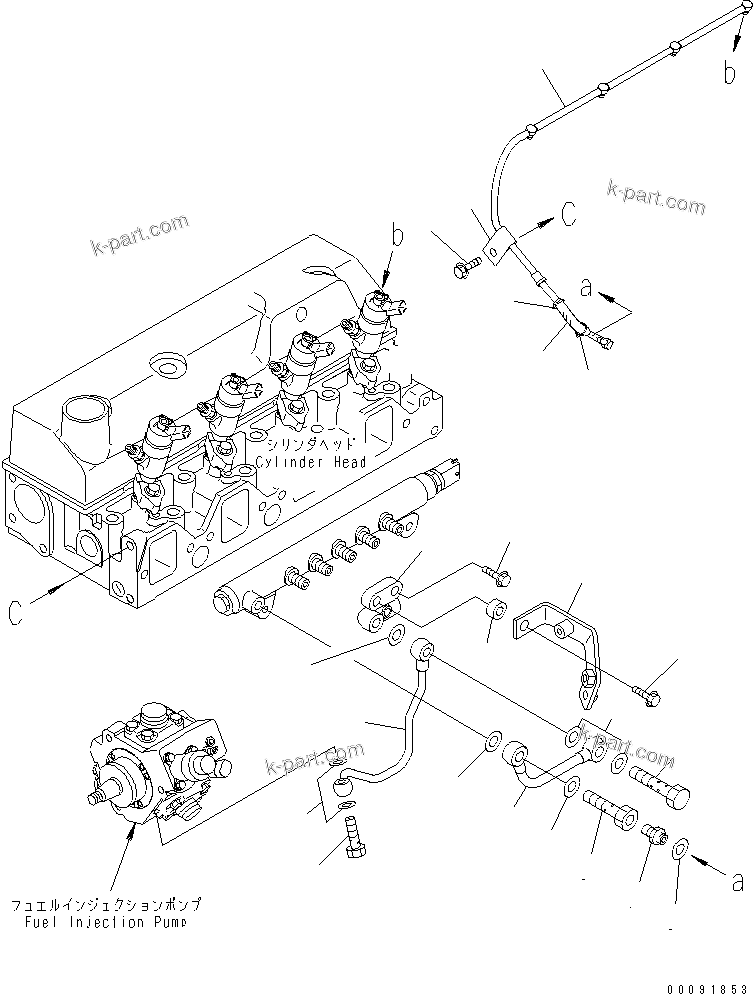

Komatsu parts book diagram for SAA4D95LE-5L-W S/N 500001-UP: FUEL INJECTION PIPING(#511213-)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	6271-71-7800	HOSE ASS'Y	1	SN: 511213-UP
	?	6271-71-9890	HOSE	1	SN: 511213-UP
	?	08034-20414	BAND	2	SN: 511213-UP
	?	01435-01014	BOLT	1	SN: 511213-UP
	?	6204-51-8920	CLIP	1	SN: 511213-UP
	?	6161-51-8990	JOINT	1	SN: 511213-UP
	?	6271-71-7211	JOINT	1	SN: 511213-UP
	?	6271-71-7990	PIN	1	SN: 511213-UP
	?	6271-71-5520	ADAPTER	1	SN: 511213-UP
	?	6131-12-5920	SPACER	1	SN: 511213-UP
	?	01435-01045	BOLT	1	SN: 511213-UP
	?	01435-01025	BOLT	1	SN: 511213-UP
	?	6271-71-5510	TUBE	1	SN: 511213-UP
	?	6271-71-5530	TUBE	1	SN: 511213-UP
	?	6127-71-5710	BOLT	1	SN: 511213-UP
	?	07005-01412	SEAL, WASHER	5	SN: 511213-UP \| KIT-FLAG: S
	?	07206-30812	BOLT	1	SN: 511213-UP
	?	07005-01212	SEAL, WASHER	2	SN: 511213-UP \| KIT-FLAG: S
	?	6271-21-5850	BRACKET	1	SN: 511213-UP

Komatsu SAA4D95LE-5L-W S/N 500001-UP parts catalog PDF

FUEL INJECTION PIPING(#511213-) (A411S-01D5) in SAA4D95LE-5L-W S/N 500001-UP. Diagram image and parts list.
