PC78MR-6 S/N 1001-UP (For North America)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	708-3T-00252	PUMP ASS'Y	1	SN: 4148-UP
?		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-21A0A TO Y1600-24A0A .	-1
?	708-3T-01252	PUMP SUB ASS'Y	1	SN: 4148-UP
?	708-3T-04240	CASE ASS'Y	1	SN: 4148-UP
?		CASE,PUMP	1	SN: 4148-UP
?		PLUG	19	SN: 4148-UP
?		ORIFICE	1	SN: 1001-UP
?	07044-12412	PLUG	1	SN: 1001-UP
?	07002-62434	O-RING	1	SN: 1001-UP
?	04530-11018	BOLT,EYE	1	SN: 1001-UP
?	720-68-19610	PIN	1	SN: 1001-UP
?	708-3T-14151	PLUG	2	SN: 1001-UP
?	708-3T-14170	BALL	2	SN: 1001-UP
?	708-3T-14160	SEAT	2	SN: 1001-UP
?	07002-61023	O-RING	2	SN: 1001-UP
?	708-8E-16150	PLUG	3	SN: 1001-UP
?	07002-61023	O-RING	3	SN: 1001-UP
?	708-3T-04190	PLUG SUB ASS'Y	1	SN: 1001-UP
?		PLUG	1	SN: 1001-UP
?		PLUG	1	SN: 1001-UP
?		SEAL	2	SN: 1001-UP
?	07002-11223	O-RING	1	SN: 1001-UP
?	708-1L-25210	PLUG	2	SN: 1001-UP
?	07002-11423	O-RING	2	SN: 1001-UP
?	708-3T-12240	SHAFT	1	SN: 1001-UP
?	708-1W-22140	BEARING	1	SN: 1001-UP
?	708-23-05011	WASHER KIT	1	SN: 1001-UP
?		WASHER, 2.60MM	1	SN: 1001-UP
?		WASHER, 2.70MM	1	SN: 1001-UP
?		WASHER, 2.80MM	1	SN: 1001-UP
?		WASHER, 2.50MM	1	SN: 1001-UP
?	708-23-12840	RING,SNAP	1	SN: 1001-UP
?	708-1W-22320	BEARING	1	SN: 1001-UP
?	708-8D-12221	SEAL,OIL	1	SN: 1001-UP
?	708-3T-12210	CASE	1	SN: 1001-UP
?	07000-F2065	O-RING	1	SN: 4148-UP
?	04065-07225	RING,SNAP	1	SN: 1001-UP

Komatsu PC78MR-6 S/N 1001-UP (For North America) parts catalog PDF

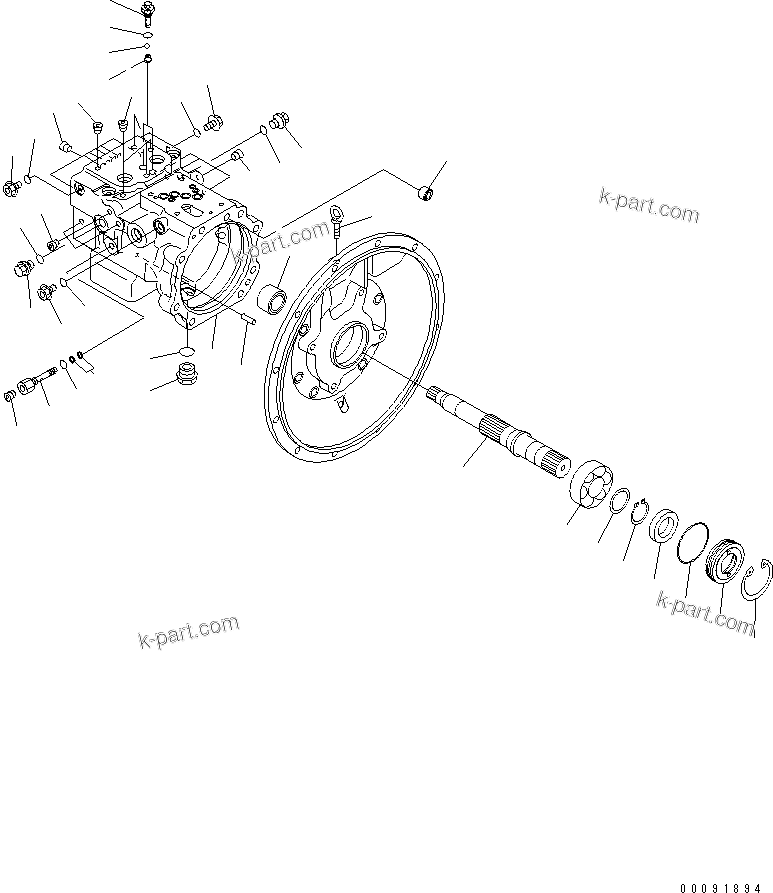

PISTON PUMP (1/4) (BLADE) (ENGLISH)(#4148-) (Y1600-21A0A) in PC78MR-6 S/N 1001-UP (For North America). Diagram image and parts list.
