4D95S-W-1F-Q S/N 23318-UP

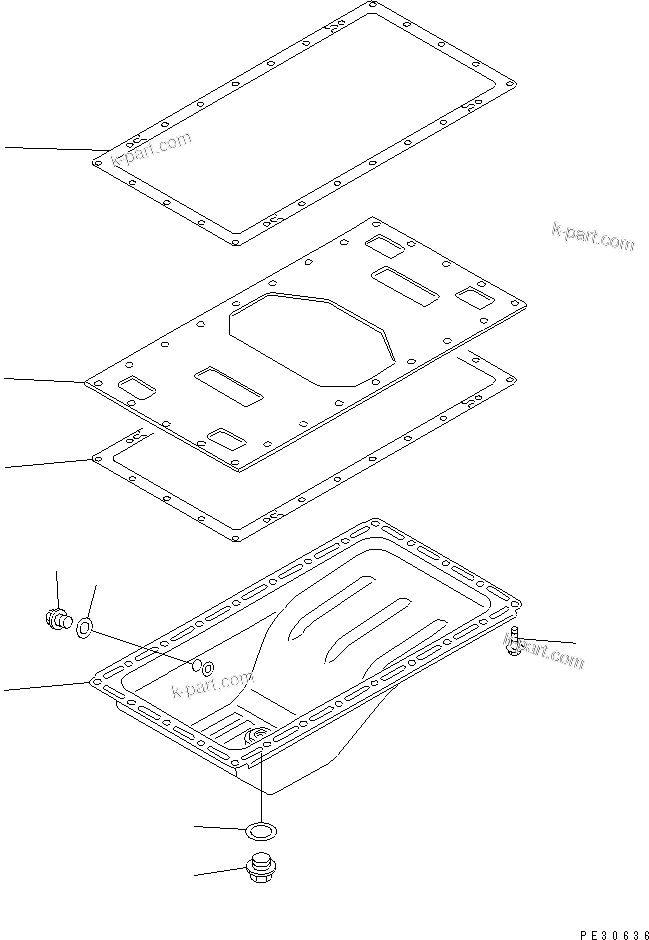

Komatsu parts book diagram for 4D95S-W-1F-Q S/N 23318-UP: OIL PAN (DOUBLE BOTTOM TYPE)(#74639-)

? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	6204-21-5260	PAN,OIL	1	SN: 36389-UP
	?	6204-21-5150	PLATE,UNDER	1	SN: 36389-UP
	?	6204-21-5811	GASKET (K2)	2	SN: 74639-UP
	?	6204-21-5180	PLUG,DRAIN	1	SN: 36389-UP
	?	07005-02216	SEAL, WASHER (K2)	1	SN: 42812-UP
	?	6202-63-1250	BOLT	1	SN: 36389-UP
	?	07005-01612	SEAL, WASHER (K2)	1	SN: 36389-UP
	?	01435-00820	BOLT	24	SN: 52472-UP

Komatsu 4D95S-W-1F-Q S/N 23318-UP parts catalog PDF

OIL PAN (DOUBLE BOTTOM TYPE)(#74639-) (0215A) in 4D95S-W-1F-Q S/N 23318-UP. Diagram image and parts list.
