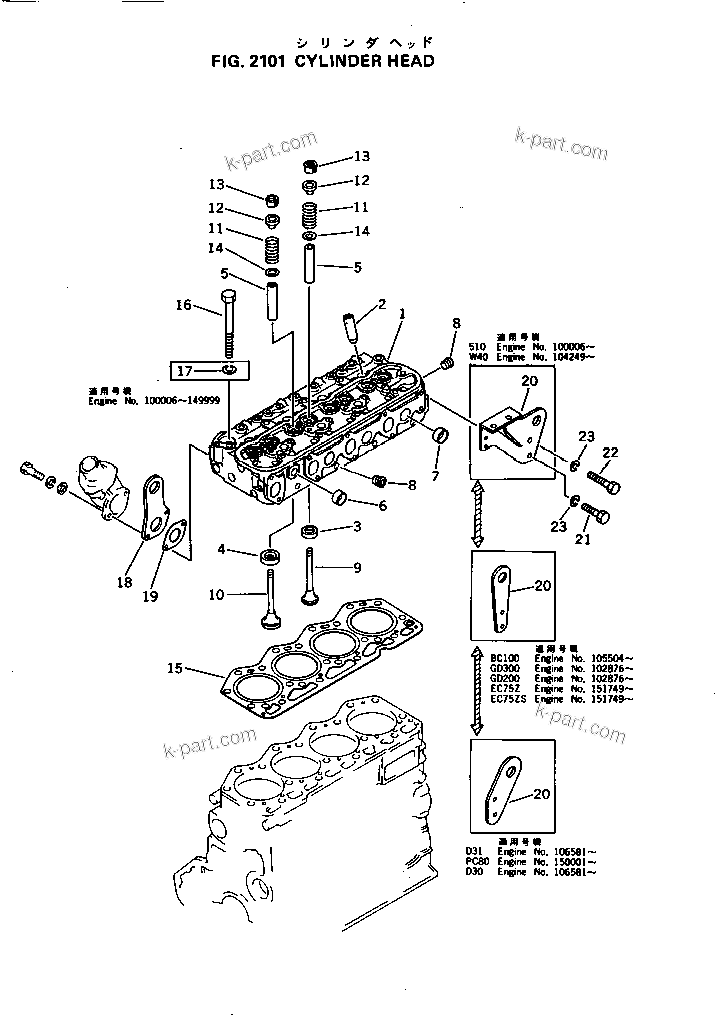

CYLINDER HEAD | 4D105-5J S/N 102876-UP | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6134-12-1011	CYLINDER HEAD ASS'Y,WITH VALVE	1	SN: .-UP
?	6134-12-1010	CYLINDER HEAD ASS'Y,WITH VALVE	1	SN: 150001-.
?	6134-11-1011	CYLINDER HEAD ASS'Y,WITH VALVE	1	SN: 102876-149999
?	6134-12-1101	CYLINDER HEAD ASS'Y,VALVE LESS	1	SN: .-UP
?	6134-12-1100	CYLINDER HEAD ASS'Y,VALVE LESS	1	SN: 150001-.
?	6134-11-1101	CYLINDER HEAD ASS'Y,VALVE LESS	1	SN: 102876-149999
?		HEAD,CYLINDER	1	SN: 150568-UP
?		HEAD,CYLINDER	1	SN: 150001-150567
?		HEAD,CYLINDER	1	SN: 105850-149999
?		HEAD,CYLINDER	1	SN: 102876-105849
?	6136-11-1130	SLEEVE,HOLDER	4	SN: 102876-UP
?	6136-12-1310	SEAT,INTAKE VALVE (STD)	4	SN: 150001-UP
?	6136-11-1310	SEAT,INTAKE VALVE (STD)	4	SN: 102876-149999
?	6136-19-1410	SEAT ? 0.25MM,INTAKE VALVE (OS)	4	SN: 150001-UP
?	6134-19-1310	SEAT ? 0.25MM,INTAKE VALVE (OS)	4	SN: 102876-149999
?	6136-18-1410	SEAT ? 0.50MM,INTAKE VALVE (OS)	4	SN: 150001-UP
?	6134-18-1310	SEAT ? 0.50MM,INTAKE VALVE (OS)	4	SN: 102876-149999
?	6136-17-1410	SEAT ? 0.75MM,INTAKE VALVE (OS)	4	SN: 150001-UP
?	6134-17-1310	SEAT ? 0.75MM,INTAKE VALVE (OS)	4	SN: 102876-149999
?	6136-16-1410	SEAT ? 1.00MM,INTAKE VALVE (OS)	4	SN: 150001-UP
?	6134-16-1310	SEAT ? 1.00MM,INTAKE VALVE (OS)	4	SN: 102876-149999
?	6136-12-1320	SEAT,EXHAUST VALVE (STD)	4	SN: 150001-UP
?	6134-11-1320	SEAT,EXHAUST VALVE (STD)	4	SN: 102876-149999
?	6136-19-1420	SEAT ? 0.25MM,EXHAUST VALVE (OS)	4	SN: 150001-UP
?	6134-19-1320	SEAT ? 0.25MM,EXHAUST VALVE (OS)	4	SN: 102876-149999
?	6136-18-1420	SEAT ? 0.50MM,EXHAUST VALVE (OS)	4	SN: 150001-UP
?	6134-18-1320	SEAT ? 0.50MM,EXHAUST VALVE (OS)	4	SN: 102876-149999
?	6136-17-1420	SEAT ? 0.75MM,EXHAUST VALVE (OS)	4	SN: 150001-UP
?	6134-17-1320	SEAT ? 0.75MM,EXHAUST VALVE (OS)	4	SN: 102876-149999
?	6136-16-1420	SEAT ? 1.00MM,EXHAUST VALVE (OS)	4	SN: 150001-UP
?	6134-16-1320	SEAT ? 1.00MM,EXHAUST VALVE (OS)	4	SN: 102876-149999
?	6136-19-1430	GUIDE,VALVE	8	SN: 150001-UP
?	6136-19-1330	GUIDE,VALVE	8	SN: 102876-149999
?	07046-42816	PLUG	10	SN: 102876-UP
?	07046-44016	PLUG	3	SN: 102876-UP
?	07043-50108	PLUG	5	SN: 102876-UP
?	6136-42-4110	VALVE,INTAKE	4	SN: 150001-UP
?	6136-41-4110	VALVE,INTAKE	4	SN: 102876-149999
?	6136-42-4210	VALVE,EXHAUST	4	SN: 150001-UP
?	6136-41-4210	VALVE,EXHAUST	4	SN: 102876-149999
?	6136-42-4410	SPRING,VALVE	8	SN: 150001-UP
?	6136-41-4410	SPRING,VALVE	8	SN: 102876-149999
?	6136-42-4510	GUIDE,SPRING	8	SN: 150001-UP
?	6136-41-4510	GUIDE,SPRING	8	SN: 102876-149999
?	6136-42-4520	COTTER	16	SN: 150001-UP
?	6136-41-4520	COTTER	16	SN: 102876-149999
?	6136-41-4530	SEAT,SPRING	8	SN: 102876-UP
?	6134-11-1811	GASKET (K1)	1	SN: 102876-UP
?	6136-12-1610	BOLT	18	SN: 150001-UP
?	6136-11-1610	BOLT	18	SN: 102876-149999
?	6138-11-1621	WASHER	18	SN: 107305-149999
?	6138-11-1620	WASHER	18	SN: 102876-107304
?	6136-11-1910	HANGER,FRONT	1	SN: 102876-UP
?	6136-11-1821	GASKET (K1)	1	SN: 102876-UP
?	6136-11-1920	HANGER,REAR	1	SN: 102876-UP
?	01010-31025	BOLT	1	SN: 102876-UP
?	01010-31025	BOLT	1	SN: 102876-UP
?	01602-01030	WASHER,SPRING	2	SN: 102876-UP
