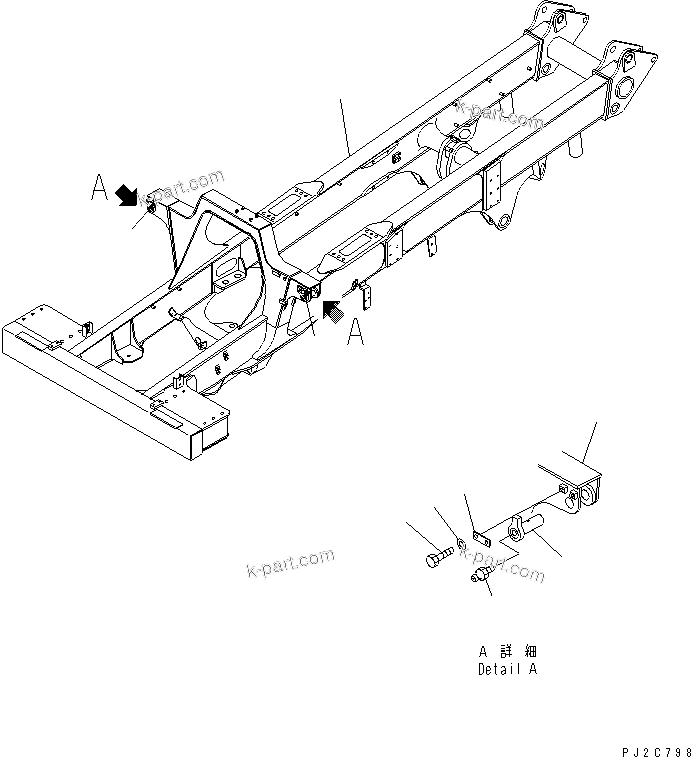

Komatsu parts book diagram for HD255-5 S/N 1001-UP: MAIN FRAME (WATER SEPARATOR ? STRAINER SPEC.)(#1201-)

? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	567-89-75310	FRAME ASS'Y	1	SN: 1201-UP
	?	502-50-12320	PIN	1	SN: 1201-UP
	?	568-52-11170	PLATE	1	SN: 1201-UP
	?	01010-81425	BOLT	2	SN: 1201-UP
	?	01643-31445	WASHER	2	SN: 1201-UP
	?	07020-00000	FITTING	1	SN: 1201-UP

Komatsu HD255-5 S/N 1001-UP parts catalog PDF

MAIN FRAME (WATER SEPARATOR ? STRAINER SPEC.)(#1201-) (J3100-01A1A) in HD255-5 S/N 1001-UP. Diagram image and parts list.
