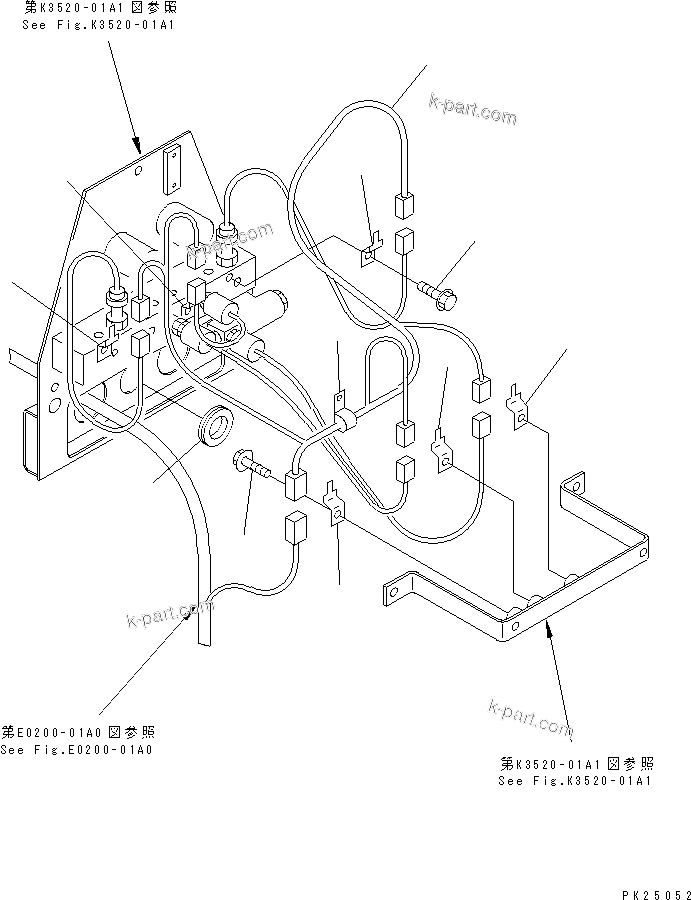

Komatsu parts book diagram for HD255-5 S/N 1001-UP: AIR BLOCK AND PIPING (WIRING HARNESS) (FOR EMERGENCY BRAKE)(#1001-1200)

? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	567-06-71151	WIRING HARNESS	1	SN: 1001-1200
	?	09415-03614	CAP	1	SN: 1001-1200
	?	04434-51010	CLIP	1	SN: 1001-1200
	?	08053-00910	CLIP	1	SN: 1001-1200
	?	01435-01016	BOLT	1	SN: 1001-1200
	?	08053-01510	CLIP	5	SN: 1001-1200
	?	01435-01016	BOLT	5	SN: 1001-1200

Komatsu HD255-5 S/N 1001-UP parts catalog PDF

AIR BLOCK AND PIPING (WIRING HARNESS) (FOR EMERGENCY BRAKE)(#1001-1200) (K3520-03A1) in HD255-5 S/N 1001-UP. Diagram image and parts list.
