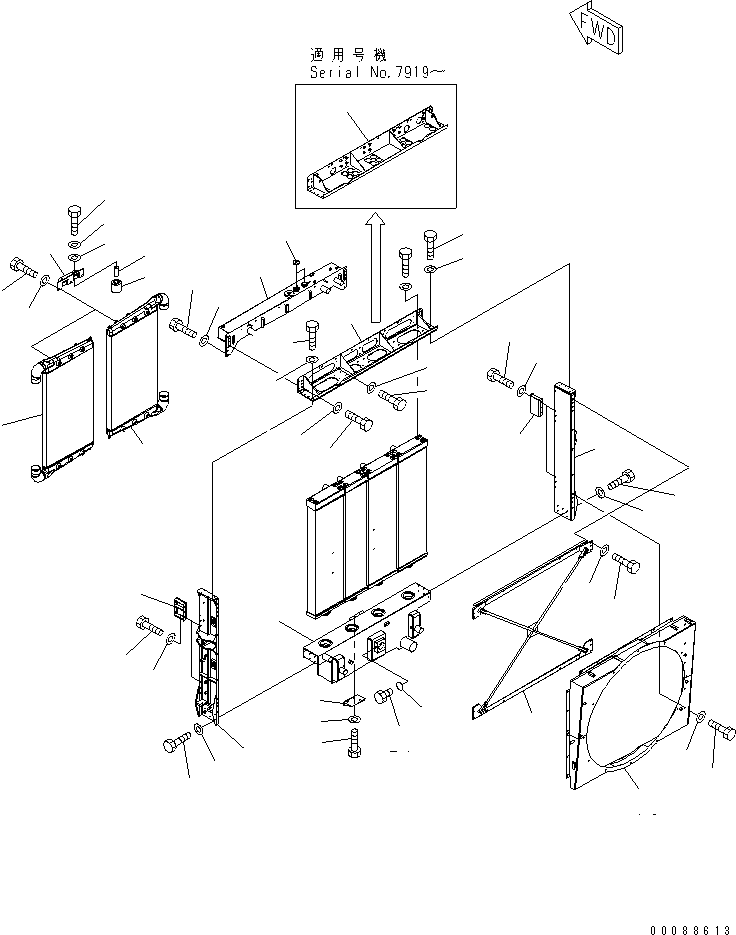

RADIATOR (1/2)(#7169-) | HD785-7 S/N 7001-8172 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
\|$16	561-03-84107	RADIATOR ASS'Y,AIR CONDITIONER	1	SN: 7739-UP
\|$17	561-03-84106	RADIATOR ASS'Y,AIR CONDITIONER	1	SN: (7739-7918)
\|$18	561-03-84105	RADIATOR ASS'Y,AIR CONDITIONER	1	SN: 7169-7738
\|$19	561-03-84204	RADIATOR ASS'Y,AIR CONDITIONER LESS	1	SN: 7739-UP
\|$20	561-03-84203	RADIATOR ASS'Y,AIR CONDITIONER LESS	1	SN: (7739-7918)
\|$21	561-03-84202	RADIATOR ASS'Y,AIR CONDITIONER LESS	1	SN: 7169-7738
\|$22	561-03-82702	RADIATOR ASS'Y,AIR CONDITIONER TROPICAL SPEC.	1	SN: 7739-UP
\|$23	561-03-82701	RADIATOR ASS'Y,AIR CONDITIONER TROPICAL SPEC.	1	SN: (7739-7918)
\|$24	561-03-82700	RADIATOR ASS'Y,AIR CONDITIONER TROPICAL SPEC.	1	SN: 7169-7738
\|$25	561-03-82802	RADIATOR ASS'Y,TROPICAL SPEC.	1	SN: 7739-UP
\|$26	561-03-82801	RADIATOR ASS'Y,TROPICAL SPEC.	1	SN: (7739-7918)
\|$27	561-03-82800	RADIATOR ASS'Y,TROPICAL SPEC.	1	SN: 7169-7738
\|$$13		THESE ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.C0110-01B0 TO C0110-02B0.	-1
1	561-03-81121	SUPPORT	1	SN: 7919-UP
1	561-03-81120	SUPPORT	1	SN: 7169-7918
2	561-03-81131	SUPPORT	1	SN: 7919-UP
2	561-03-81130	SUPPORT	1	SN: 7169-7918
3	561-03-81610	BRACKET	4	SN: 7169-UP
4	561-03-81660	AFTER COOLER	2	SN: 7169-UP
5	21N-03-37960	SPACER	4	SN: 7169-UP
6	198-03-22290	ISOLATOR	4	SN: 7169-UP
7	175-54-34170	WASHER	4	SN: 7169-UP
8	01010-81280	BOLT	4	SN: 7169-UP
9	01643-31232	WASHER	4	SN: 7169-UP
10	561-03-81921	BRACKET	2	SN: 7169-UP
11	01010-81230	BOLT	6	SN: 7169-UP
12	01643-31232	WASHER	6	SN: 7169-UP
13	561-03-81411	SHROUD	1	SN: 7169-UP
14	01010-81225	BOLT	10	SN: 7739-UP
14	01010-81225	BOLT	18	SN: 7169-7738
15	01643-31232	WASHER	10	SN: 7739-UP
15	01643-31232	WASHER	18	SN: 7169-7738
16	561-03-81110	TANK,UPPER	1	SN: 7169-UP
17	561-03-81450	STAY,CROSS	1	SN: 7169-UP
18	01010-81230	BOLT	52	SN: 7169-UP
19	01643-31232	WASHER	52	SN: 7169-UP
20	561-03-81310	TANK	1	SN: 7169-UP
21	07040-11007	PLUG	3	SN: 7169-UP
22	07002-21023	O-RING	3	SN: 7169-UP
23	569-03-81510	CAP	2	SN: 7169-UP
24	561-03-85190	BRACKET	1	SN: 7169-UP
25	01010-81230	BOLT	4	SN: 7169-UP
26	01643-31232	WASHER	4	SN: 7169-UP
27	561-03-81622	BRACKET	1	SN: 7919-UP
27	561-03-81621	BRACKET	1	SN: 7169-7918
28	01010-81225	BOLT	18	SN: 7169-UP
29	01643-31232	WASHER	18	SN: 7169-UP
30	01010-81025	BOLT	10	SN: 7169-UP
31	01643-31032	WASHER	10	SN: 7169-UP
