#	Part Number	Partname	Quantity	Options
?		SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.	-1

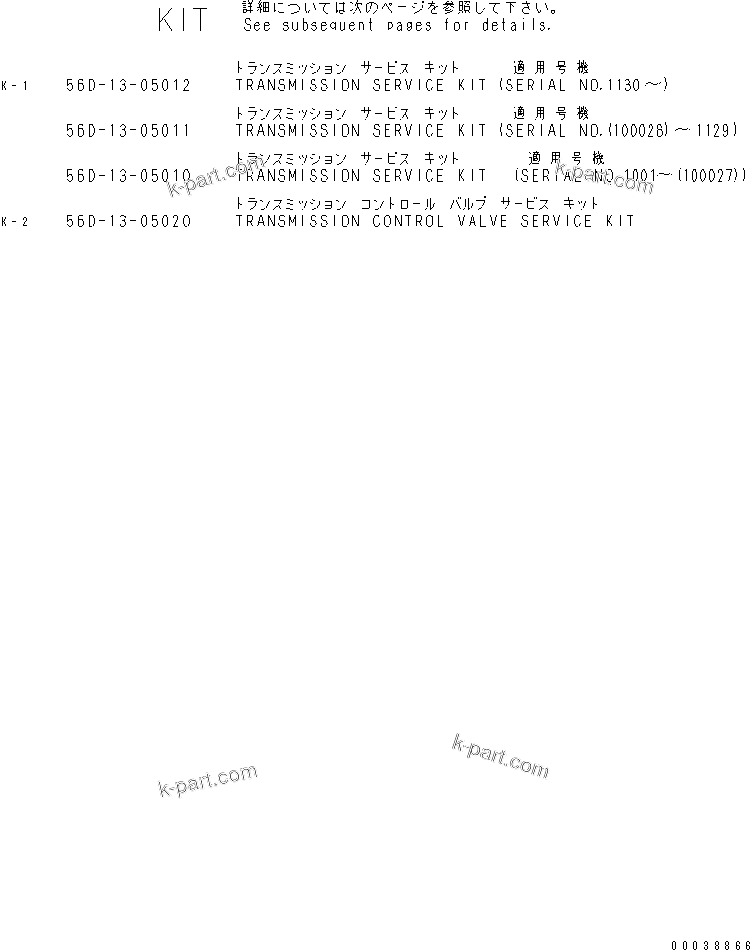

?	56D-13-05012	SERVICE KIT,TRANSMISSION	1	SN: 1130-UP
?	56D-13-05011	SERVICE KIT,TRANSMISSION	1	SN: (100028)-00001129
?	56D-13-05010	SERVICE KIT,TRANSMISSION	1	SN: 1001-(100027)
?	07000-72055	O-RING,(F3300-52A0 -49 )	1	SN: 1001-UP
?	07000-72060	O-RING,(F3300-61A0 -22 )	1	SN: 1001-UP
?	07000-72105	O-RING,(F3300-62A0 -9 )	4	SN: 1001-UP
?	07000-72130	O-RING,(F3300-64A0 -7 )	1	SN: 1001-UP
?	07000-72145	O-RING,(F3300-52A0 -33 )	1	SN: 1001-UP
?	07000-73022	O-RING,(F3300-61A0 -16 )	4	SN: 1001-UP
?	07000-73025	O-RING,(F3300-61A0 -11 )	2	SN: 1001-UP
?	07000-73028	O-RING,(F3300-61A0 -23 )	1	SN: 1001-UP
?	07000-73028	O-RING,(F3300-62A0 -5 )	1	SN: 1001-UP
?	07000-73045	O-RING,(F3300-63A0 -8 )	1	SN: 1001-UP
?	07000-75065	O-RING,(F3300-56A0 -5 )	1	SN: 1001-UP
?	07000-75065	O-RING,(F3300-64A0 -10 )	1	SN: 1001-UP
?	07000-75150	O-RING,(F3300-52A0 -14 )	1	SN: 1001-UP
?	07000-75160	O-RING,(F3300-52A0 -28 )	1	SN: 1001-UP
?	07000-75220	O-RING,(F3300-52A0 -22 )	1	SN: 1001-UP
?	07000-75485	O-RING,(F3300-63A0 -7 )	1	SN: 1001-UP
?	07002-12034	O-RING,(F3300-63A0 -16 )	2	SN: (100028)-UP
?	07005-02416	SEAL, WASHER,(F3300-61A0 -5 )	12	SN: 1001-UP
?	07018-31405	RING,(F3300-51A0 -17 )	1	SN: 1001-UP
?	154-15-22831	RING,(F3300-57A0 -32 )	1	SN: 1001-UP
?	287-15-19210	RING,(F3300-57A0 -31 )	1	SN: 1001-UP
?	425-15-28710	SEAL,(F3300-64A0 -6 )	1	SN: 1001-UP
?	419-15-18131	LIQUID GASKET,(F3300-52A0 -50 )	1	SN: 1001-UP
?	56B-15-19210	RING,(F3300-55A0 -21 )	1	SN: 1001-UP
?	56D-15-14310	SHIM, 0.5MM,(F3300-52A0 -29 )	8	SN: 1001-UP
?	56D-15-14320	SHIM, 0.2MM,(F3300-52A0 -29 )	4	SN: 1001-UP
?	56D-15-14330	SHIM, 0.15MM,(F3300-52A0 -29 )	4	SN: 1001-UP
?	56D-15-19250	RING,(F3300-55A0 -30 )	3	SN: 1130-UP
?	56D-15-19230	RING,(F3300-55A0 -30 )	3	SN: 1001-1129
?	56D-15-19240	RING,(F3300-53A0 -20 )	5	SN: 1001-UP
?	56D-15-19240	RING,(F3300-54A0 -19 )	3	SN: 1001-UP
?	569-15-12890	RING,(F3300-51A0 -32 )	2	SN: 1001-UP
?	712-86-13330	SHIM, 0.5MM,(F3300-52A0 -18 )	8	SN: 1001-UP
?	712-86-13340	SHIM, 0.2MM,(F3300-52A0 -18- )	4	SN: 1001-UP
?	712-86-13350	SHIM, 0.15MM,(F3300-52A0 -18- )	4	SN: 1001-UP
?	714-07-19320	RING,(F3300-54A0 -10 )	2	SN: 1001-UP
?	714-08-19210	RING,(F3300-53A0 -9 )	2	SN: 1001-UP
?	714-08-19220	RING,(F3300-55A0 -9 )	1	SN: 1001-UP
?	714-13-19210	RING,(F3300-53A0 -8 )	2	SN: 1001-UP
?	714-16-19210	RING,(F3300-55A0 -10 )	1	SN: 1001-UP
?	714-16-19210	RING,(F3300-55A0 -22 )	1	SN: 1001-UP
?	714-16-19230	RING,(F3300-54A0 -9 )	2	SN: 1001-UP
?	56D-13-05020	SERVICE KIT,TRANSMISSION CONTROL VALVE	1	SN: 1001-UP
?	07000-73030	O-RING,(F3300-60A0 -9 )	5	SN: 1001-UP
?	07000-71007	O-RING,(F3300-58A0 -7 )	8	SN: 1001-UP
?	07000-72015	O-RING,(F3300-58A0 -6 )	32	SN: 1001-UP
?	07000-72015	O-RING,(F3300-58A0 -18 )	21	SN: 1001-UP
?	07000-72015	O-RING,(F3300-58A0 -37 )	4	SN: 1001-UP
?	07000-72020	O-RING,(F3300-58A0 -42 )	1	SN: 1001-UP
?	07000-73022	O-RING,(F3300-58A0 -11 )	2	SN: 1001-UP
?	07000-73022	O-RING,(F3300-58A0 -19 )	5	SN: 1001-UP
?	07000-73030	O-RING,(F3300-58A0 -29 )	5	SN: 1001-UP
?	07000-73035	O-RING,(F3300-58A0 -38 )	3	SN: 1001-UP
?	07002-03034	O-RING,(F3300-59A0 -4 )	1	SN: 1001-UP
?	07002-03034	O-RING,(F3300-59A0 -13 )	1	SN: 1001-UP
?	07002-03034	O-RING,(F3300-59A0 -21 )	2	SN: 1001-UP
?	07002-11823	O-RING,(F3300-58A0 -10 )	1	SN: 1001-UP
